PROTECTOR FILM

TSB Revision

BODY

42A-19

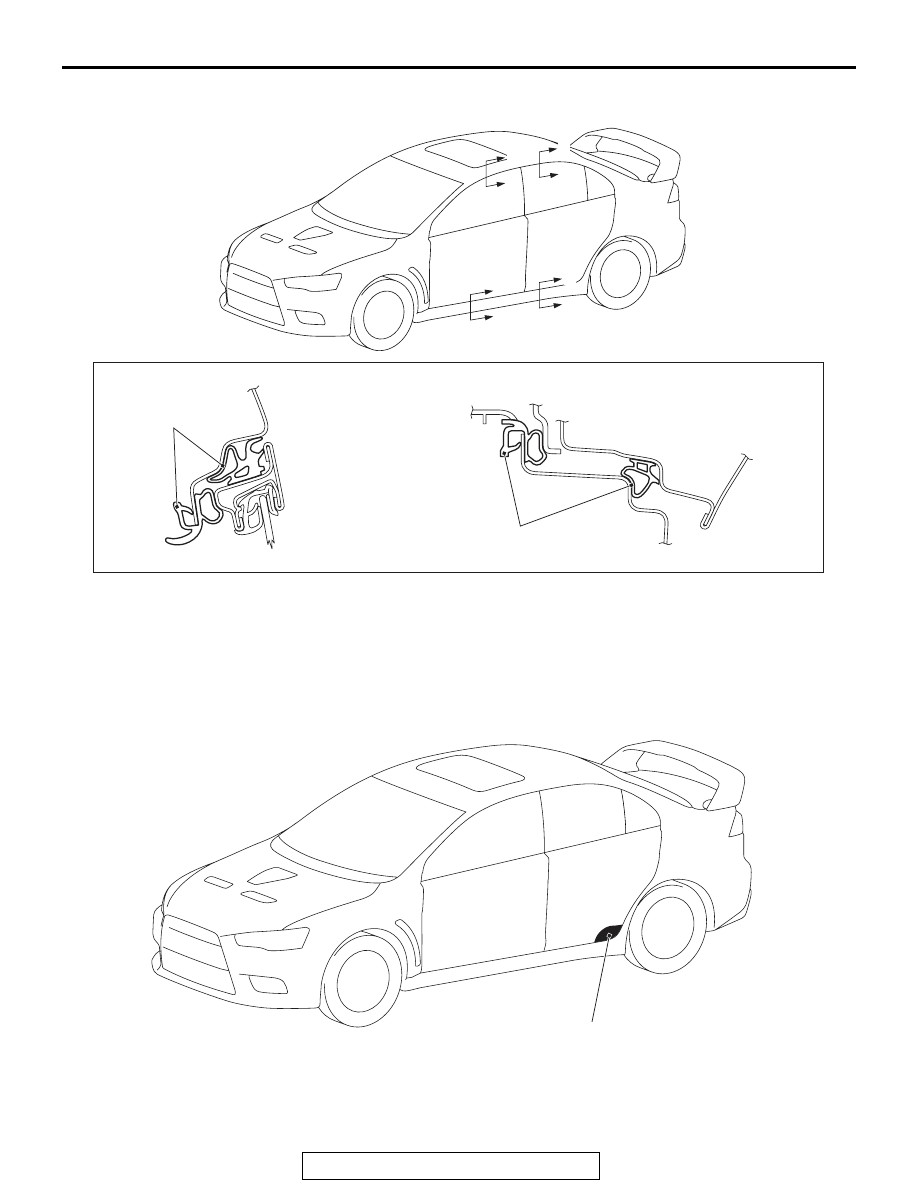

WEATHERSTRIP

M2420020000397

The double weather strips have been installed along
the perimeter of the door window to improve the
sound-proof and water-proof performances.

PROTECTOR FILM

M2420021000271

The rear lower part of the rear door is equipped with
a protector film to prevent paint chipping and
scratches caused by stone chips.

AC705681AB

A

A

A

A

B

B

B

B

Section A – A

Section B – B

Door opening
weatherstrip

Door opening weatherstrip

AC707659AB

Protector film

TRUNK LID

TSB Revision

BODY

42A-20

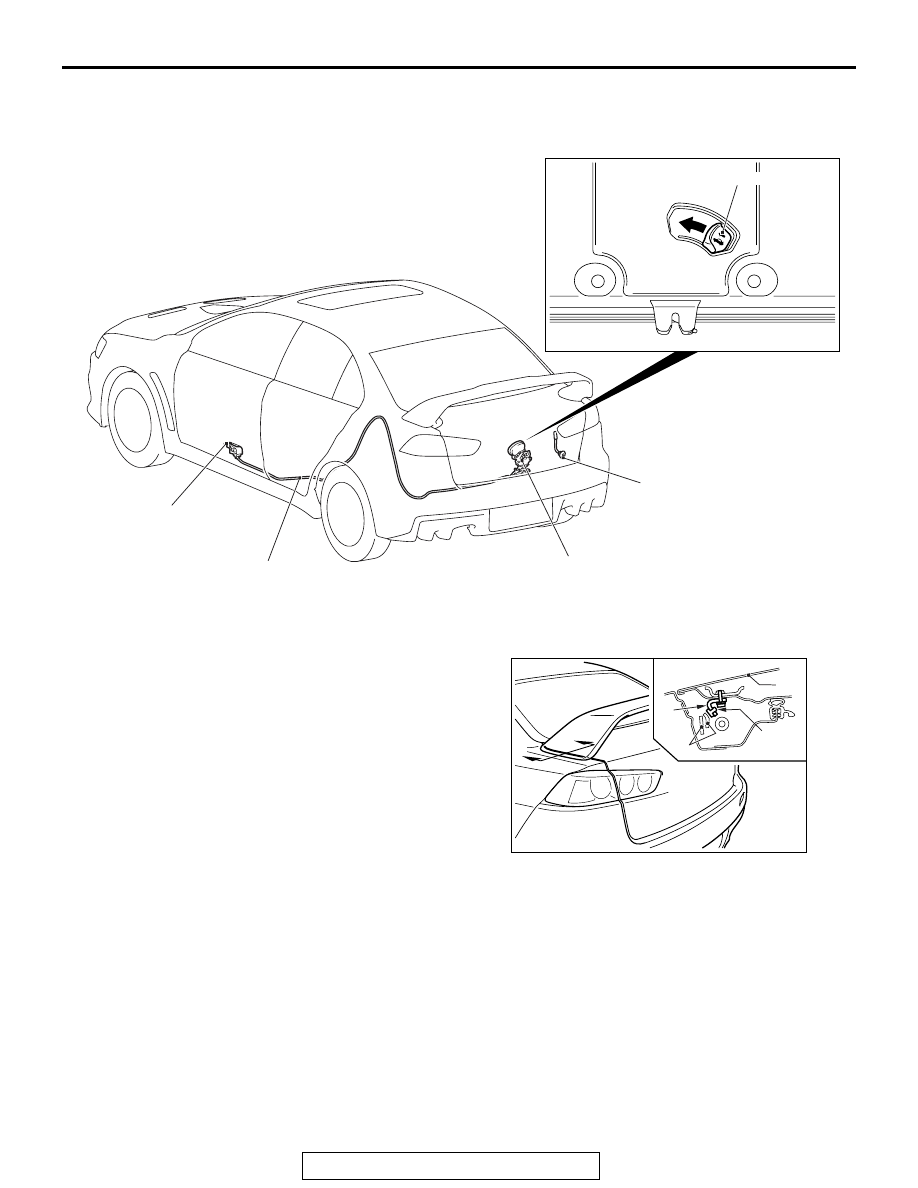

TRUNK LID

M2420013000179

TRUNK LID LATCH

• The trunk lid latch prevents a person from being

confined in the luggage compartment in an acci-
dent.
You can open the trunk lid by pulling an emer-
gency trunk lid release handle to the arrow direc-
tion when you are confined in the luggage
compartment in an accident.

• The emergency trunk lid release handle glows by

absorbing light, so you can operate the handle
even in a dark luggage compartment.
NOTE: The glow time depends on the amount of
light absorption, but the handle will glow four
hours maximum when exposed to sunlight for 30
seconds or more. The glow performance
depends on environmental conditions.

TRUNK LID LATERAL RUNOUT
PREVENTION

.

To the backside of trunk lid, the trunk lid stay damper
bracket and trunk lid damper have been added in
order to prevent the trunk lid lateral runout during
driving on rough roads.
1. Trunk lid stay bumper bracket
2. Trunk lid bumper
3. Trunk lid
4. Trunk lid hinge

AC607032
AC607045

AC703155

AC708668

AC708688

AC608555

AB

Emergency trunk lid release handle

Trunk lid release handle

Trunk lid release cable

Trunk lid latch assembly

Trunk lid open switch
<Vehicles with keyless operation
system>

AC708194

AC

2

3

A

1

4

A

Section A – A

TRUNK LID

TSB Revision

BODY

42A-21

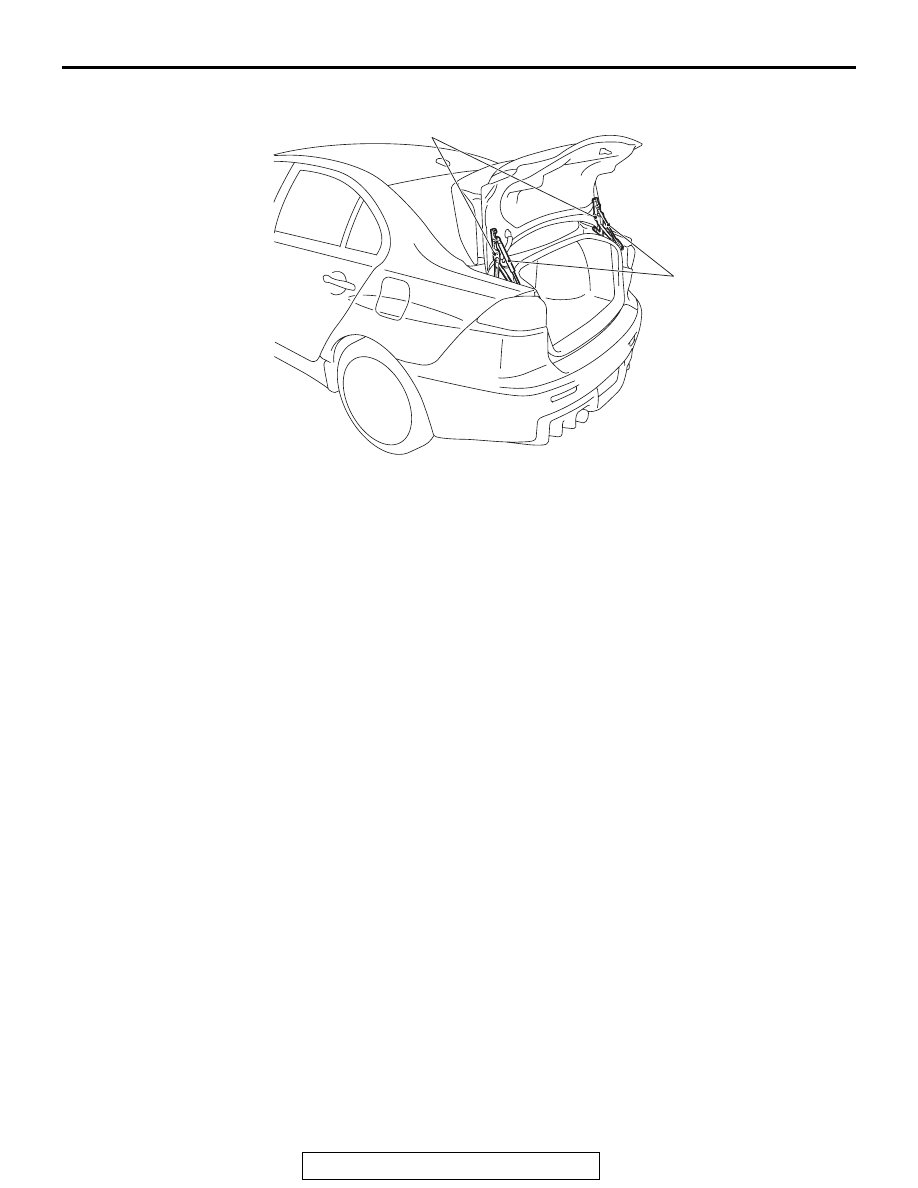

TRUNK LID GAS SPRING AND HINGE

• Trunk lid gas spring has been adopted to achieve

the following upgrade.

• Reduction of operating force when opening

the lid

• Prevention of sudden release when opening

the lid by action of gas spring damper

• Link type trunk lid hinge has been adopted to

offer the following convenience.

• Expansion of luggage capacity

• Improvement to loading/unloading of

large-size luggage and ease of storing

• Reduction of rearward lid protrusion when

opening/closing the lid

AC706493AB

Trunk lid gas spring

Trunk lid hinge

WINDOW GLASS

TSB Revision

BODY

42A-22

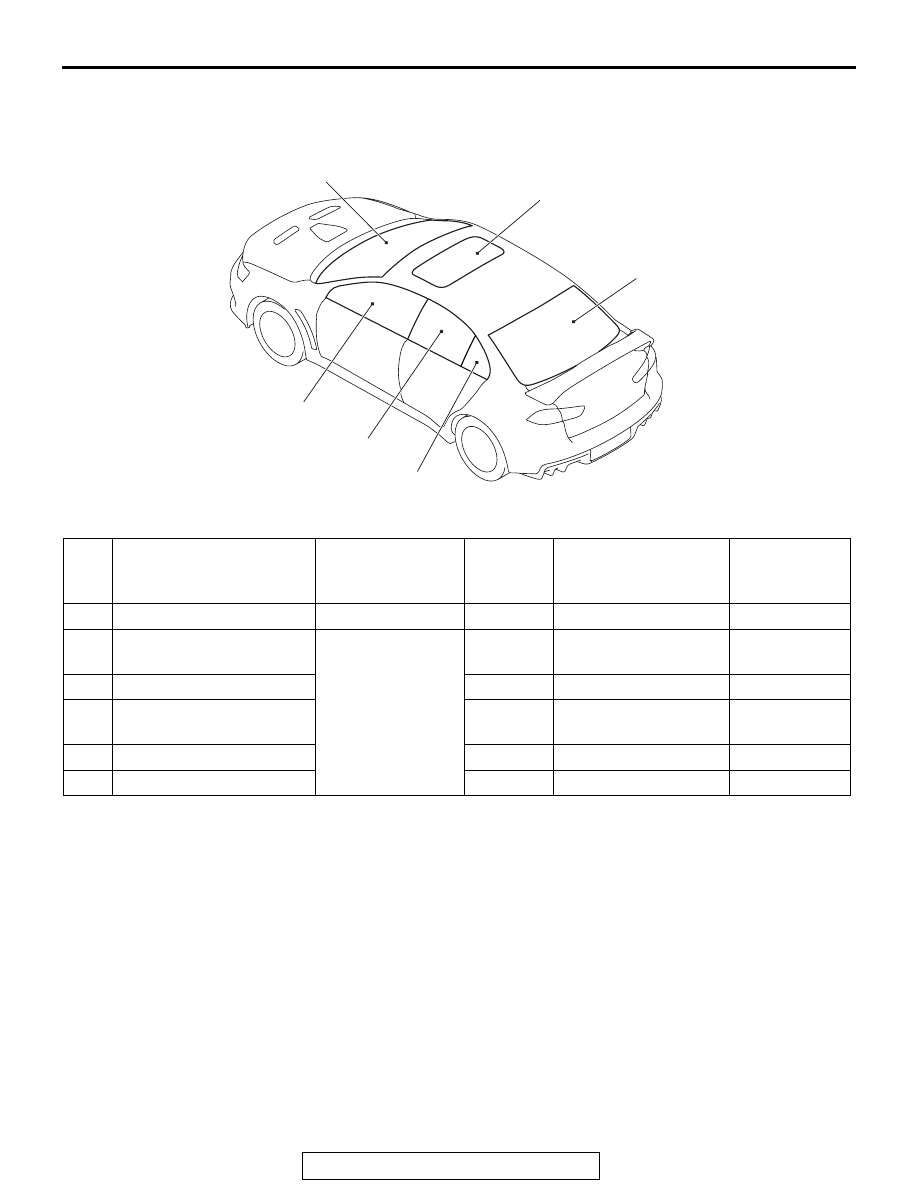

WINDOW GLASS

M2420015001093

VISIBLE RAY TRANSMISSIVITY RATE FOR WINDOW GLASS

NOTE: The visible ray transmissivity rate (%) is a ref-
erence value.
The windshield is laminated glass and the other
glass is made of reinforced glass. Window glass has
the following features.

• The UV-reducing glass has been used to the front

door glass as standard.

AC705467

1

2

3

4

5

6

AC

No.

Name

Type

Thickness
mm (inch)

Color

Visible ray
transmissivity
rate (%)

1

Windshield

Laminated glass

4.7 (0.185) Green

79

2

Front door window glass

Tempered glass

3.5 (0.138) Green (UV-reducing

glass)

75

3

Rear door window glass

3.1 (0.122) Green

82

4

Rear stationary window
glass

3.1 (0.122) Green

82

5

Rear window glass

3.1 (0.122) Green

82

6

Sunroof lid glass

3.5 (0.138) Dark gray

18
