STEERING SHAFT AND COLUMN

TSB Revision

POWER STEERING

37-6

SECONDARY COLLISION

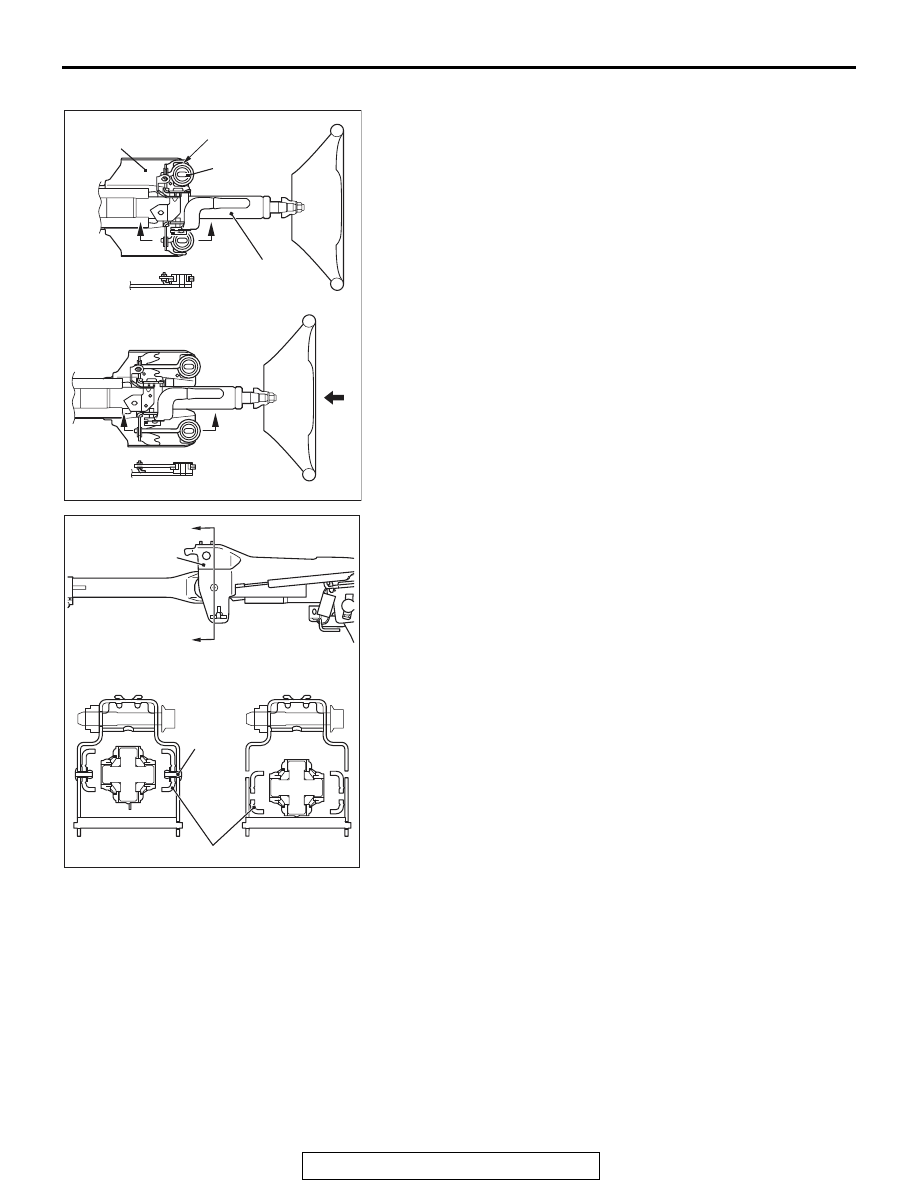

When the load of the driver's body is applied to the steering
wheel after the airbag deployment, the column pipe is sepa-
rated from the column bracket for reducing the impact applied
to the driver.

AC710607AB

A

A

B

B

Before collision

After collision

Column bracket

Pin

Section B - B

Section A - A

Column pipe

One-way
capsule

AC708305 AB

A

A

Column pipe

Section A - A

Before collision

After collision

Column bracket

Pin

OIL PUMP

TSB Revision

POWER STEERING

37-7

OIL PUMP

M2370004000544

The oil pump is a vane type with a fluid flow control
system which functions so the steering wheel turning
effort will be reduced at low engine speeds and
increase at higher speeds.

The oil pump is essentially the same as the conven-
tional one in construction.

STEERING GEAR

M2370003000756

The steering gear and linkage is mounted on the
front axle crossmember via three bushings with inner
cylinders, and has the following features.

• The bushing with inner cylinder supports the

steering gear and linkage in the vertical and
fore-and-aft direction with high rigidity, and con-
siderably improves the steering feeling.

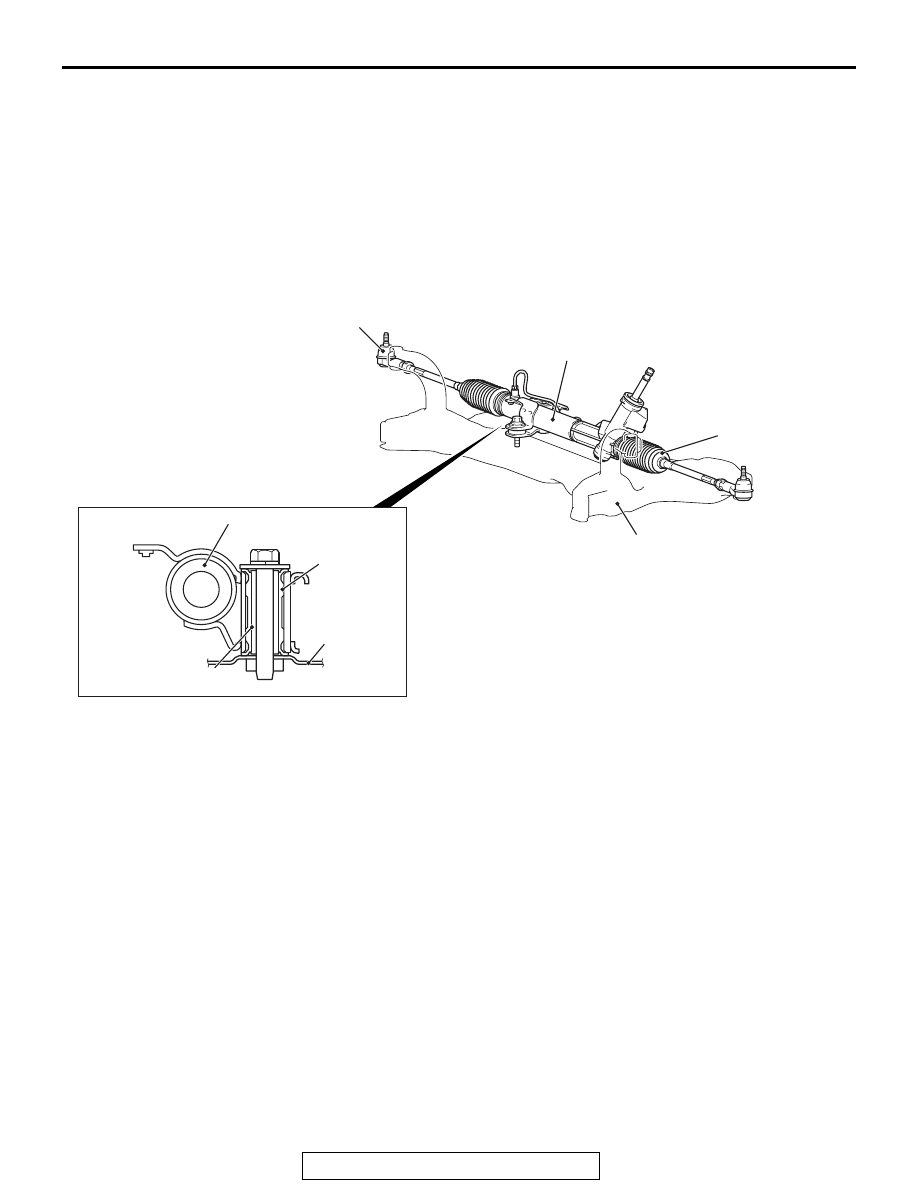

AC708300AB

Tie-rod end

Gear housing

Gear housing

Tie-rod bellows

Front axle crossmember

Inner pipe

Bushing

Front axle
crossmember

OIL RESERVOIR

TSB Revision

POWER STEERING

37-8

OIL RESERVOIR

M2370005000547

The resin oil reservoir is used to reduce weight. The oil reser-
voir is translucent and has fluid level marks (MAX and MIN
lines), facilitating inspection.

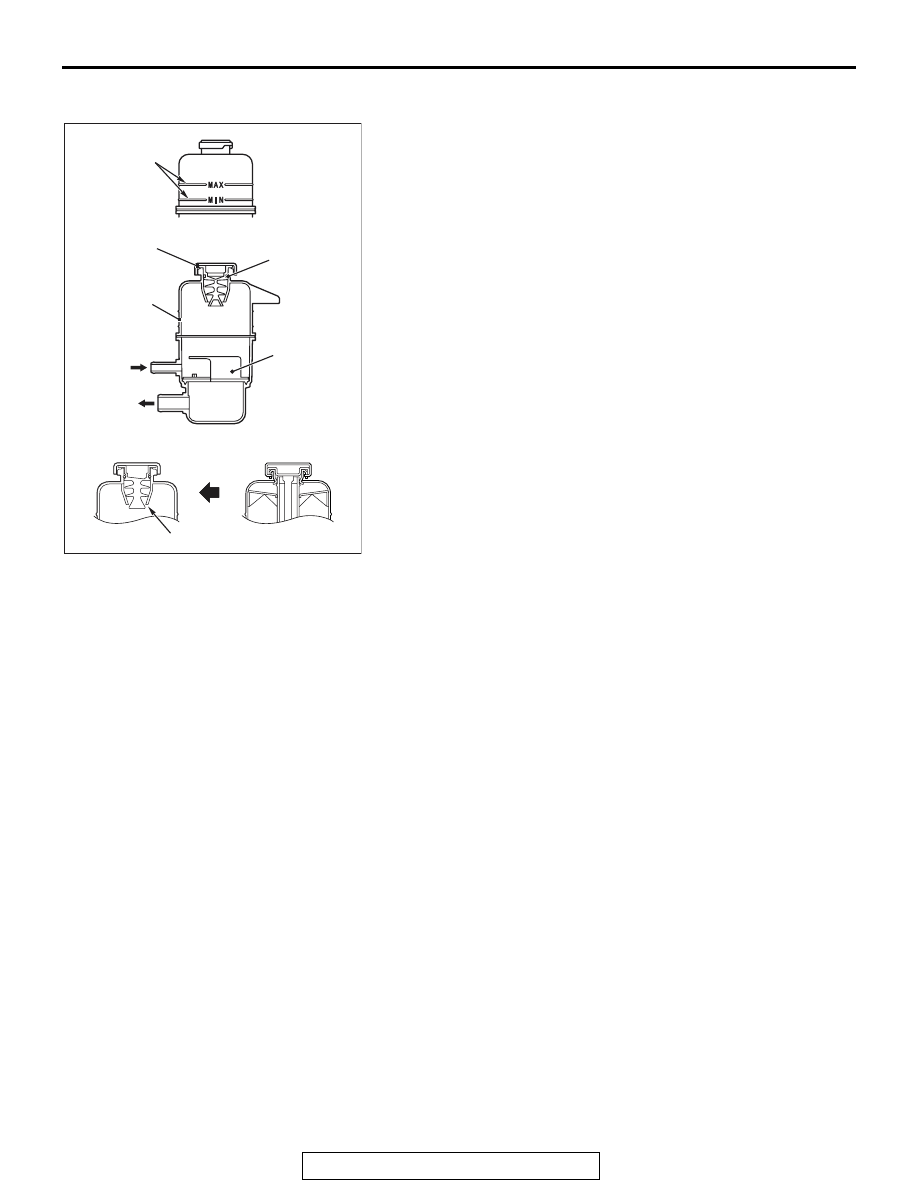

AC708306 AB

<Lancer Evolution X>

<Base
 (Lancer Evolution IX)>

Scale

Cap

O-ring

Filter

Oil reservoir

Return

Suction

Baffle plate
