GENERAL INFORMATION
TSB Revision

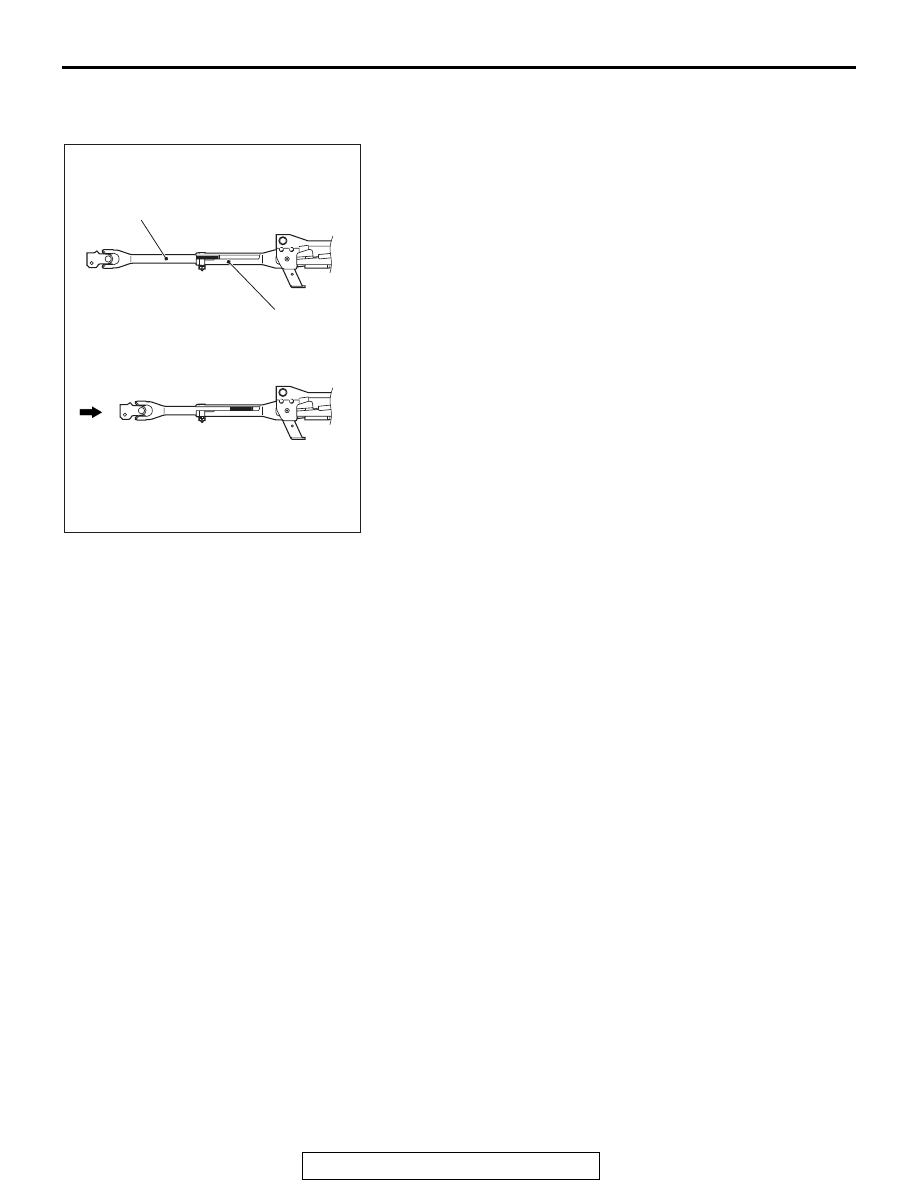

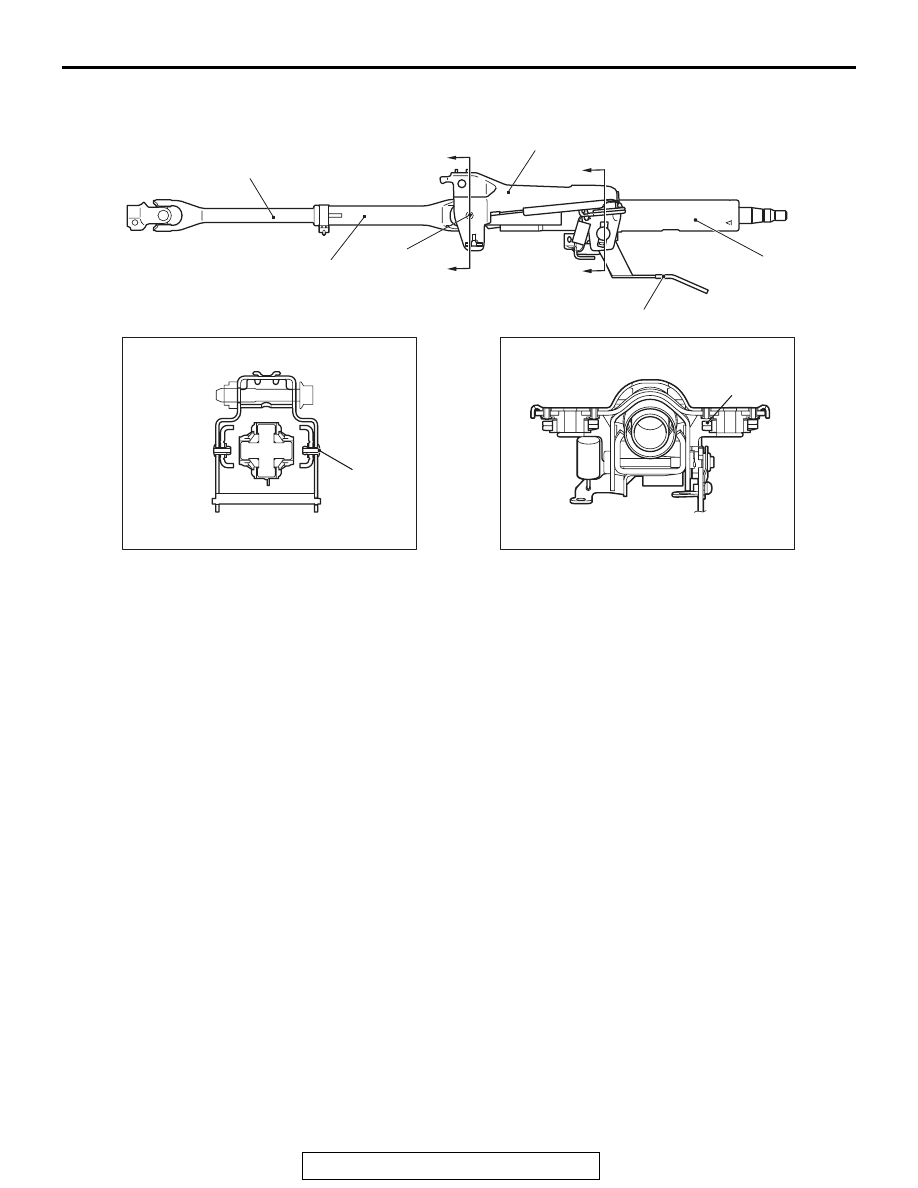

POWER STEERING
37-2
GENERAL INFORMATION
M2370000101478

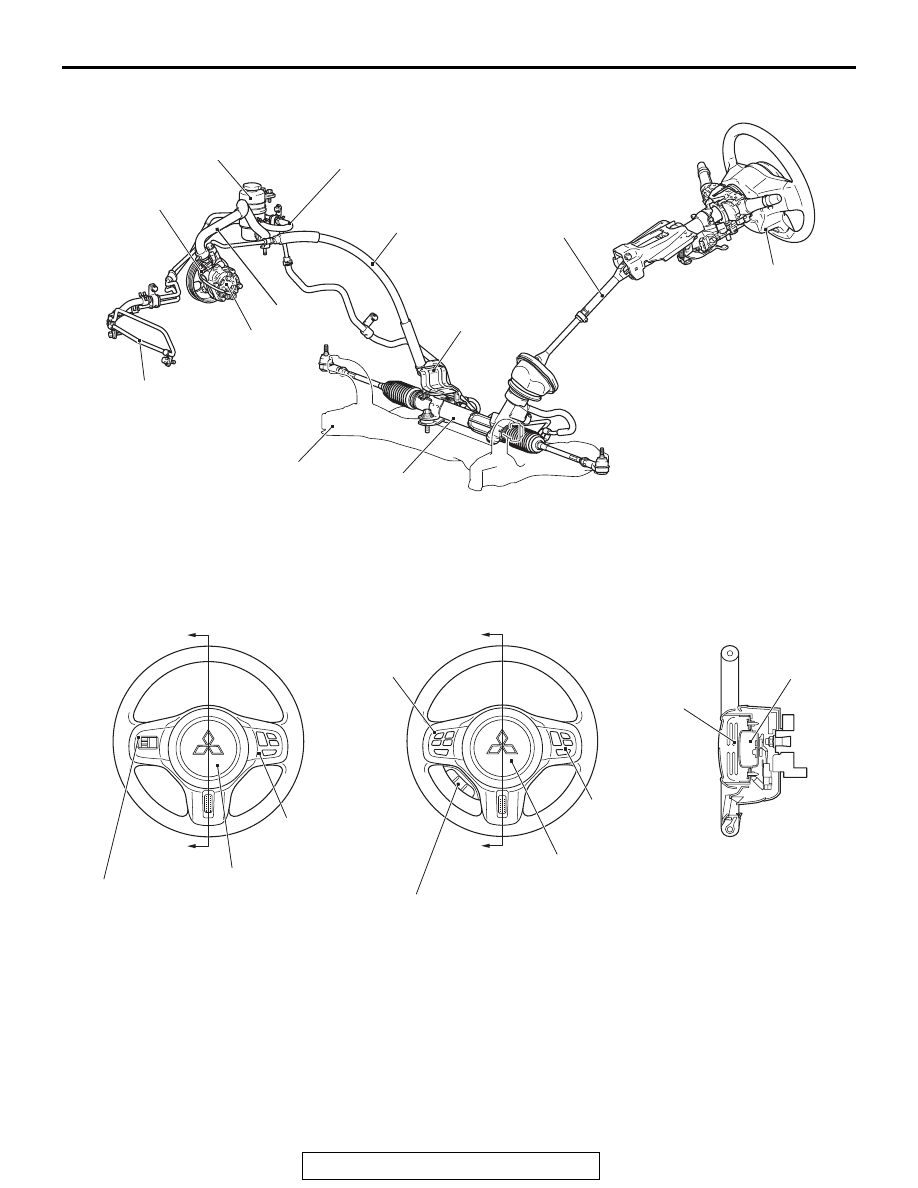

The hydraulic power steering system has been
adopted.
The steering system offers the following features.
• The support method of the steering gear to the
crossmember is realized by the left and right
bushings with inner cylinders for improved steer-
ing feeling.
• The AWC switch has been installed on the steer-
ing wheel top surface for improved convenience.
• For some models, the steering wheel audio
remote control switch and steering wheel voice
control switch have been established for
improved convenience.
• The variable flow pump, which reduces the
engine loss by controlling the flow amount neces-
sary for driving straight ahead or cornering, has
been adopted.
• The flexible tube length in the high pressure hose
has been optimized for reducing the pump noise.
• The reservoir tank already adopted for Outlander
has been adopted, and the baffle plate inside the
cap has been improved to prevent oil leakage
under the high load condition.
SPECIFICATIONS
Item
Specifications
Steering wheel
Shape
Three-spoke type
Outer diameter mm (in)
365 (14.3)
Maximum number of rotation
2.27
Power steering type
Integral type (Engine speed-dependent
type)
Oil pump
Shape
Vane type with fluid flow amount control
system
Basic discharge rate cm
3
/rev.
(cu in/rev)
9.0 (0.55)
Relief pressure MPa (psi)
8.55 (1.197)
Reservoir type
Separation type (Resin made)
Steering gear and linkage
Shape
Rack and pinion type
Stroke ratio (rack
stroke/number of steering
wheel rotation) mm/rev
(in/rev)
65.97 (2.59)
Rack stroke mm (in)
150 (5.9)
Steering angle
Inside wheel
33
°
Outside wheel
28
°
