POWER PLANT MOUNT
32-2
GENERAL INFORMATION
M2320000101116
For the power plant support, the inertial axis
four-point mounting system is adopted, and the sys-
tem has the following features.
• Environmental-load substances are totally abol-
ished for hexavalent chromium-free and lead-free
components.
• For the engine and transaxle mounting insulator,
the cylindrical liquid seal mountings are adopted.
This reduces idling vibration and acceleration
noise, and improves riding comfort.
• For the engine mounting bracket, lightweight and
high rigidity aluminum is adopted to reduce
• A front axle crossmember is adopted to improve
steering ability.
• The mass damper is added into the centermem-
ber to reduce muffled sound during acceleration.
• The front axle crossmember bar and the front
axle crossmember stay are added to enhance
rigidity.

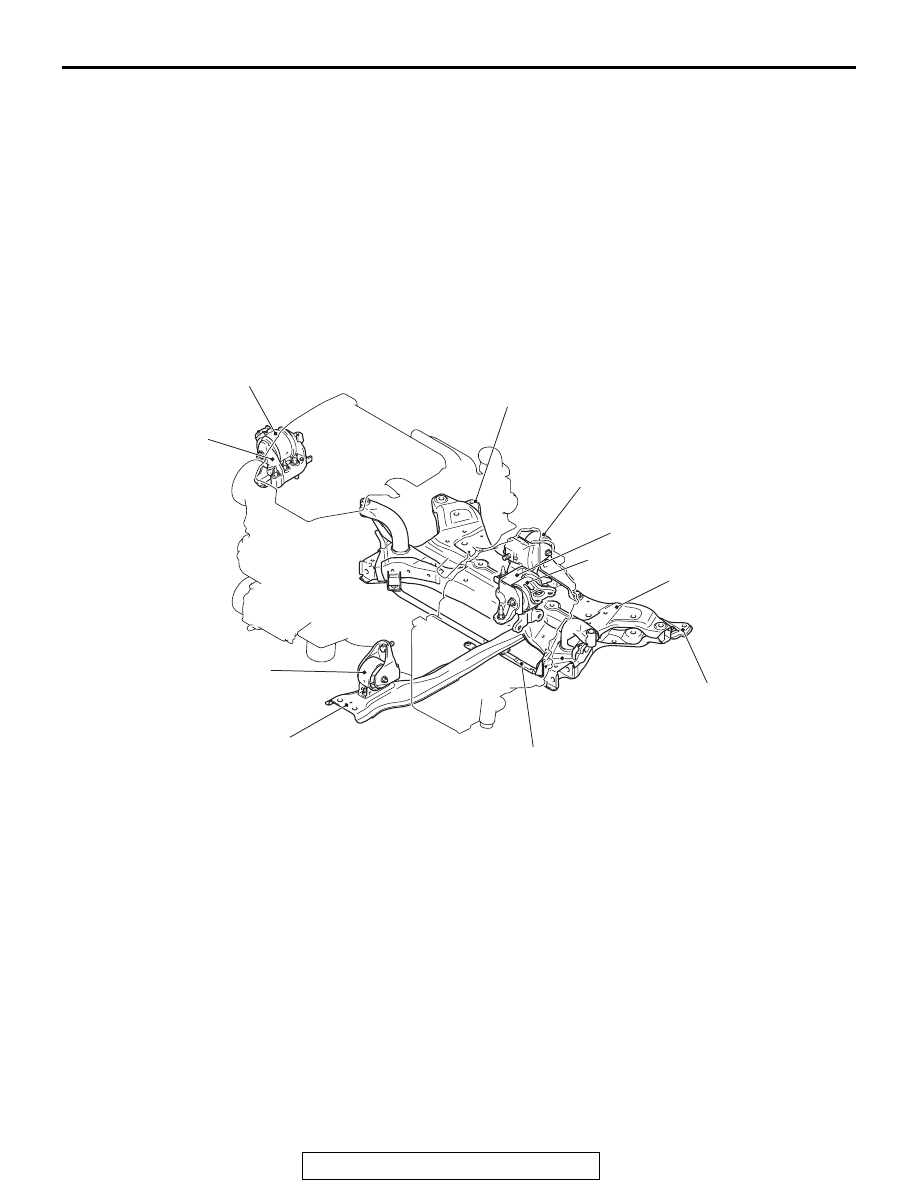

CONSTRUCTION DIAGRAM

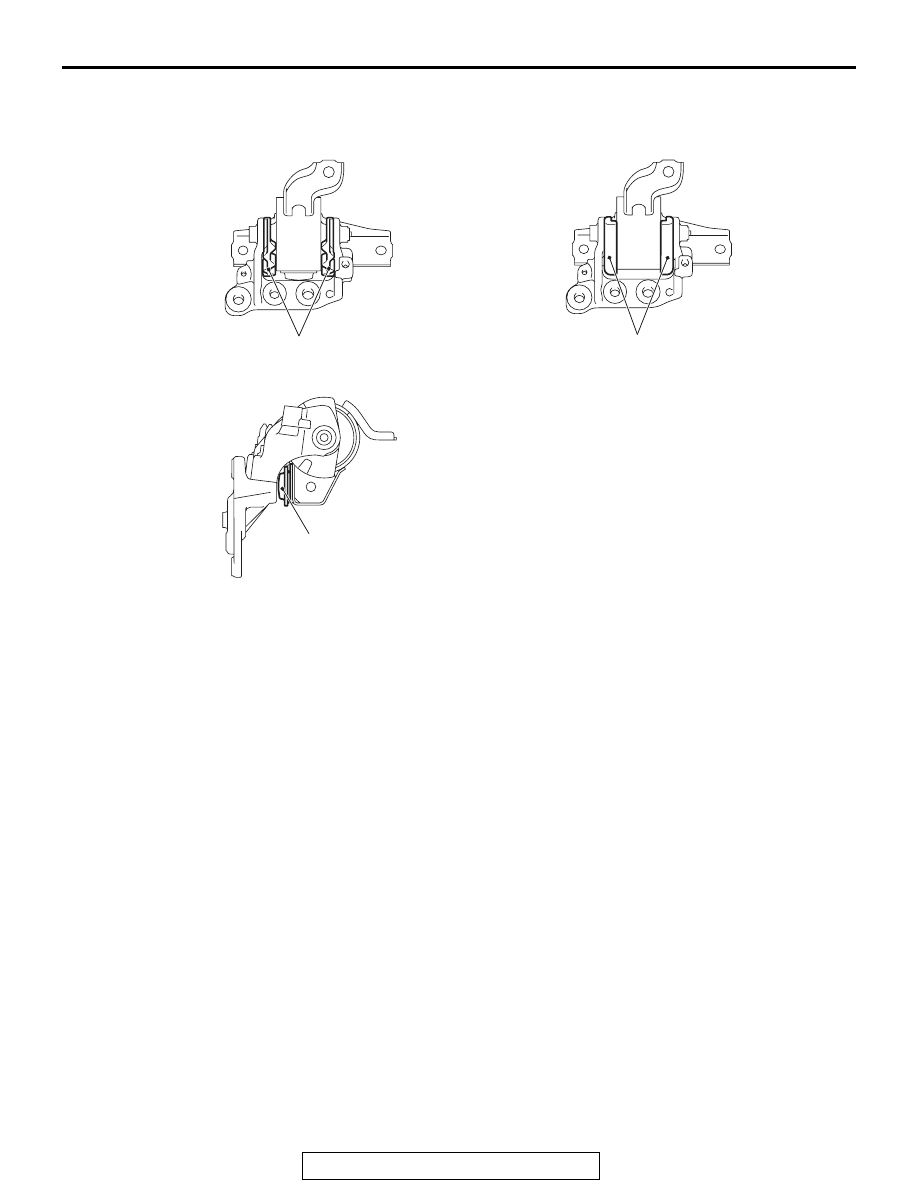

• The shape of engine mounting insulator stopper
is optimized to reduce vibration transfer.
• The engine mounting stopper is added to the
engine mounting insulator to reduce movement of
engine. <TC-SST>
AC705784AC
Engine mounting insulator
Engine mounting
bracket
Front axle crossmember bar
Front roll stopper
Centermember
Front axle crossmember stay
Front axle crossmember
Transaxle mounting bracket
Transaxle mounting insulator
Rear roll stopper
Front axle crossmember stay
