GENERAL DESCRIPTION

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-2

GENERAL DESCRIPTION

M2551001500084

The new HVAC unit integrates blower, and evapora-
tor, it increases the air flow but reduces air flow resis-
tance and air flow noise.

FEATURES

.

ENHANCEMENTS IN COMFORT

• With the adoption of automatic A/C system, the

air inlets (fresh air/recirculation air), the vents,
temperature at the vents and fan speed are auto-
matically controlled according to the outside tem-
perature and cabin temperature so that the
optimum air conditioning is achieved.

• By the adoption of clean air filter, the air quality in

the cabin has been kept.

.

ENHANCEMENTS IN OPERATION
PERFORMANCE

• Operability has been enhanced by the adoption

of large triple dial.

• Customize function has been added for the

enhanced convenience.

.

ENHANCEMENTS IN FUEL ECONOMY

• The high efficiency compressor with a 2-step and

the oil separator has reduced A/C system work-
load, thus enhancing the fuel economy.

• The idle-up speed is controlled in two steps to

secure the air cooling performance during sum-
mer and to enhance the fuel economy in the
moderate seasons.

• The cooling fan control depending on the refriger-

ant pressure and on the vehicle speed reduce
alternator load, thus enhancing the fuel economy.

.

ENHANCEMENT IN SAFETY

• A/C system will shut down automatically if the air

bags are open.

• Crushable space has been adopted into HVAC

unit to reduce the risk of passenger injuries if a
collision occurred.

.

GLOBAL ENVIRONMENT PROTECTION

• New refrigerant system (HFC134a) has been

adopted.

• Clean air filter media and its cover are separated

to reduce waste materials, when replacing the fil-
ter.

.

ENHANCEMENTS IN SERVICE QUALITY

• Reduction of refrigerant gas leakage and

enhancement in serviceability by incorporating
condenser and receiver

• Clean air filter is installed to the backside of glove

box to facilitate the filter replacement.

.

ENHANCEMENTS IN RESPONSIBILITY

Reliable information transmission is achieved by
connecting A/C-ECU and each ECU via CAN com-
munication.

SPECIFICATIONS

ITEM

SPECIFICATION

Air conditioning switch type

Rotary type

Compressor type

MSC90CAS

Cooling output

5.5 kw

Heating output

5.7 kw

Refrigerant

Type

R134a (HFC-134a)

Charge quantity g (oz.)

480 - 520 (16.9 - 18.3)

GENERAL DESCRIPTION

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-3

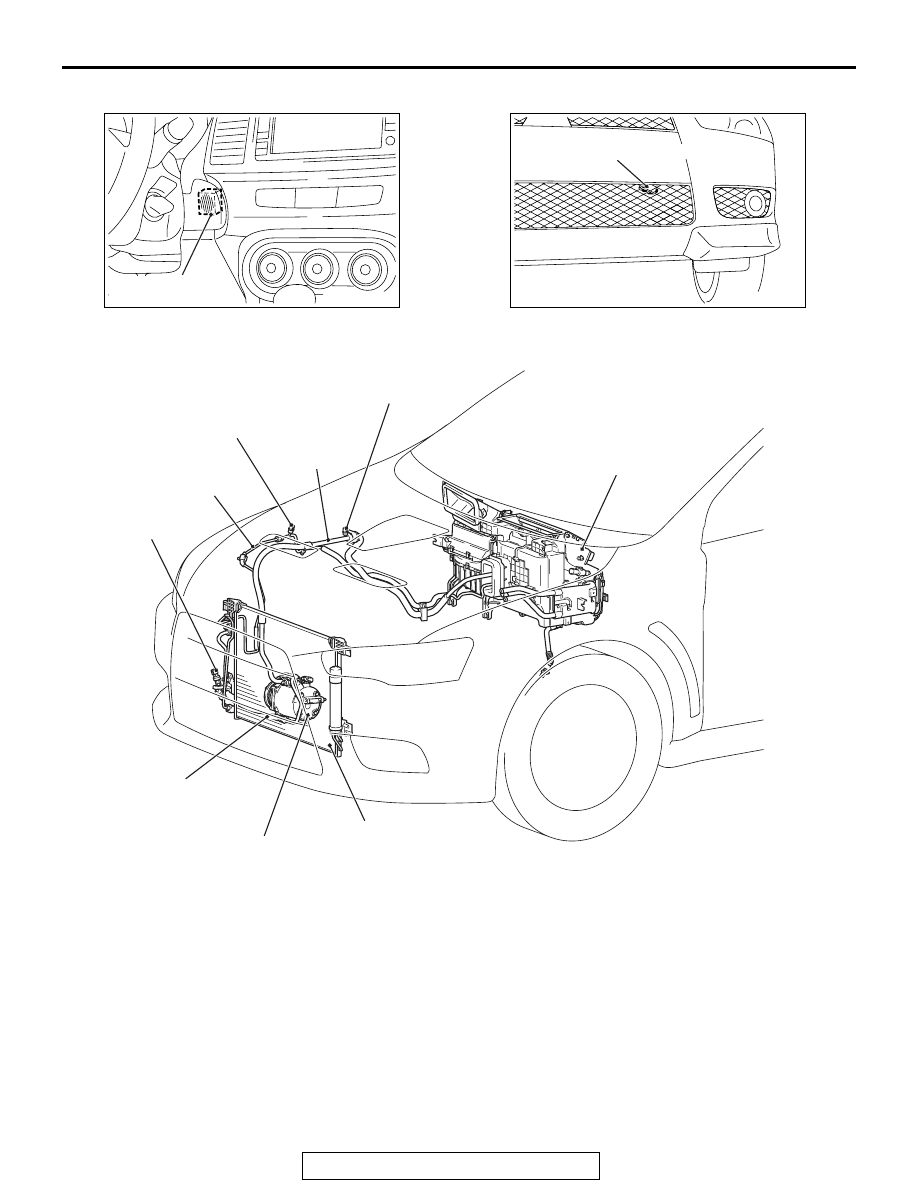

CONSTRUCTION DIAGRAM

AC608755

AD

Interior temperature
sensor

AC608760

AB

Ambient air temperature sensor

AC708434

Heater unit

Liquid pipe

A/C pressure sensor

Suction
flexible hose

Discharge
flexible hose

Condenser

A/C compressor

AC

Low-pressure side valve

High-pressure
side valve
