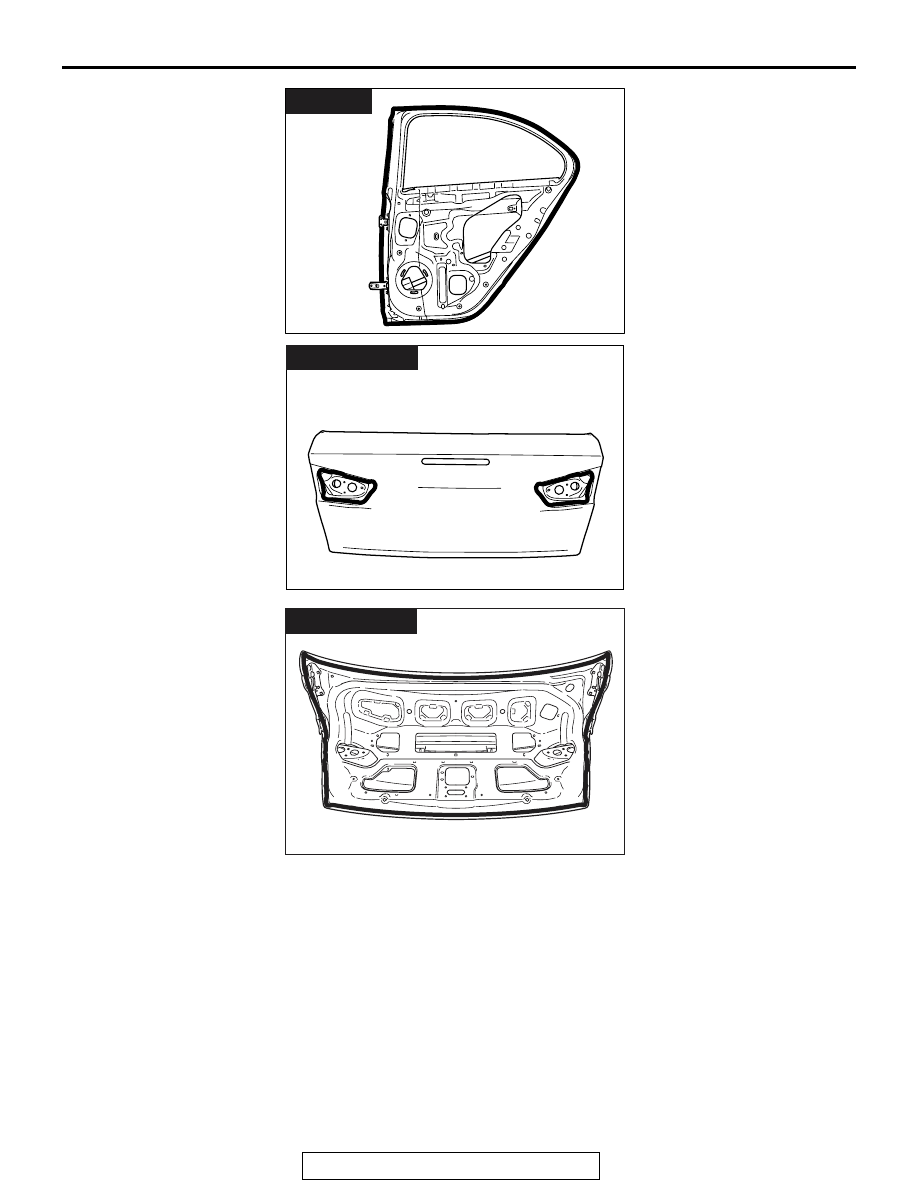

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-9

AB601135

AC

Rear door

AB601136

AC

Trunk lid (outer)

AB700344AB

Trunk lid (inner)

UNDERCOAT APPLICATION LOCATIONS

TSB Revision

CORROSION PROTECTION

4-10

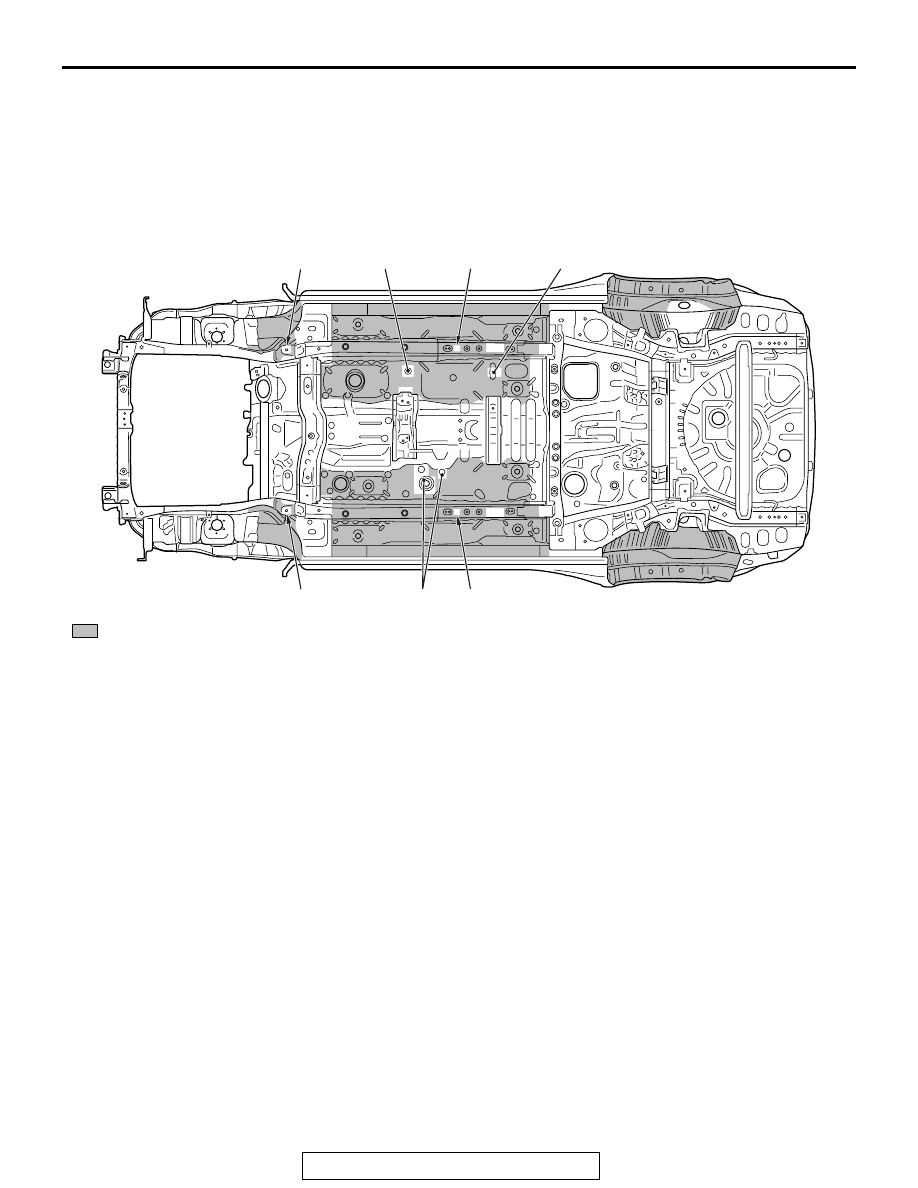

UNDERCOAT APPLICATION LOCATIONS

M4040003001030

• The under parts of the body is undercoated for

anti-corrosive, anti-rust, anti-chipping, and
anti-vibration performance.

• After correcting the body, restore as shown in the

instructions of the figure, if necessary.

• Tape the areas marked with an asterisks to pro-

tect those areas from getting any undercoating
on those areas.

AB701026AB

 : Undercoat [film thickness is at least 0.5 mm (0.0197 inch)]

*

*

*

*

*

*

*

GROUP INDEX

1

BODY CONSTRUCTION   . . . . . . . . .

2

BODY DIMENSIONS . . . . . . . . . . . . .

3

WELDED PANEL REPLACEMENT. .

4

CORROSION PROTECTION   . . . . . .

5

SYNTHETIC-RESIN PARTS  . . . . . . .

6

BODY COLOR . . . . . . . . . . . . . . . . . .

9

BASE OF BODY REPAIR . . . . . . . . .

2008

MITSUBISHI

LANCER EVOLUTION

BODY

REPAIR MANUAL

FOREWORD

This manual has been prepared for the use of all
service mechanics engaged in the body repair service.
Body dimensions, welded panel replacement
procedures, body sealing application instructions, and
all the other information required to provide quick and
accurate body repair service are contained herein.
One especially important point is the welding method.
All of the vehicle’s original strength and durability can
be maintained by following the welding procedures
contained in this manual.
Now that, in order to maximize the efficiency of the
repair work, first, both the extent of the damage and
the replacement parts that are needed must be
calculated accurately, and then the actual work must
be performed accurately and efficiently.
The publications shown on the following page are also
available, and should be used in conjunction with this
manual.

TECHNICAL INFORMATION MANUAL



                                                         MSSP-260B-2008

SERVICE MANUAL

                        MSSP-206B-2008

PARTS CATALOG                                BUM6Y108A_

Mitsubishi Motors Corporation reserves the right to make changes in

design or to make additions to or improvements in its products without

imposing any obligations upon itself to install them on its products

previously manufactured.

©2007 Mitsubishi Motors Corporation

All Rights, Reserved

Printed in USA

MSSP-460B-2008

5-1

GROUP 5

SYNTHETIC-RESIN

PARTS

CONTENTS

LOCATION OF SYNTHETIC-RESIN



PARTS . . . . . . . . . . . . . . . . . . . . . . . .

5-2
