Mitsubishi Evolution X. Manual - part 29

4-1

GROUP 4

CORROSION

PROTECTION

CONTENTS

BODY SEALING LOCATIONS  . . . . .

4-2

UNDERCOAT APPLICATION



LOCATIONS . . . . . . . . . . . . . . . . . . . .

4-10

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-2

BODY SEALING LOCATIONS

M4040001001443

If the sealant application is directly visible on the
outer plate and requires appearance quality of the
application in areas such as the drip rail, pillar, clinch
and so on, then apply the sealant so that it is flat, or
wipe off any excess mounding after the application.
Be careful not to obstruct the water draining hole.

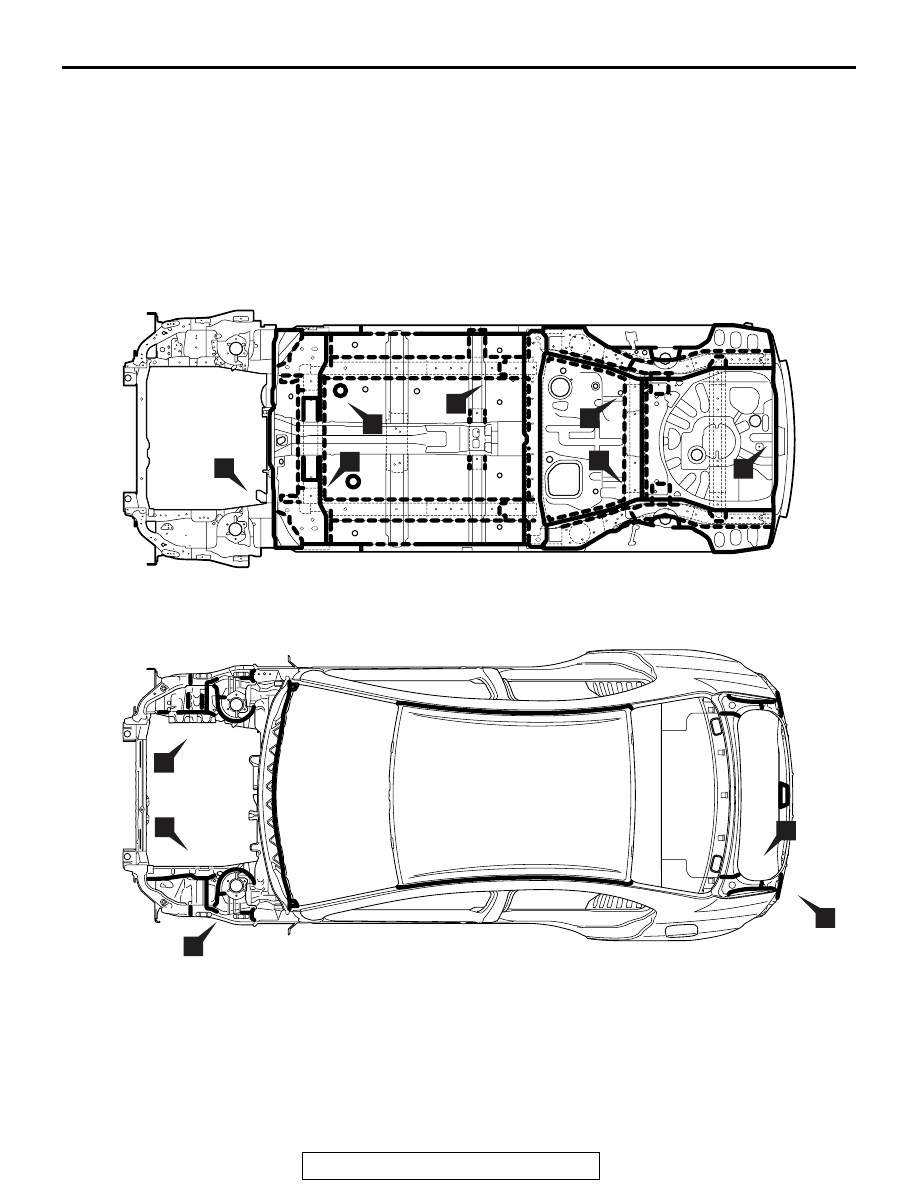

NOTE: The bold dotted line indicates the application
area on the underside.

.

FLOOR

UPPER BODY

AB701023

AB

4

5

7

3

1

2

6

AB701024

AB

10

9

8

11

12

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-3

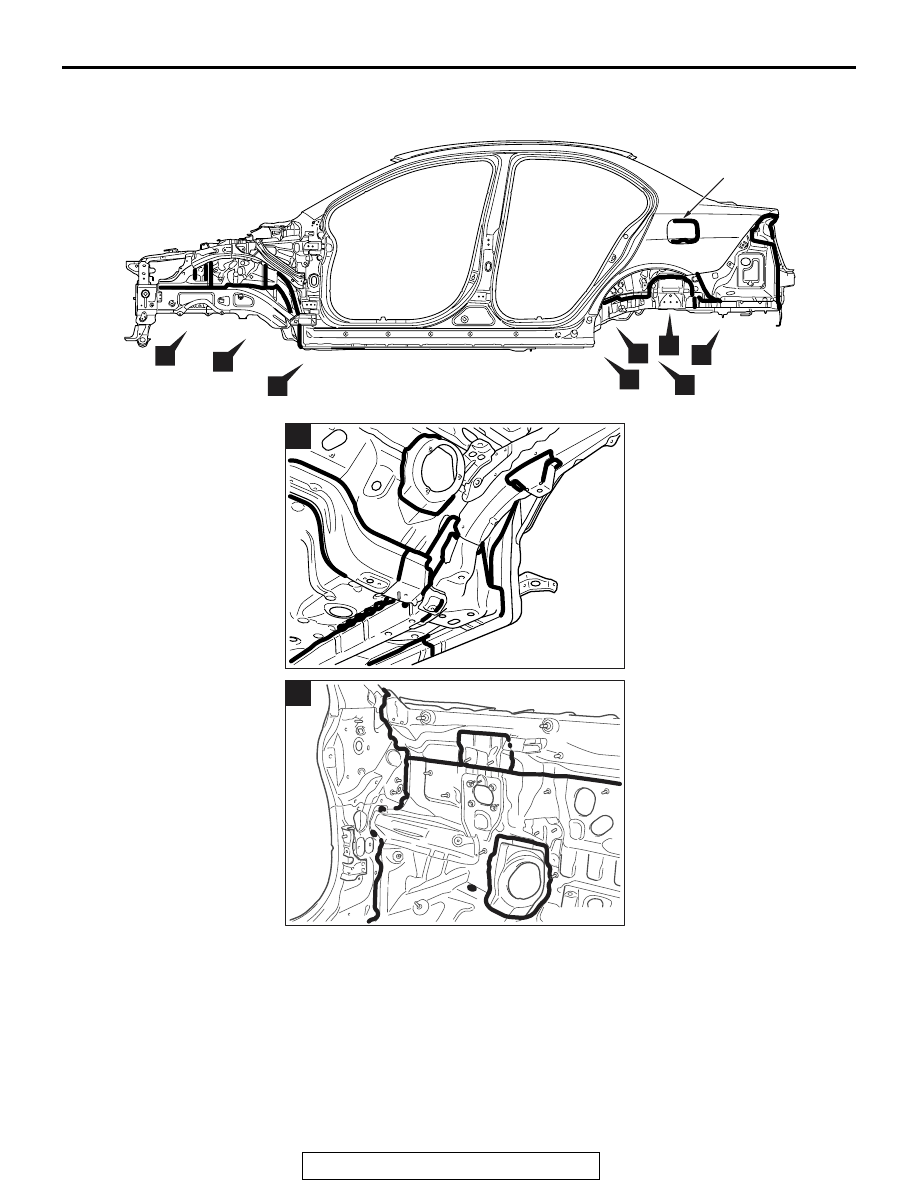

SIDE BODY

AB701025

AB

19

13

14

15

18

16

20

17

Left side only

AB701017

1

AB

AB701001

2

AB

BODY SEALING LOCATIONS

TSB Revision

CORROSION PROTECTION

4-4

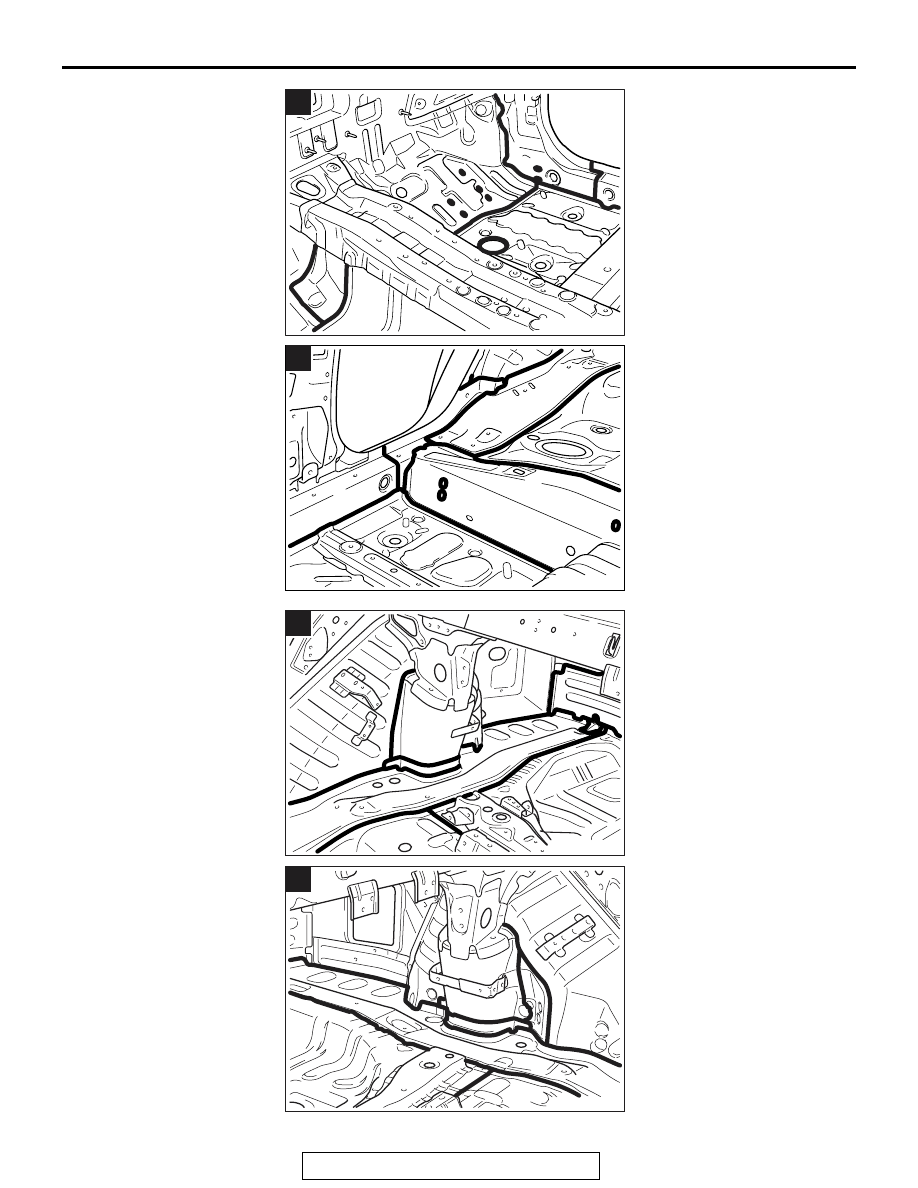

AB701002

3

AB

AB701005

4

AB

AB701018

5

AB

AB701004

6

AB
