LOCATION OF SYNTHETIC-RESIN PARTS

TSB Revision

SYNTHETIC-RESIN PARTS

5-2

LOCATION OF SYNTHETIC-RESIN PARTS

M4050001001433

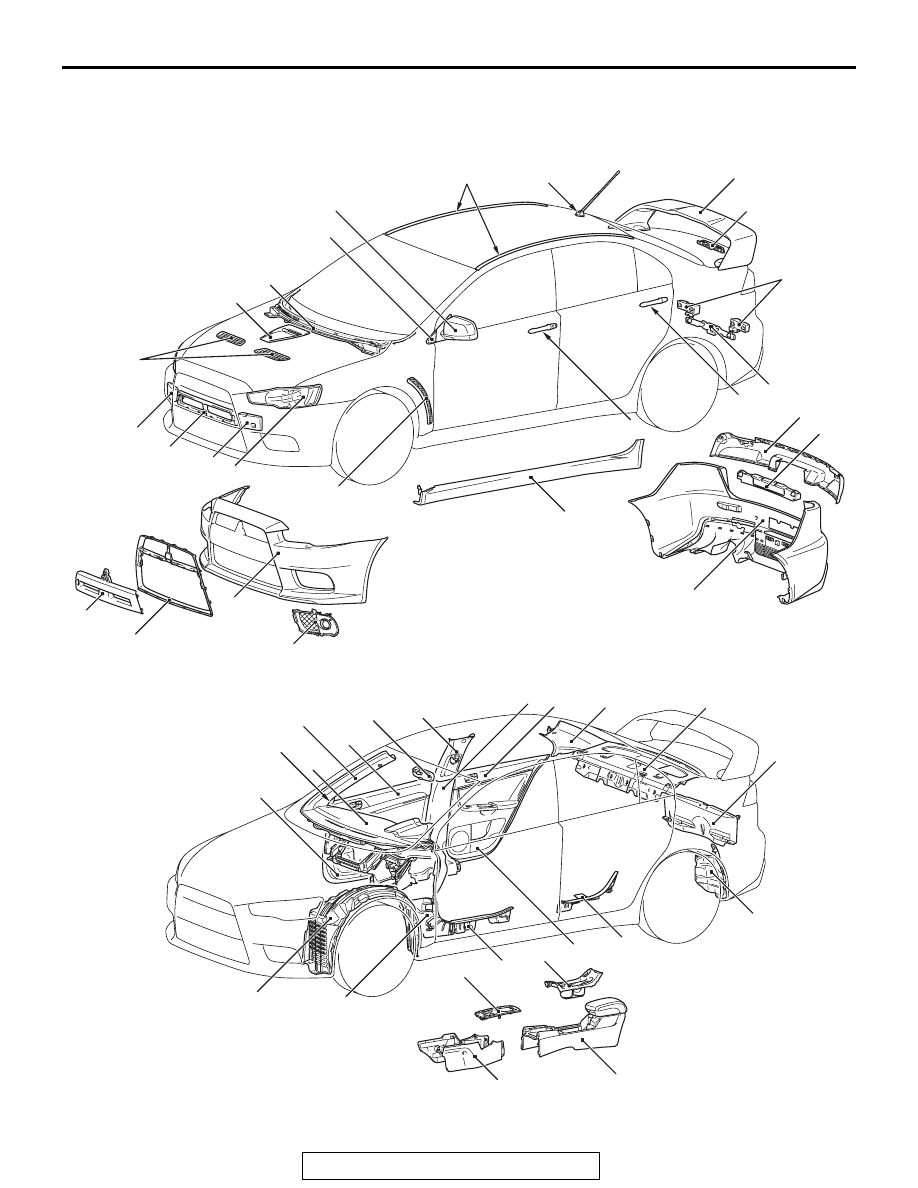

The location and material of each of the principal
synthetic-resin parts are shown below.

AB700997AB

29

33

6

11

28

1

13

10

4, 9

5

30

35

17

31

16

32

18

15

14

7

8

2

3

15

40

48

AB700998AB

42

23

24

12

36

37

19

34

26

25

27

21

20

22

38

43

39

41

46

44

45

47

LOCATION OF SYNTHETIC-RESIN PARTS

TSB Revision

SYNTHETIC-RESIN PARTS

5-3

No.

Part name

Name of resin

Abbreviation

Heat-



resistant
temp



[

°C (°F)]

1

Radiator grille

Acrylonitrile butadiene styrene

ABS

80 (176)

2

Door mirror

3

Rear spoiler

4

Antenna base <Vehicles without
satellite radio tuner>

Acrylonitrile ethylene styrene

AES

80 (176)

5

Front delta garnish

Acrylonitrile styrene acrylate

ASA (AAS)

80 (176)

6

Hood air outlet garnish

Talc (35%) +Glass fiber (5%)
filled Polyamide 6

PA6-[TD35+GF5] 80 (176)

7

Hood air inlet garnish

8

Headlight

Polycarbonate

PC

120 (248)

9

Antenna base <Vehicles with
satellite radio tuner>

Polycarbonate

PC+AES

80 (176)

10

Rear door outside handle

Polycarbonate+Polyethylene
terephthalate

PC+PET

120 (248)

11

Front door outside handle

12

Front splash shield

Low density Polyethylene

PE-LD (LLDPE)

80 (176)

13

High-mounted stoplight

Polymethyl methacrylate

PMMA

80 (176)

14

Front bumper air guide center duct Polypropylene

PP

80 (176)

15

Front bumper core

16

Rear bumper core lower

17

Rear bumper core upper



<Vehicles for Canada>

18

Rear bumper core center



<Vehicles for Canada>

19

Front door sash trim

20

Front door trim lower

21

Inside rear view mirror

22

Rear door trim lower

23

Rear shelf trim

24

Rear end trim

25

Rear scuff plate

26

Front scuff plate

27

Cowl side trim

28

Rear bumper protector



<Vehicles for Canada>

Rubber denatured
polypropylene

PP+E/P

80 (176)

29

Rear bumper face

30

Front fender garnish

31

Front bumper face

32

Front bumper garnish

33

Grille center garnish

LOCATION OF SYNTHETIC-RESIN PARTS

TSB Revision

SYNTHETIC-RESIN PARTS

5-4

NOTE:

.

•

If the material symbols designated by the ISO differ from the old symbols, both are given, with the old
symboling enclosed in brackets.
ISO: International Standardization Organization.

•

A plus sign (+) indicates that the two different materials mix each other.

•

The material symbols for synthetic-resin parts are embossed on the parts in hidden places.

34

Front pillar trim

Talc filled rubber modified
polypropylene (15%)

PP+E/P-TD15

80 (176)

35

Side air dam

Talc filled rubber modified
polypropylene (20%)

PP+E/P-TD20

110 (230)

36

Rear wheel splash shield rear

Talc filled polypropylene

PP-TD (PPF)

100 (212)

37

Front door trim upper

Talc filled polypropylene (10%) PP-TD10 (PPF)

110

− 120

(230

− 248)

38

Center pillar trim lower

39

Rear door trim upper

40

Front deck garnish

Talc filled polypropylene (20%) PP-TD20 (PPF)

120

− 130

(248

− 266)

41

Instrument panel

42

Center pillar trim upper

43

Rear pillar trim

44

Floor console box cup holder

45

Floor console rear

46

Floor console panel

47

Floor console side cover

48

Roof drip molding

Polyvinyl chloride

PVC

80 (176)

No.

Part name

Name of resin

Abbreviation

Heat-



resistant
temp



[

°C (°F)]

3-1

GROUP 3

WELDED PANEL

REPLACEMENT

CONTENTS

ULTRA HIGH STRENGTH STEEL



PLATE  . . . . . . . . . . . . . . . . . . . . . . . .

3-2

FRONT END CROSSMEMBER . . . . .

3-3

FENDER SHIELD. . . . . . . . . . . . . . . .

3-4

FRONT SIDEMEMBER



(PARTIAL REPLACEMENT) . . . . . . .

3-8

FRONT PILLAR . . . . . . . . . . . . . . . . .

3-9

FRONT PILLAR



(PARTIAL REPLACEMENT) . . . . . . .

3-15

CENTER PILLAR . . . . . . . . . . . . . . . .

3-19

SIDE SILL. . . . . . . . . . . . . . . . . . . . . .

3-23

QUARTER OUTER  . . . . . . . . . . . . . .

3-29

REAR END PANEL . . . . . . . . . . . . . .

3-33

ROOF . . . . . . . . . . . . . . . . . . . . . . . . .

3-34

REAR FLOOR. . . . . . . . . . . . . . . . . . .

3-37

QUARTER INNER. . . . . . . . . . . . . . . .

3-39

QUARTER INNER



(PARTIAL REPLACEMENT)  . . . . . . .

3-44

FRONT DOOR OUTER PANEL



(WELDED TYPE)  . . . . . . . . . . . . . . . .

3-46

FRONT DOOR OUTER PANEL



(ADHESION TYPE). . . . . . . . . . . . . . .

3-47

REAR DOOR OUTER PANEL



(WELDED TYPE)  . . . . . . . . . . . . . . . .

3-48

REAR DOOR OUTER PANEL



(ADHESION TYPE). . . . . . . . . . . . . . .

3-49

ALUMINUM PANEL . . . . . . . . . . . . . .

3-50

ALUMINUM PANEL CHARACTERISTICS .

3-50

ALUMINUM PANEL LOCATIONS . . . . . . . .

3-50

ALUMINUM PANEL REPAIR  . . . . . . . . . . .

3-51

ALUMINUM PANEL PAINT . . . . . . . . . . . . .

3-57
