BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-33

HEALTH AND SANITATION PROCEDURES

The following points should be noted for employee health and
sanitation.

• The work area should be well ventilated in order to prevent

the inhalation of dust, organic solvent vapors, etc.

• All unused paint cans must be securely covered.

• Care should be taken to avoid exposure to the skin of adhe-

sives, organic solvents, etc.
If an unavoidable exposure occurs, the exposed area
should be immediately washed with clean water.

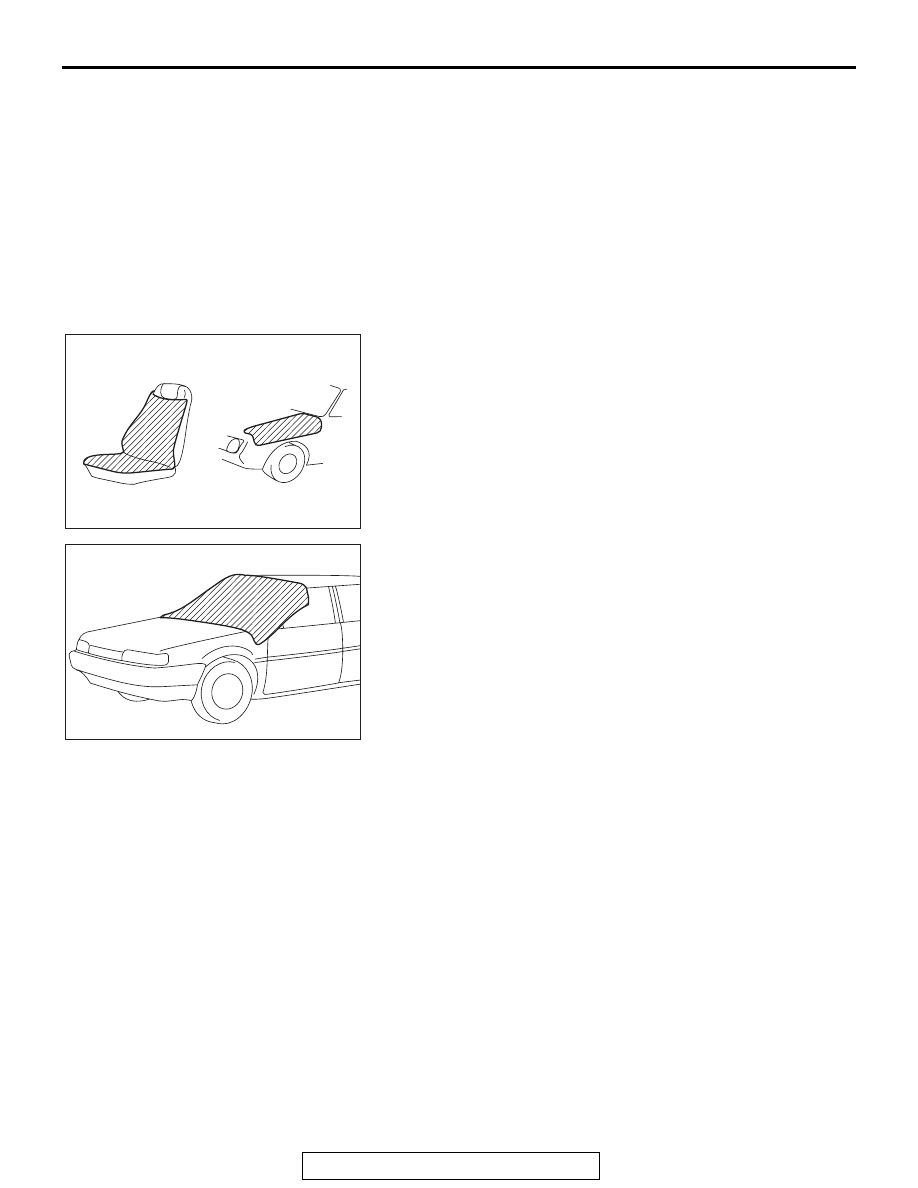

VEHICLE PROTECTION

• Vehicle covers (fender covers, seat covers, etc.) and tape (if

there is the possibility of damage by tools, equipment, etc.)
should be used to protect painted surfaces, interior/exterior
parts and components, etc., from staining and damage.

• For welding operations, a heat-resistant protective cover

should be used to protect glass, seats, instrument panel,
carpeting, etc.

AB200106

AB200107

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-34

HEAT-WITHSTAND TEMPERATURES OF RESIN-PLASTIC PARTS

M4090016000054

Because resin-plastic parts are deformed by heat,
they should be removed if the heat to be applied is
high enough to cause deformation, as shown by the
table below.

Material name

Abbreviation

Heat-deformation
temperature

°C (°F)

Where mainly used

Acrylonitrile
styrene acrylate

ASA

80 (176)

Door mirror, Pillar garnish, License
garnish, Radiator grille

Acrylonitrile
butadiene styrene

ABS

80 (176)

Air spoiler, Console box, Radiator grille,
Rear garnish, Headlight bezel

Cellulose acetate

CA

50

− 90 (122 − 194)

-

Cellulose acetate
butylate

CAB

60

− 100 (140 − 212)

Door trim molding

Polyamide

PA

140

− 160 (284 − 320)

Harness connector, Wheel cover,
Cooling fan, Fuel strainer

Talc filled
polyamide

PA-TD

190

− 200 (374 − 392)

Hood garnish, Door outside handle

Polybutylene
terephthalate

PBT

120 (248)

Dome light lens, Headlight lens

Polyethylene

PE

100 (212)

Heater duct, Fender liner, Washer tank

High density
polyethylene

PE-HD (HDPE)

70

− 90 (158 − 194)

Fuel tank, Splash shield

Phenole
formaldehyde

PF

170

− 190 (338 − 374)

Ashtray

Polymethyl
methacrylate

PMMA

80

− 100 (176 − 212)

Light lens

Polyacetal

POM

120 (248)

Door regulator handle, Ball joint seat

Polypropylene

PP

80 (176)

Glove compartment, Bumper face,
Pillar trim, Steering wheel, Heater unit,
Cooling fan

Polyphenylene
ether

PPE (PPO)

130

− 140 (266 − 284)

Accelerator pedal pad, Wheel cover,
Speaker garnish

Talc filled
polypropylene

PP-TD (PPF)

100 (212)

Front deck garnish, Stone guard, Floor
console, Instrument panel

Talc filled
polypropylene
(10%)

PP-TD10 (PPF)

110

− 120 (230 − 248)

Center pillar trim

Talc filled
polypropylene
(15%)

PP-TD15 (PPF)

110

− 120 (230 − 248)

Front pillar trim, Center pillar trim, Rear
pillar trim

Talc filled
polypropylene
(20%)

PP-TD20 (PPF)

120

− 130 (248 − 266)

Beltline trim, Front deck garnish, Front
pillar trim

Talc filled
polypropylene
(30%)

PP-TD30 (PPF)

130

− 140 (266 − 284)

Quarter trim, Rear side trim

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-35

Polyurethane

PUR

80

− 100 (176 − 212)

Bumper, Steering wheel

Polyurethane
(formed)

PUR-E

80

− 100 (176 − 212)

Seat cushion, Arm rest, Door trim,
Instrument panel

Glass fiber
reinforced RIM
urethane

PUR-GF [RIM]

100

− 120 (212 − 248)

Air dam panel

Polyvinyl alcohol

PVAL

*1

-

Polyvinyl butyral

PVB

-

Polyvinyl chloride

PVC

80 (176)

Steering wheel, Side protector molding,
Shift lever cover, Window molding

Thermoplastic
elastomer (olefine)

TPO (TEO)

80 (176)

Mud guard, Side air dam

Urea formaldehyde UF

120

− 145 (248 − 293)

-

Glass fiber
reinforced
unsaturated
polyester

UP-(GT + TD)
[SMC], [BMC]

200 (392)

Rear air spoiler

Ethylene vinyl
acetate

E/VAC (EVA)

60 (140)

Mud guard

Talc filled
polypropylene

PP + E/P-TD
[HMPP]

80

− 100 (176 − 212)

Bumper face, Side air dam, Side
protector molding

Polyvinyl chloride,
Polyurethane

PVC, PUR-E

*2

Instrument panel pad

Thermoplastic
elastomer
(styrene), Talc filled
polypropylene

TES, PP-TD

100

− 120 (212 − 248)

Side splash

Polycarbonate +
Acrylonitrile
butadiene

PC + ABS

120

− 125 (248 − 257)

Door outside handle

Polycarbonate +
Polyethylene
terephthalate

PC + PET

120 (248)

Door outside handle

Polycarbonate +
Polybutylene
terephthalate

PC + PBT

130

− 140 (266 − 284)

Door outside handle

Polyphenylene
ether + Polyamide
6

PPE (PPO) + PA6 150

− 160 (302 − 320)

Wheel cover

Polyphenylene
ether + Polyamide
66

PPE (PPO) +
PA66

160

− 170 (320 − 338)

Wheel cover

Polyphenylene
ether + Polystyrene

PPE (PPO) + PS

120

− 130 (248 − 266)

Wheel cover

Material name

Abbreviation

Heat-deformation
temperature

°C (°F)

Where mainly used

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-36

NOTE:

.

•

A slash (/) in the abbreviation indicates that two different materials make two-layer construction.
A plus sign (+) indicates that the two different materials mix each other.

•

If the new material symbols designated by the ISO differ form the old symbols, both are given, with the old
symbol being enclosed in brackets. ISO: International Organization for Standardization

•

*1: Temperature differs depending on the ratio of the materials included.

•

*2: Impossible to fix the temperature due to the multi-layer and foam material structure.

•

If an infra-red lamp is used for drying, use a heat-resistant cover, etc., to protect parts.

HOW TO DISTINGUISH TYPES OF PLASTICS

M4090017000035

There are various methods that can be employed to
determine types of plastics, among them (1) using a
chemical solvent, etc., to check it chemically, (2)
scratching the material to determine its make-up, (3)
cutting of a small piece (where the scar can't be
seen) and burning it to judge by the way it burns, etc.
The following is an outline of the burning method,
which is a relatively simple method.

Plastic name

Abbreviation

Flame color

Combustion
Conditions

Self-



extinguishing

Odor

Polyvinyl chloride PVC

Yellow flame top
Blue flame bottom

Burns to black residue Yes

Irritating acid
odor

Polyethylene

PE

Yellow flame top
Blue flame bottom

Burns cleanly while
melting

No

Candle-like
odor

Polypropylene

PP

Yellow flame top
Blue flame bottom

• Burns briskly and

drips

• Slight white smoke

No

Petroleum-like
odor

Polyurethane

PUR

Orange

Crackles as burns;
drips

No

Rubber odor

TRUR

Orange

Polycarbonate

PC

Yellow

Cinders remain

To some
extent

Sweet odor

Polyamide
(nylon)

PA

Yellow flame top
Blue flame bottom

Melts and drips

Yes

Strong formic
acid odor

Polyester resin

UP

Yellow

Ashes remain

No

Styrene odor

Glass-fiber-reinfo
rced plastic

FRP

Yellow

Ashes with glass-fiber
remnants remain

No

Differs
according to
plastic type

Phenol resin

PF

Yellow

Ashes remain

Yes

Formalin odor

ABS resin

ABS

Orange

Burns accompanied by
foaming and black
smoke

No

Rubber odor
