Mitsubishi Lancer Evolution X. Manual - part 293





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-237

DTC SET CONDITIONS
Logic Flow Chart

.

Check Conditions

• Engine coolant temperature is higher than 60° C

(140° F).

• Engine speed is between 1,406 and 3,500 r/min.
• Volumetric efficiency is between 20 and 65 per-

cent.

• Under the closed loop air/fuel control.
• The accelerator pedal is depressed.
• Short-term fuel trim is between −



20 and +17 per-

cent.

• More than 3.5 seconds have elapsed after the

above mentioned conditions have been met.

• During the drive cycle, the ECM performs moni-

toring with the accumulated total time of 10 sec-
onds, 5 times.

Judgement Criteria

• The average of the heated oxygen sensor (front)

rich/lean switching frequency is less than 9 times
<M/T> or 8 times <TC-SST> for the accumulated
time of 10 seconds.

• The heated oxygen sensor (front) rich/lean

switching frequency is less than 20 times <M/T>
or 16 times <TC-SST> for the accumulated time
of 10 seconds.

NOTE: If the sensor switching frequency is lower
than the Judgement Criteria due to the M.U.T.-III
OBD-II test Mode

−

 HO2S Test Results, it is assumed

that the heated oxygen sensor has deteriorated. If it
is higher, it is assumed that the harness is damaged
or has a short circuit.
If the heated oxygen sensor signal voltage has not
changed even once (lean/rich) after the DTC was
erased, the sensor switch time will display as 0 sec-
ond.

.

FAIL-SAFE AND BACKUP FUNCTION

• None

.

F0: Threshold value for average switching frequency

Start

Monitoring

conditions

Malfunction

Good

End

No

No

Yes

Yes

Ff < F0

Calculate average switching

frequency (Ff) over specified times

AK604323

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-238

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function − OBD-II Drive Cycle −

Pattern 1

P.13A-9

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Heated oxygen sensor (front) deteriorated.
• Connector damage.
• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.
• MB991827: USB Cable
• MB991910: Main Harness A

• MB991658: Test Harness

STEP 1. Using scan tool MB991958, check data list item
AC: Heated Oxygen Sensor (front).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

AC, Heated Oxygen Sensor (front).

(4) Warm up the engine, 2,500 r/min.

• Output voltage repeats 0.4 volt or less and 0.6 to 1.0 volt

9 times <M/T> or 8 times <TC-SST> or more within 10
seconds.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points − How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Go to Step 2.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-239

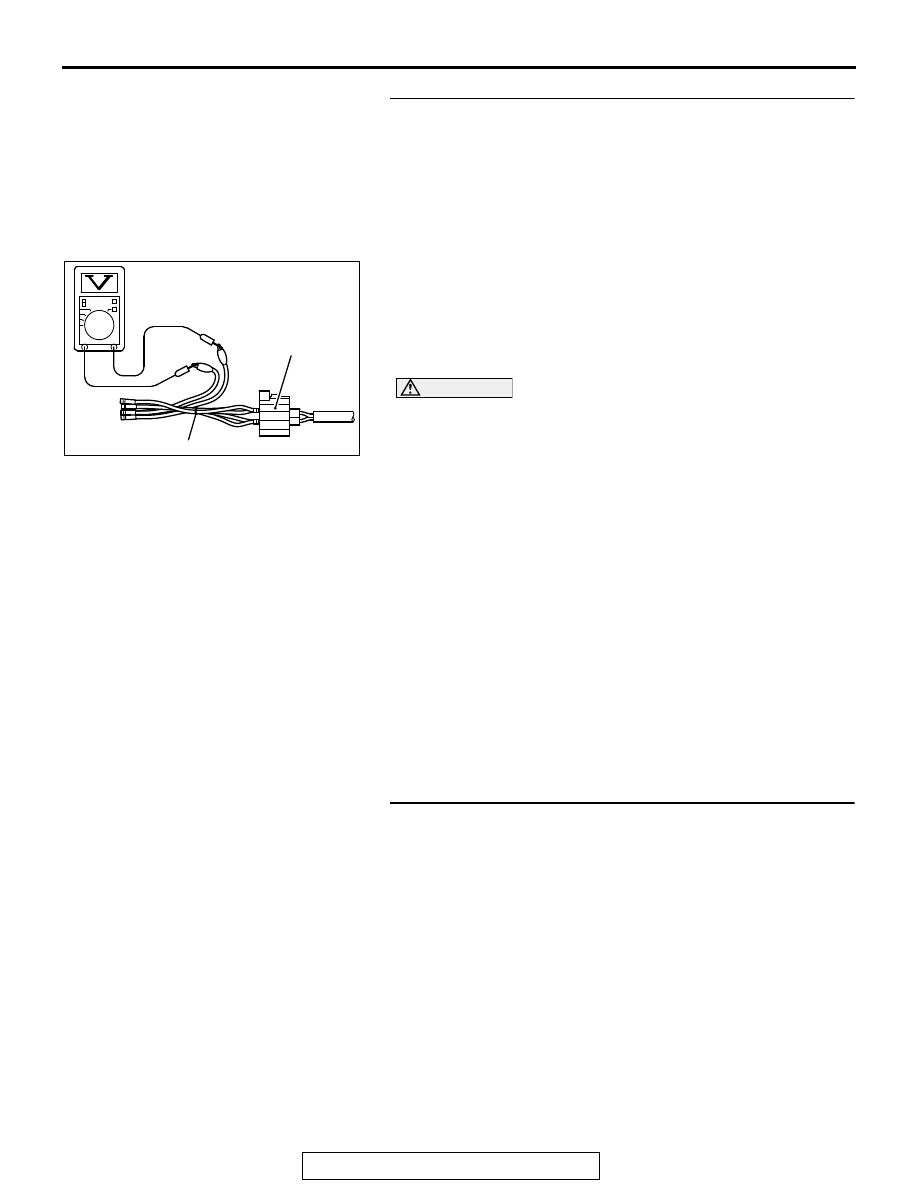

STEP 2. Check the heated oxygen sensor (front).
(1) Disconnect the heated oxygen sensor (front) connector

C-34 and connect test harness special tool MB991658 to
the connector on the heated oxygen sensor (front) side.

(2) Warm up the engine until engine coolant temperature

reaches 80° C (176° F) or higher.

(3) Rev the engine for 5 minutes or more with the engine speed

of 2,000 r/min.

(4) Connect a digital voltage meter between terminal No. 3 and

terminal No. 4.

(5) Warm up the engine, 2,500 r/min

• Output voltage repeats 0.4 volt or less and 0.6 to 1.0 volt

9 times <M/T> or 8 times <TC-SST> or more within 10
seconds.

CAUTION

• Be very careful when connecting the jumper wires;

incorrect connection can damage the heated oxygen
sensor.

• Be careful the heater can be damaged if a voltage

beyond 8 volts is applied to the heated oxygen sensor
heater.
NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich
air/fuel ratio. Therefore, if the output voltage is low, use a
jumper wire to connect the terminal No. 1 and the terminal
No. 2 of the heated oxygen sensor with the positive terminal
and the negative terminal of 8 volts power supply respec-
tively, then check again.

Q: Is the sensor operating properly?

YES : Go to Step 3.
NO :  Replace the heated oxygen sensor (front). Then go to

Step 4.

STEP 3. Check harness connector C-34 at heated oxygen
sensor (front) and harness connector B-09 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-11

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 4.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 4.

AK604493AB

MB991658

Heated oxygen
sensor component
side connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-240

STEP 4. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function − OBD-II Drive Cycle − Pattern 1

P.13A-9

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0133 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0134: Heated Oxygen Sensor (front) Circuit No Activity Detected

.

Heated Oxygen Sensor (front) No Activity
Detected Circuit

• Refer to DTC P0131 − Heated Oxygen Sensor

(Front) Circuit Low Voltage

P.13A-223

.

• Refer to DTC P0201 − Injector Circuit-cylinder 1

P.13A-298

.

• Refer to DTC P0202 − Injector Circuit-cylinder 2

P.13A-308

.

• Refer to DTC P0203 − Injector Circuit-cylinder 3

P.13A-318

.

• Refer to DTC P0204 − Injector Circuit-cylinder 4

P.13A-328

.

.

CIRCUIT OPERATION

• Refer to DTC P0131 − Heated Oxygen Sensor

(Front) Circuit Low Voltage

P.13A-223

.

• Refer to DTC P0201 − Injector Circuit-cylinder 1

P.13A-298

.

• Refer to DTC P0202 − Injector Circuit-cylinder 2

P.13A-308

.

• Refer to DTC P0203 − Injector Circuit-cylinder 3

P.13A-318

.

• Refer to DTC P0204 − Injector Circuit-cylinder 4

P.13A-328

.

.

TECHNICAL DESCRIPTION

• The ECM effects air/fuel ratio feedback control in

accordance with the signals from the heated oxy-
gen sensor (front).

• If the heated oxygen sensor (front) has deterio-

rated, corrections will be made by the heated
oxygen sensor (rear).

• DTC P0134 becomes stored in memory if a fail-

ure is detected in the above air/fuel ratio feed-
back control system.

.

DESCRIPTIONS OF MONITOR METHODS

Heated oxygen sensor (front) output voltage does

not cross lean/rich criteria (about 0.5 volt) within
specified period.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Misfire monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor
• Engine coolant temperature sensor
• Intake air temperature sensor
• Barometric pressure sensor
• Throttle position sensor

.
