MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-229

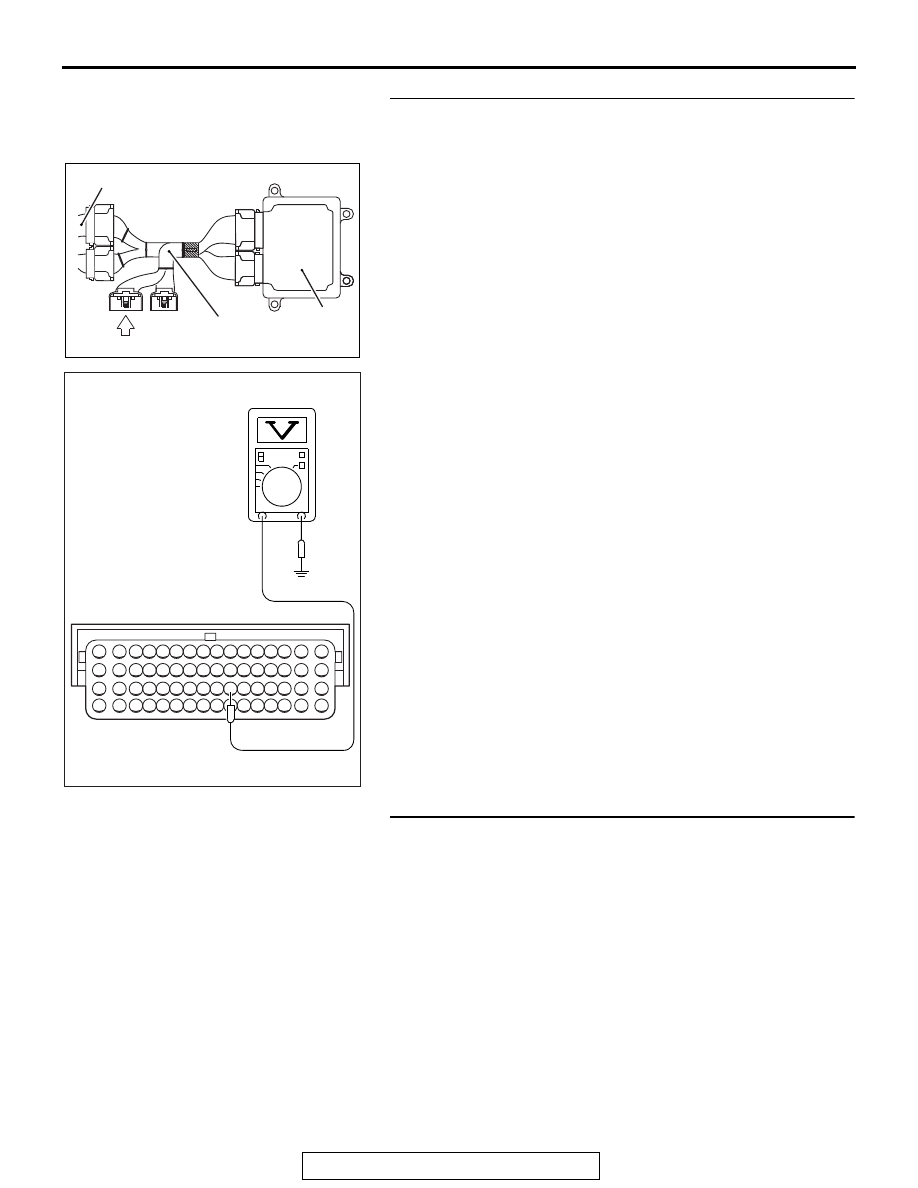

STEP 10. Measure the sensor offset voltage at ECM
connector B-09 by using power plant ECU check harness
special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant

ECU check harness special tool MB992110 between the
separated connectors.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 39 and ground.

• Voltage should be between 0.4 and 0.6 volt.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 0.4 and 0.6 volt?

YES : Go to Step 11.
NO :  Check harness connector A-13 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector is in

good condition, repair harness wire between headed
oxygen sensor (front) connector C-34 (terminal No. 4)
and ECM connector B-09 (terminal No. 39) because
of open circuit or harness damage. Then go to Step
14.

STEP 11. Check for harness damage between heated
oxygen sensor (front) connector C-34 (terminal No. 4) and
ECM connector B-09 (terminal No. 39).
NOTE: Check harness after checking intermediate connector
A-13. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 14.
Q: Is the harness wire in good condition?

YES : Go to Step 12.
NO :  Repair it. Then go to Step 14.

AK604040

ECM

AB

Body side harness

MB992110

AK604185

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

Power plant ECU
check harness connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-230

STEP 12. Check for short circuit to ground and harness
damage between heated oxygen sensor (front) connector
C-34 (terminal No. 3) and ECM connector B-09 (terminal
No. 38).
NOTE: Check harness after checking intermediate connector
A-13. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 14.
Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 14.

STEP 13. Check the heated oxygen sensor (front).
(1) Disconnect the heated oxygen sensor (front) connector

C-34 and connect test harness special tool MB991658 to
the connector on the heated oxygen sensor (front) side.

(2) Warm up the engine until engine coolant temperature

reaches 80° C (176° F) or higher.

(3) Rev the engine for 5 minutes or more with the engine speed

of 2,000 r/min.

(4) Connect a digital voltage meter between terminal No. 3 and

terminal No. 4.

(5) While repeatedly revving the engine, measure the heated

oxygen sensor (front) output voltage.

Standard value: 0.6 − 1.0 V

CAUTION

• Be very careful when connecting the jumper wires;

incorrect connection can damage the heated oxygen
sensor.

• Be careful the heater can be damaged if a voltage

beyond 8 volts is applied to the heated oxygen sensor
heater.
NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich
air/fuel ratio. Therefore, if the output voltage is low, use a
jumper wire to connect the terminal No. 1 and the terminal
No. 2 of the heated oxygen sensor with the positive terminal
and the negative terminal of 8 volts power supply respec-
tively, then check again.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-11

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 14.

NO :  Replace the heated oxygen sensor (front). Then go to

Step 14.

AK604493AB

MB991658

Heated oxygen
sensor component
side connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-231

STEP 14. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function − OBD-II Drive Cycle − Pattern 22

P.13A-9

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0131 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0132: Heated Oxygen Sensor (front) Circuit High Voltage

AK704249

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2
3 4

1

10 111213 14

19 20

2 3 4

7 8 9

2

8

7

6

5

4

3

11

21

20

19

18

17

16

15

14

13

12

9

22

1

10

0.5 V

AB

1

4

2

3

39

SKY BLUE

SKY BLUE

38

HEATED OXYGEN SENSOR (FRONT) CIRCUIT

B-09

C-34

6

RED

RED

7

A-13

HEATED OXYGEN SENSOR
(FRONT)

FROM MFI RELAY

TO ECM

ENGINE
CONTROL
MODULE

AK704229AB

Connector: A-13

A-13

AK704227

Connector: B-09

ECM

B-09 (GR)

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-232

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the ECM (ter-
minal No. 38) from the output terminal (terminal
No. 3) of the heated oxygen sensor (front).

• Terminal No. 4 of the heated oxygen sensor

(front) is grounded with ECM (terminal No. 39).

• The ECM applies an offset voltage of 0.5 volt to

terminal No. 4 of the heated oxygen sensor
(front).

.

TECHNICAL DESCRIPTION

• The heated oxygen sensor (front) detects the

concentration of oxygen in the exhaust gas; it
converts those data to voltage, and inputs the
resulting signals to the ECM.

• When the heated oxygen sensor (front) begins to

deteriorate, the heated oxygen sensor signal
response becomes poor.

• The ECM checks for the heated oxygen sensor

(front) output voltage.

.

DESCRIPTIONS OF MONITOR METHODS

Heated oxygen sensor (front) output voltage is over

specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor (front) heater monitor
• Misfire monitor
• Fuel system monitor
• Heated oxygen sensor (rear) feedback control

system monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor
• Engine coolant temperature sensor
• Intake air temperature sensor
• Barometric pressure sensor
• Throttle position sensor
• Accelerator pedal position sensor

.

AK704228

AB

Heated oxygen
sensor (front)

Connector: C-34

C-34 (B)

SRS-ECU
