STEERING WHEEL

TSB Revision

POWER STEERING

37-31

<<B>>DRIVER’S AIR BAG MODULE CONNECTOR
DISCONNECTION

Slide the outer housing of the driver’s air bag module connector
in the arrow direction shown and disconnect the connector.

.

<<C>> DRIVER’S AIR BAG MODULE REMOVAL

CAUTION

• Never use an electric tester to diagnose the air bag

module circuit. Never attempt to disassemble the air
bag module.

• Store the removed air bag module in a clean, dry place

with the pad surface facing upward.

• When discarding the air bag module, deploy the air bag

as specified in the service procedure. (Refer to GROUP
52B − Air bag module and seat belt pre-tensioner dis-

posal procedure

P.52B-443

.)

• With the driver's air bag module mounting torx screw,

loosen the screw, but do not remove it.

Using the torx wrench (T30), remove the driver's air bag mod-
ule.

.

AC605948

AC600868

AI

Lower column cover

Driver's air bag
module connector
(4-pin, yellow)

Horn connector

Outer housing of the
driver's air bag module connector

AC704972 AB

Equal to or more than

40mm (1.6 inch).

STEERING WHEEL

TSB Revision

POWER STEERING

37-32

<<D>> STEERING WHEEL ASSEMBLY REMOVAL

1. Position the steering wheel in a straight ahead position.

CAUTION

• Use the special tool to remove the steering wheel since

the steering column collision adsorbing mechanism
may be damaged.

2. Use special tool MB990803 to remove the steering wheel.

INSTALLATION SERVICE POINTS

.

>>A<< STEERING WHEEL ASSEMBLY/DRIVER'S
AIR BAG MODULE INSTALLATION

After centering the clock spring (Refer to 52B − Air bag module

clock spring ), install the steering wheel assembly.

.

>>B<<DRIVER’S AIR BAG MODULE CONNECTOR
CONNECTION/STEERING SWITCH CONNECTOR
CONNECTION/HORN CONNECTOR
CONNECTION

Connect the connector securely and route the harnesses not to
lie off the cover hole.

AC705717AB

MB990803

STEERING SHAFT

TSB Revision

POWER STEERING

37-33

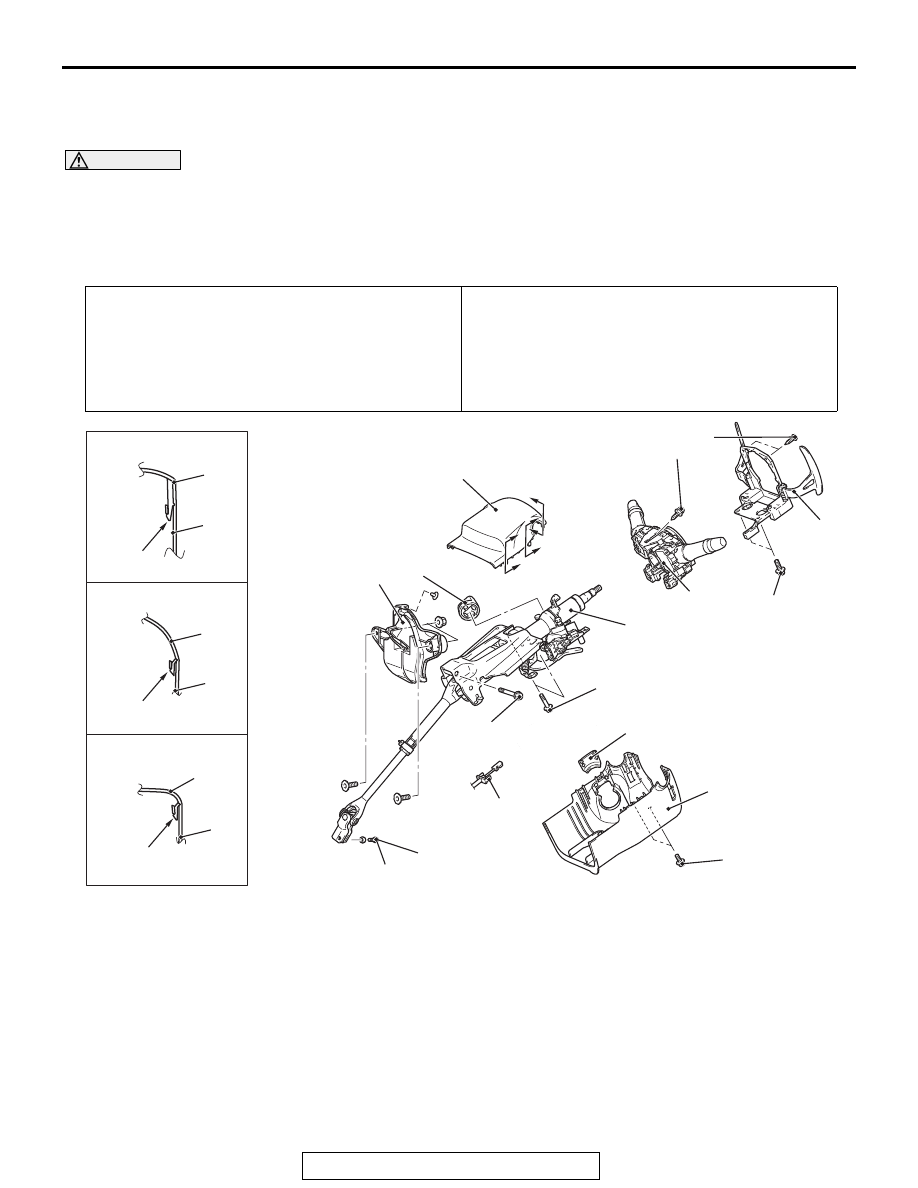

STEERING SHAFT

REMOVAL AND INSTALLATION

M1372011501376

CAUTION

• Before removing the steering wheel assembly and driver's air bag module/knee air bag module,

always refer to GROUP 52B − Service Precautions

P.52B-24

 and Driver’s Air bag Module and Clock

Spring

P.52B-413

 or Knee Air bag Module

P.52B-425

.)

• After installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral

point. (Refer to GROUP 35C − On-vehicle Service − Steering Wheel Sensor Calibration

P.35C-289

.)

Pre-removal Operation
• Steering Wheel at Straight-ahead Position Check
• Steering Wheel Assembly Removal (Refer to

P.37-29

.)

• Instrument Panel Cover Lower Removal (Refer to

GROUP 52A − Instrument Lower Panel

P.52A-9

.) <MR>

• Knee Air Bag Module Removal (Refer to GROUP 52B −

Knee Air Bag Module

P.52B-425

.)

Post-installation Operation
• Instrument Panel Cover Lower Installation (Refer to

GROUP 52A − Instrument Lower Panel

P.52A-9

.) <MR>

• Steering Wheel Assembly Installation (Refer to

P.37-29

.)

• Steering Wheel at Straight-ahead Position Check

AC709222 AG

4

8

3

2

6

1

7

10

2.5 ± 0.5 N·m
22 ± 4 in-lb

12 ± 3 N·m
106 ± 27 in-lb

28 ± 7 N·m
21 ± 5 ft-lb

4

3

9

A

A

4

3

4

3

7.0 ± 3.0 N·m
62 ± 27 in-lb

5

Section A-A

Claw

Section C-C

Claw

Section B-B

Claw

Note: claw position is symmetrical

20 ± 5 N·m
15 ± 4 ft-lb

2.5 ± 0.5 N·m
22 ± 4 in-lb

B

B

C

C

Removal steps

<<

A

>>

1. Knob cap <Vehicles with

KOS>

2. Ignition key cover
3. Steering column lower cover

•

Receiver antenna module
removal (Refer to GROUP
42B − Exterior Transmitter
Antenna Assembly, Interior
Transmitter Antenna
Assembly, Receiver Antenna
Module

P.42B-242

.)

<Vehicles with KOS>

Removal steps (Continued)

STEERING SHAFT

TSB Revision

POWER STEERING

37-34

REMOVAL SERVICE POINTS

.

<<A>> KNOB CAP REMOVAL

Remove the knob cap while pressing the two projections.

.

<<B>> STEERING SHAFT COVER REMOVAL

1. Remove the clip (for securing the floor carpet), and turn

back the floor carpet.

2. Remove the clip (for securing the steering shaft cover), and

then remove the steering shaft cover.

.

•

WCM removal (Refer to
GROUP 42C − WCM

P.42C-131

.) <Vehicles with

WCM>

4. Steering column upper cover
5. Paddle shift assembly

<Vehicles with paddle shift>

6. Clock spring column switch

assembly

7. Key interlock cable (Refer to

GROUP 22C − Key interlock
and shiftlock mechanisms

P.22C-408

).

<<

B

>>

8. Steering shaft cover

>>

B

<<

9. Steering column bolt (steering

column shaft assembly and
steering gear and linkage
connection)

<<

C

>>

>>

A

<<

10. Steering column shaft

assembly

Removal steps (Continued)

AC609624 AB

Clip
(Lock cover steering shaft)

Steering shaft cover

Clip
(Lock floor carpet)

Tear off
floor carpet
