MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-29

INSTALLATION SERVICE POINTS

.

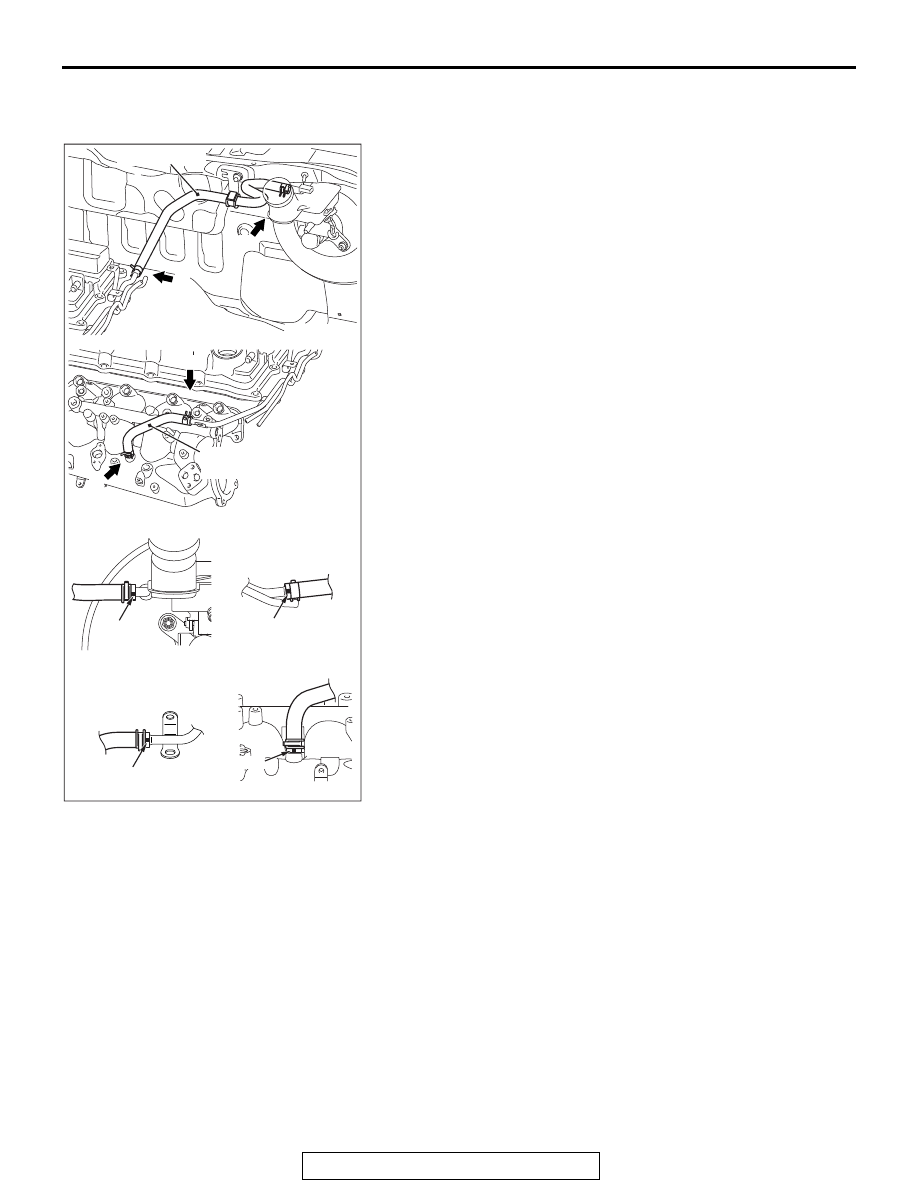

>>A<< VACUUM HOSE INSTALLATION

Align the mark as shown in the figure to assemble the vacuum
hose.

.

>>B<< MASTER CYLINDER ASSEMBLY AIR
BLEEDING

When removed the master cylinder assembly, bleed the master
cylinder in the following procedure to make bleeding of the
brake pipeline easier (When no brake fluid is in the master cyl-
inder).
1. Fill the brake fluid reservoir with the brake fluid.
2. Depress and hold the brake pedal.

AC709408 AB

C

B

A

D

View A

View B

View C

View D

Paint mark

Paint mark

Vacuum hose

Paint mark

Paint mark

Vacuum
hose

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-30

3. Another operator closes the master cylinder outlets with his

fingers.

4. In this condition, release the brake pedal.
5. Repeat Steps 2 to 4 for 3 or 4 times to fill the master cylinder

with the brake fluid.

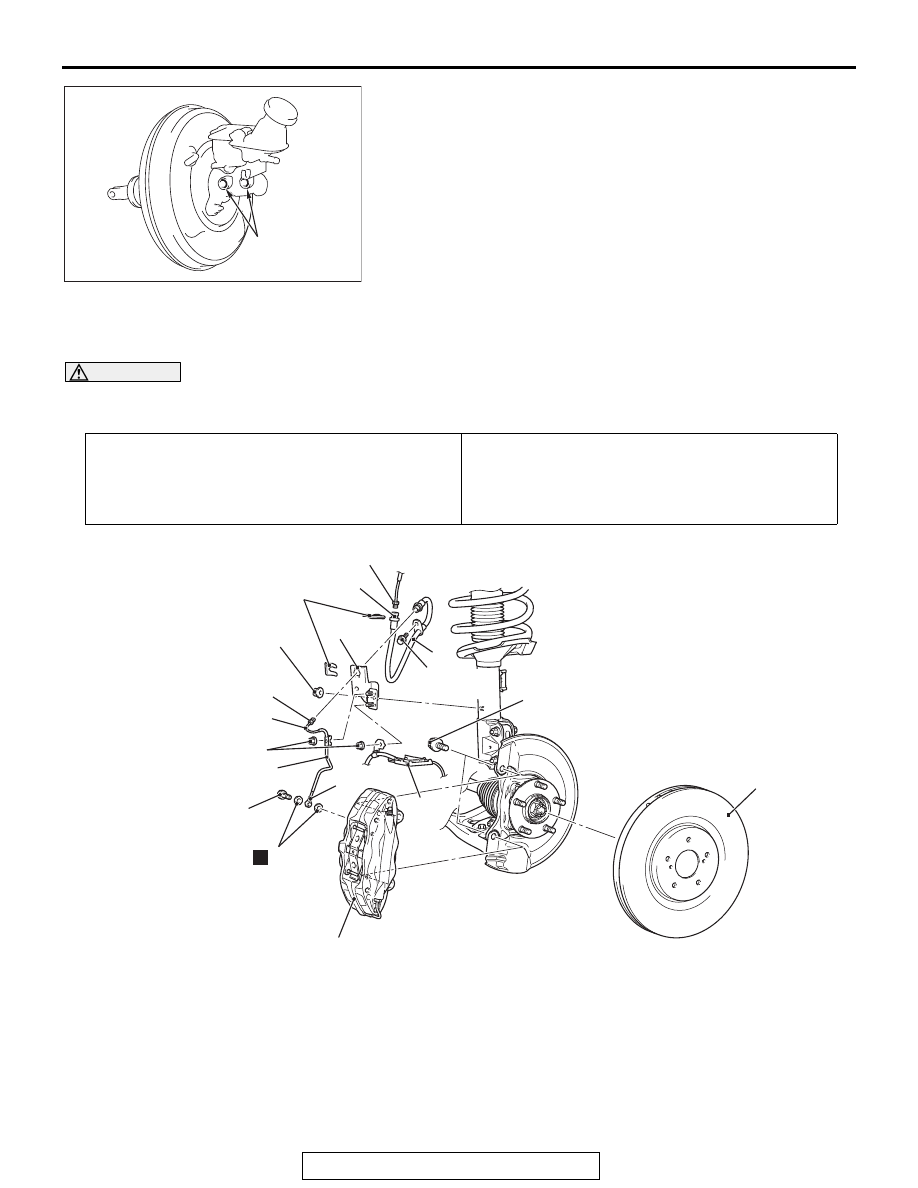

FRONT DISC BRAKE ASSEMBLY

REMOVAL AND INSTALLATION

M1351006001176

CAUTION

Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.
And if there is brake fluid on the caliper, wipe it off quickly.

AC709402AB

Outlet

Pre-removal Operation
Brake fluid draining

Post-installation Operation
• Brake fluid supplying and air bleeding (Refer to

P.35A-16

).

• Brake disk runout inspection/correction (Refer to

P.35A-21

).

AC706937AB

135 ± 15 N·m
100 ± 11 ft-lb

16 ± 3 N·m
12 ± 2 ft-lb

30 ± 5 N·m
22 ± 4 ft-lb

16 ± 3 N·m
12 ± 2 ft-lb

3

8

9

10

11

1

6

5

7

2

N

4

11 ± 2 N·m
98 ± 17 in-lb

13 ± 2 N·m
111 ± 22 in-lb

13 ± 2 N·m
111 ± 22 in-lb

Removal steps

1.

Brake pipe (brake caliper side)
connection

2.

Gasket

3.

Front brake caliper assembly

<<

A

>>

4.

Front brake disk

5.

Brake pipe (brake hose) connection

6.

Brake pipe

7.

Clip

>>

A

<<

8.

Brake hose (brake pipe side)
connection

9.

Brake hose

10. Front wheel speed sensor wiring

harness clip

11. Brake hose bracket

Removal steps (Continued)

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-31

REMOVAL SERVICE POINT

.

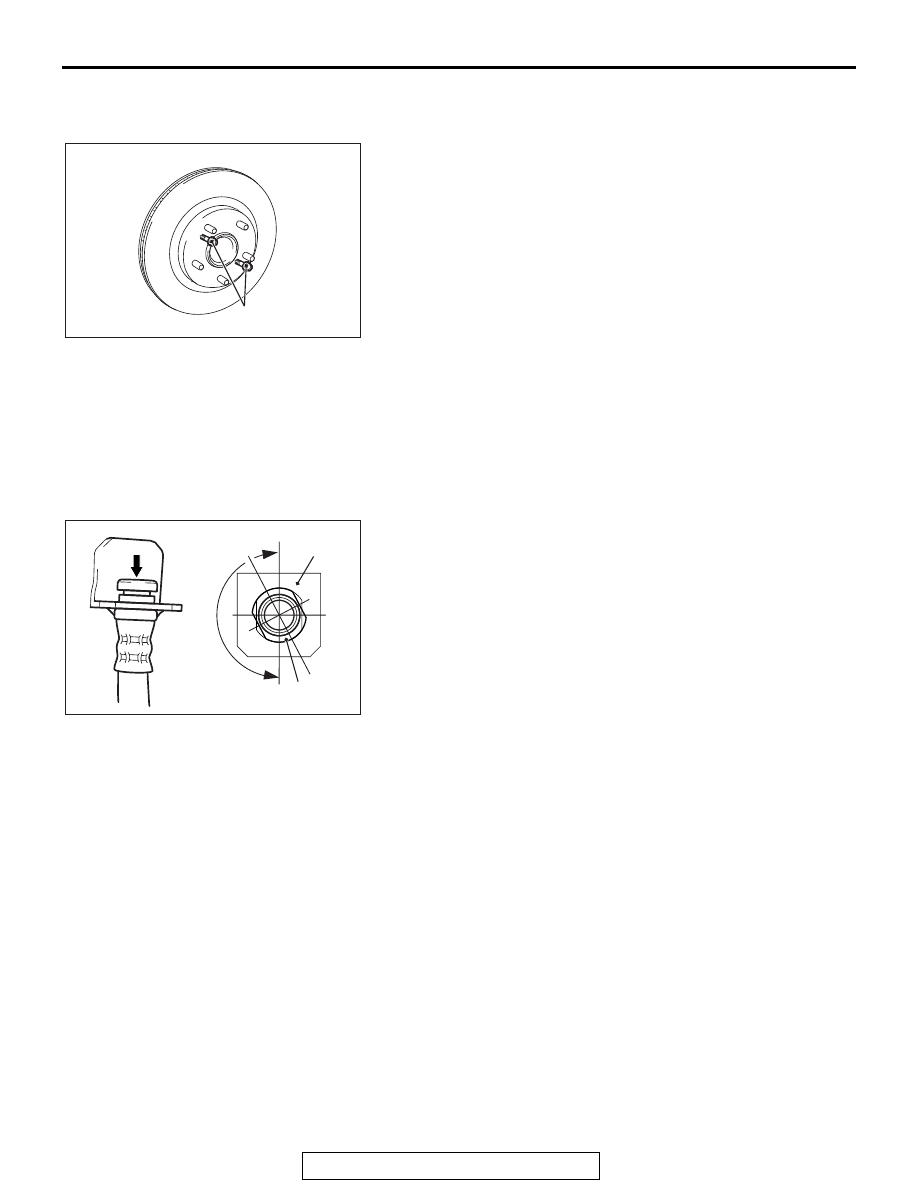

<<A>> FRONT BRAKE DISK REMOVAL

If the front brake disk removal is difficult, install bolts (M8 x 1.25
mm) shown in the figure, and tighten them evenly and gradually
to remove the front brake disk.

INSTALLATION SERVICE POINT

.

>>A<< BRAKE HOSE INSTALLATION

1. Pass the brake hose through the hole in the body-side

bracket.

2. Install the brake hose to the brake caliper.
3. Install the brake hose at the two fixing points.
4. Twist the brake hose toward the lesser torsion between the

brake hose and body-side bracket as shown in the figure,
and fix it to the body-side bracket with a clip.

INSPECTION

M1351006100460

.

BRAKE DISC CHECK

• Disc wear (Refer to

P.35A-21

).

• Disc run-out (Refer to

P.35A-21

).

AC707776AB

Bolts (M8 x 1.25 mm)

AC507195

A

View A

Correct

Bracket

Brake hose

AB

Wrong

FRONT DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-32

DISASSEMBLY AND ASSEMBLY

M1351006201341

CAUTION

Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.
And if there is brake fluid on the caliper, wipe it off quickly.

AC803967AB

19 ± 1 N·m
14 ± 1 ft-lb

19 ± 1 N·m
14 ± 1 ft-lb

1

2

1

7

9

8

10

3

4

4

6

5

5

6

8

10

9

7

1

2

1

2

4

4

N

N

2

3

3

6

5

9

3

9

7

7

5

6

Repair kit grease

<Right side>

<Left side>

<Right side>

<Left side>

<Right side>

<Left side>

Front brake clip set

Front brake shim set

Front brake pad set

Front brake caliper seal kit

Front brake caliper kit

Disassembly steps

1.

Bleeder cap

2.

Bleeder

3.

Pin

4.

Cross spring

5.

Brake pad assembly

6.

Shim

Disassembly steps (Continued)
