CRANKSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL

11A-53

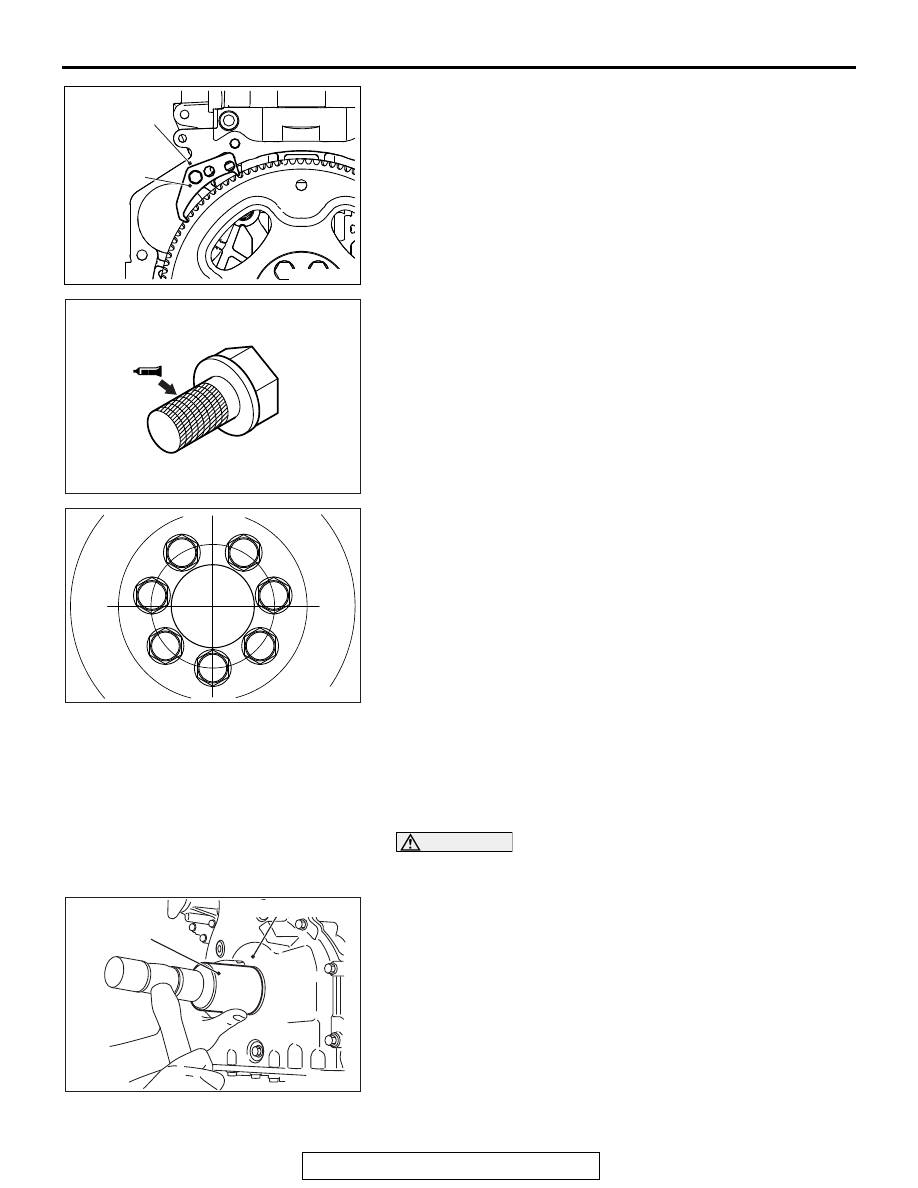

3. Use special tool MB991883 to secure the flywheel assembly

in the same manner as removal.

4. Apply a small amount of engine oil to the bearing surfaces of

flywheel bolts and crankshaft tapped hole, and apply the
sealant to the bolt threads of flywheel.

Specified sealant: Three bond 1324 or exact equiva-
lent

5. Tighten flywheel bolts to temporary torque 40 N⋅ m (30 ft-lb)

in the order shown in the illustration.

6. Tighten flywheel bolts to specified torque in the order shown

in the illustration.

Tightening torque: 130 N⋅ m (96 ft-lb)

.

>>C<< CRANKSHAFT FRONT OIL SEAL
INSTALLATION

1. Apply a small amount of engine oil to the entire inner

diameter of the oil seal lip.

CAUTION

When installing the crankshaft oil seal, be careful to avoid
damage to the crankshaft front oil seal.
2. Using special tool MB991448, press in the crankshaft front

oil seal up to the chamfered surface of timing chain case.

AC506761 AD

MB991883

Cylinder block

AC609795AE

AC609796

1

2

3

4

5

6

7

AB

AC506763 AC

MB991448

Timing chain case

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-54

CYLINDER HEAD GASKET

REMOVAL AND INSTALLATION

M1112004004237

Pre-removal operation
• Fuel Line Pressure Reduction (Refer to GROUP 13A,

On-vehicle Service − How to Reduce Pressurized Fuel

Lines

P.13A-868

).

• Engine Room Under Cover Front A, B, Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Removal (Refer to GROUP 51, Under Cover

P.51-15

).

• Engine Coolant Draining (Refer to GROUP 14, On-vehicle

Service − Engine Coolant Replacement

P.14-17

).

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-11

).

• Charge Air Cooler Intake Hose A, B and Charge Air

Cooler Intake Pipe A Removal (Refer to GROUP 15,

Charge Air Cooler

P.15-12

).

• Ignition Coil Removal (Refer to GROUP 16, Ignition Sys-

tem − Ignition Coil

P.16-40

).

• Strut Tower Bar Removal (Refer to GROUP 42A, Strut

Tower Bar

P.42A-14

).

• Exhaust Manifold and Turbocharger Assembly Removal

(Refer to GROUP 15, Exhaust Manifold and Turbocharger

Assembly

P.15-18

).

• Throttle Body Assembly Removal (Refer to GROUP 13A,

Throttle Body Assembly

P.13A-886

).

• Water Pump Removal (Refer to GROUP 14, Water Pump

P.14-26

).

Post-installation operation
• Water Pump Installation (Refer to GROUP 14, Water

Pump

P.14-26

).

• Throttle Body Assembly Installation (Refer to GROUP

13A, Throttle Body Assembly

P.13A-886

).

• Exhaust Manifold and Turbocharger Assembly Installation

(Refer to GROUP 15, Exhaust Manifold and Turbocharger

Assembly

P.15-18

).

• Strut Tower Bar Installation (Refer to GROUP 42A, Strut

Tower Bar

P.42A-14

).

• Ignition Coil Installation (Refer to GROUP 16, Ignition

System − Ignition Coil

P.16-40

).

• Charge Air Cooler Intake Hose A, B and Charge Air

Cooler Intake Pipe A Installation (Refer to GROUP 15,

Charge Air Cooler

P.15-12

).

• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-11

).

• Engine Coolant Refilling (Refer to GROUP 14, On-vehicle

Service − Engine Coolant Replacement

P.14-17

).

• Fuel Leak Check
• Engine Room Under Cover Front A, B, Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Installation (Refer to GROUP 51, Under Cover

P.51-15

).

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-55

AC704359AC

1

2

3

4

5

7

8

6

9

10

11

12

13

15

17

10 ± 2 N·m
89 ± 17 in-lb

23 ± 6 N·m
17 ± 4 ft-lb

N

N

14

16

(Engine oil)

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

Removal steps

1.

Control wiring harness
connection

<<

A

>>

>>

H

<<

2.

Radiator upper hose connection

<<

A

>>

>>

H

<<

3.

Radiator lower hose connection

4.

Heater hose connection

<<

B

>>

>>

G

<<

5.

Fuel high-pressure hose
connection

6.

Fuel return hose connection

7.

Turbocharger by-pass valve
purge hose connection

8.

Canister vacuum hose
connection

9.

Brake booster vacuum hose
connection

10. Water pump intake pipe

>>

F

<<

11. O-ring
12. Engine oil level gauge
13. O-ring
14. Starter wiring harness clamp
15. Intake manifold stay (front)
16. Starter wiring harness clamp
17. Intake manifold stay (rear)

Removal steps (Continued)

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-56

AC706764AC

30

26

29

24

N

23

20

18

21

22

N

28

N

19

25

27

N

12 ± 1 N·m
107 ± 8 in-lb

17 ± 3 N·m
13 ± 2 ft-lb

Apply engine oil to all
moving parts before
installation.

(Engine oil)

(Engine oil)

12 ± 1 N·m
107 ± 8 in-lb

<Cold engine>
35 ± 2 N·m
26 ± 1 ft-lb

30 ± 2 N·m
23 ± 1ft-lb

to

to +90˚ to +90˚

<Cold engine>
35 ± 2 N·m
26 ± 1 ft-lb to +90˚ to +90˚

Removal steps

•

Valve timing chain (Refer to

P.11A-66

)

<<

C

>>

>>

E

<<

18. Front camshaft bearing cap

assembly

>>

C

<<

19. Camshaft bearing

<<

D

>>

>>

D

<<

20. Oil feeding camshaft bearing cap

<<

D

>>

>>

D

<<

21. Camshaft bearing cap

<<

D

>>

>>

D

<<

22. Camshaft bearing cap

<<

D

>>

>>

D

<<

23. Thrust camshaft bearing cap

>>

C

<<

24. Camshaft and camshaft sprocket

assembly

>>

C

<<

25. Camshaft bearing

<<

E

>>

>>

B

<<

26. Cylinder head bolt

<<

E

>>

>>

B

<<

27. Cylinder head bolt washer

<<

E

>>

>>

B

<<

28. Cylinder head bolt and washer

assembly

>>

A

<<

29. Cylinder head assembly

>>

A

<<

30. Cylinder head gasket

Removal steps (Continued)
