SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-227

(2) Measure the resistance between the defective

lamp connector terminal and body earth.

•

Resistance between A-39 <front RH> headlamp

assembly connector terminal No.7 and body
earth

• Resistance between A-31 <front LH> head-

lamp assembly connector terminal No.7 and
body earth

•

Resistance between A-01 <side RH> side

turn-signal lamp connector terminal No.1 and
body earth

• Resistance between A-02 <side LH> side

turn-signal lamp connector terminal No.1 and
body earth

•

Resistance between F-08 <rear RH> rear combi-

nation lamp connector terminal No.5 and
body earth

• Resistance between F-14 <rear LH> rear

combination lamp connector terminal No.5
and body earth

•

Resistance between C-02 <turn-signal indicator

lamp> combination meter terminal No.48 and
body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

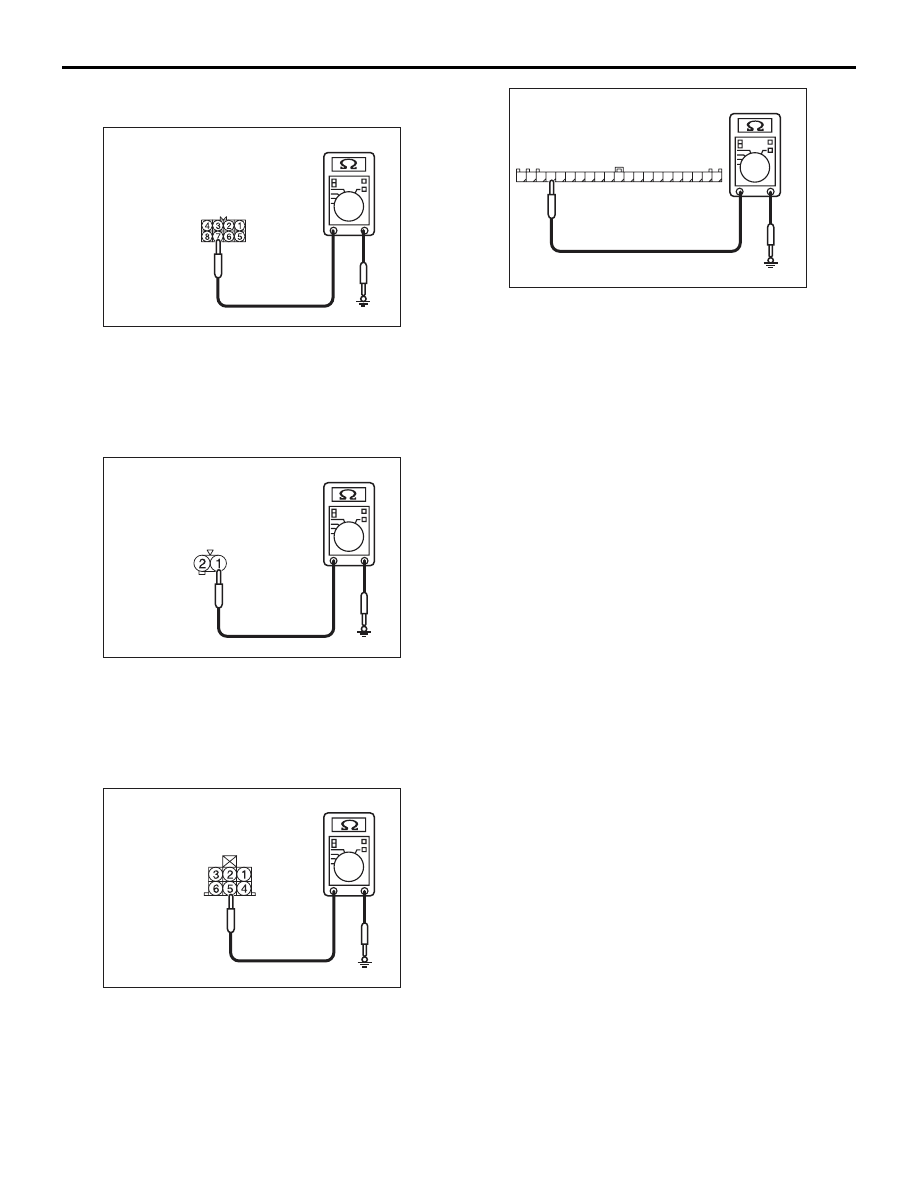

AC301541HG

Connector A-31, A-39
(Harness side)

AC301541HH

Connector A-01, A-02
(Harness side)

AC301541HI

Connector F-08, F-14
(Harness side)

AC301541HE

Connector C-02
(Harness side)

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-228

Step 4. Check the wiring harness from A-39
<front RH> or A-31 <front LH> headlamp
assembly connector terminal No.7, A-01 <side
RH> or A-02 <side LH> side turn-signal lamp
connector terminal No.1, F-08 <rear RH> or F-14
<rear LH> rear combination lamp connector
terminal No.5, or C-02 <turn-signal indicator
lamp> combination meter connector terminal
No.48 to body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

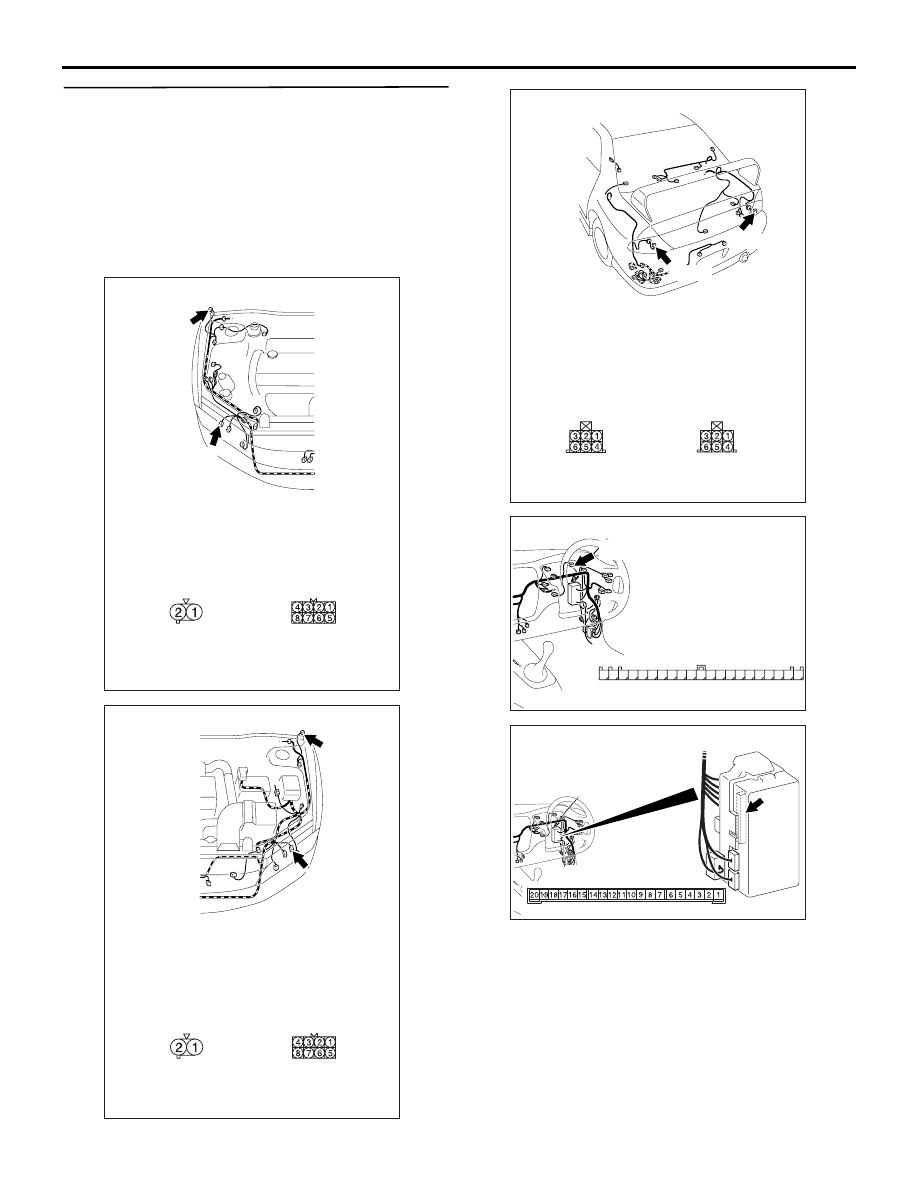

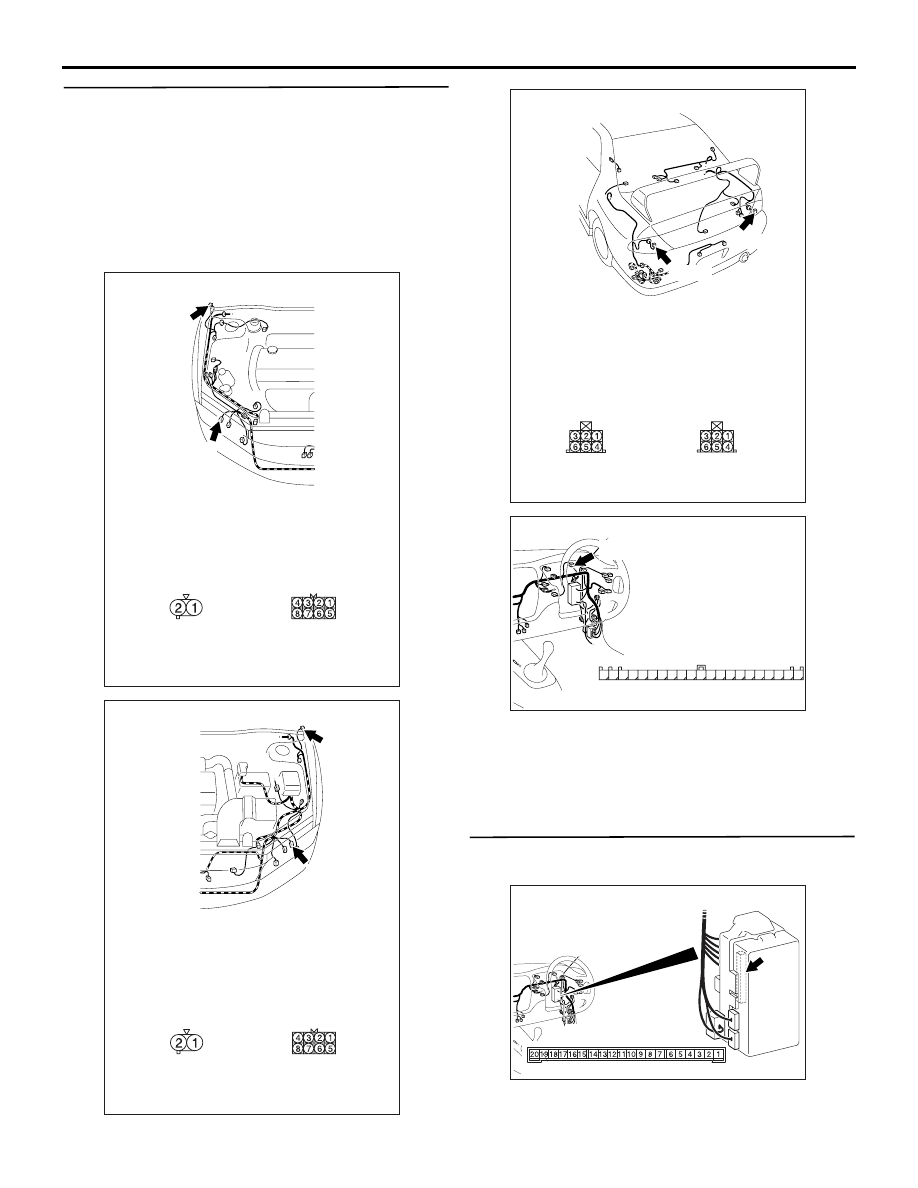

AC310434

Connectors: A-01, A-39
<RHD>

A-39

A-01 (GR)

Harness side

A-01

Harness side

A-39

AB

AC310476

Connectors: A-02, A-31
<RHD>

A-31

A-02 (GR)

Harness side

A-02

Harness side

A-31

AB

AC310470

Connectors: F-08, F-14
<RHD>

F-14

F-08

Harness side

F-08

Harness side

F-14

AC

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-229

Step 6. Check the wiring harness from the A-39

<front RH> or A-31 <front LH> headlamp

assembly connector terminal No.2, the A-01

<side RH> or A-02 <side LH> side turn-signal

lamp connector terminal No.2, the F-08 <rear RH>

or F-14 <rear LH> rear combination lamp

connector terminal No.1, the C-02 <turn-signal

indicator lamp RH> combination meter connector

terminal No.49 or C-01 <turn-signal indicator

lamp LH> combination lamp connector terminal

No.3 to C-226 ETACS-ECU connector terminal

No.9 <RH> or 14 <LH>.

AC310434

Connectors: A-01, A-39
<RHD>

A-39

A-01 (GR)

Harness side

A-01

Harness side

A-39

AB

AC310476

Connectors: A-02, A-31
<RHD>

A-31

A-02 (GR)

Harness side

A-02

Harness side

A-31

AB

AC310470

Connectors: F-08, F-14
<RHD>

F-14

F-08

Harness side

F-08

Harness side

F-14

AC

AC310456

Connector: C-02
<RHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

AC310461

Junction block (rear view)

Connector: C-226

AB

<RHD>

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-230

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-129 <front or side LH>, C-127
<rear LH> or C-111 <side RH> and junction block
connector C-210 <front, side or rear LH>, C-217
<rear RH> or C-214 <turn-signal indicator lamp>,
and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the turn-signal lamps and the indicator
lamps illuminate normally.

Q: Is the check result normal?

The lamps illuminate normally at both high and low
beams. :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

The front turn-signal lamps do not illuminate. :

Replace the socket.

The side turn-signal lamps do not illuminate. :

Replace the socket.

The rear turn-signal lamps do not illuminate. :

Replace the socket assembly.

The turn-signal indicator lamps do not illuminate. :

Replace the combination meter.

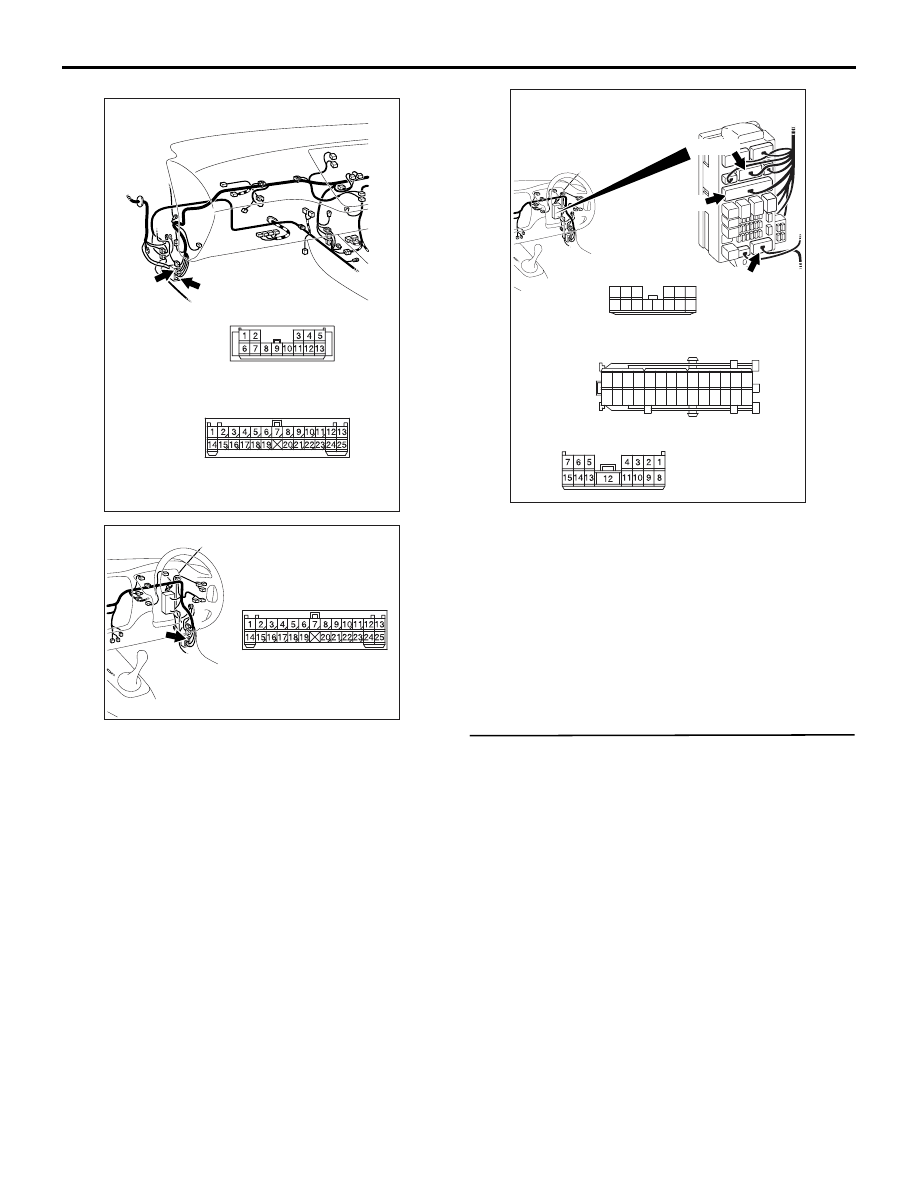

AC310455

C-127

C-129

Connectors: C-127, C-129

AE

C-129

<RHD>

C-127

AC310456

Connectors: C-111

AP

<RHD>

AC310459

C-214
Harness side

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connectors: C-210, C-214, C-217

AE

C-214

Junction block (front view)

<RHD>

C-210

C-210
Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

C-217

C-217

Harness side
