SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-219

Step 4. Check the wiring harness from A-39

<front RH> or A-31 <front LH> headlamp

assembly connector terminal No.7, A-01 <side

RH> or A-02 <side LH> side turn-signal lamp

connector terminal No.1, F-08 <rear RH> or F-14

<rear LH> rear combination lamp connector

terminal No.5, or C-02 <turn-signal indicator

lamp> combination meter connector terminal

No.48 to body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

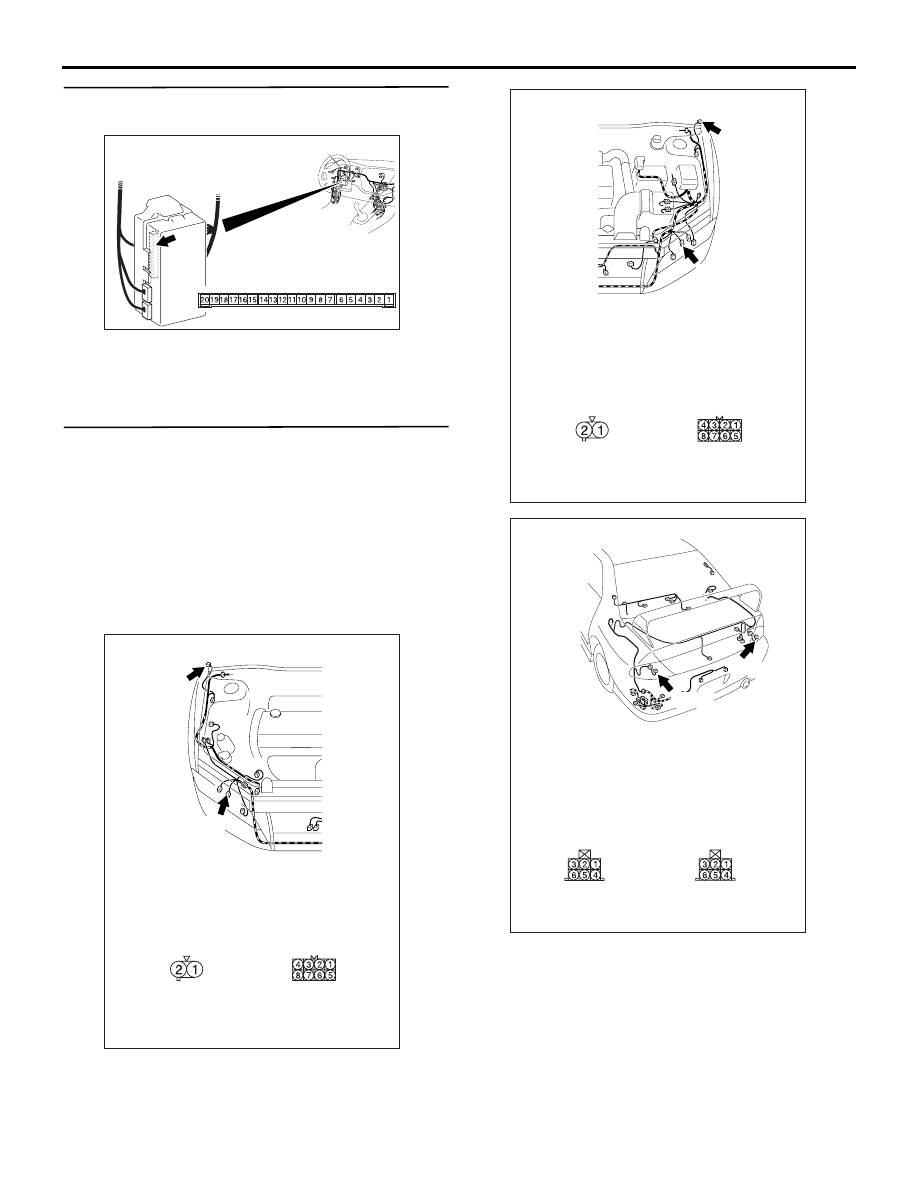

AC310432

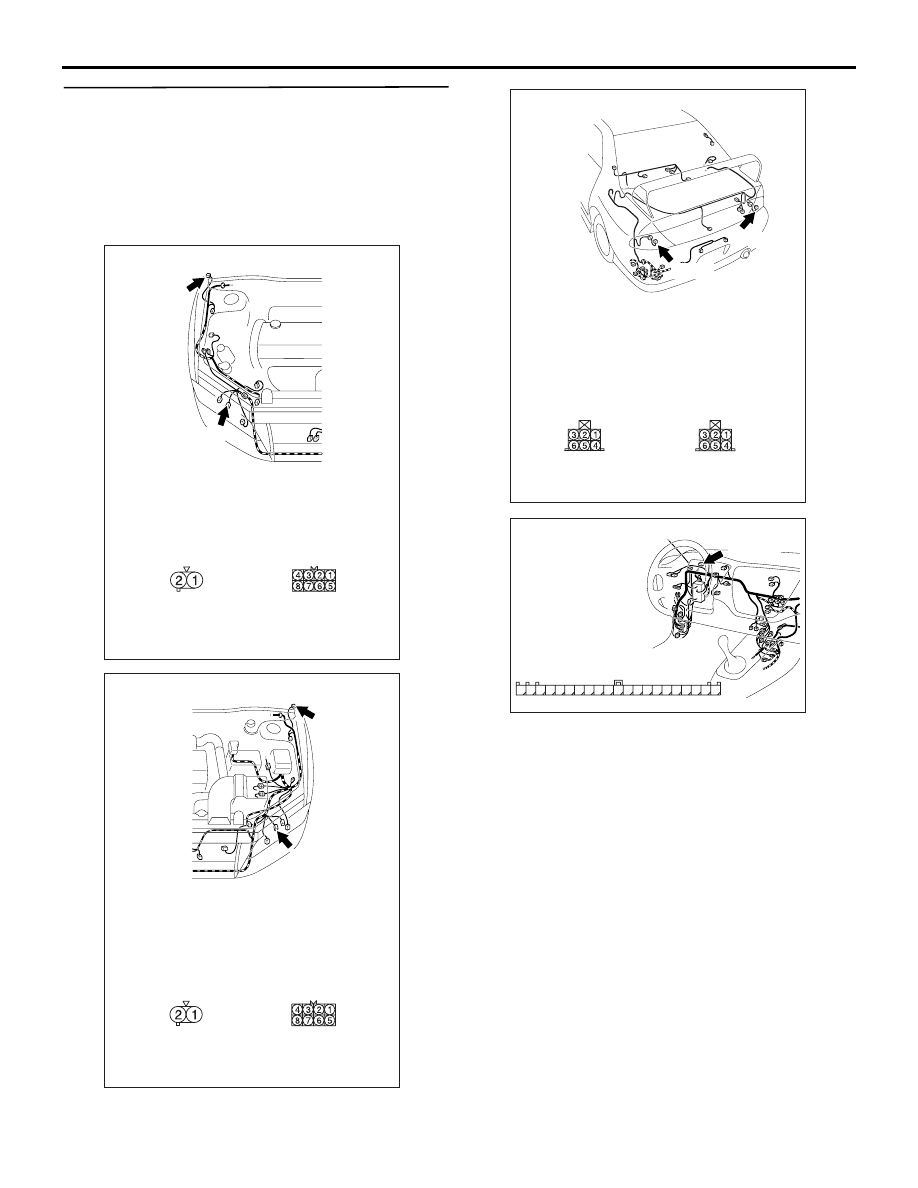

Connectors: A-01, A-39
<LHD>

A-39

A-01 (GR)

Harness side

A-01

Harness side

A-39

AB

AC310543

Connectors: A-02, A-31
<LHD>

A-31

A-02 (GR)

Harness side

A-02

Harness side

A-31

AB

AC310468

Connectors: F-08, F-14
<LHD>

F-14

F-08

Harness side

F-08

Harness side

F-14

AC

AC310446

Connector: C-02
<LHD>

AK

Harness side

31

35

36

37

38

39

40

41

45

46

47

48

49

50

51

34

44

33

43

32

42

C-02 (L)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-220

Step 5. Connector check: C-226 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from the A-39

<front RH> or A-31 <front LH> headlamp

assembly connector terminal No.2, the A-01

<side RH> or A-02 <side LH> side turn-signal

lamp connector terminal No.2, the F-08 <rear RH>

or F-14 <rear LH> rear combination lamp

connector terminal No.1, the C-02 <turn-signal

indicator lamp RH> combination meter connector

terminal No.49 or C-01 <turn-signal indicator

lamp LH> combination lamp connector terminal

No.3 to C-226 ETACS-ECU connector terminal

No.9 <RH> or 14 <LH>.

AC310450

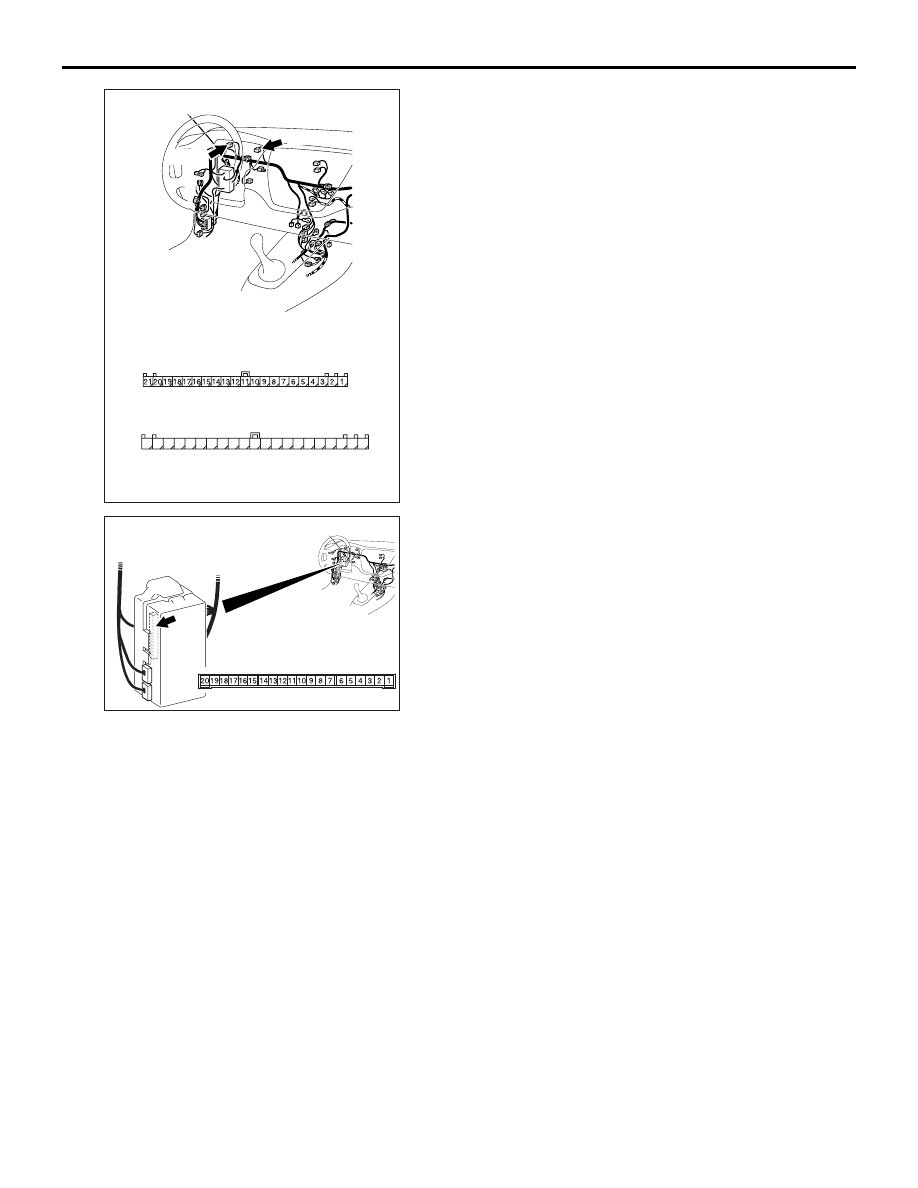

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

AC310432

Connectors: A-01, A-39
<LHD>

A-39

A-01 (GR)

Harness side

A-01

Harness side

A-39

AB

AC310543

Connectors: A-02, A-31
<LHD>

A-31

A-02 (GR)

Harness side

A-02

Harness side

A-31

AB

AC310468

Connectors: F-08, F-14
<LHD>

F-14

F-08

Harness side

F-08

Harness side

F-14

AC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-221

AC310447

Connectors: C-01, C-02

AE

<LHD>

C-01
Harness side

C-02
Harness side

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

C-01

C-02(L)

AC310450

Connector: C-226

AB

Junction block side

Junction block (rear view)

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-222

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-129 <front or side LH>, C-113
<rear RH> or C-111 <side RH> and junction block
connector C-210 <front LH, side or rear RH>, C-217
<rear LH> or C-214 <front RH or turn-signal indicator
lamp>, and repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the turn-signal lamps and the indicator
lamps illuminate normally.

Q: Is the check result normal?

The lamps illuminate normally at both high and low
beams. :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

The front turn-signal lamps do not illuminate. :

Replace the socket.

The side turn-signal lamps do not illuminate. :

Replace the socket.

The rear turn-signal lamps do not illuminate. :

Replace the socket assembly.

The turn-signal indicator lamps do not illuminate. :

Replace the combination meter.

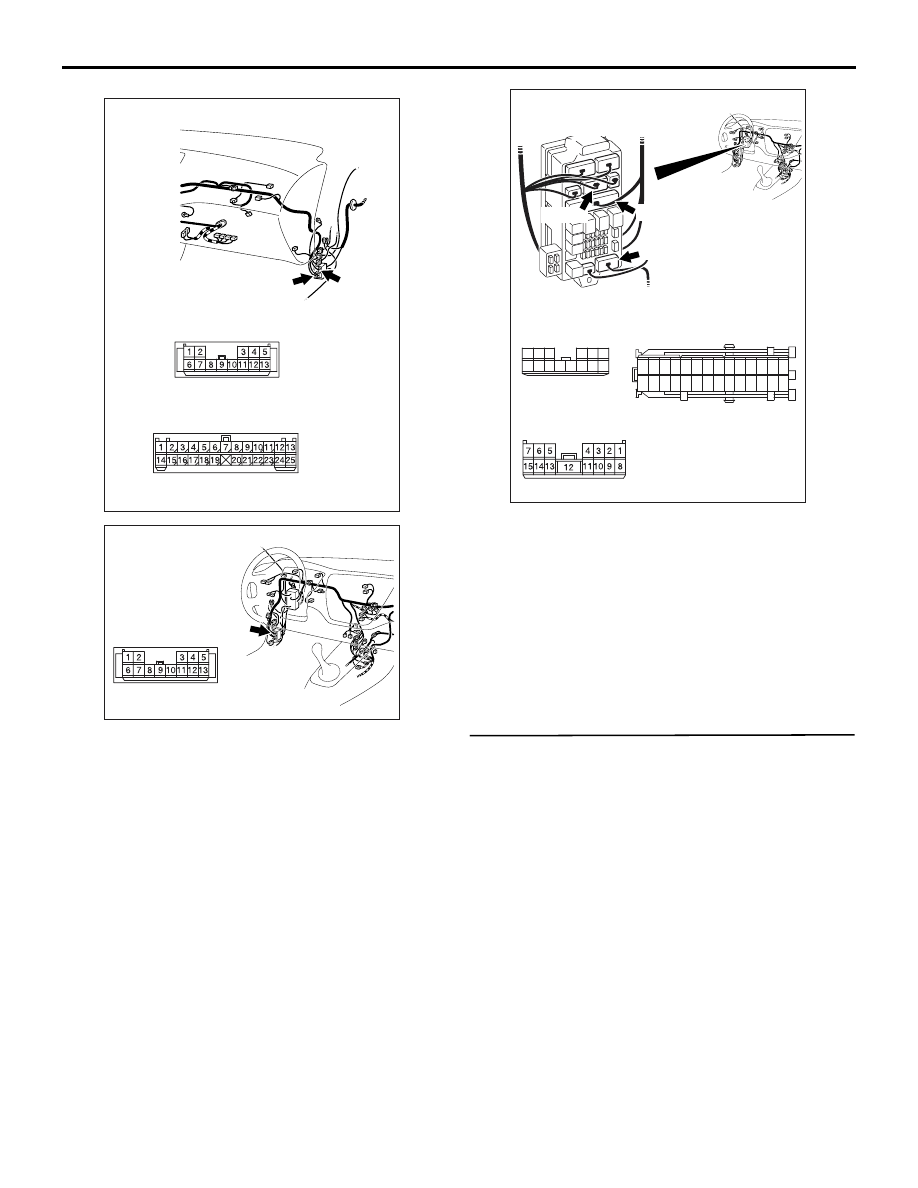

AC310453

C-111

C-113

Connectors: C-111, C-113

AB

C-113

<LHD>

C-111

Harness side

Harness side

AC310446

C-129

Connectors: C-129

AP

<LHD>

AC310449

C-214
Harness side

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connectors: C-210, C-214, C-217

AE

C-214

Junction block (front view)

<LHD>

C-210

C-210
Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

C-217

C-217
Harness side
