BODY – BONNET, DOORS
42-3
Installation service point
A
Bonnet hinge bolt installation
Caution
Because the bonnet is made from aluminium, a special coating is
provided on the bonnet hinge bolt (bonnet side), and therefore
special parts should be used.
DOORS
Door handles and latches
Removal and Installation
Pre-Removal Operations
• Door trim removal
Post-Removal Operations
• Door inside handle looseness check
• Door outside handle looseness check
• Door trim installation

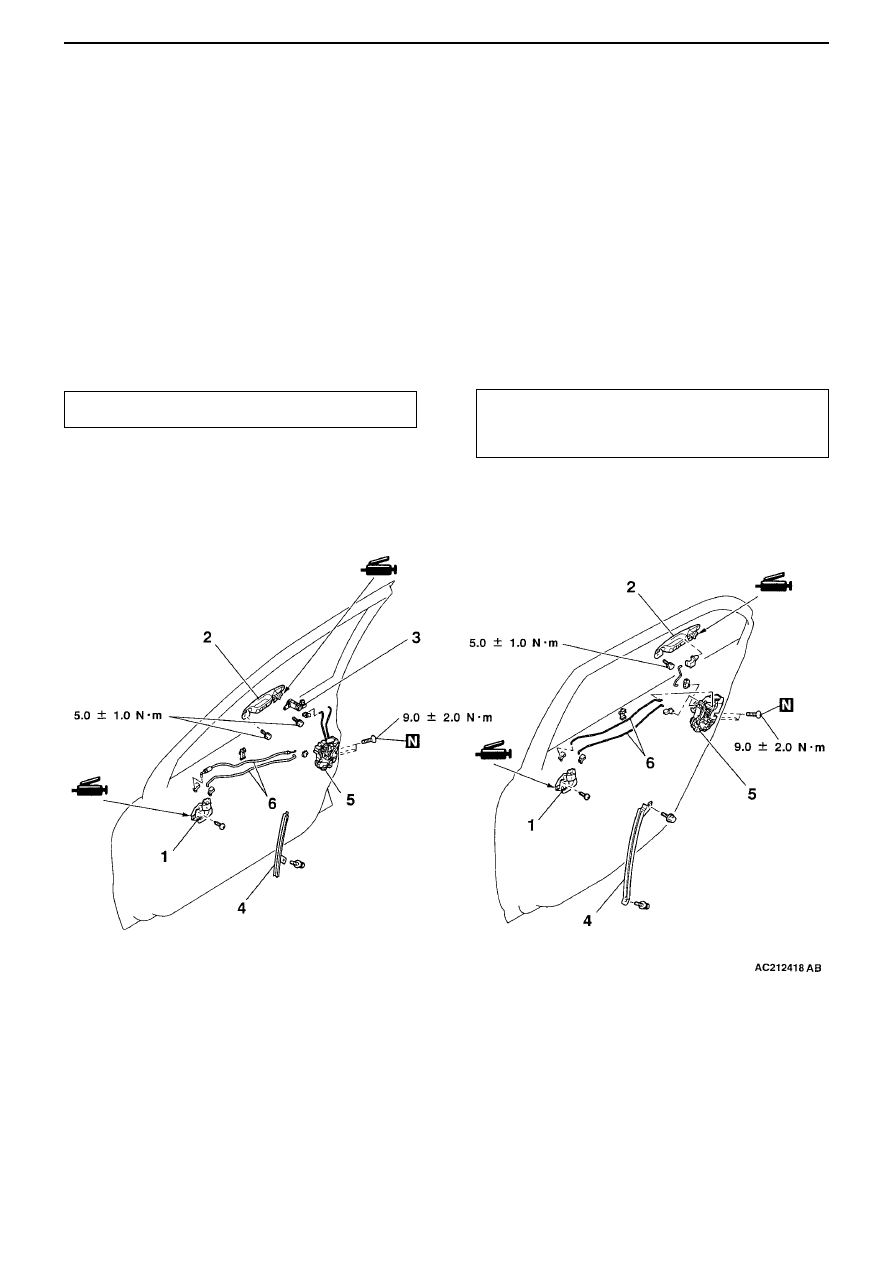

Removal procedure
1. Door inside handle
• Waterproof film
2. Door outside handle
3. Key cylinder
4. Lower sash

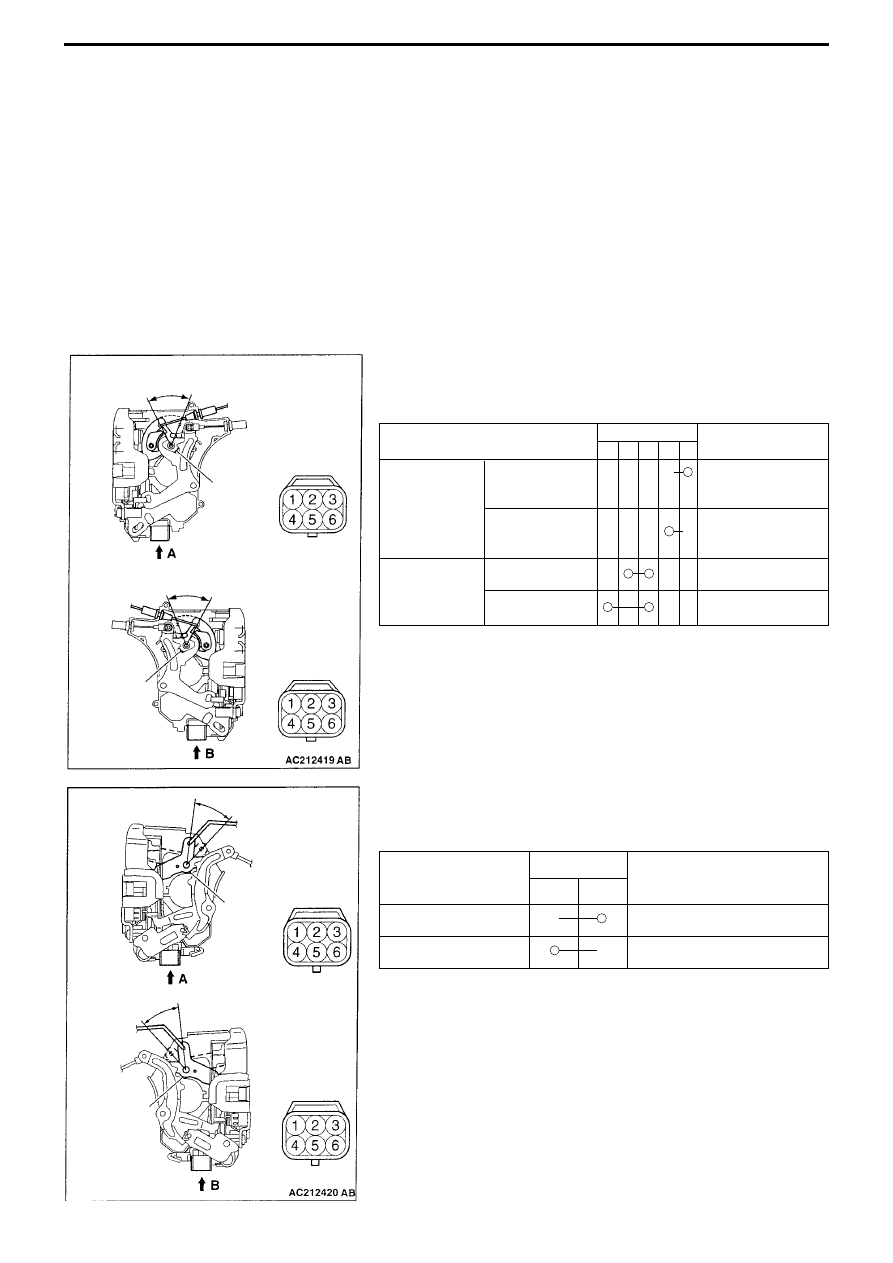

5. Door latch assembly
6. Link
(Front door)
(Rear door)
A
B
