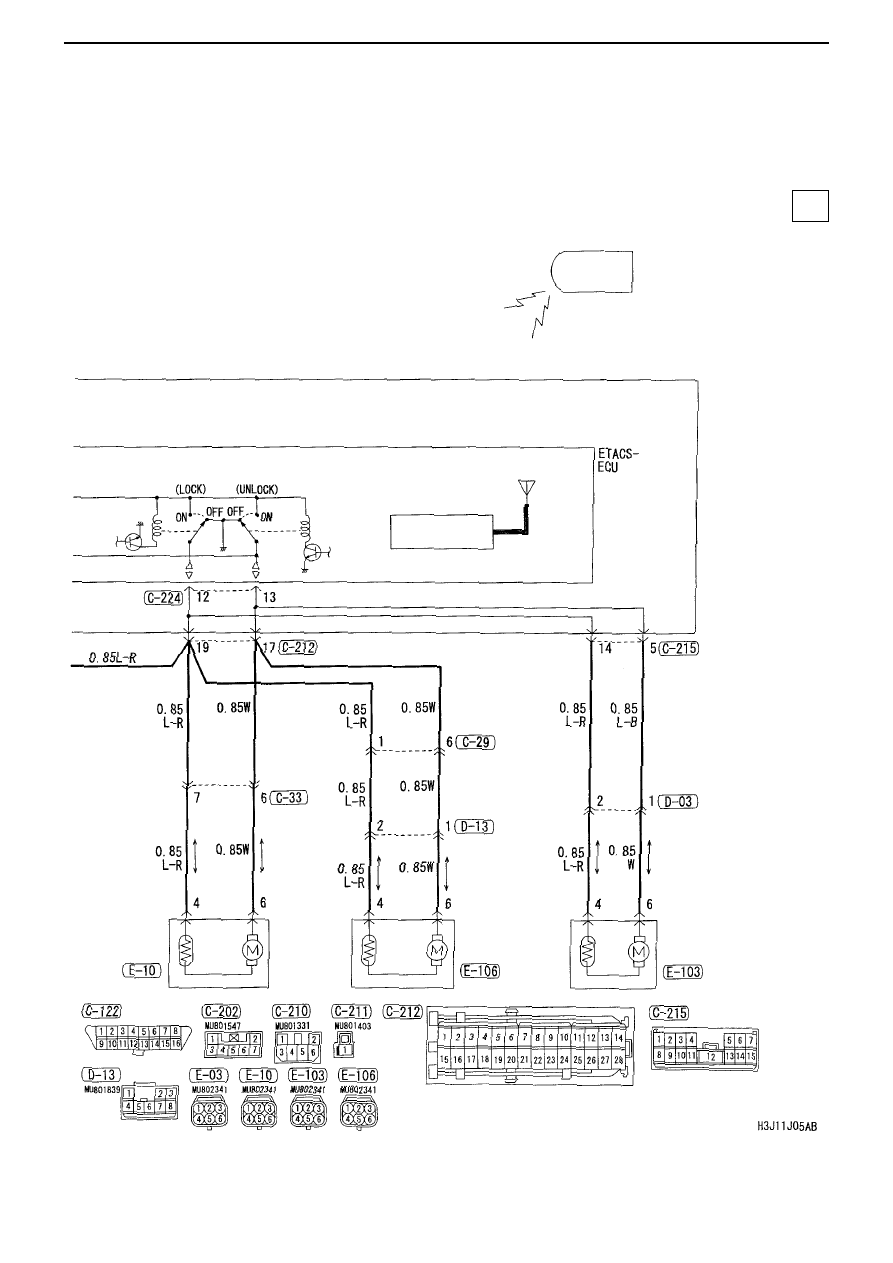

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-81

Keyless entry
transmitter

Keyless entry
receiver

Door lock
actuator
(front: LH)

Door lock
actuator
(rear: LH)

Door lock
actuator
(rear: RH)

Front view

2

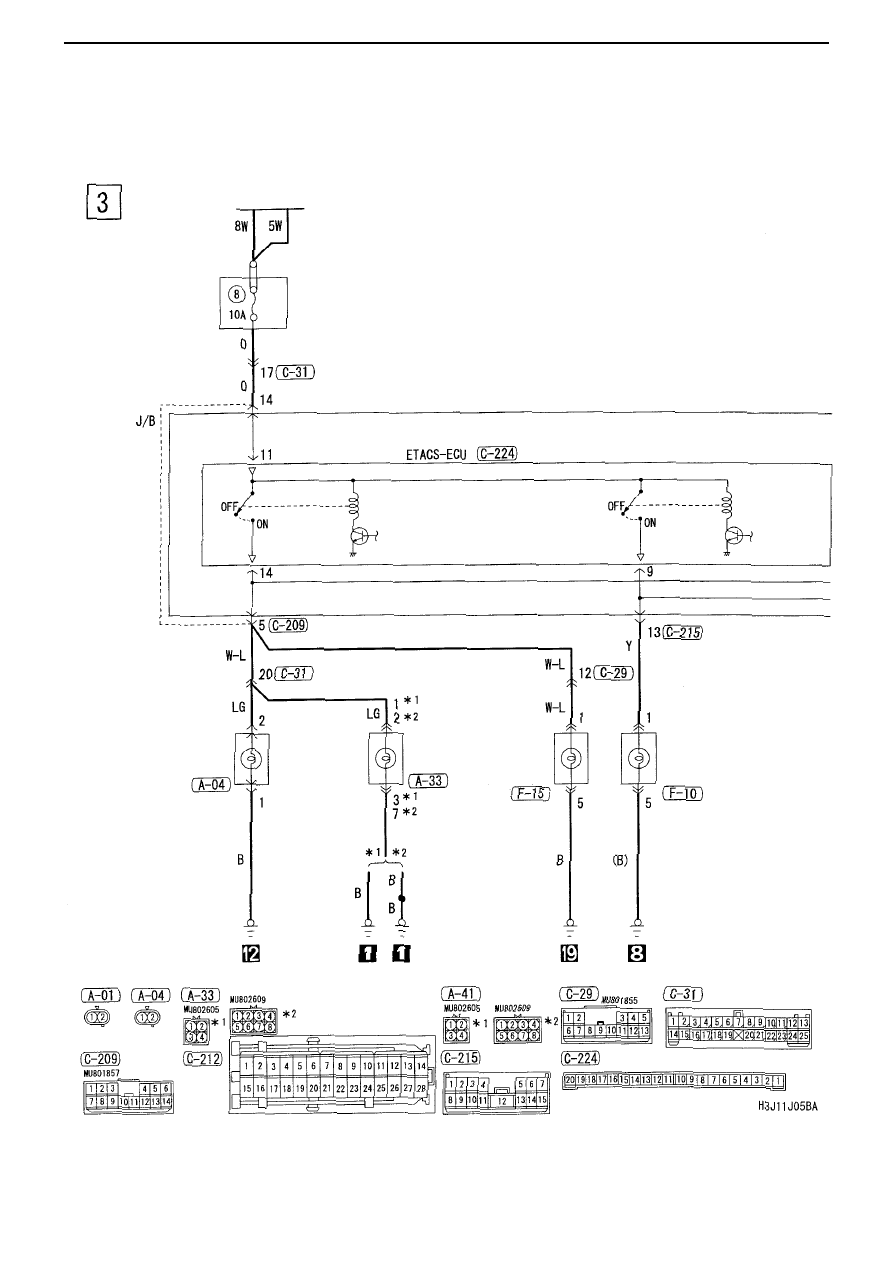

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-82

Central door locking <vehicle fitted with keyless entry> (continued)

Battery

Special-
purpose
fuse

Note:
*1: Excluding discharge type headlight
*2: Discharge type headlight

(Indicator light
relay: LH)

(Indicator light
relay: RH)

Side
indicator
light (LH)

Headlight
ASSY
(turn: LH)

Rear
combination
light (turn: LH)

Rear
combination
light (turn: RH)

J/B side connector

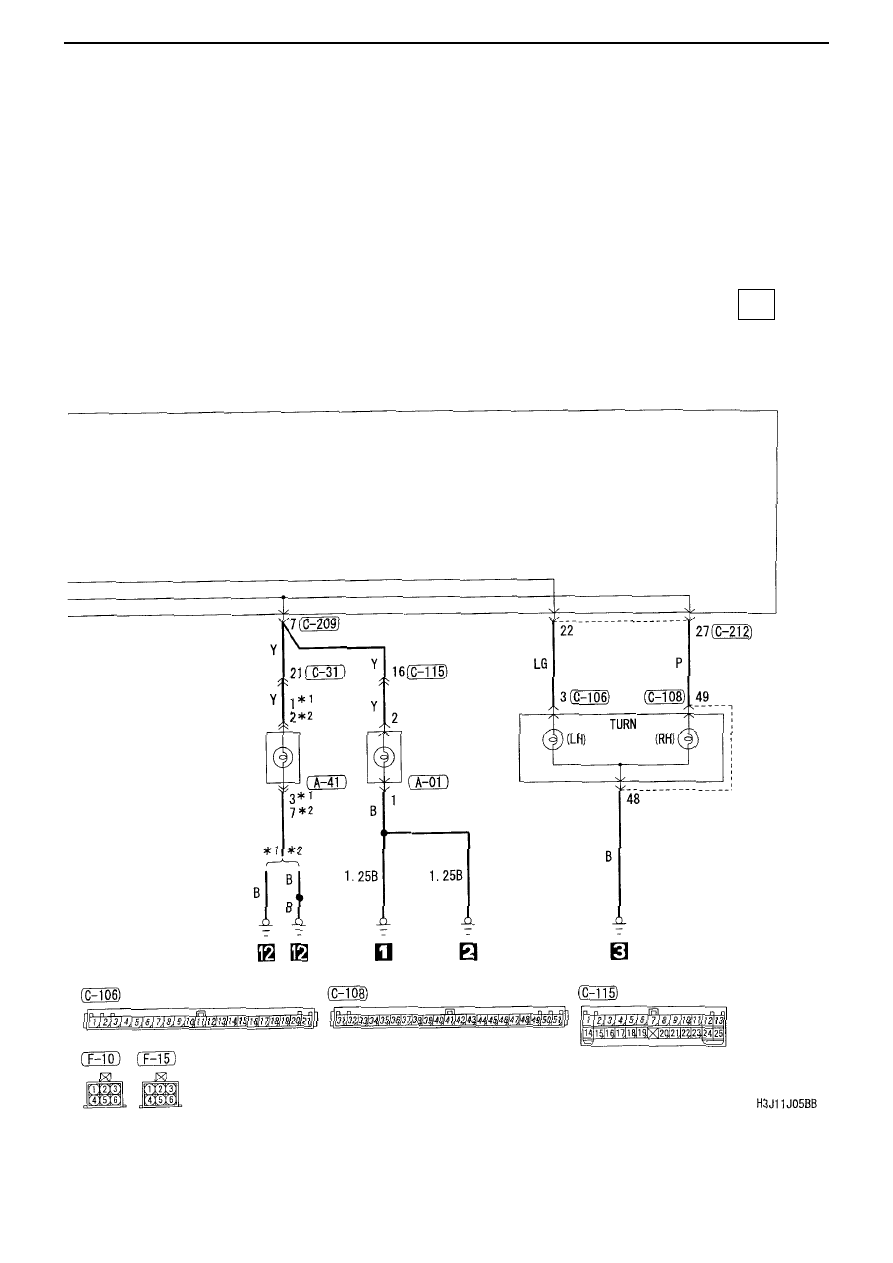

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-83

Headlight
ASSY
(turn: RH)

Side
indicator
light (LH)

Combination
meter

4

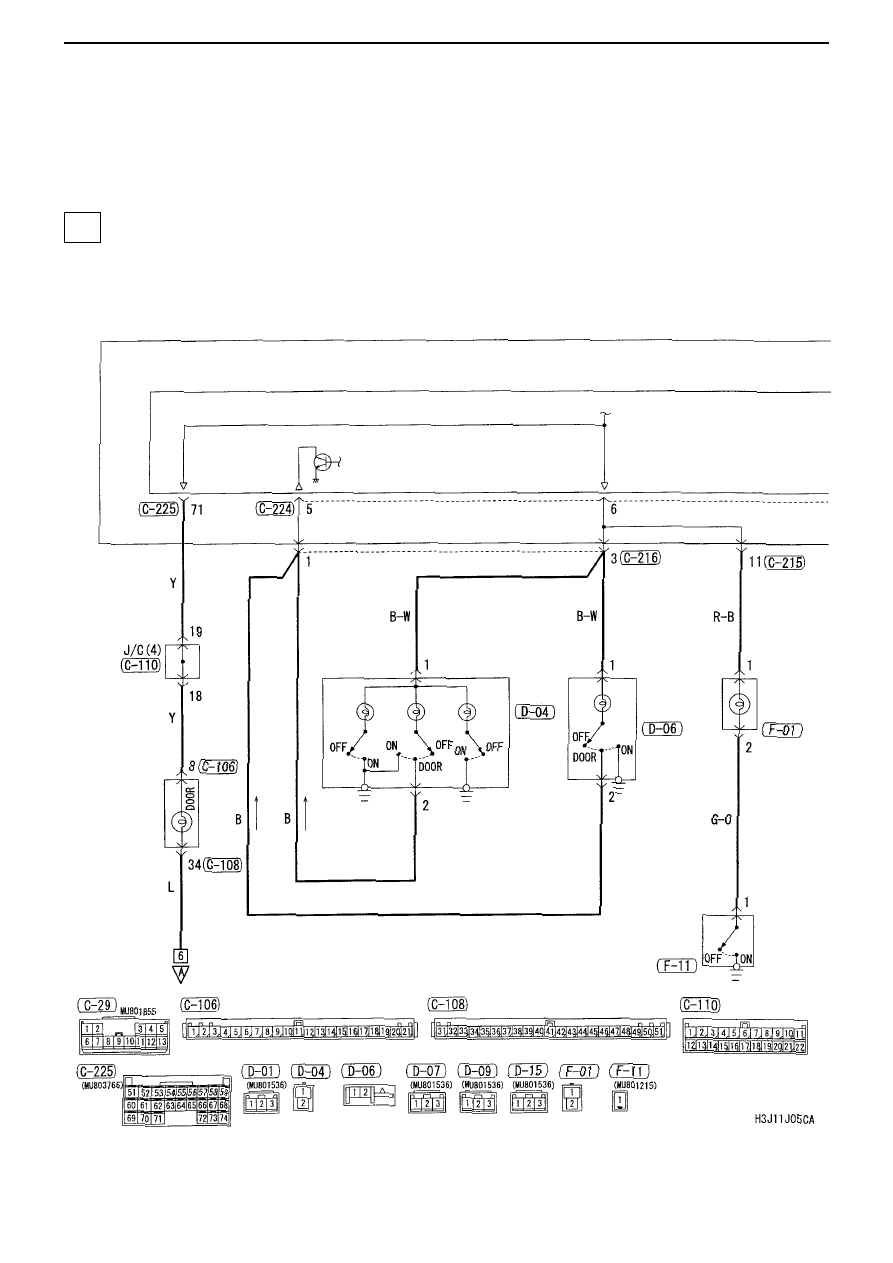

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-84

Central door locking <vehicle fitted with keyless entry> (continued)

Front
Interior
light

Rear Interior
light <vehicle
not fitted with
sunroof>

Luggage
compartment
light

Combination
meter

Luggage
compartment
light switch

5
