CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-73

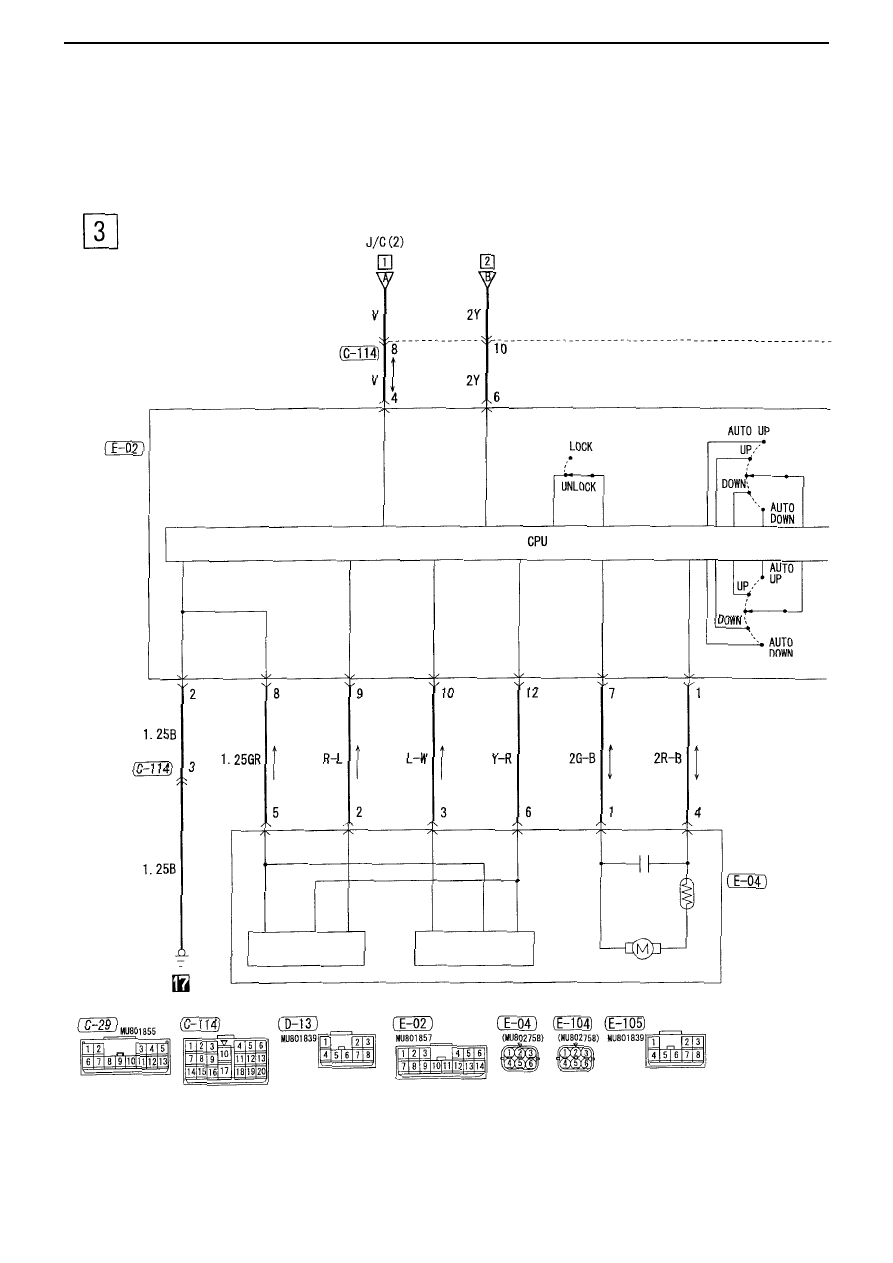

Fusible link

Electric
window
subswitch
(front: LH)

Electric
window
relay

Horn IC

Electric
window motor
(front: LH)

Front View

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-74

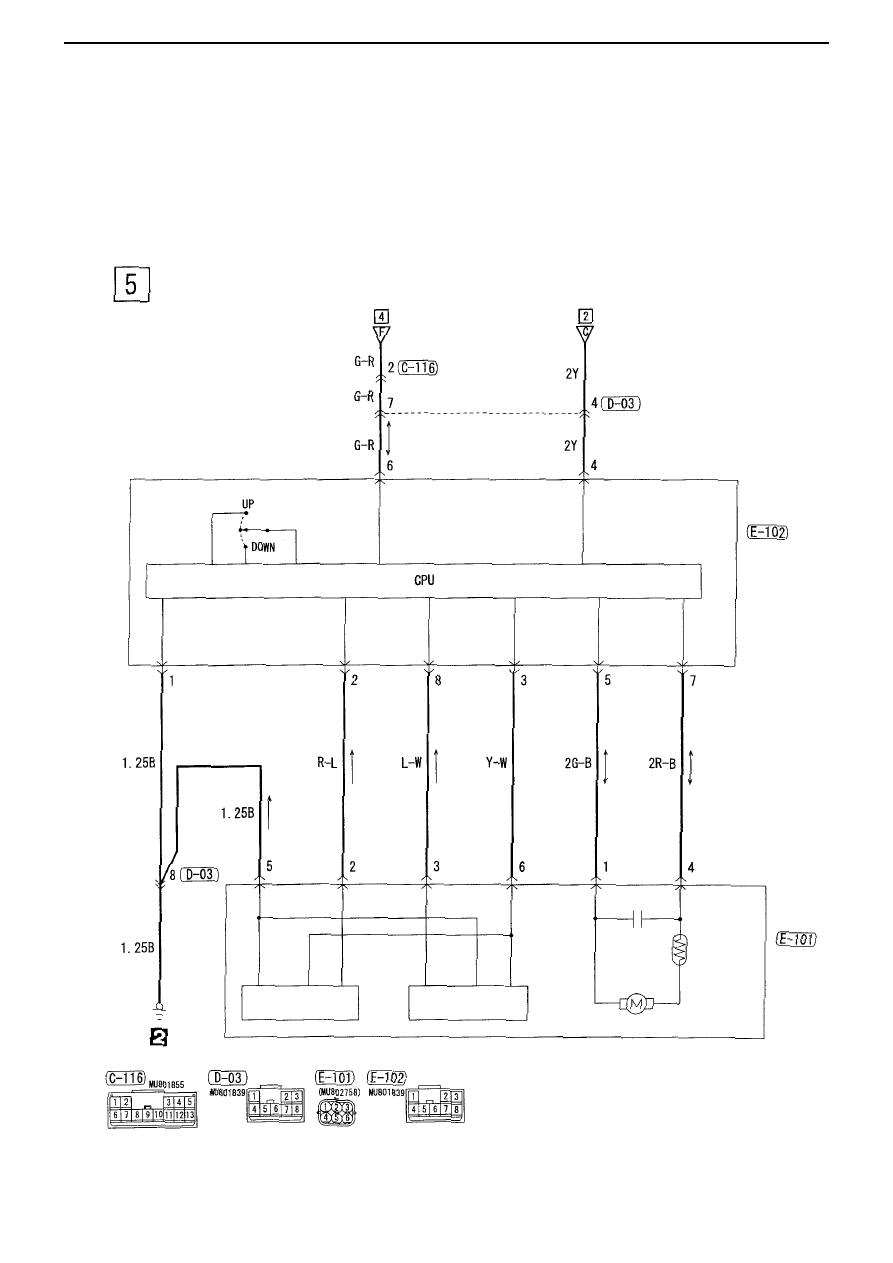

Electric window (continued)

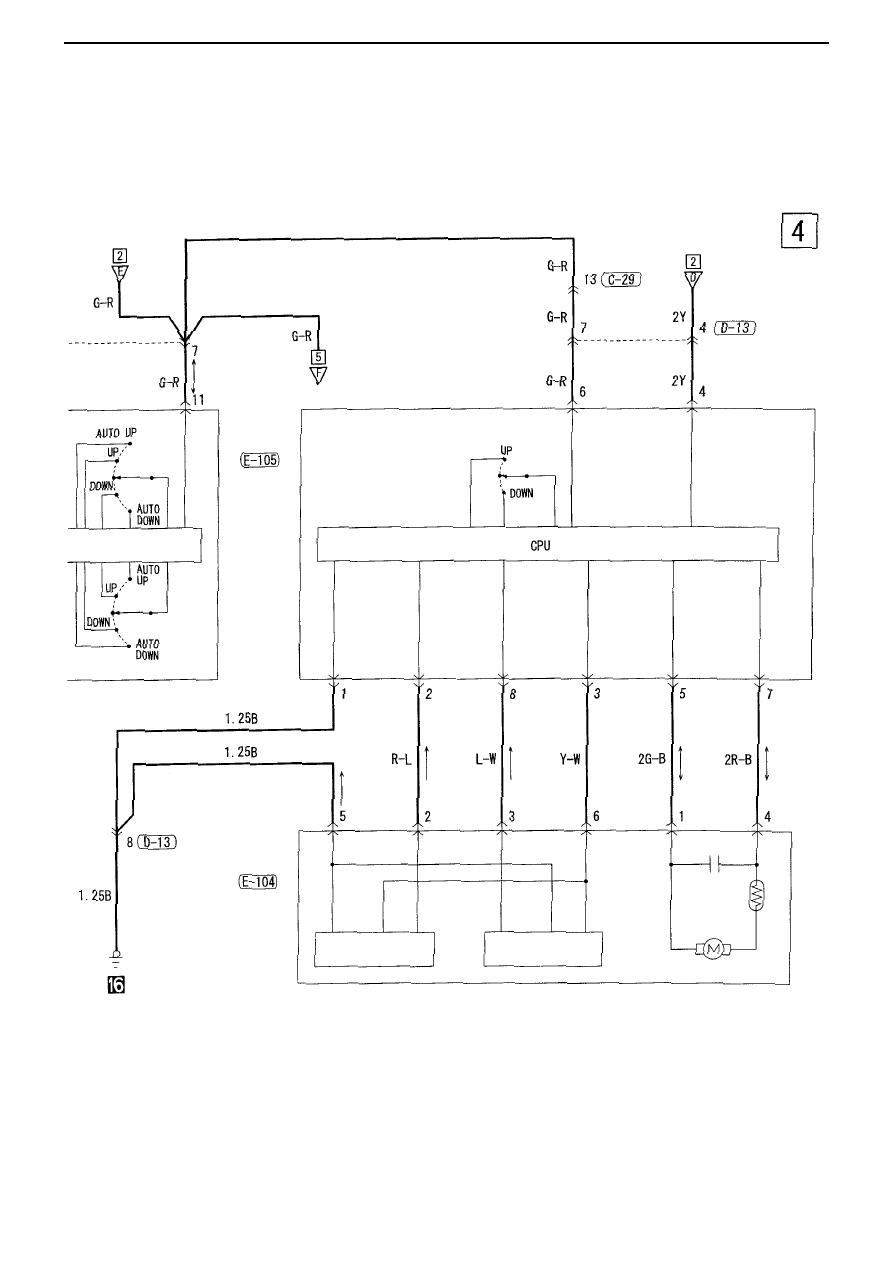

Electric
window relay

(Front: RH)

Locking
switch

Electric
window
main
switch

(Front: LH)

Electric
window motor
(front: RH)

Horn IC

H3J11J03BA

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-75

Electric
window
subswitch

Electric
window
relay

Electric
window
subswitch
(rear: LH)

(Rear: RH)

(Rear: LH)

Electric
window
motor
(rear: LH)

Horn IC

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-76

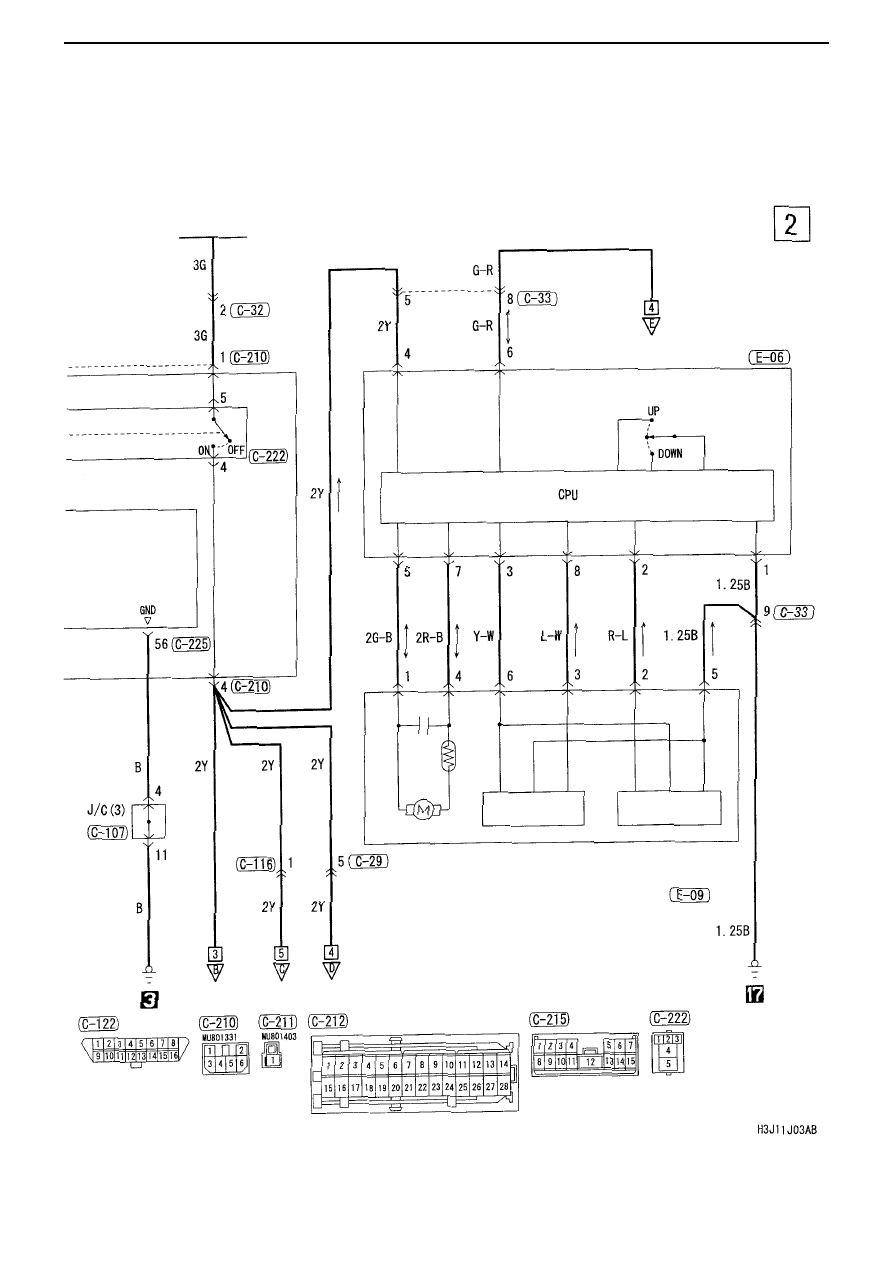

Electric window (continued)

Electric window
main switch

Electric window relay

Electric
window
subswitch
(rear: RH)

Electric
window
motor
(rear: RH)

Horn IC
