Mitsubishi Lancer Evolution 8. Manual - part 59

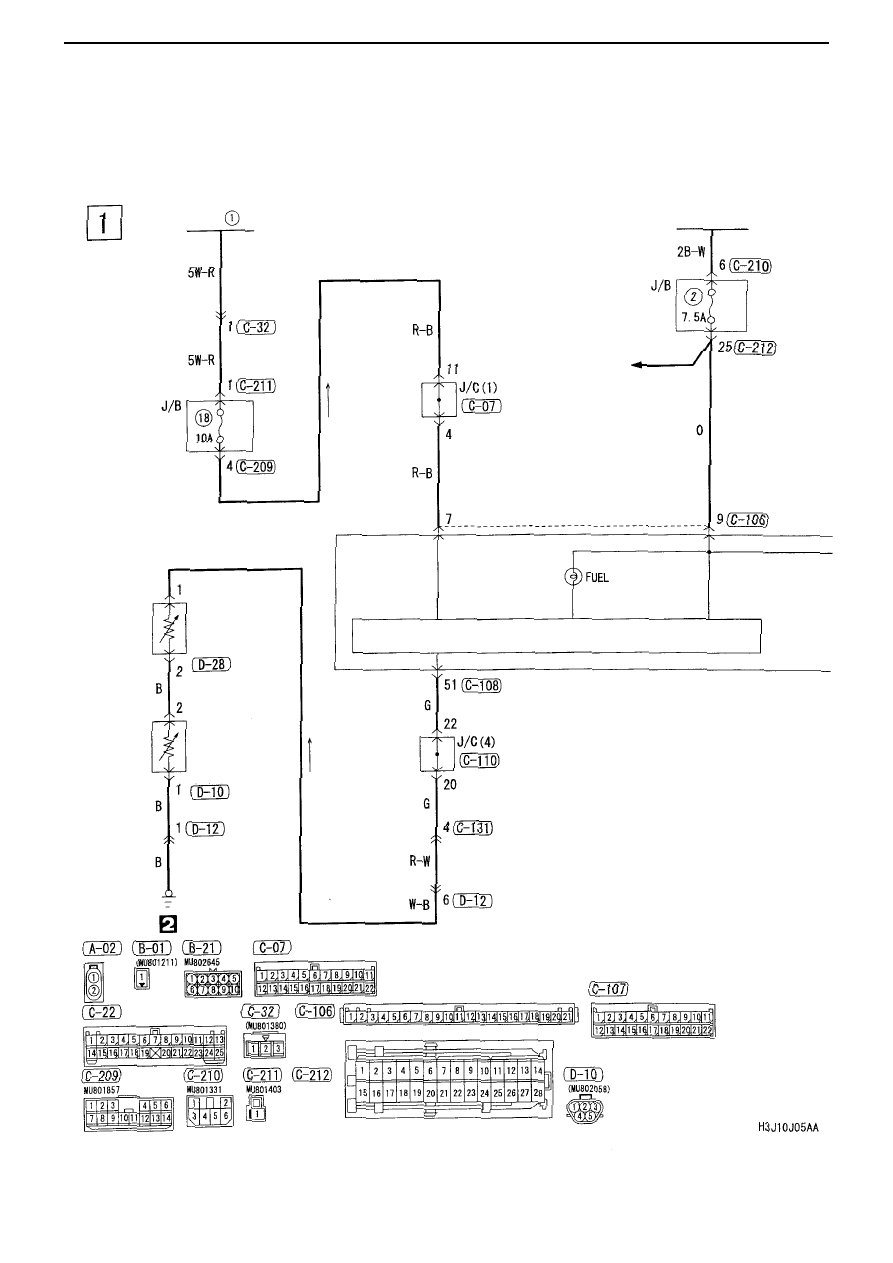

CIRCUIT DIAGRAMS - METERS

3-69

Fusible
Link

Front ECU
(tail light relay)

Special-
purpose
fuse

Tail light,
front side light,
licence plate
light, lighting
monitor buzzer

Combination meter

LCD odd trip meter

Engine ECU

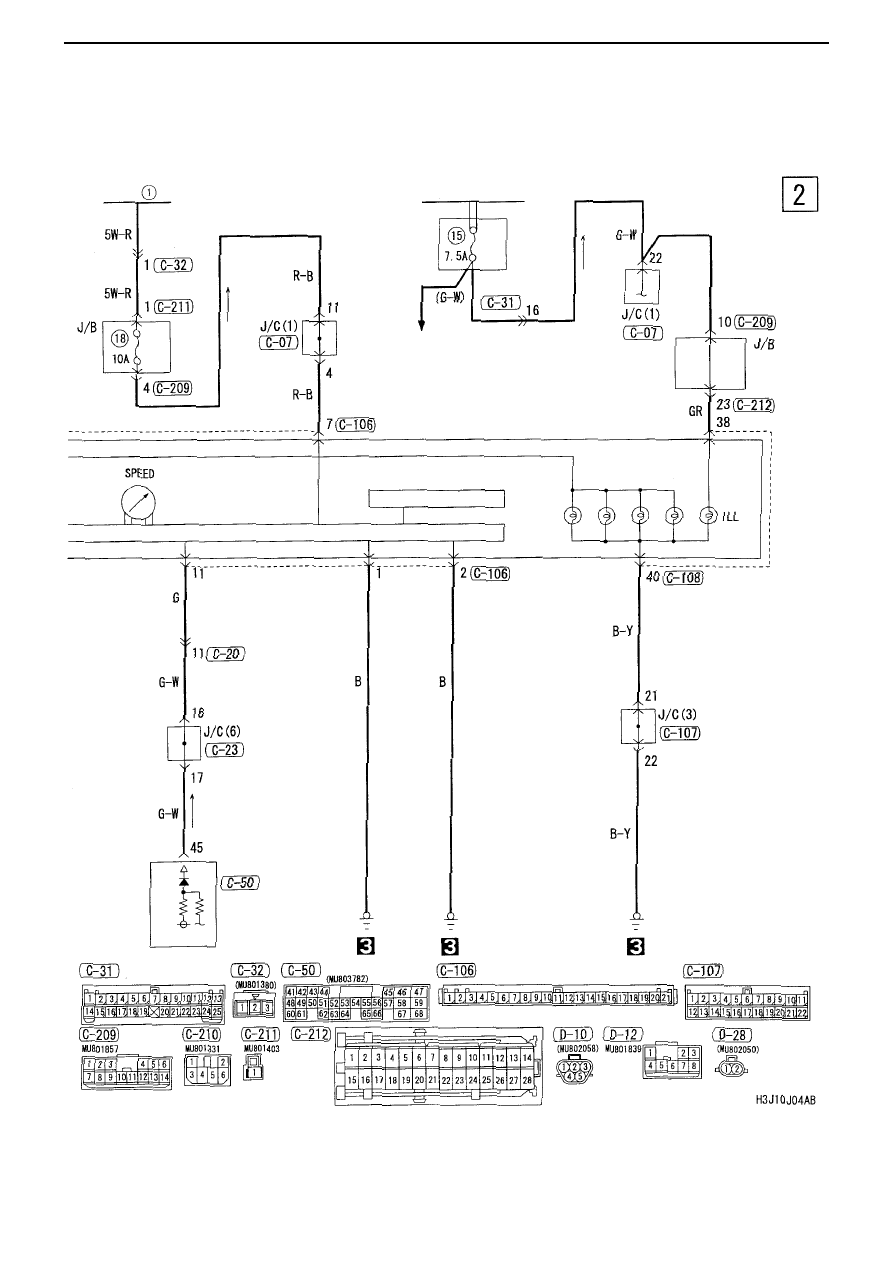

CIRCUIT DIAGRAMS - METERS

3-70

Fuel warning light, oil pressure warning light,
brake warning light, seat belt warning light

M3030017900017

Fusible
Link

Ignition switch (IG1)

DVD-MMCS
Windscreen
wiper/washer
Engine control
system
Gauge
Indicator light,
hazard warning
light
Tail light, front side
light, licence plate
light, lighting
monitor buzzer
Remote control
door mirror
Fog light
Headlight
Rear wiper/washer
Interior light,
luggage
compartment light,
ignition lock light,
door open warning
light

Fuel
gauge
unit
(sub)

Fuel pump
& fuel
gauge unit
(main)

Control circuit

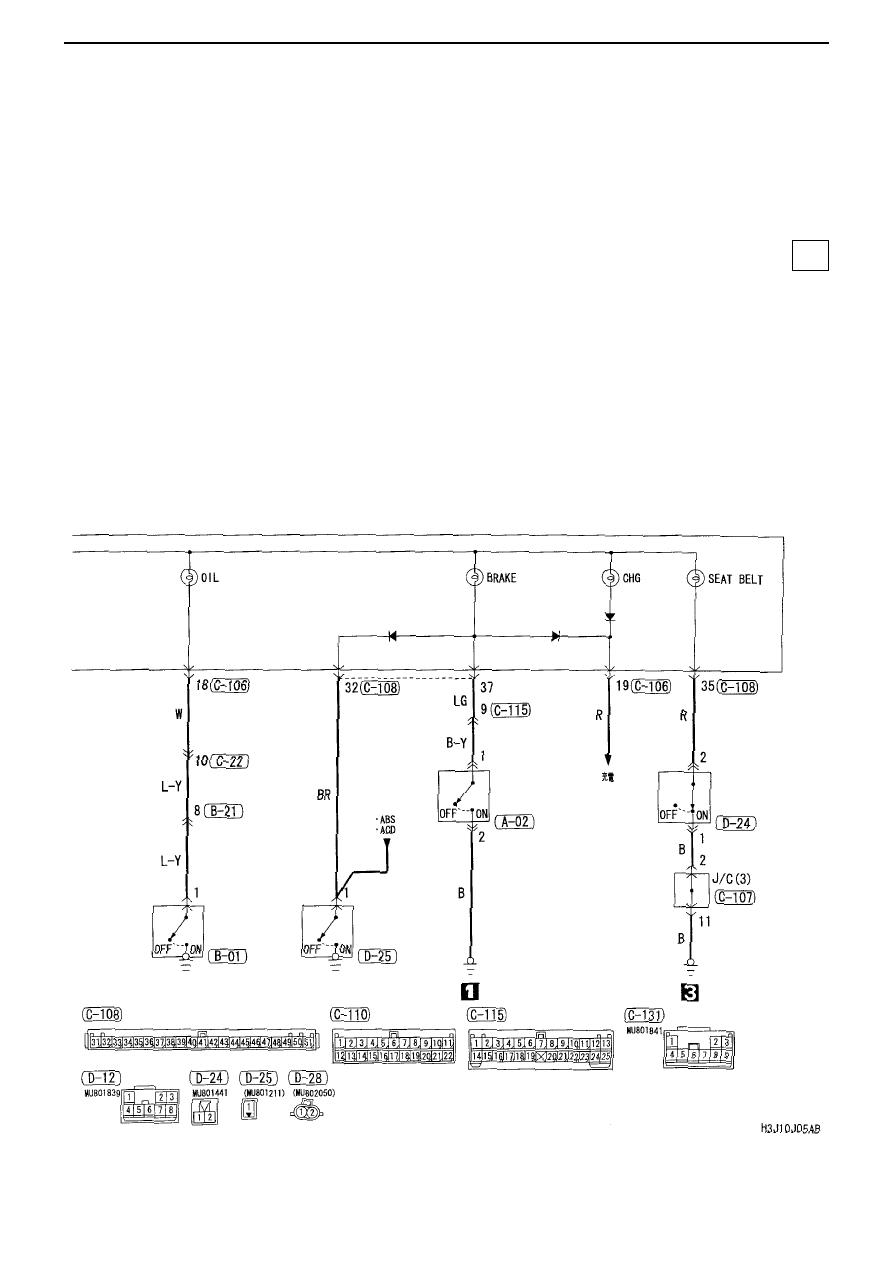

CIRCUIT DIAGRAMS - METERS

3-71

Combination meter

Brake
fluid level
switch

Driver seat
seat belt
switch

Engine oil
pressure
switch

Parking
brake
switch

2

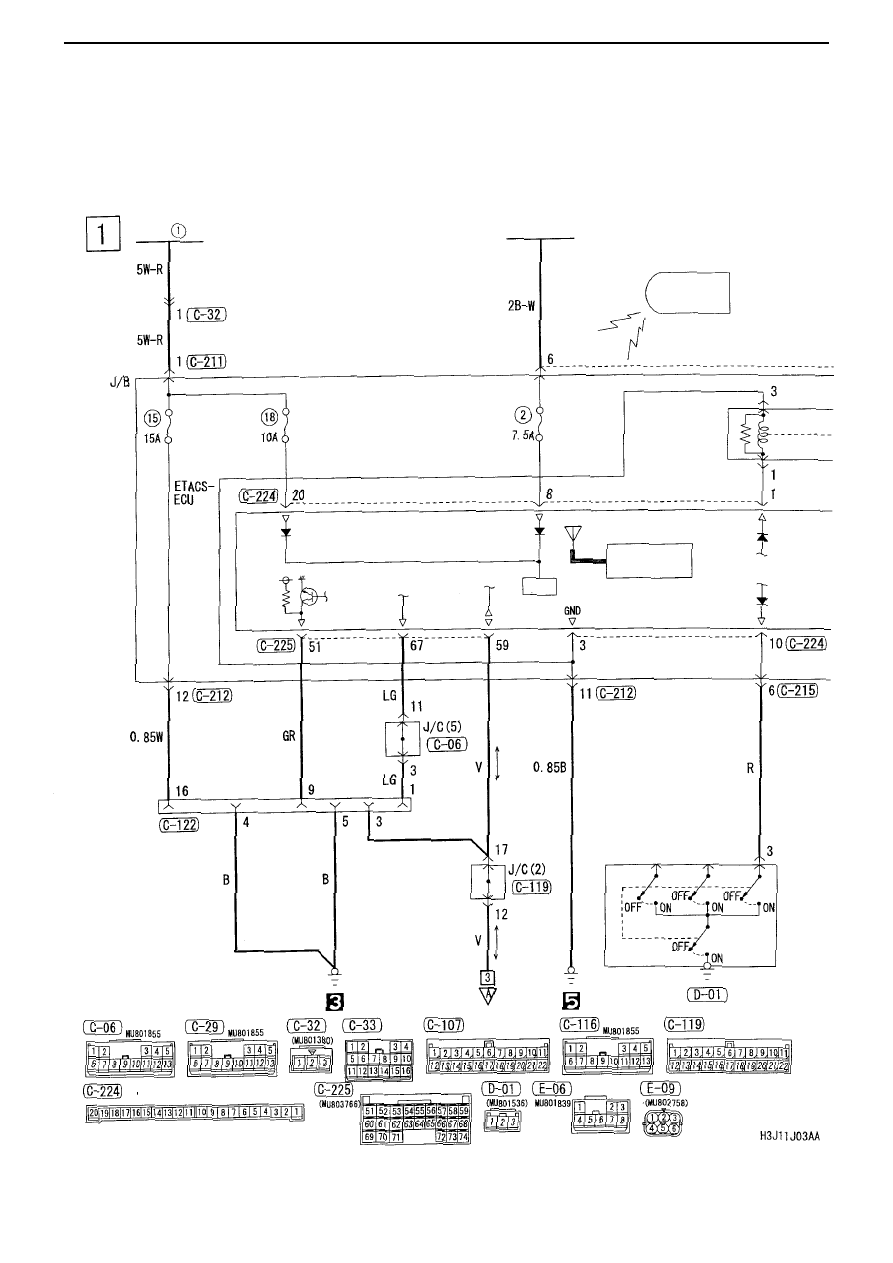

CIRCUIT DIAGRAMS - DOOR OPENING/CLOSING CONTROL

3-72

DOOR OPENING/CLOSING CONTROL

Electric window

M3030004600265

Fusible
link

Ignition switch (IG1)

Keyless entry
transmitter

Keyless entry
receiver

Diagnostic
connector

Door switch
(front: RH)

J/B side connector
