CIRCUIT DIAGRAMS - LIGHTING

3-49

Column switch

Diagnostic
connector

side connector

Buzzer

CIRCUIT DIAGRAMS - LIGHTING

3-50

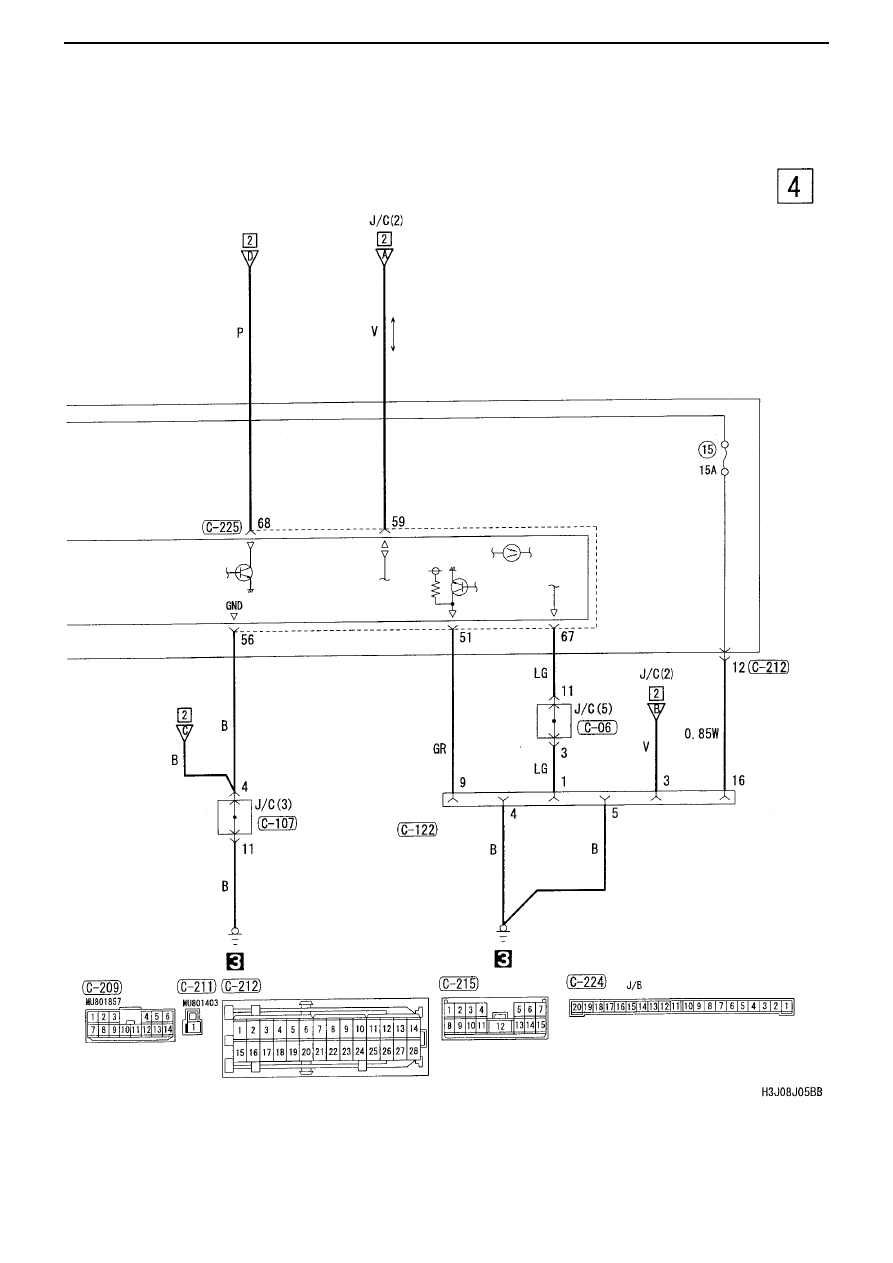

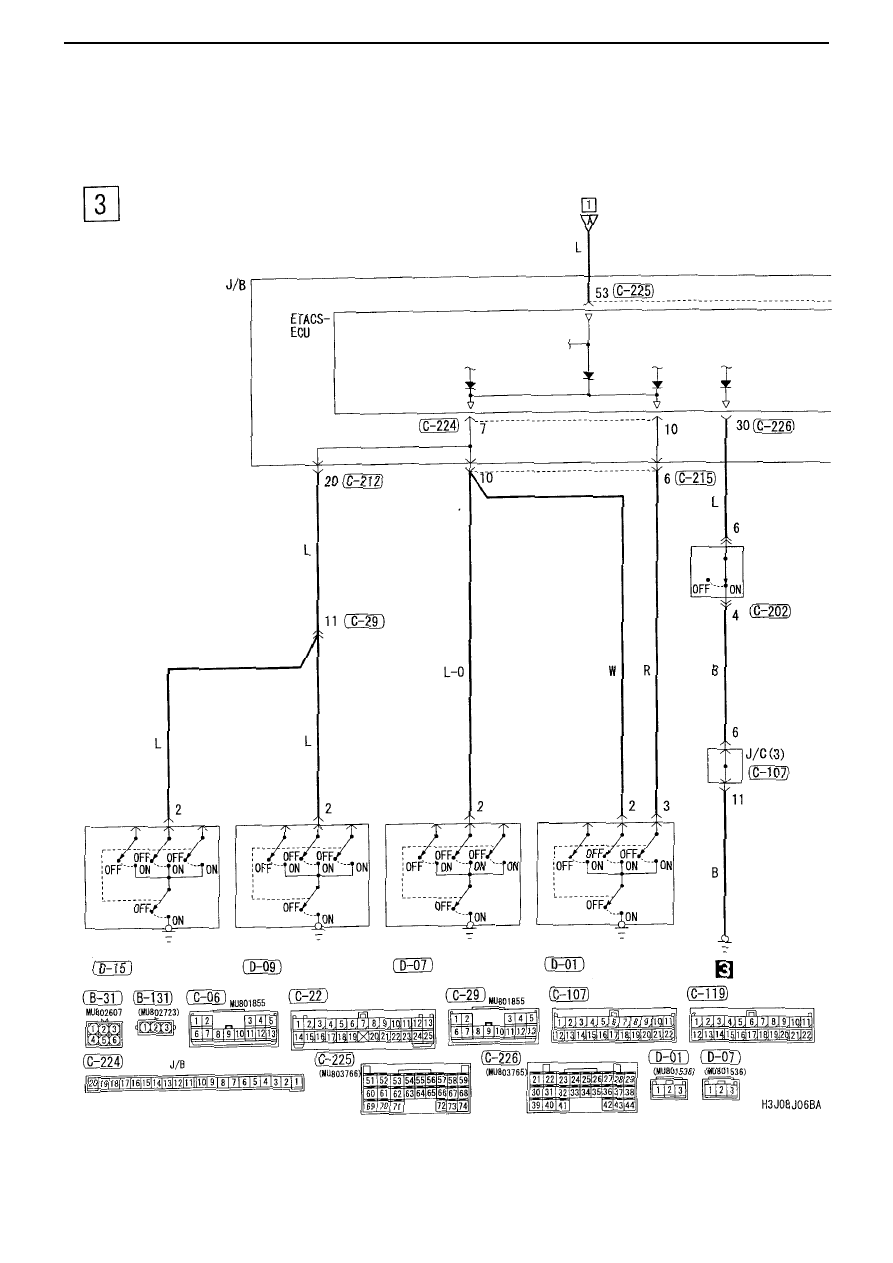

Interior light, luggage compartment light, ignition lock light, door open warning light

M303001880013

Ignition switch (ACC)

Interior light cutback-up circuit

Combination
meter

Key reminder
switch
(key reminder
illumination light)

Front Interior
light

CIRCUIT DIAGRAMS - LIGHTING

3-51

Ignition switch (IG1)

Fusible link

Vehicle not fitted with
keyless entry system

Vehicle
fitted with
keyless
entry
system

Keep relay

Application
decision
circuit

Rear Interior
light <vehicle
not fitted
with
sunroof>

Luggage
compartment
light

Luggage
compartment
light switch

J/B Power supply

Power

Supply

CIRCUIT DIAGRAMS - LIGHTING

3-52

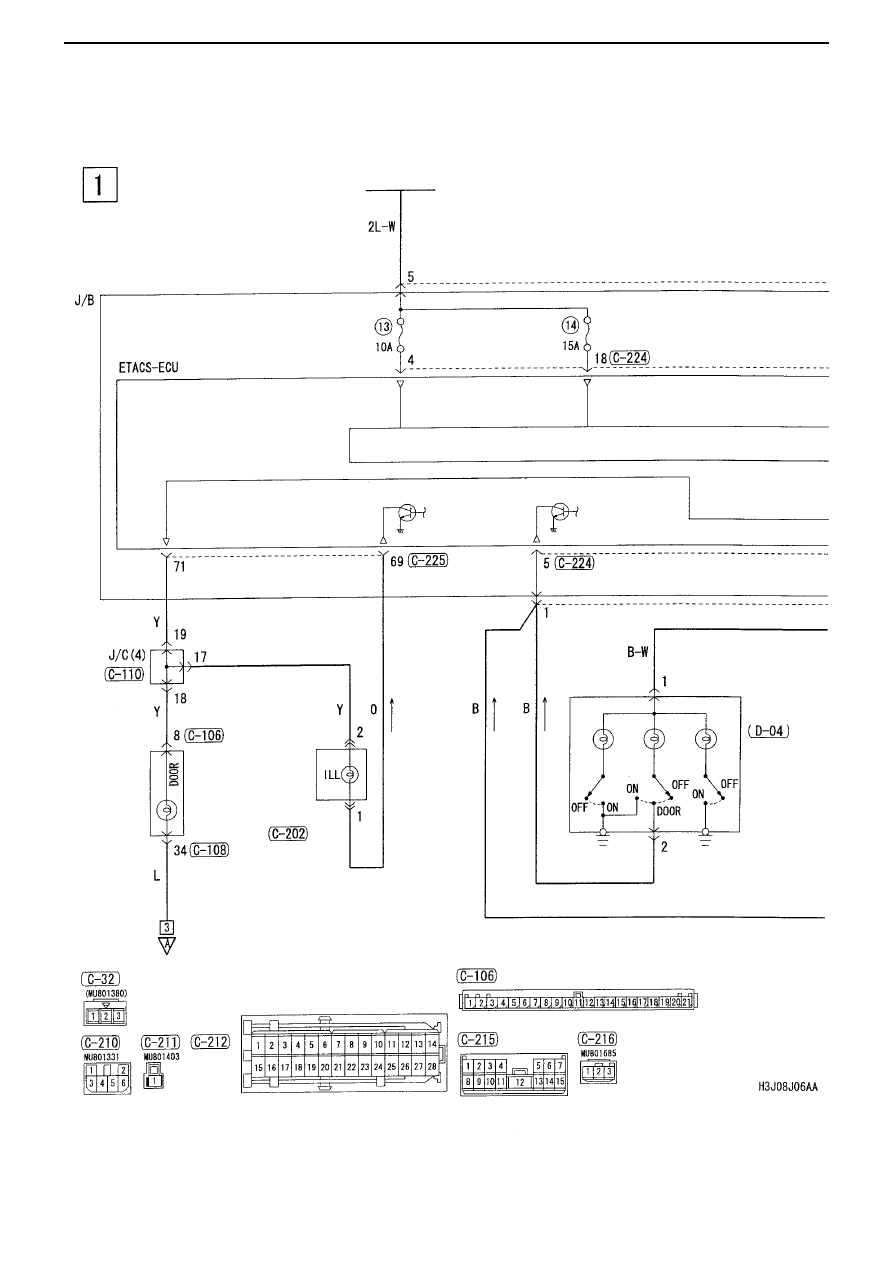

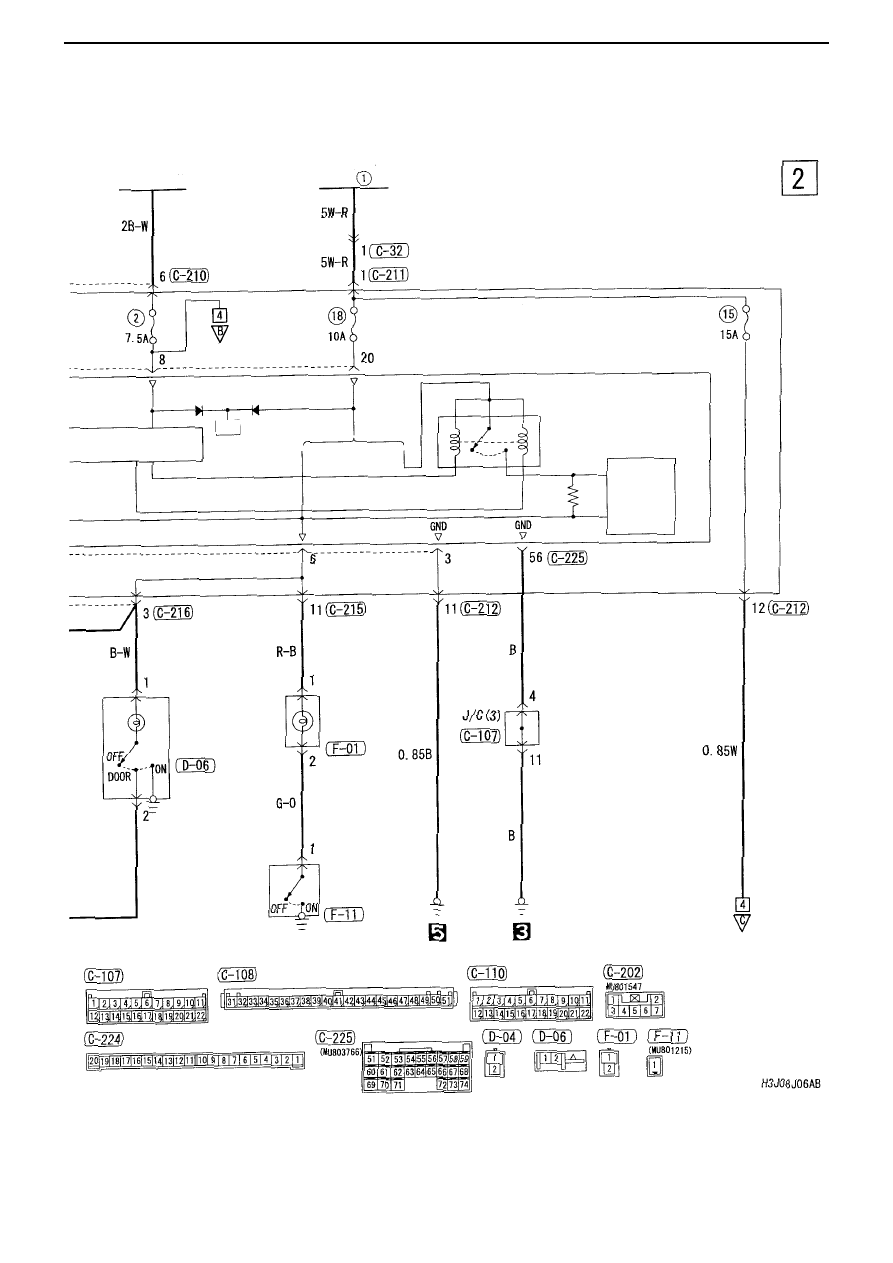

Interior light, luggage compartment light, ignition lock light, door open
warning light (continued)

Combination meter

Door switch
(front: LH)

Door switch
(rear: LH)

Door switch
(rear: RH)

Door switch
(front: RH)

Side connector

Key
reminder
switch (no
key: ON)
