CIRCUIT DIAGRAMS - LIGHTING

3-41

Column
switch

Column switch

Diagnostic
connector

Side Connector

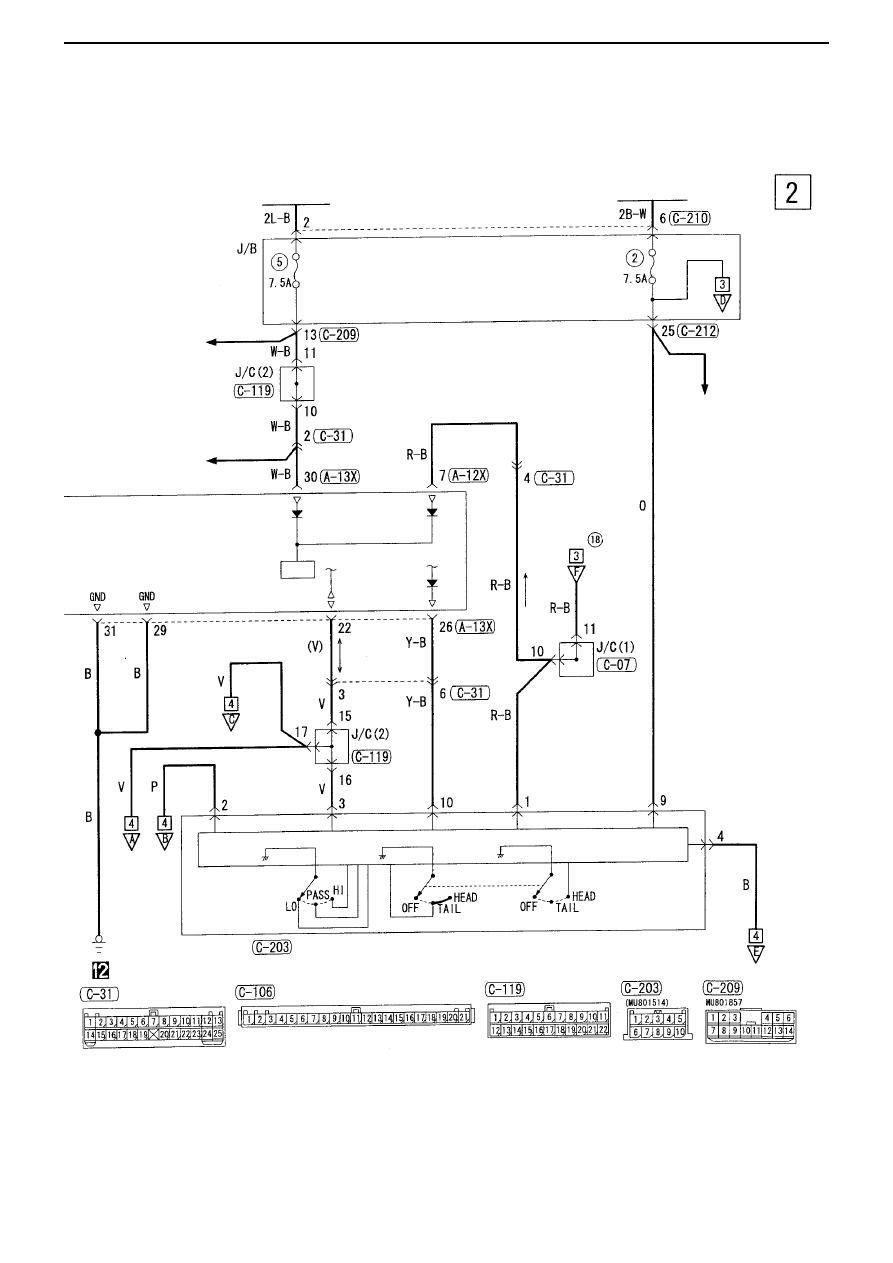

CIRCUIT DIAGRAMS - LIGHTING

3-42

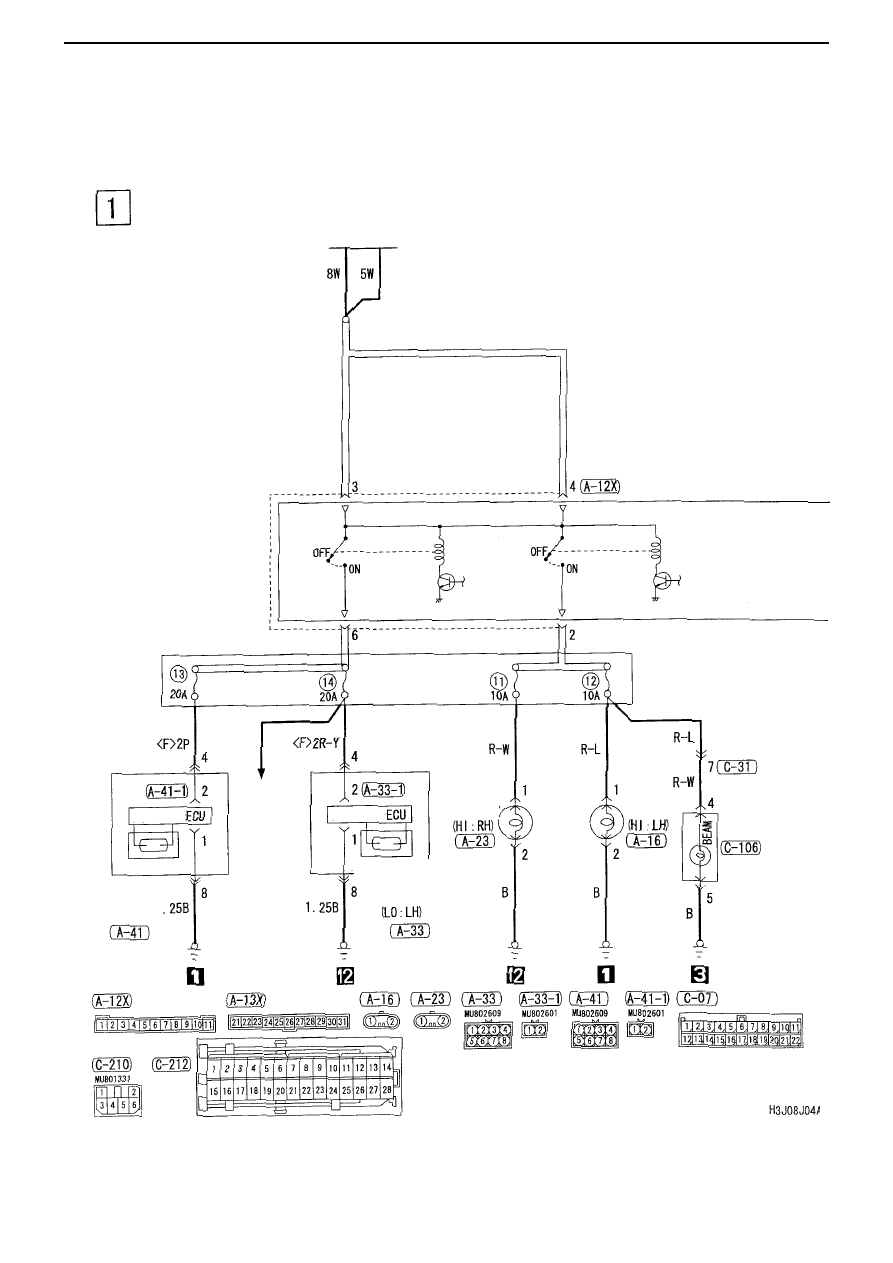

Headlight <discharge type>

M3030001500355

Battery

Front ECU

(Headlight
relay: LO)

(Headlight
relay: HI)

Special-
purpose
fuse

Headlight
levelling
system

Discharge

Discharge

Headlight

Headlight

Combination
meter

Discharge light source

Discharge light
source

Headlight
ASSY (LO:
RH)

Headlight ASSY

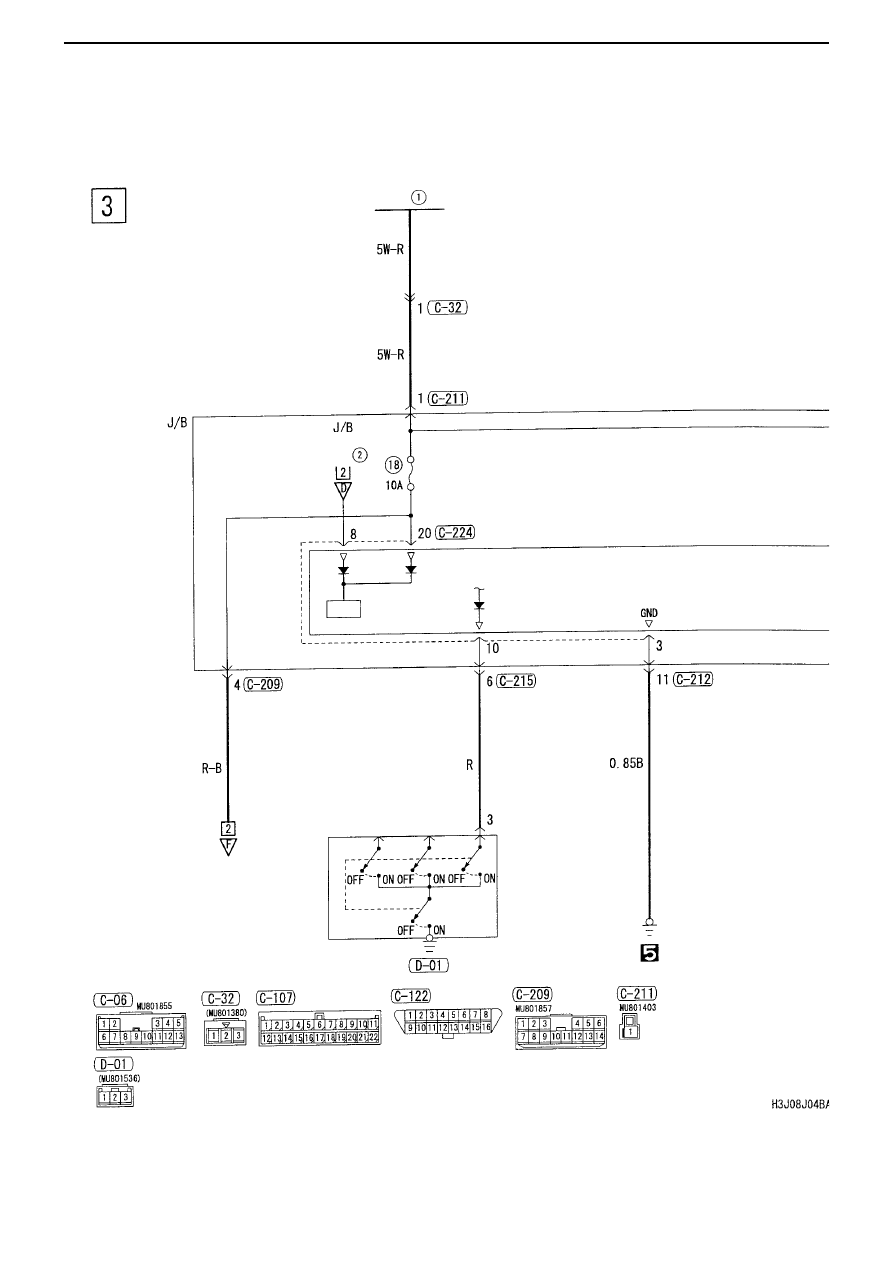

CIRCUIT DIAGRAMS - LIGHTING

3-43

H3J08J04AB

Ignition switch (IG2)

Ignition switch (IG1)

Intercooler
water spray
Heater
Fully
automatic air
conditioning

Fully
automatic air
conditioning
Cooling

ABS
ACD
DVD-MMCS
SRS airbag, seat belt
pretensioners
Intercooler water
spray
Windscreen
wiper/washer
Warning light
Engine control system
Gauge
Charging
Remote control door
mirror
General-purpose
spare connectors
Interior light, luggage
compartment light,
ignition lock light,
door open warning
light

J/B

(General-
purpose fuse)

(Dimmer
switch)

(Lighting switch)

Column switch

Power
supply

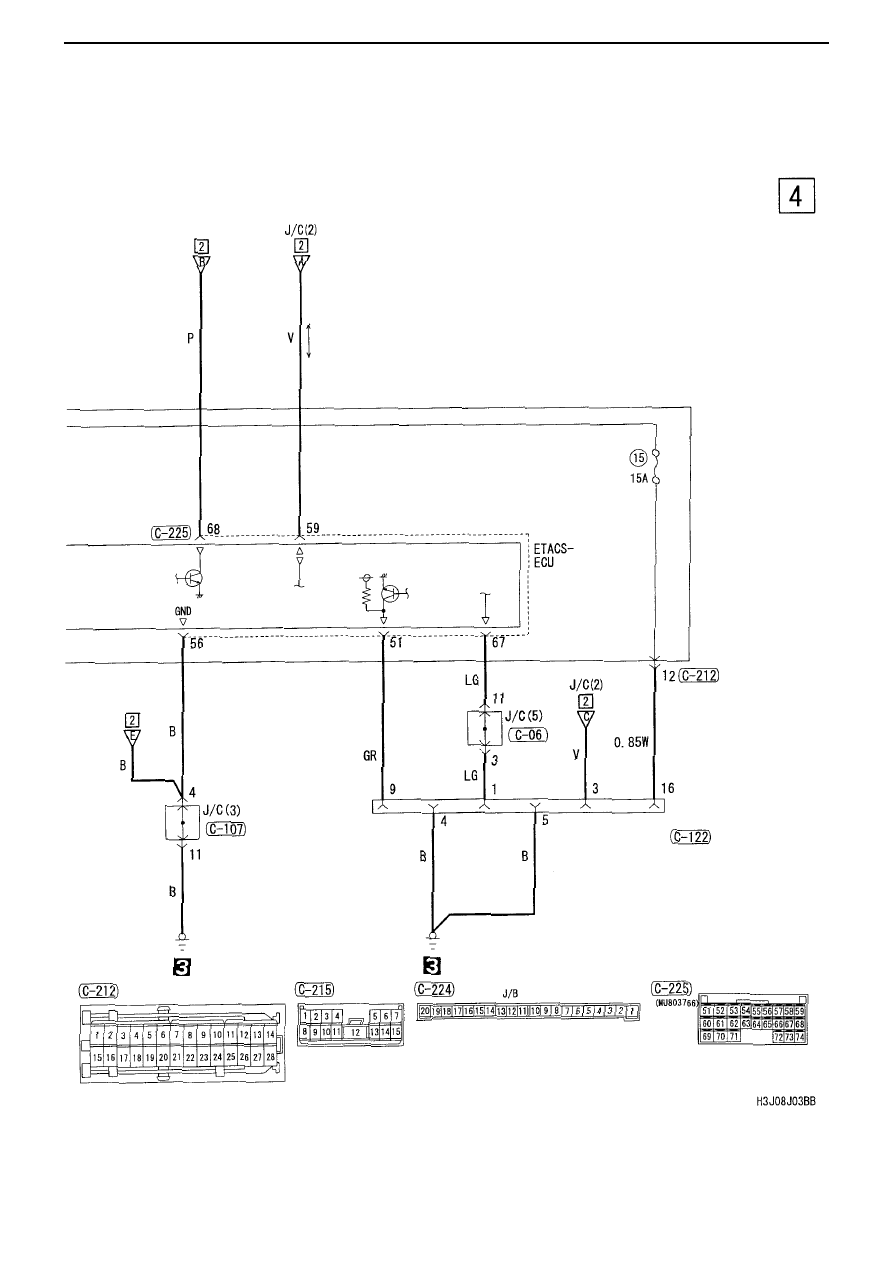

CIRCUIT DIAGRAMS - LIGHTING

3-44

Headlight <discharge type> (continued)

(General-
purpose fuse)

Fusible link

Power
supply

Door switch
(front: RH)

Front View
