CIRCUIT DIAGRAMS - LIGHTING

3-45

Column switch

Column switch

Diagnostic
connector

J/B Side Connector

CIRCUIT DIAGRAMS - LIGHTING

3-46

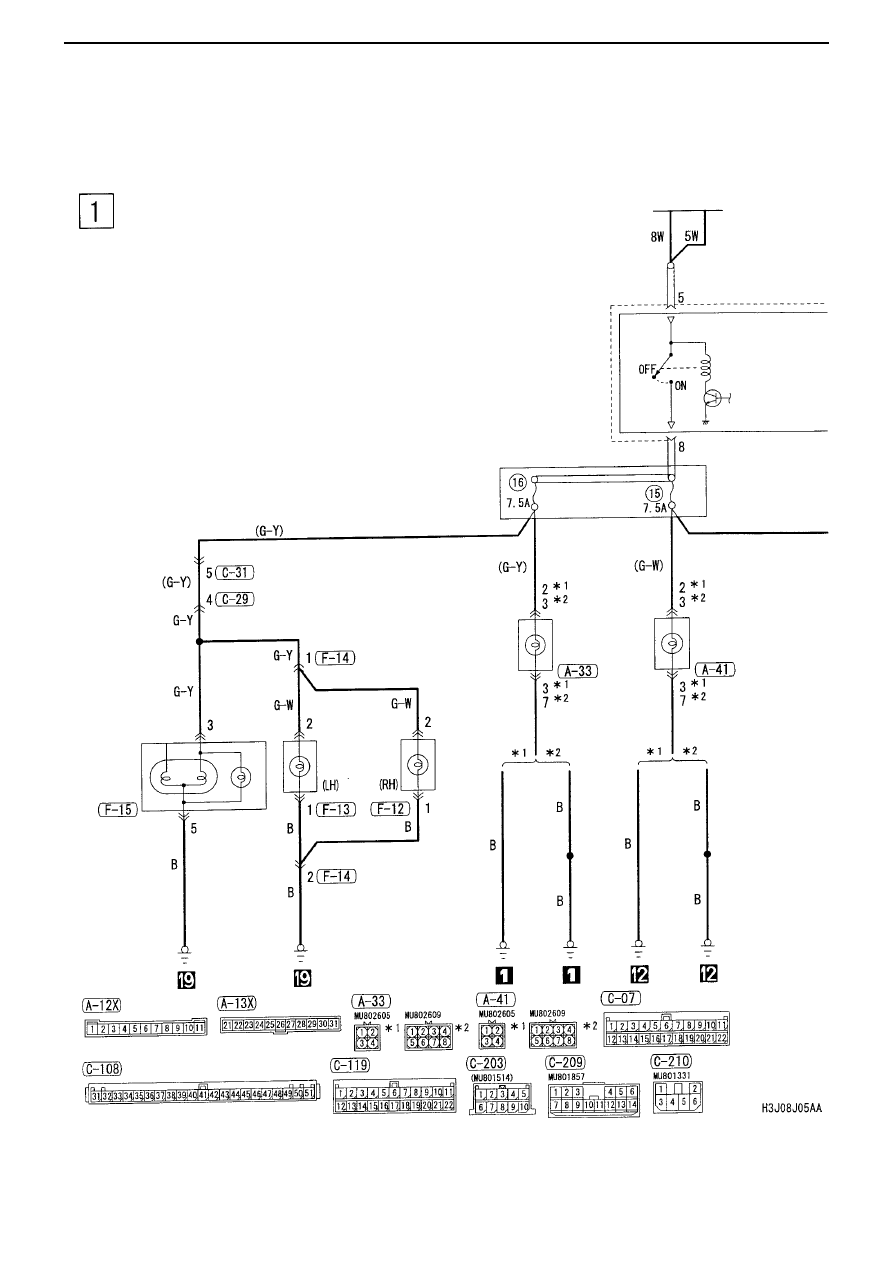

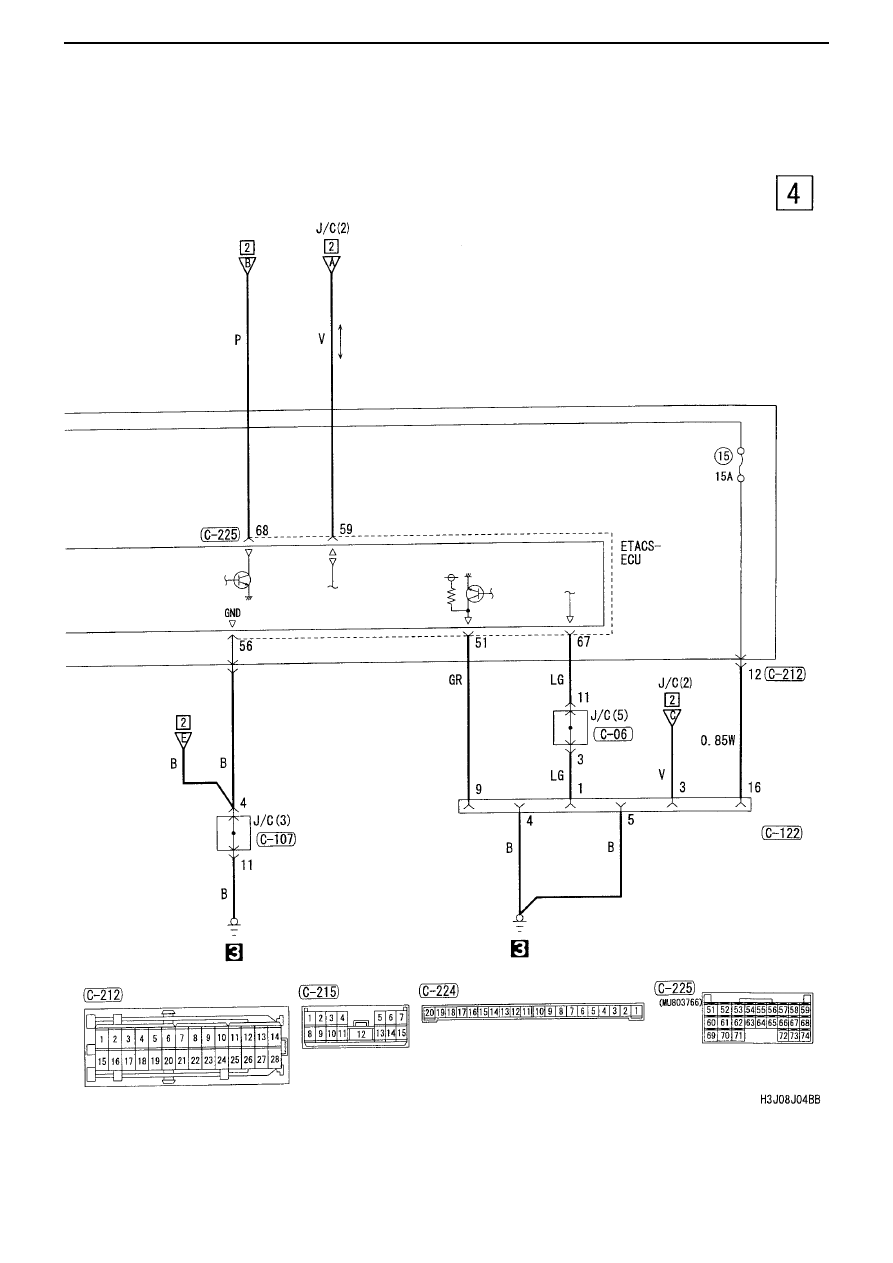

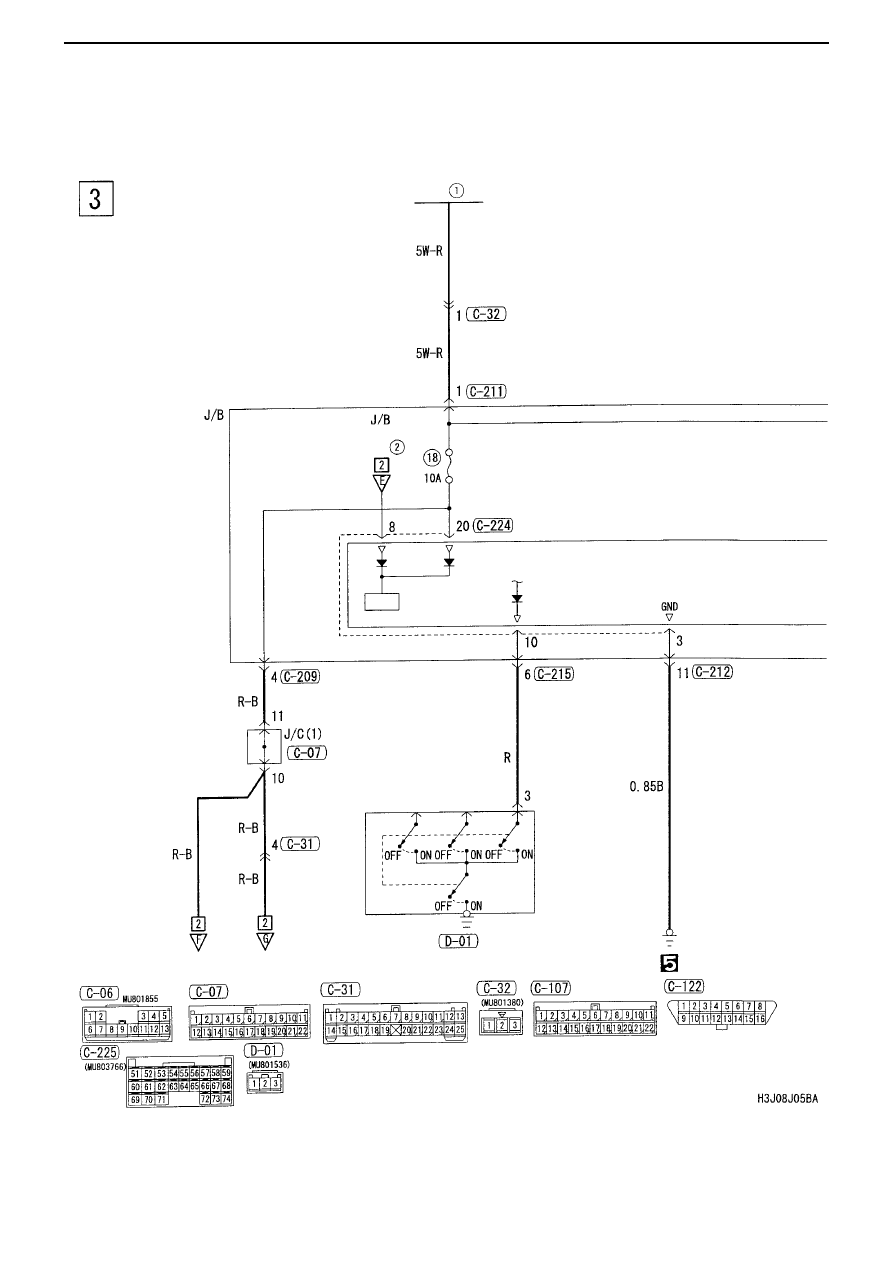

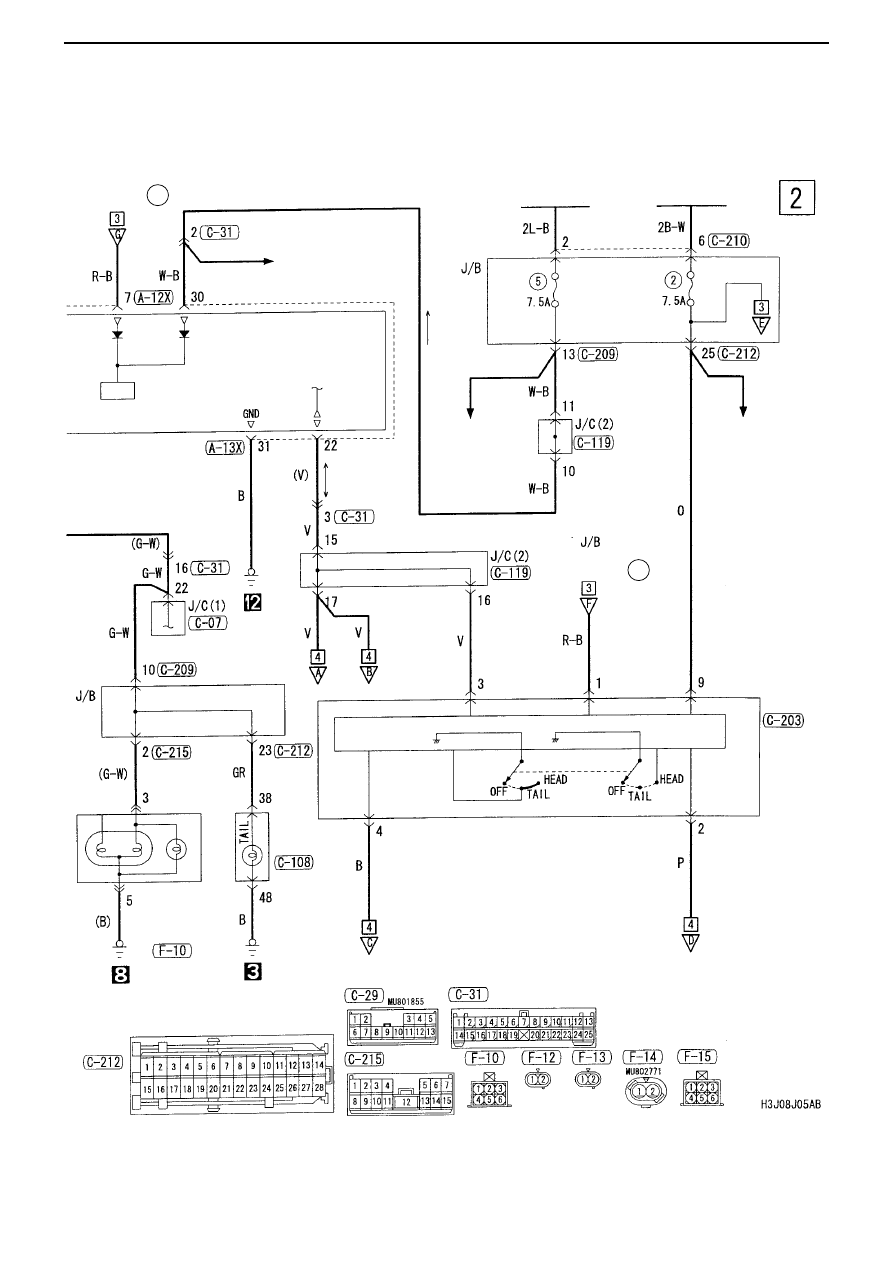

Tail light, front side light, licence plate light, lighting monitor buzzer

M3030001700199

Battery

Note:
*1: Excluding discharge type headlight
*2: Discharge type headlight

Front ECU

(Tail light )

Special
Purpose
Fuse

Headlight
ASSY
(position: LH)

Headlight
ASSY
(position: RH)

Rear
combination
light (tail: LH)

Licence
plate light

CIRCUIT DIAGRAMS - LIGHTING

3-47

(General-
purpose
fuse)

Power
supply

Intercooler
water spray
Heater
Fully
automatic air
conditioning

ABS
ACD
DVD-MMCS
SRS airbag, seat belt
pretensioners
Intercooler water spray
Windscreen
wiper/washer
Warning light
Engine control system
Gauge
Charging
Remote control door
mirror
General-purpose spare
connectors
Interior light, luggage
compartment light,
ignition lock light, door
open warning light

(General-
purpose fuse)

Column
switch

(Lighting
switch)

Combination
meter

Rear
combination
light (tail: RH)

Column ECU

Fully automatic air
conditioning
Cooling

Ignition switch
(IG2)

Ignition switch
(IG1)

18

18

CIRCUIT DIAGRAMS - LIGHTING

3-48

Tail light, front side light, licence plate light, lighting monitor buzzer (continued)

Fusible
link

(General-
purpose fuse)

Power

supply

Door switch
(front: RH)

Front
view
