Mitsubishi Lancer Evolution 8. Manual - part 47





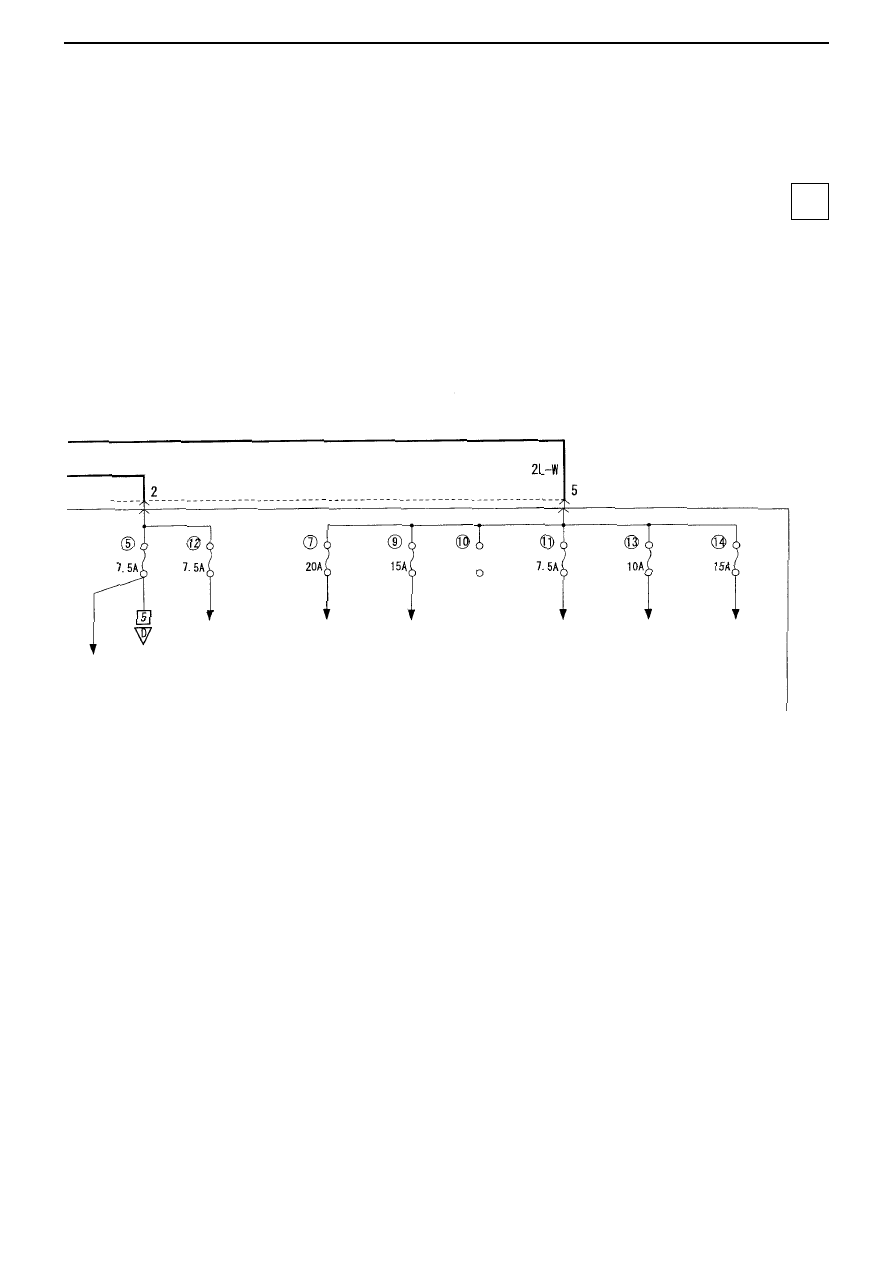

CIRCUIT DIAGRAMS - POWER DISTRIBUTION

3-21

4

ABS
ACD
Intercooler water
spray
Windscreen
wiper/washer
Indicator light,
hazard warning
light
Tail light, front
side light, licence
plate light, lighting
monitor buzzer
Heater
Fog light
Fully automatic air
conditioning
Headlight
Headlight levelling
system
Cooling

ABS
ACD
Sunroof

Windscreen
wiper/washer

Cigarette lighter
Ashtray
illumination light

DVD-MMCS
Remote control
door mirror
Fully automatic
air conditioning

DVD-MMCS
Clock <vehicle
not fitted with
DVD-MMCS>
General-
purpose spare
connectors
Spare
connector for
audio <vehicle
not fitted with
DVD-MMCS>
Interior light,
luggage
compartment
light, ignition
lock light, door
open warning
light

Rear
wiper/washer
Interior light,
luggage
compartment
light, ignition
lock light,
door open
warning light
conditioning>

H3J01J01BB

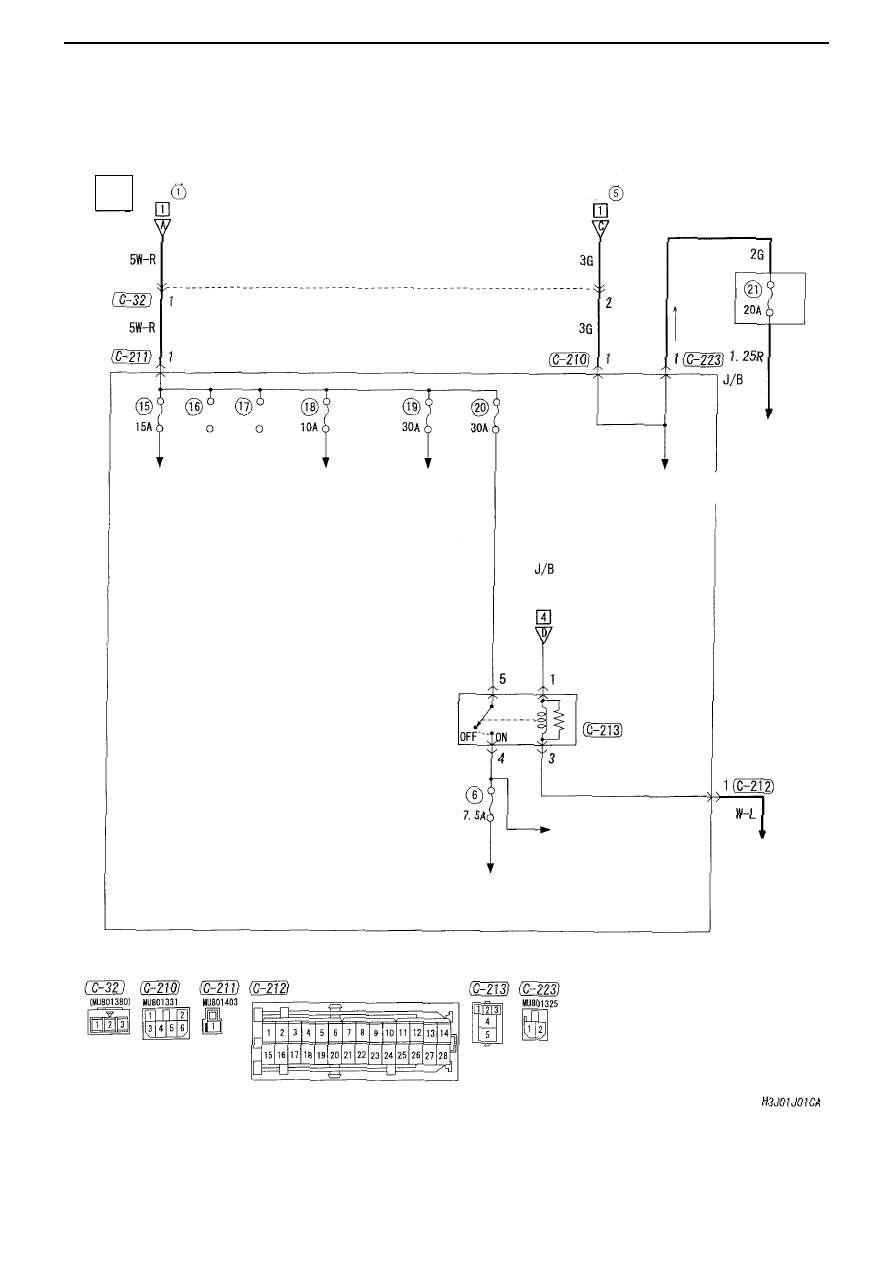

CIRCUIT DIAGRAMS - POWER DISTRIBUTION

3-22

5

Fusible
link

Fusible
link

Special-
purpose
fuse

Sunroof

Sunroof
Electric
window

Heater
Fully
automatic air
conditioning

ACD
DVD-MMCS
Ignition key reminder
warning buzzer
Windscreen
wiper/washer
Warning light
Engine control system
Clock <vehicle not fitted
with DVD-MMCS>
Sunroof
Gauge
Security alarm
Central door locking
Indicator light, hazard
warning light
Tail light, front side light,
licence plate light,
lighting monitor buzzer
Remote control door
mirror
Electric window
General-purpose spare
connectors
Fog light
Fully automatic air
conditioning
Headlight
Headlight levelling
system
Spare connector for
audio <vehicle not fitted
with DVD-MMCS>
Rear wiper/washer
Interior light, luggage
compartment light,
ignition lock light, door
open warning light

ABS
ACD
DVD-MMCS
SRS airbag, seat
belt pretensioners
Ignition key reminder
warning buzzer
Windscreen
wiper/washer
Engine immobiliser
system
Engine control
system
Sunroof
Security alarm
Central door locking
Indicator light,
hazard warning light
Tail light, front side
light, licence plate
light, lighting monitor
buzzer
Remote control door
mirror
Electric window
Fog light
Fully automatic air
conditioning
Headlight
Rear wiper/washer
Interior light,
luggage
compartment light,
ignition lock light,
door open warning
light

(General-purpose
fuse

)

Demister
relay

Demister, door mirror
heater <vehicle fitted
with fully automatic
air conditioning>

Demister <vehicle
fitted with heater>
Demister, door
mirror heater
<vehicle fitted
with fully
automatic air
conditioning>

Demister <vehicle
fitted with heater>
Demister, door mirror
heater <vehicle fitted
with fully automatic
air conditioning>

Power distribution (continued)

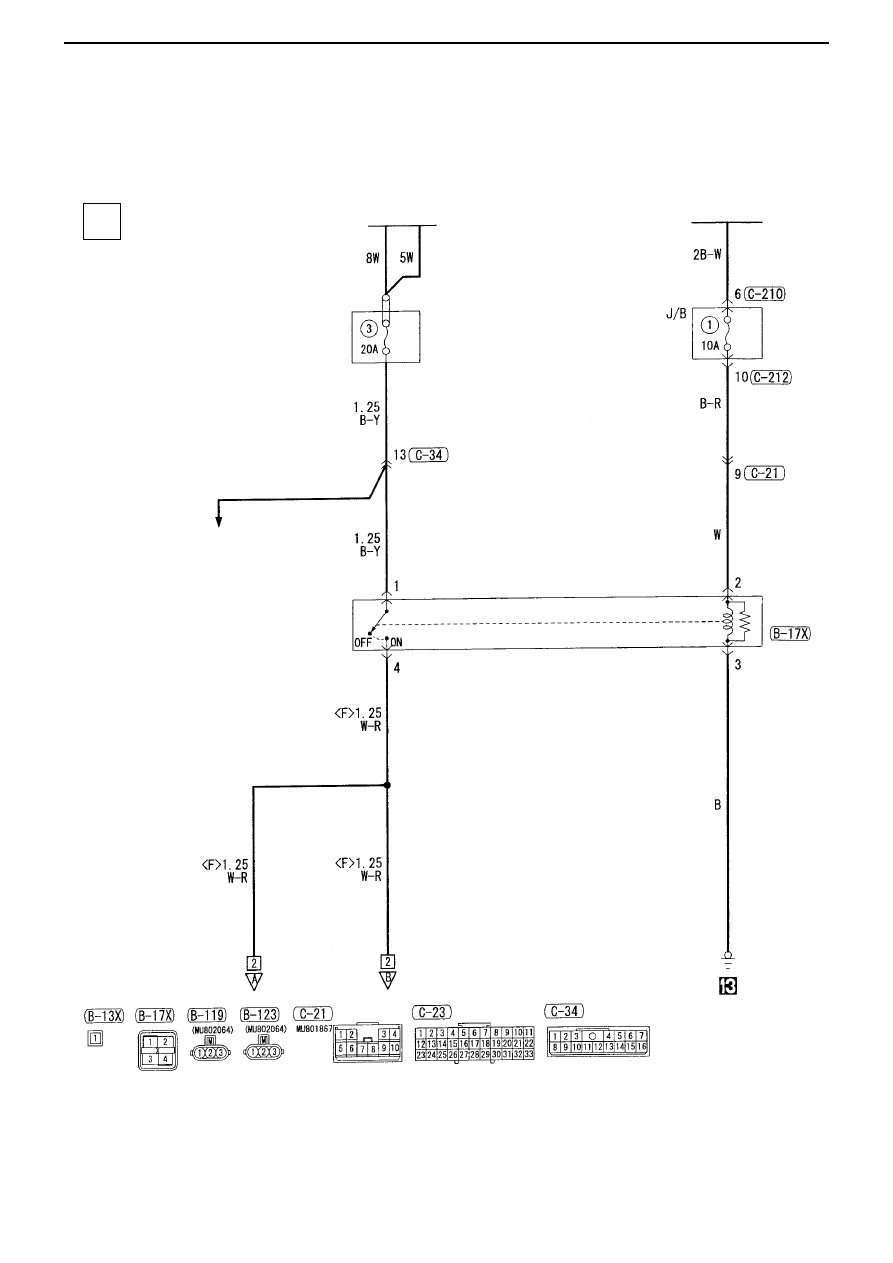

CIRCUIT DIAGRAMS - STARTING

3-23

1

Battery

Ignition switch
(ST)

Clutch
switch

Starter

Engine Control
System

Starter relay

STARTING

M3030000500363

H3J02J02AA

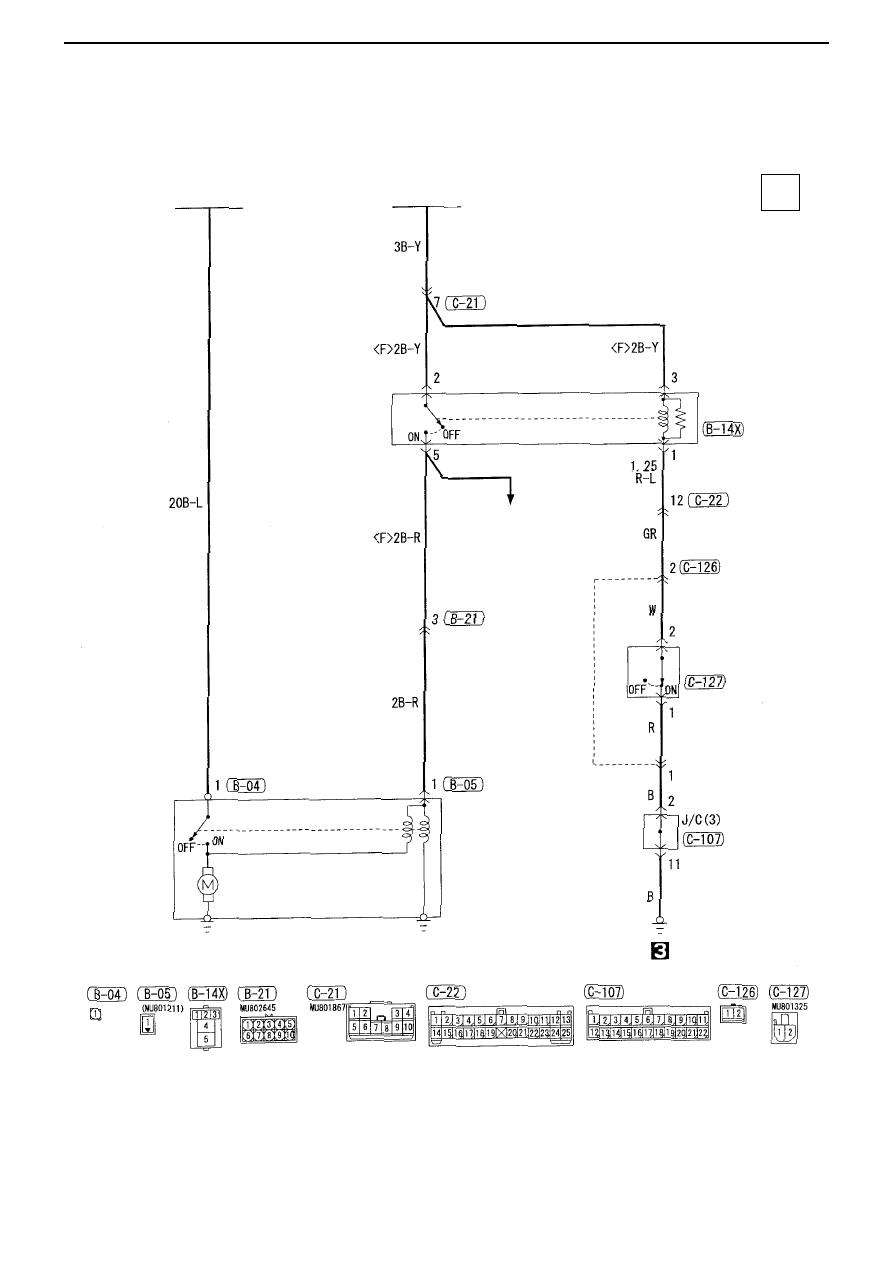

CIRCUIT DIAGRAMS - IGNITION

3-24

H3J03J01AA

IGNITION

M3030000600467

1

Battery

Ignition switch
(IG1)

Special-
purpose
fuse

Engine Control
System

Ignition coil
relay
