CIRCUIT DIAGRAMS - CENTRALISED JUNCTIONS

3-13

AC203979AB

Vehicle front

Relay box inside engine compartment

Fuse box fitted in J/B

Power distribution circuit

Fuse No.

Rated capacity (A) Identification colour Application

-

17

-

-

-

Battery/alternator (Fusible link
No. 6)

18

-

-

-

-

19

-

-

-

-

20

-

-

-

Fusible link No. 5

21

20

Yellow

Sunroof motor ASSY

-

22

-

-

-

Ignition switch (IG2)

23

10

Red

Intercooler water
spray motor

Battery/alternator (Fusible link
No. 6)

24

30

Green

Condenser fan motor

CIRCUIT DIAGRAMS - CENTRALISED JUNCTIONS

3-14

General-purpose fuses (fuse box fitted inside J/B)

Power distribution
circuit

Fuse
No.

Rated
capacity
(A)

Identification
colour

Application

IG1

1

10

Red

Ignition coil relay

2

7.5

Brown

Charging warning light, engine warning light,

ETACS-ECU, ABS warning light, SRS airbag

warning light, Intercooler water spray indicator

light, seat belt warning light, oil pressure warning

light, brake warning light, combination meter,

column switch, vehicle speed sensor, SRS-ECU,

4WD-ECU

3

7.5

Brown

Rear combination light ETACS-ECU, SRS-ECU,

multi-centre display

4

-

-

-

Ignition

switch

IG2

5

7.5

Brown

Front ECU, blower relay, motor for inside/ outside

air exchange damper, A/C-ECU, A/C compressor

relay, heater control unit, demister relay, steering

wheeling sensor, Intercooler water spray relay,

4WD-ECU, condenser fan relay (LO), condenser

fan relay (HI)

Demister relay

(general-purpose fuse

No. 20)

6

7.5

Brown

Remote control door mirror

ACC

7

20

Yellow

Front ECU, windscreen wiper motor

IG1

8

7.5

Brown

Engine ECU, fuel pump relay 1, fuel pump relay 2

9

15

Blue

Cigarette lighter

10

-

-

-

ACC

11

7.5

Brown

A/C-ECU, remote control door mirror

IG2

12

7.5

Brown

ABS-ECU, transverse G sensor, front/back G

sensor, sunroof motor ASSY

13

10

Red

ETACS-ECU, audio unit, navigation unit, multi-

centre display, clock, general-purpose spare

connectors, spare connector for audio

Ignition

switch

ACC

14

15

Blue

ETACS-ECU, rear wiper motor

15

15

Blue

Diagnosis connector, ETACS-ECU

16

-

-

-

17

-

-

-

18

10

Red

ETACS-ECU, engine ECU, column switch, front

ECU, A/C-ECU, audio unit, combination meter,

navigation unit, multi-centre display, clock, 4WD-

ECU, general-purpose spare connectors, spare

connector for audio

19

30

Green

Blower motor, register, blower pulse controller,

heater control unit

Fusible link No. 1

(battery/alternator)

20

30

Green

Demister

CIRCUIT DIAGRAMS - CENTRALISED JUNCTIONS

3-15

AC212459AB

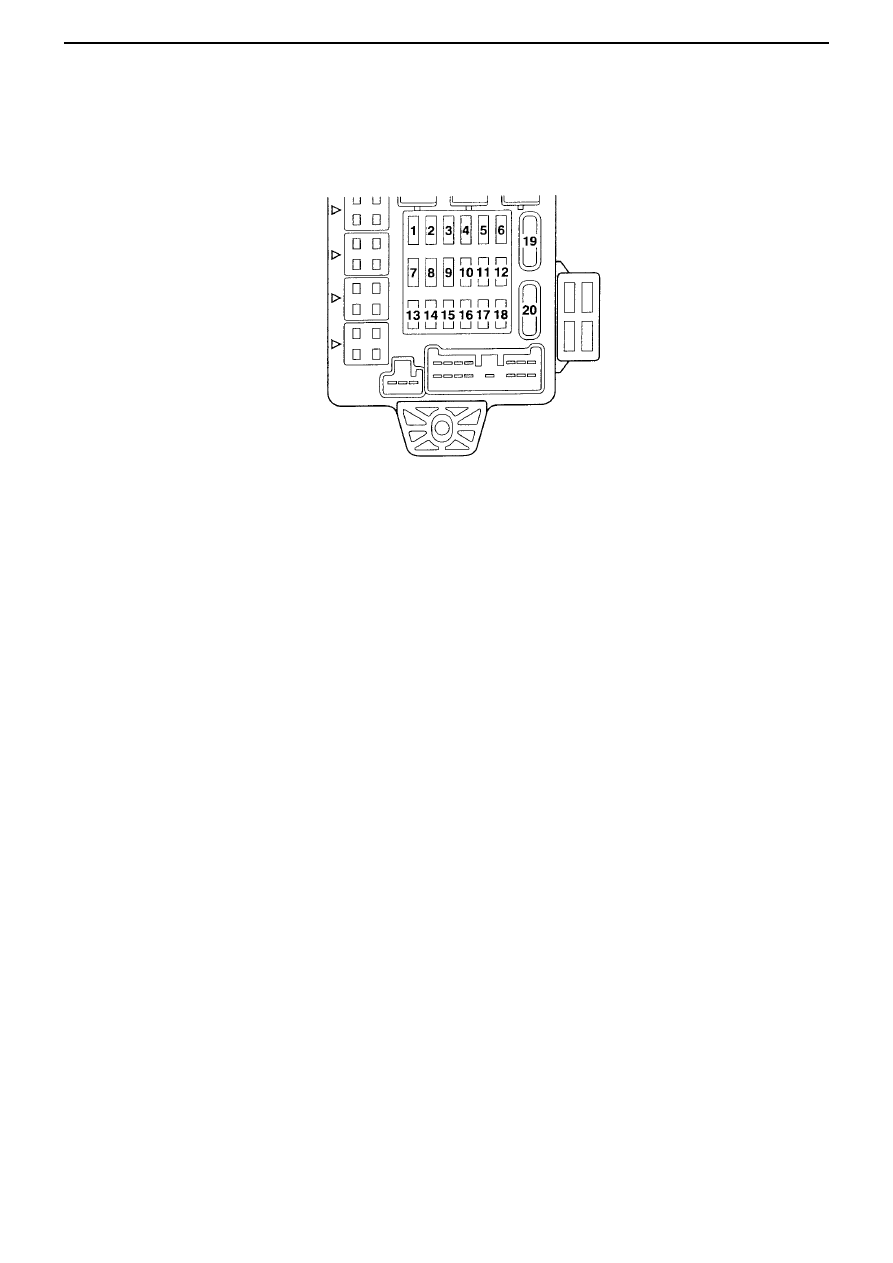

Fuse box fitted inside J/B

CIRCUIT DIAGRAMS - CENTRALISED JUNCTIONS

3-16

Centralised relays (relay box inside engine compartment)

Relay box inside engine compartment

Vehicle front

Vehicle front

Connector number

Name

Connector number Name

A-06X

Fog light relay or spare connector
(for fog light relay)

B-13X

Engine rpm detection connector

A-07X

Horn relay

B-14X

Starter relay

A-08X

Condenser fan relay (LO)

B-15X

-

A-09X

Condenser fan relay (HI)

B-16X

-

A-10X

-

B-17X

Ignition coil relay

A-11X

Radiator fan control relay

B-18X

-

A-12X

Front ECU

B-19X

Engine control system relay

A-13X

Front ECU

B-20X

A/C compressor relay
