Mitsubishi Lancer Evolution 8. Manual - part 48





CIRCUIT DIAGRAMS - IGNITION

3-25

2

Ignition coil relay

Ignition
coil 1

Ignition coil
2

Spark plug

Engine ECU

Engine rpm
detection
connector

Input signals

Ignition switch (ST), Cam
position sensor, Aspirated air
temperature sensor. Crank
angle sensor, Vehicle speed
sensor, Water temperature
sensor, Atmospheric pressure
sensor, Knock sensor

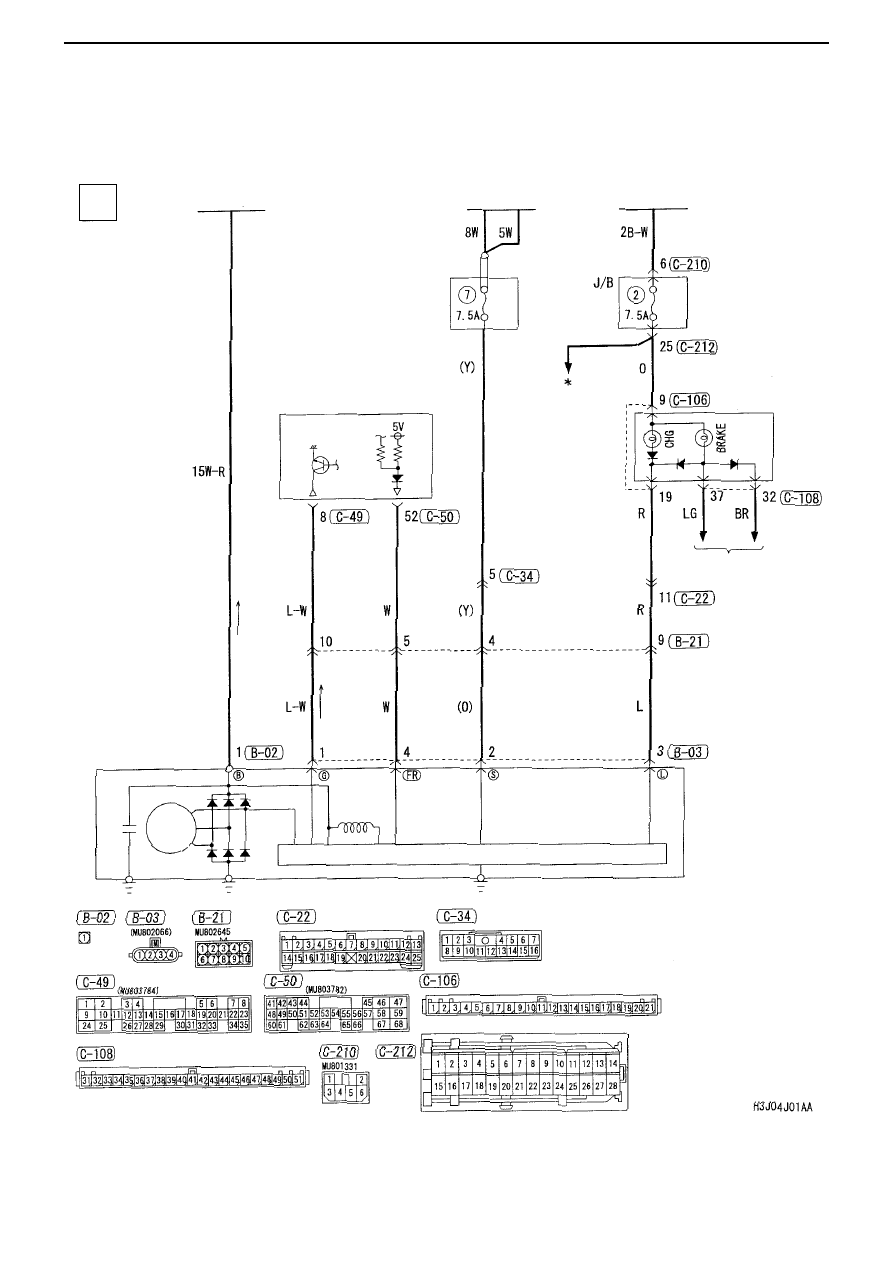

CIRCUIT DIAGRAMS - CHARGING

3-26

CHARGING

M3030000700259

1

Fusible link

Battery

Ignition switch (IG1)

Special-
purpose
fuse

Combination
meter

Engine ECU

Note:
*:DVD-MMCS
Windscreen wiper/washer
Engine control system
Gauge
Indicator light, hazard
warning light
Tail light, front side light,
licence plate light, lighting
monitor buzzer
Remote control door
mirror
Fog light
Headlight
Rear wiper/washer
Interior light, luggage
compartment light, ignition
lock light, door open
warning light

Brake warning light

Alternator

Field coil

Starter

coil

IC voltage regulator

CIRCUIT DIAGRAMS

3-27

<Memo>

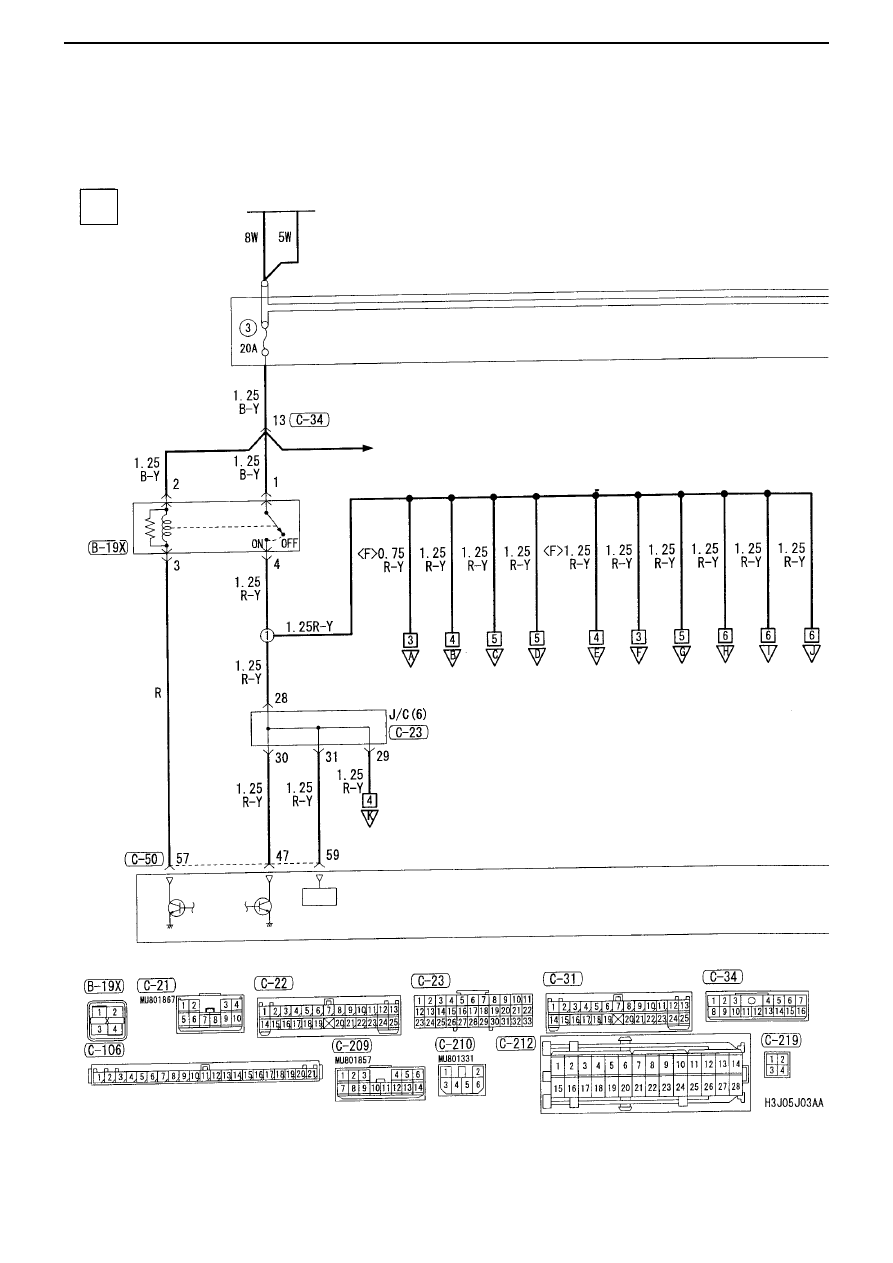

CIRCUIT DIAGRAMS - ENGINE CONTROL SYSTEM

3-28

1

Battery

Special-
purpose fuse

Engine
control
system
relay

Engine
ECU

Power

supply

ENGINE CONTROL SYSTEM

M3030000800836

Ignition
