Mitsubishi Lancer Evolution 8. Manual - part 33





HARNESS CONFIGURATION DIAGRAMS - OVERALL HARNESS CONFIGURATION DIAGRAM

1-2

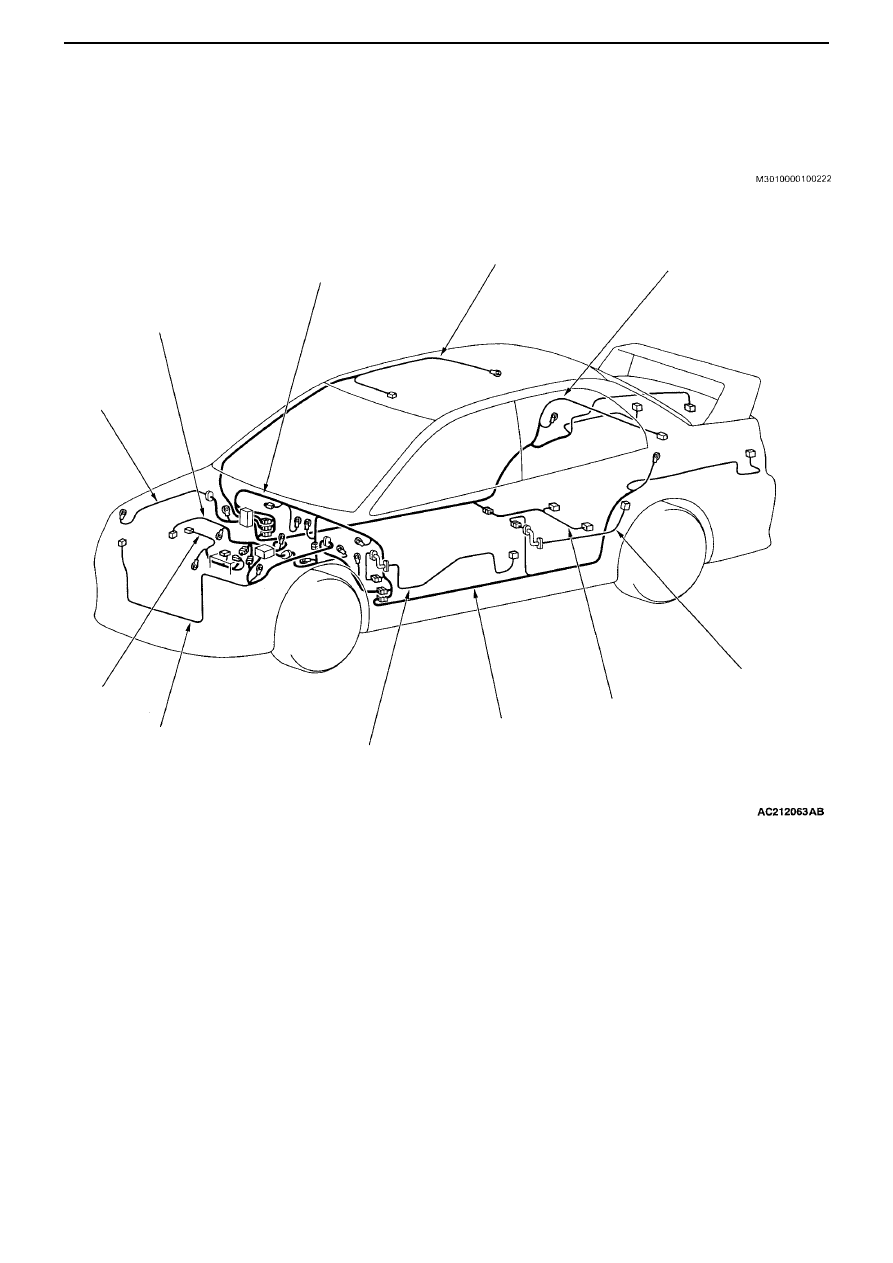

OVERALL HARNESS CONFIGURATION DIAGRAM

Front harness
(RH)

Control harness

Instrument panel
harness

Roof harness

Floor harness (RH)

Rear door
harness*

Fuel harness

Floor harness (LH)

Front door harness*

Front harness (LH)

Battery harness

Notes:
1. This diagram only indicates the main harnesses.
2. The * symbol indicates RH fitting as well.

HARNESS CONFIGURATION DIAGRAMS

1-3

<Memo>

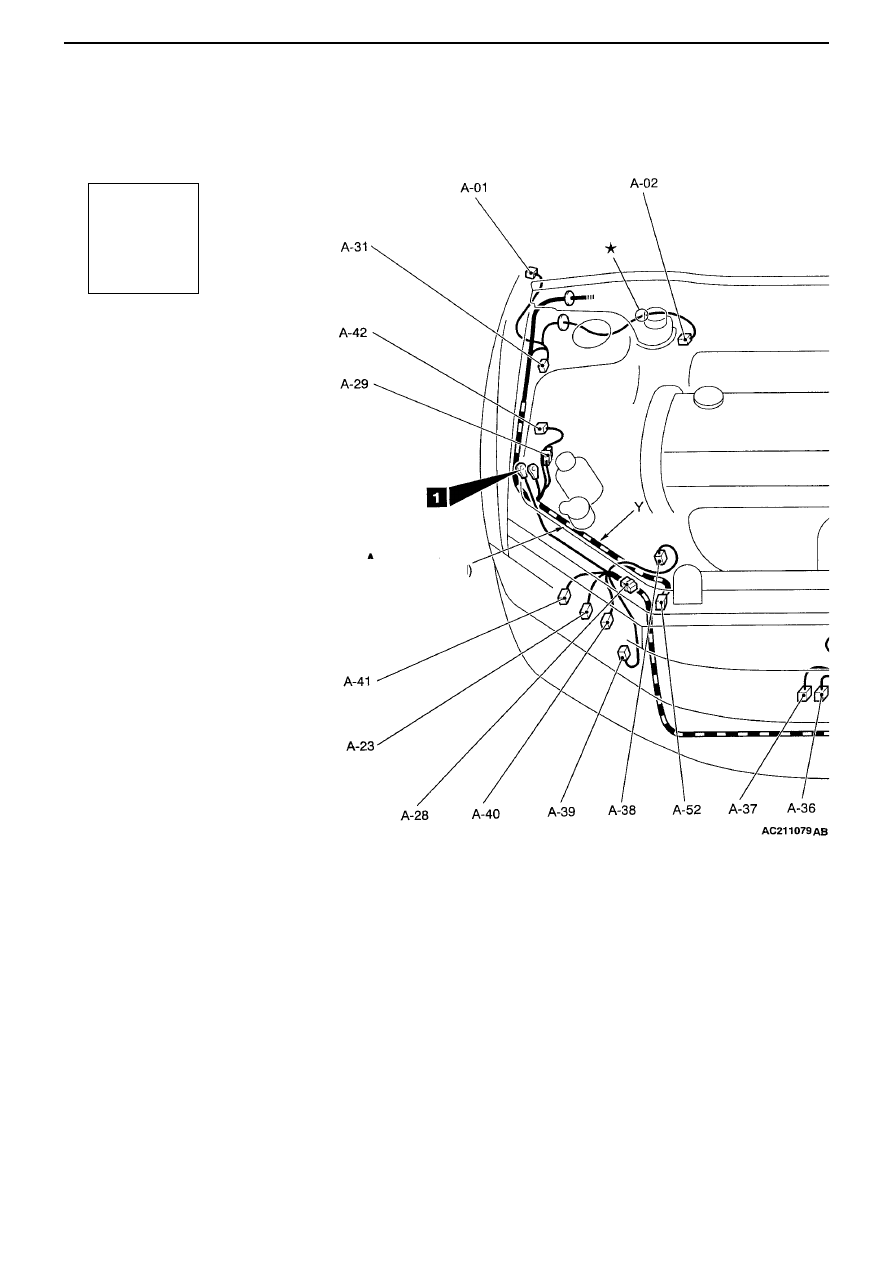

HARNESS CONFIGURATION DIAGRAMS - ENGINE COMPARTMENT

1-4

A-01

(2- grey)

Indicator light (RH)

A-02

(2- grey)

Brake fluid level switch

A-04

(2- grey)

Indicator light (LH)

A-05

(2- black)

Front ABS sensor (LH)

A-06X (4)

Fog light relay or spare connector for
fog light relay

A-07X (4)

Horn relay

A-08X (4)

Condenser fan relay (LO)

A-09X (4)

Condenser fan relay (HI)

A-11X (4)

Radiator fan control relay

A-12X (11)

Front ECU

A-13X (11)

Front ECU

A-14

(2- black)

Front harness (LH) and control

harness coupling

A-16

(2- black)

Headlight (HI: LH)

A-19

(3- grey)

Radiator fan controller

A-20

(1- black)

Horn (HI)

A-21

(2- brown) Ambient air temperature sensor

<vehicle fitted with fully automatic A/C>

A-22

(1- black)

Horn (LO)

A-23

(2- black)

Headlight (HI: RH)

A-28

(1)

Spare connector for fog light

A-29

(2)

Vacant connector

A-31

(2- black)

Front ABS sensor (RH)

A-32

(4- black)

Vacant connector

Front harness (RH)

ENGINE COMPARTMENT

M3010000300754

Connector

symbol -

A

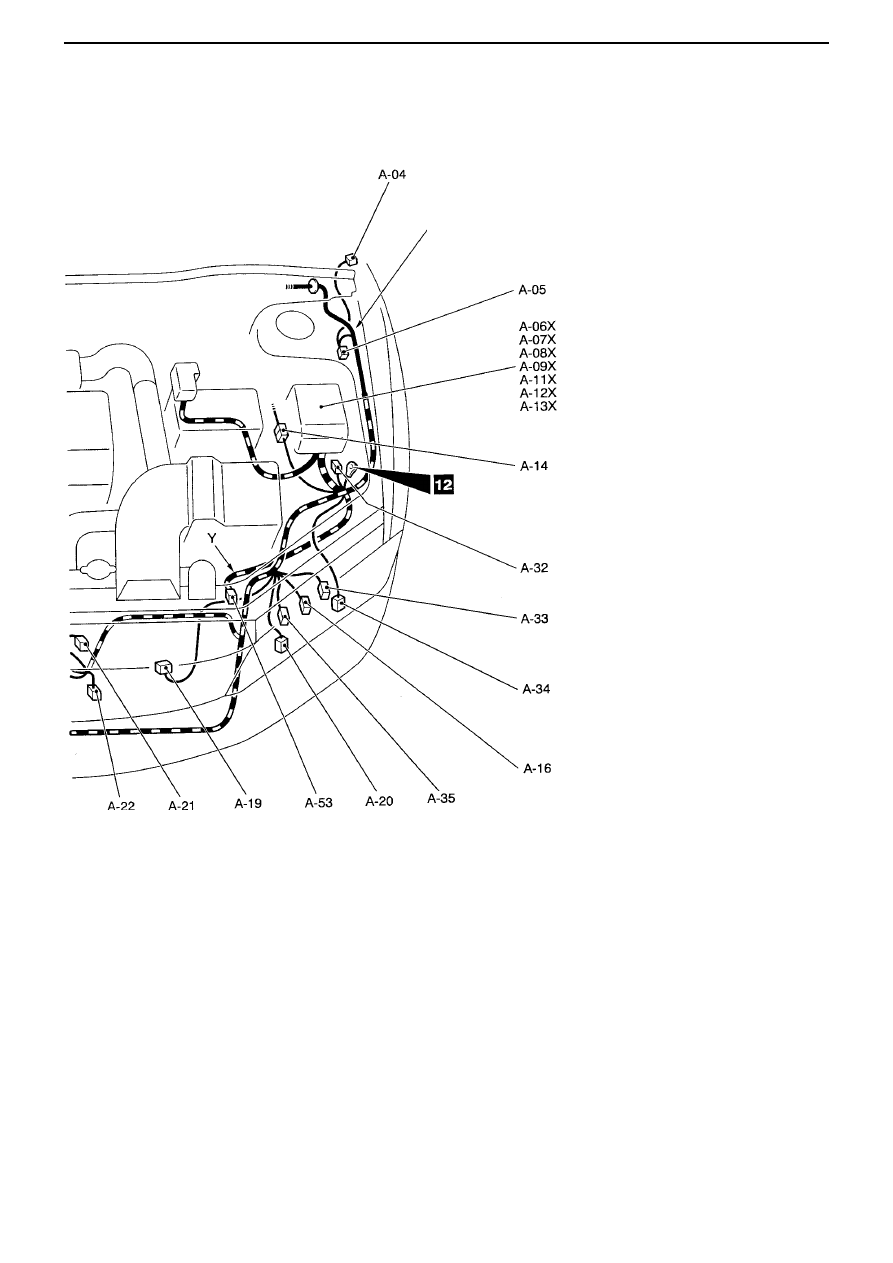

HARNESS CONFIGURATION DIAGRAMS - ENGINE COMPARTMENT

1-5

A-33

(4- black)

Headlight Assy.(LH) <excluding discharge
type>

(8- black)

Headlight Assy.(LH) <discharge type>

A-34

(2)

Intercooler water spray motor

A-35

(2- black)

Fog light (LH)

A-36

(2- black)

Condenser fan motor

A-37

(2- grey)

Condenser fan motor

A-38

(1- black)

Power steering wheeling fluid pressure
switch

A-39

(1- black)

A/C compressor <vehicle fitted with
fully automatic A/C> or vacant
connector <vehicle fitted with heater>

A-40

(2- black)

Fog light (RH)

A-41

(4- black)

Headlight Assy.(RH) <excluding discharge
type>

(8- black)

Headlight Assy. (RH) <discharge type>

A-42

(2- brown)

Dual pressure switch <vehicle fitted
with fully automatic A/C> or vacant
connector <vehicle fitted with heater>

A-52

(2- yellow)

Front impact sensor (RH) <vehicle not
fitted with passenger seat airbag>

A-53

(2- yellow)

Front impact sensor (LH) <vehicle not
fitted with passenger seat airbag>

Front harness (LH)

AC211080AB
