SUMMARY - OVERVIEW OF CIRCUIT DIAGRAMS

0-9

On those whose cable colour is composed of two colours, the initial wire colour symbol indicates the basic colour
(earth colour of the wire covering), and the second wire colour symbol indicates the marking colour.

Abbreviation Meaning

Abbreviation

Meaning

A/C

Air Conditioner

ETACS

Electronic Time & Alarm Control system

ABS

Anti-lock Brake System

MMCS

Mitsubishi Multi-Communication System

ACD

Active Centre Differential

SRS

Supplemental Restraint System

AYC

Active Yaw Control

Colour codes

M3000011000024

The wire colours are indicated by the letters listed below.

Code

Wire colour

Code

Wire colour

Code

Wire colour

Code

Wire colour

B

Black

L

Blue

R

Red

W

White

BR

Brown

LG

Blue-green

SB

Sky blue

Y

Yellow

G

Green

O

Orange

SI

Silver

-

-

GR

Grey

P

Pink

V

Violet

-

-

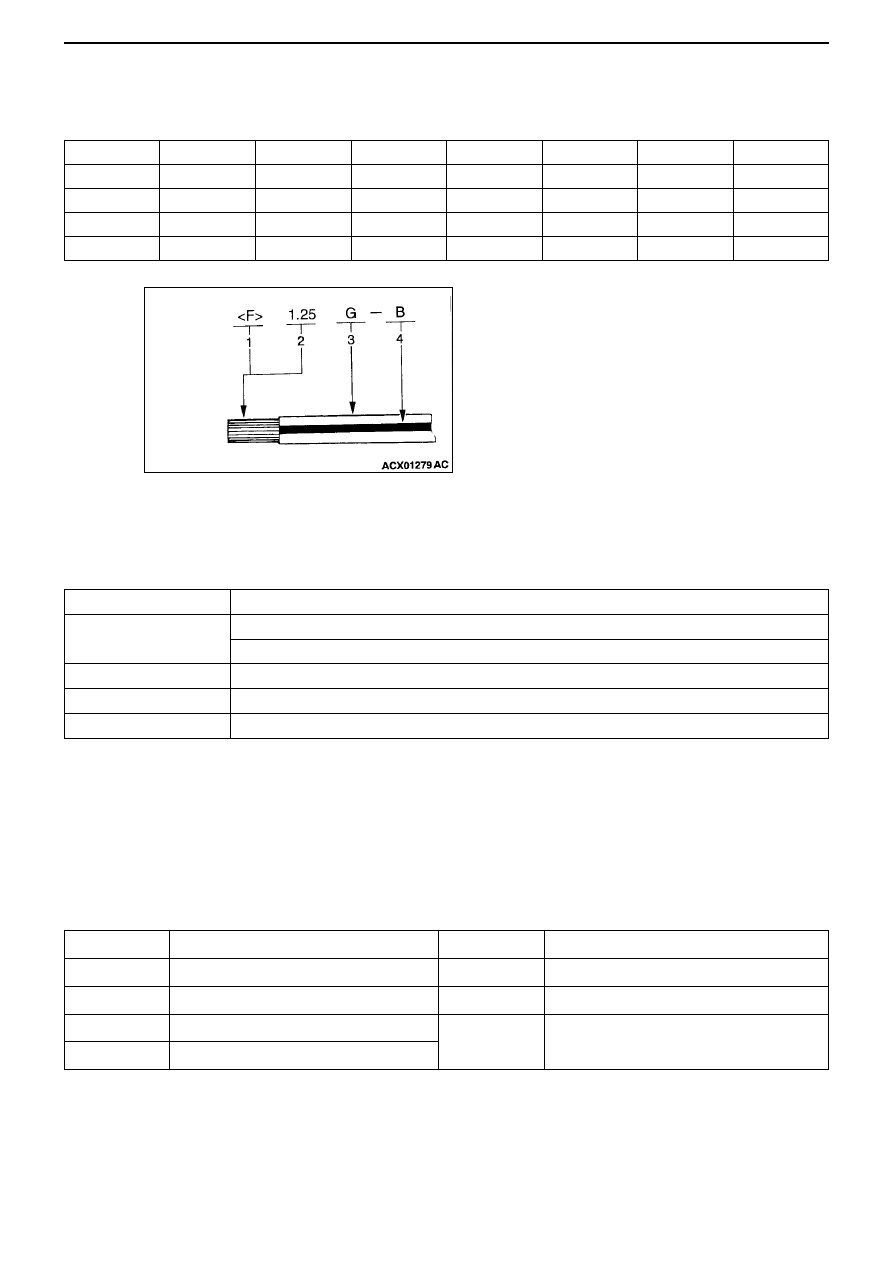

Example:

No.

Meaning

1

<F>: Flexible wire

<T>: Twisted wire

2

Wire size (mm

2

)*

3

Basic colour

4

Marking colour

Note:
•

*: The absence of any symbol indicates 0.5 mm

2

.

(   ) A cable colour enclosed in parentheses indicates 0.3 mm

2

.

Abbreviations
The abbreviations used in the circuit diagrams have the following meanings.

1. System name abbreviations

M3000012000232

SUMMARY - OVERVIEW OF CIRCUIT DIAGRAMS

0-10

2. Abbreviations used in internal circuits of combination meters

Abbreviation

Meaning

Abbreviation

Meaning

ABS

ABS warning light

SEAT BELT

Seat belt warning light

BEAM

High beam indicator light

SPEED

Speedometer

BRAKE

Brake warning light

SRS

SRS airbag warning light

CHECK ENGINE Engine warning light

T/GA

Water temperature gauge

CHG

Charging warning light

TACHO

Tachometer

DOOR

Open door warning light

TAIL

Tail, front side, licence plate and indicator light

F/GA

Fuel gauge

TARMAC

Active Centre Differential mode indicator light

FOG

Fog light warning light

GRAVEL

FUEL

Fuel warning light

SNOW

LCD

Liquid crystal display

TURN (LH)

Indicator warning light, hazard warning light

OIL

Oil pressure warning light

TURN (RH)

WATER SPRAY

Intercooler water spray indicator light

Names of switches and relays Abbreviation

Meaning

Ignition switch

LOCK

All power source circuits are ineffective in ignition key LOCK position

ACC

Although power source circuits are effective in ignition key ACC
(accessory) or IG position, but are ineffective in ST (start) position

IG2

Power source circuits are effective in ignition key IG position,
but ineffective in ST (start) position

IG1

Power source circuits are effective in ignition key IG position,
and are also effective in ST (start) position

ST

Power source circuits are only effective in ignition key ST (start) position

Intercooler water spray switch

MANUAL

Water is sprayed when switch is pushed

AUTO

Water is automatically sprayed depending on running conditions

Windscreen wiper switch

MIST

Windscreen wiper operates through one cycle

INT

Windscreen wiper operates intermittently

LO

Windscreen wiper operates continuously at low speed

HI

Windscreen wiper operates continuously at high speed

Variable intermist wiper
control switch

SLOW

Windscreen wiper intermittent operation time is prolonged

FAST

Windscreen wiper intermittent operation time is shortened

Sunroof switch

OPEN

Sunroof opens

UP

Sunroof tilts up

CLOSE/DOWN Sunroof tilts down or closes

Switches and relays

OFF

Switch off

ON

Switch on

Turn signal light switch

LH

Turn signal light on LH side flashes

RH

Turn signal light on RH side flashes

3. Abbreviations used in internal circuits of switches and relays

SUMMARY - OVERVIEW OF CIRCUIT DIAGRAMS

0-11

Names of switches and relays Abbreviation

Meaning

Headlight dipping switch

LO

Low beam ON

HI

High beam ON

PASS

High beam ON

Door lock actuator

LOCK

Door is locked

UNLOCK

Door is unlocked

Electric window switch

UP

Window closes

DOWN

Window opens

AUTO UP

Window fully closes

AUTO DOWN Window fully opens

LOCK

Window opening/closure is locked except on main switch

UNLOCK

Specific windows can open and close on all switches

Blower switch

LO

Blower rotates at low speed

ML

Blower rotates at medium-low speed

MH

Blower rotates at medium-high speed

HI

Blower rotates at high speed

Headlight levelling switch

1

Low beam light axis is lowered 1 step

2

Low beam light axis is lowered 2 steps

3

Low beam light axis is lowered 3 steps

4

Low beam light axis is lowered 4 steps

Lighting switch

TAIL

Tail light, position light, licence plate light, and illumination
lights light up

-

HEAD

Headlight lights up

Remote control mirror switch

LH

Angle of LH door mirror can be adjusted

-

RH

Angle of RH door mirror can be adjusted

Rear wiper/washer switch

INT

Rear wiper operates intermittently

-

WASH

Rear wiper operates together with washer spray

Room light switch

DOOR

Room light lights up if door is opened

4. Other abbreviations

Abbreviation Meaning

Abbreviation Meaning

4WD

4-wheel drive vehicle

J/B

Junction block

ASSY

Assembly

J/C

Joint connector

CPU

Computational circuit

LH

Left hand

ECU

Electronic control unit

LO

Headlight on low beam, horn on low
sound, or windscreen wiper on low speed

GND

Earth

HI

Headlight on high beam, horn on high
sound, or windscreen wiper on high speed

MUT

Multi-use tester

IC

Integrated circuit

O

2

Oxygen

ILL

Illumination light

RH

Right hand

IND

Indicator light

1-1

SECTION 1

HARNESS CONFIGURATION

DIAGRAMS

CONTENTS

Overall harness configuration diagram..1-2

Engine compartment ................................1-4

Engine and transmission .........................1-6

Instrument panel .....................................1-10

Floor and roof .........................................1-16

Door..........................................................1-18

Luggage compartment ...........................1-20
