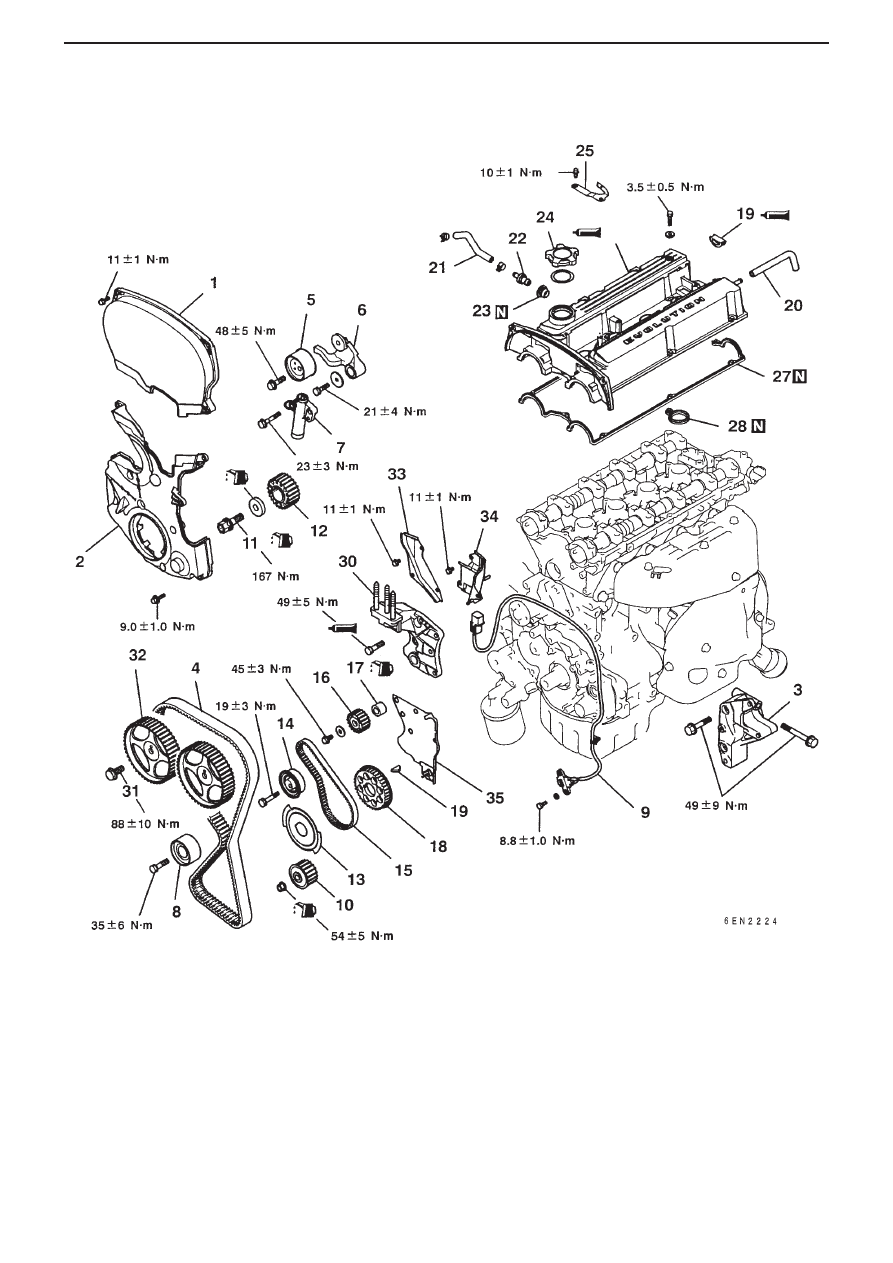

4G6 – TIMING BELT

Timing Belt

Removal / Fitting

1. Timing belt front upper cover

7. Auto-tensioner

2. Timing belt front lower cover

8. Idler pulley

3. Power steering pump bracket

9. Crank angle sensor

4. Timing belt

10. Oil pump sprocket

5. Tensioner pulley

11. Crankshaft bolt

6. Tensioner arm

12. Crankshaft sprocket
13. Crankshaft sensing blade
14. Tensioner B



*

*





*

*



*



*



*





*

*





*

*



9

4G6 – TIMING BELT

15. Timing belt B

26. Rocker cover

16. Counterbalance shaft

27. Rocker cover gasket A

sprocket

28. Rocker cover gasket B

17. Spacer

29. Semicircular washer

18. Crankshaft sprocket B

30. Engine support bracket

19. Crankshaft key

31. Camshaft sprocket bolt

20. Breather hose

32. Camshaft sprocket

21. PVC hose

33. Timing belt rear right cover

22. PVC valve

34. Timing belt rear left upper

23. PVC valve gasket

cover

24. Oil filler cap

35. Timing belt rear left lower

25. Connector bracket

cover



*

*





*

*





*

*



*



*



*



*





*

*



*



10

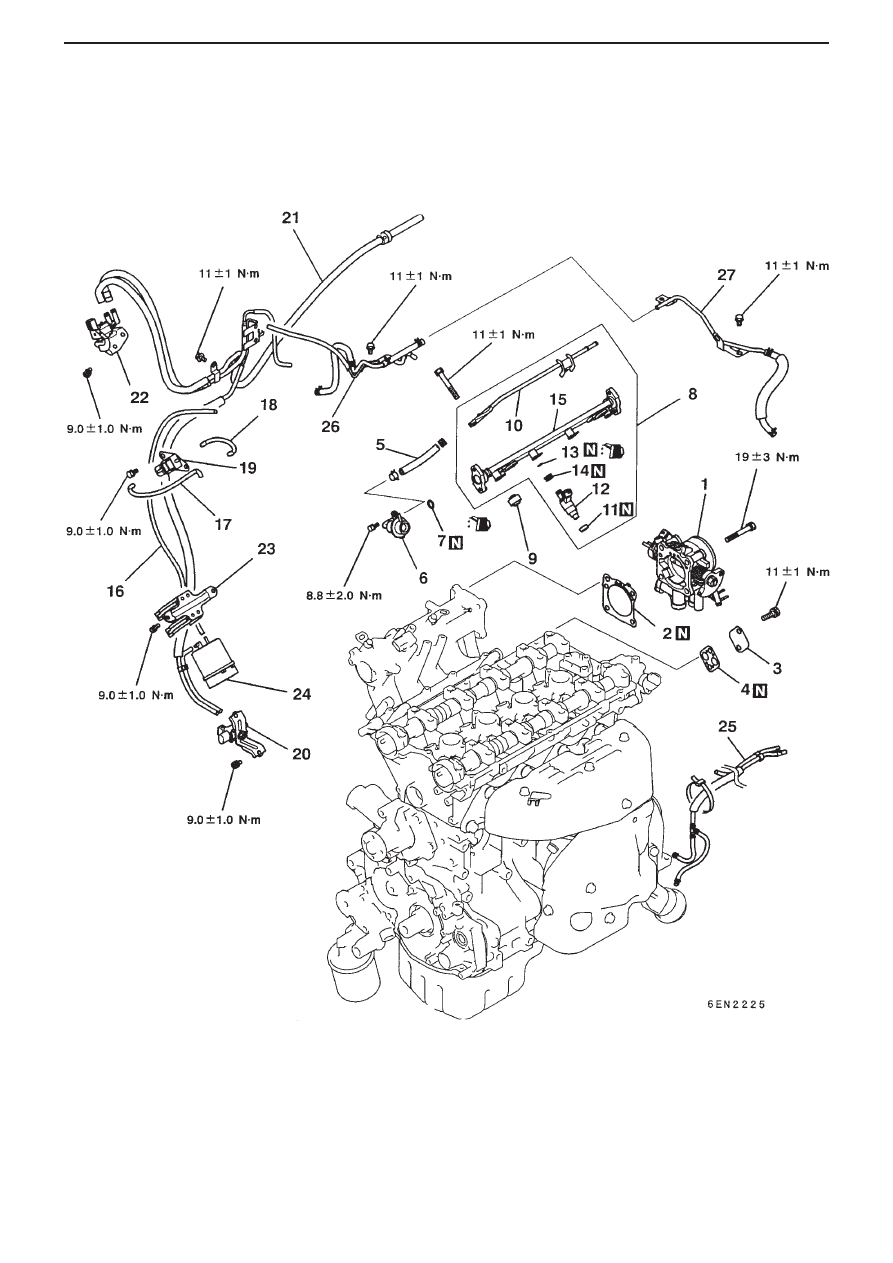

4G6 – FUEL SYSTEM

Fuel System

Removal / Fitting

11

4G6 – FUEL SYSTEM

Removal Order
1. Throttle body assembly

15. Delivery pipe

2. Throttle body gasket

16. Vacuum hose

3. Cover

17. Vacuum hose

4. Gasket

18. Vacuum hose

5. Fuel hose

19. Solenoid valve assembly

6. Fuel pressure regulator

20. Solenoid valve assembly

7. O ring

21. Vacuum hose and pipe

8. Delivery pipe and injector

22. Solenoid valve assembly

9. Insulator

23. Vacuum tank bracket

10. Fuel return pipe

24. Vacuum tank

11. Insulator

25. Vacuum hose assembly

12. Injector

26. Vacuum hose and pipe

13. O ring

27. Vacuum hose and pipe

14. Grommet

*



*



*
