Mitsubishi Lancer Evolution 8. Manual - part 9

POWER TRAIN – DIFFERENTIAL

2-15

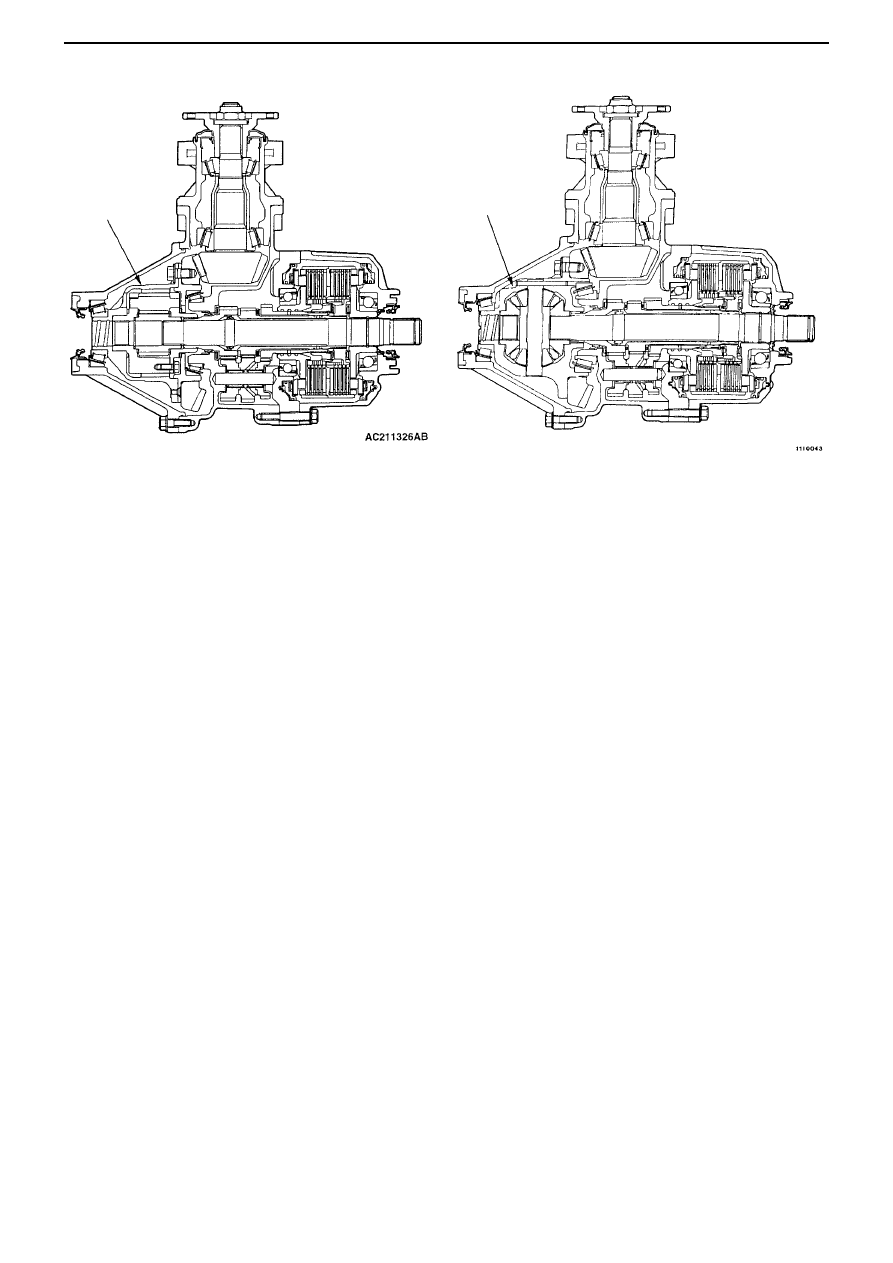

New: Super AYC (Shaft to shaft system)

Differential
mechanism
(planetary gear
system)

Differential
mechanism
(bevel gear
system)

Old: AYC (Case to shaft system)

SECTION 3

DRIVE-CONTROL

CONTENTS

Front Suspension ...................................3-1
Rear Suspension ....................................3-1

Wheel and Tyre .......................................3-2
Steering ...................................................3-2

Front Suspension

•



Traction, response and damping have been improved by optimizing strut damping response.

•



Ride comfort and driving stability have been improved by adjusting the spring rates

Specifications

New

Old

Item

RS

GSR

RS

GSR

Wire diameter mm

14







Average diameter mm

155







Free length mm

281

286

281 and 275*

281

Note
*: 17-inch alloy wheels were used in this case.

Rear Suspension

•



Improved damping response and linearity have been achieved and traction, response and damping
have been improved by maximizing the diameter of the shock absorber rods.

•



Ride comfort and driving stability have been improved by adjusting the spring rates.

Specifications

New

Old

R

S

R

S

Item

AYC not
mounted

AYC
mounted

GSR

AYC not
mounted

AYC
mounted

GSR

Wire diameter
mm

12

9 to 12

12

9 to 12

12

9 to 12

Average diameter
mm

88











Free length mm

281

284

287

287

281

284

Specifications

DRIVE-CONTROL – FRONT SUSPENSION AND REAR SUSPENSION

3-1

DRIVE-CONTROL – WHEEL AND TYRE, STEERING

3-2

Shaft sub
assembly

Tilt bracket B

Pipe sub
assembly

Tilt bracket A

Tilt lever
mechanism

New

Cross section b-b

Rivet

Old

Pin and resin
bush

New

Cross section a-a

Shape change

Shape
change

Shape
change

Cam

Old

Wheel and Tyre

New design 17-inch alloy wheels are fitted. (standard for GSR and RS
(6M/T); optional for RS (5M/T))
Note
For the specifications please refer to Section 8 – Main Accessories.

Steering

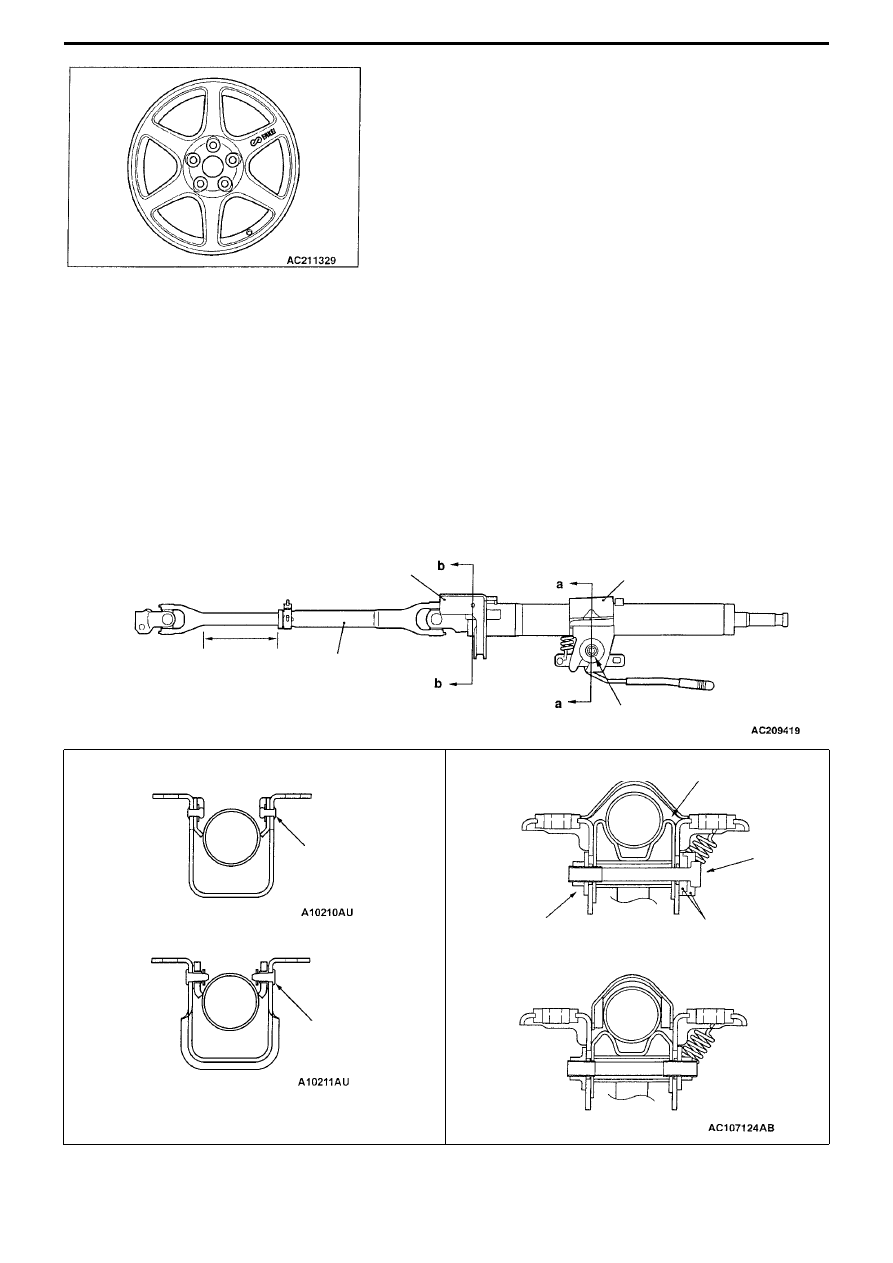

1. Steering shaft

• Changing the design of the steering shaft tilt bracket has reduced vibration.
• Increasing the amount by which the shaft sub assembly slides into the pipe sub assembly has reduced the amount by which

the steering wheel moves backwards at the time of a collision.

• Column retention and operability have been improved by introducing a cam to the tilt lever mechanism

DRIVE-CONTROL – STEERING

3-3

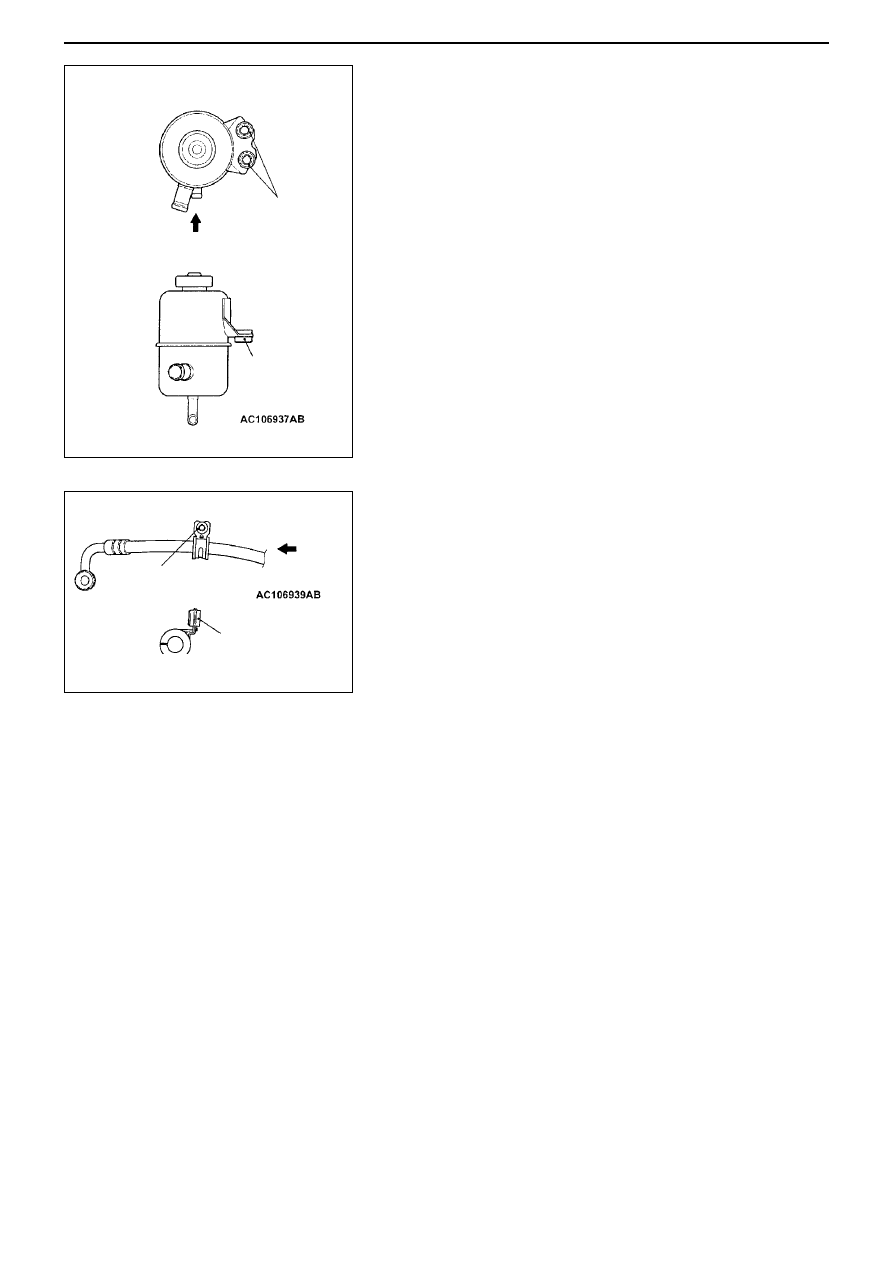

2. Oil line

Noise has been reduced by improving suspension insulation and by fitting
rubber mountings to the oil reservoir tank and pressure hose assembly.

Rubber
Mounting

Rubber
Mounting

B view

B view

Rubber Mounting

Rubber Mounting

A view

A view

AC106940AB

AC005101
