Mitsubishi Lancer Evolution 7. Manual - part 332





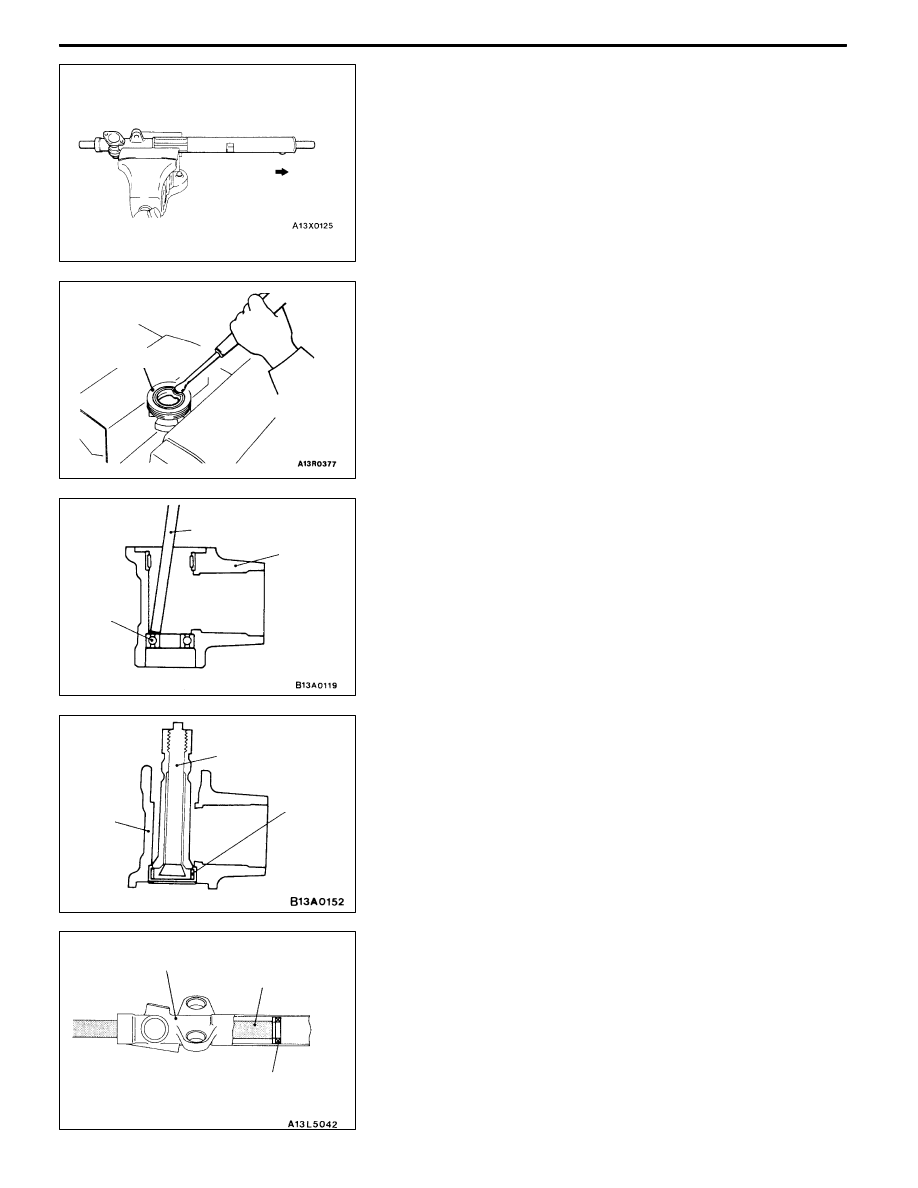

STEERING - Power Steering Gear Box and Linkage

37A-23

A

FRACK STOPPER/RACK BUSHING/OIL SEAL/

O-RING/RACK ASSEMBLY REMOVAL

1. Remove the rack stopper, rack bushing, oil seal and O-ring

together by pulling out the rack gently.

2. Partially bend the oil seal to remove from the rack bushing.

Caution

Use care not to damage the oil seal press-fitting

surface of the rack bushing.

A

G"LOWER BEARING REMOVAL

A

HNEEDLE BEARING REMOVAL

Caution

Do not open the special tool to much, otherwise it may

damage the inside surface of the valve housing.

A

IOIL SEAL REMOVAL

Use a pipe or the like to pull out the oil seal.

Rack bushing

Valve

housing

MB990925

(MB990939)

Lower

bearing

MB991120

Needle

bearing

Valve

housing

Oil seal

Gear housing

Pipe

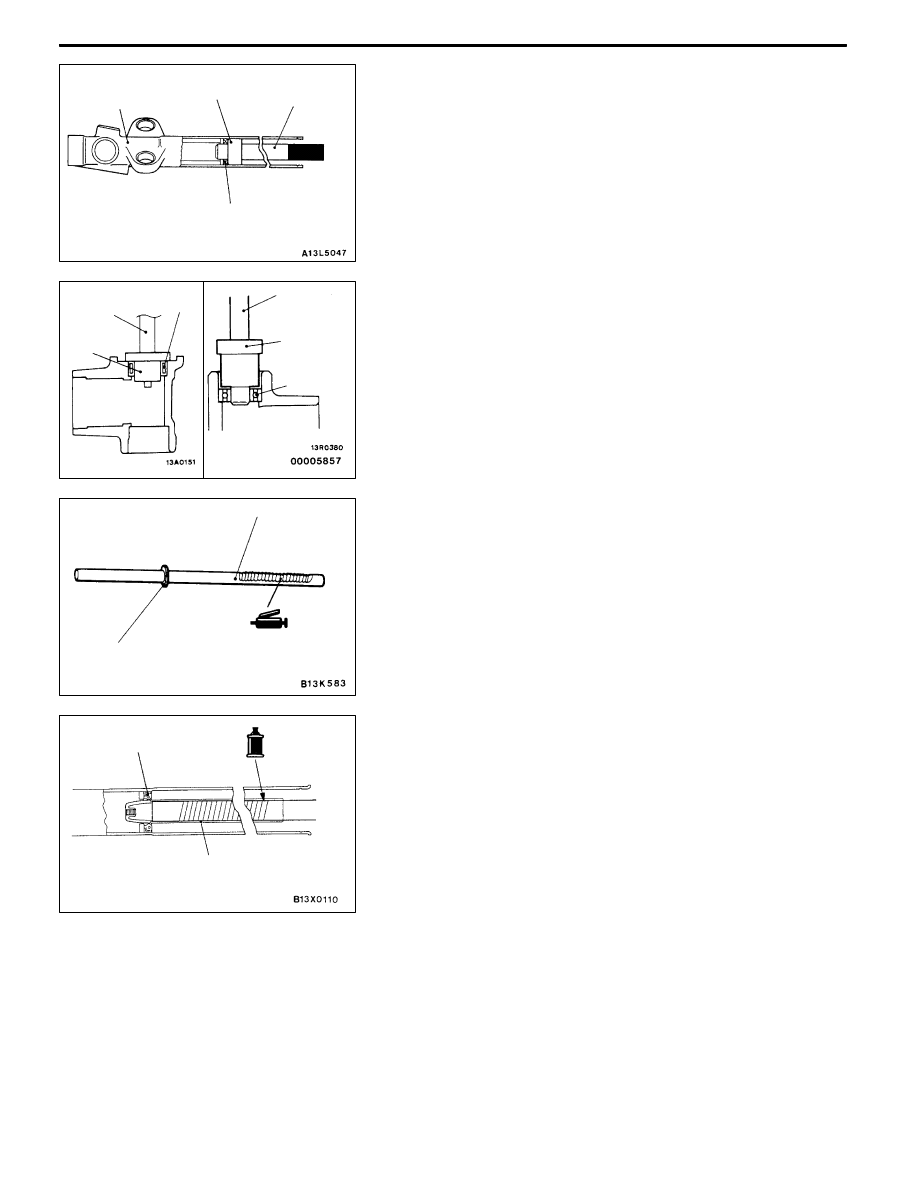

STEERING - Power Steering Gear Box and Linkage

37A-24

REASSEMBLY SERVICE POINTS

"

AOIL SEAL INSTALLATION

"

BNEEDLE BEARING/LOWER BEARING

INSTALLATION

"

CRACK ASSEMBLY INSTALLATION

1. Apply repair kit grease to the teeth of the rack assembly.

Caution

Use care not to close the vent hole in the rack with

grease.

2. Cover the serrations of the rack assembly with the special

tool.

3. Apply specified fluid to the outer surfaces of the special

tool, seal ring and O-ring.
Specified fluid:

Automatic transmission fluid DEXRON II

Caution

Do not use ATF-SP II M and ATF-SP III.

4. Slowly insert the rack covered with the special tool from

the power cylinder side of the gear housing.
Caution

Carefully push in the rack with the oil seal centre

and the special tool end matched. This is to avoid

the retainer spring coming off.

MB991197

Gear housing

Oil seal

MB991199

Needle

bearing

MB990925

(MB990938)

MB991202

Lower

bearing

MB990925

(MB990938)

MB991202

Vent hole

Seal ring, O-ring

MB991214

Oil seal

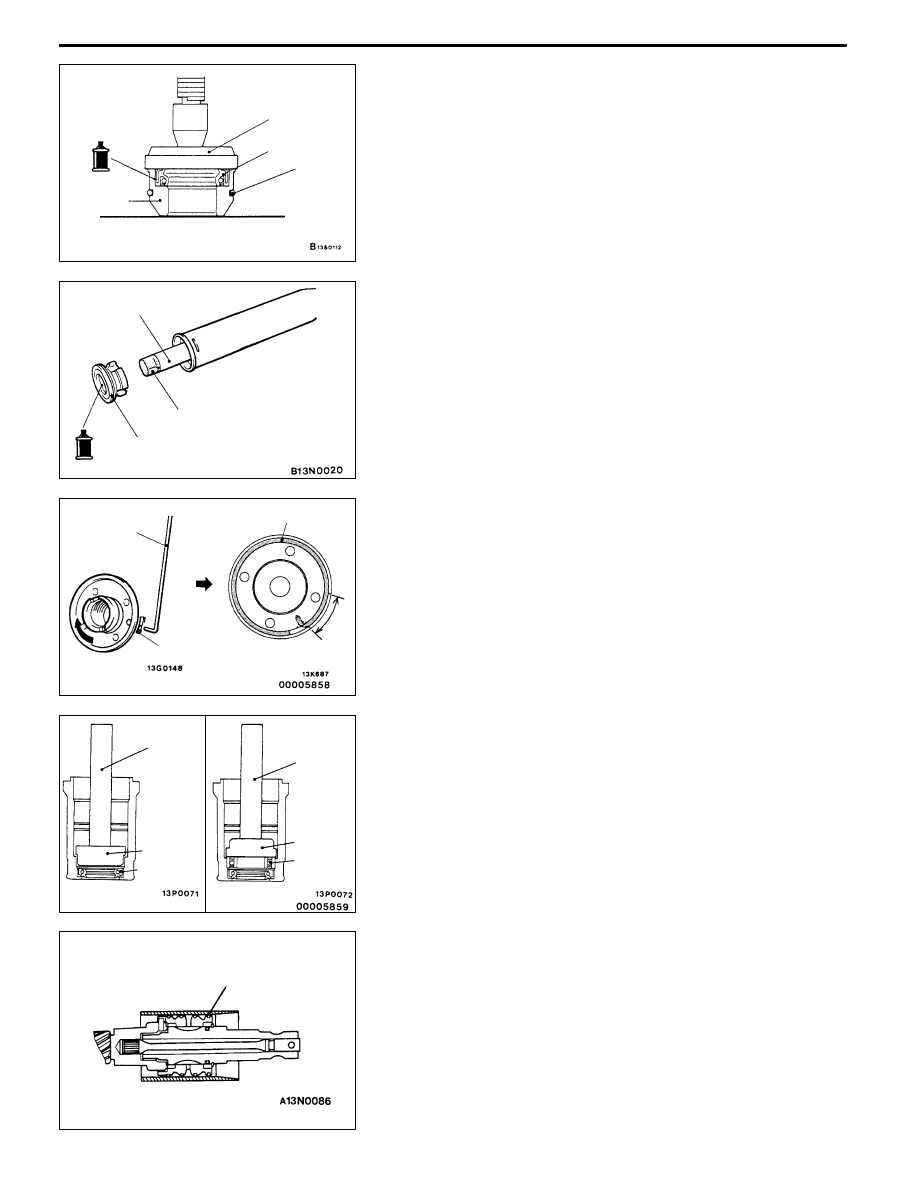

STEERING - Power Steering Gear Box and Linkage

37A-25

"

DOIL SEAL/RACK BUSHING INSTALLATION

1. Apply specified fluid to the outer surface of the oil seal.

Using the special tool, press in the oil seal until it is flush

with the bushing end face.
Specified fluid:

Automatic transmission fluid DEXRON II

Caution

Do not use ATF-SP II M and ATF-SP III.

2. Apply the specified fluid to the oil seal inner surface and

the O-ring.
Specified fluid:

Automatic transmission fluid DEXRON II

Caution

Do not use ATF-SP II M and ATF-SP III.

3. Wrap the rack end with plastic tape, and push the rack

bushing onto the rack.

"

ECIRCLIP INSTALLATION

Align the mark on the rack stopper and the slot in the cylinder.

Then, insert the circlip into the rack stopper hole through

the cylinder hole. Turn the rack stopper clockwise and insert

the circlip firmly.

"

FUPPER OIL SEAL/UPPER BEARING

INSTALLATION

"

GASEAL RING INSTALLATION

After installation, using the special tool or by hand, compress

seal rings that expand during installation.

MB990925

(MB990927)

Oil seal

O-ring

Rack

bushing

Rack bushing

Plastic tape

Rack

Slot

Circlip

Slot

Circlip

MB991203

MB991203

MB990925

(MB990938)

Upper oil

seal

MB990925

(MB990938)

Bearing

MB991317

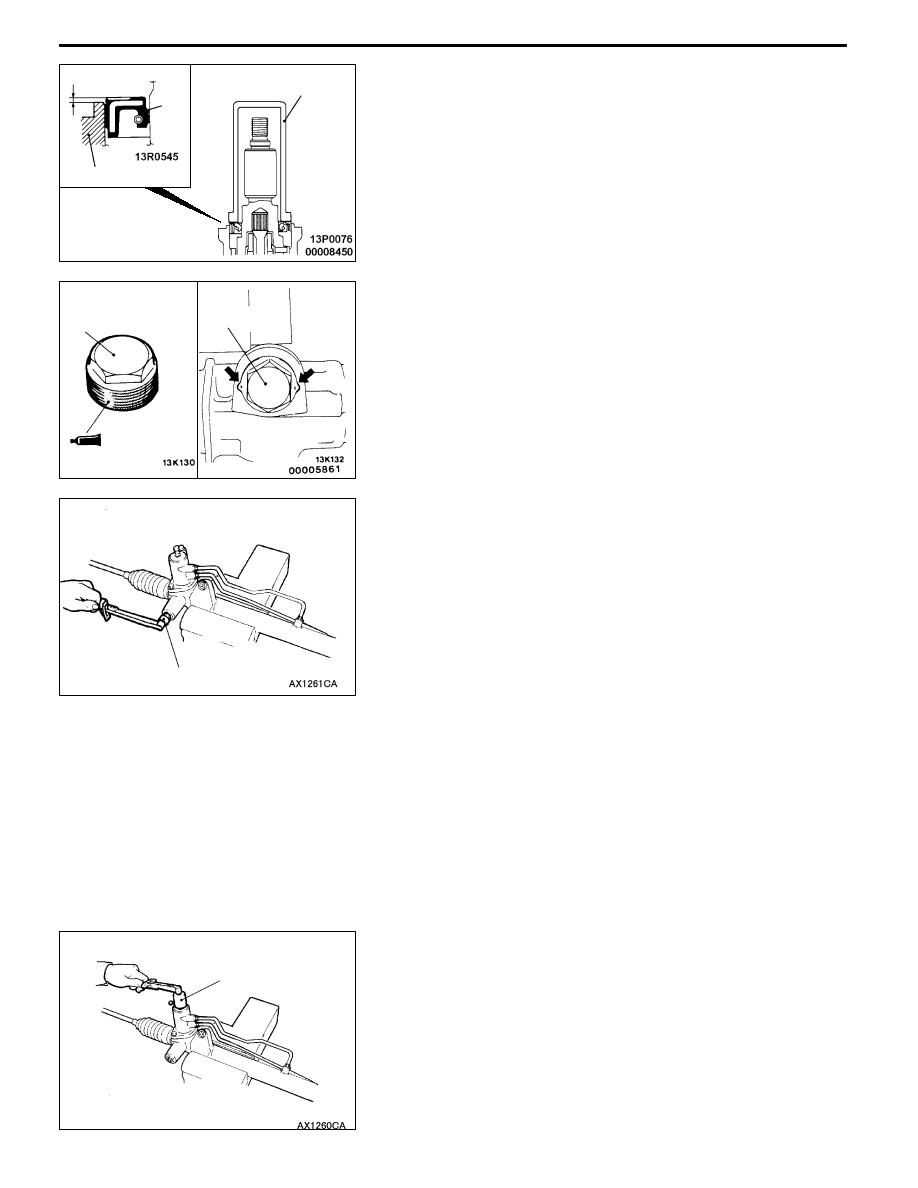

STEERING - Power Steering Gear Box and Linkage

37A-26

"

HLOWER OIL SEAL INSTALLATION

Using the special tool, press the oil seal into the valve housing.

The upper surface of the oil seal must project outwards about

1 mm from the housing end surface.
Caution

When the oil seal is flush with or lower than the housing

edge, reassemble the components. Otherwise, oil leaks

will result.

"

IEND PLUG INSTALLATION

1. Apply specified sealant to the threaded section of the

end plug, and then install the end plug to the gear housing.
Specified fluid:

3M ATD Part No.8661, 8663 or equivalent

2. Use a punch to bend over the two tabs on the sides

of the end plug to stop the end plug from turning.

"

JRACK SUPPORT COVER/LOCKING NUT

INSTALLATION

1. Apply specified sealant to the rack support cover thread.

Specified fluid:

3M ATD Part No.8661, 8663 or equivalent

2. Using the special tool, tighten the rack support cover

to 23 ± 2 N·m.

3. Return the rack support cover by about 30_.

4. Tighten the locking nut to the specified torque, using

the special tool to prevent the rack support cover from

spinning.

"

KPINION TOTAL ROTATION TORQUE ADJUSTMENT

1. Using the special tool, measure total rotation torque by

turning the pinion gear at a speed of one rotation per

4 to 6 seconds.
Standard value:

Total rotation torque: 0.8

- 1.8 Nm

Torque fluctuation: 0.49 Nm or less

MB990941

Approx. 1 mm

Oil

seal

Housing

End plug

End plug

MB991204

MB991006
