MANUAL TRANSMISSION - Troubleshooting <ACD>

22A-23

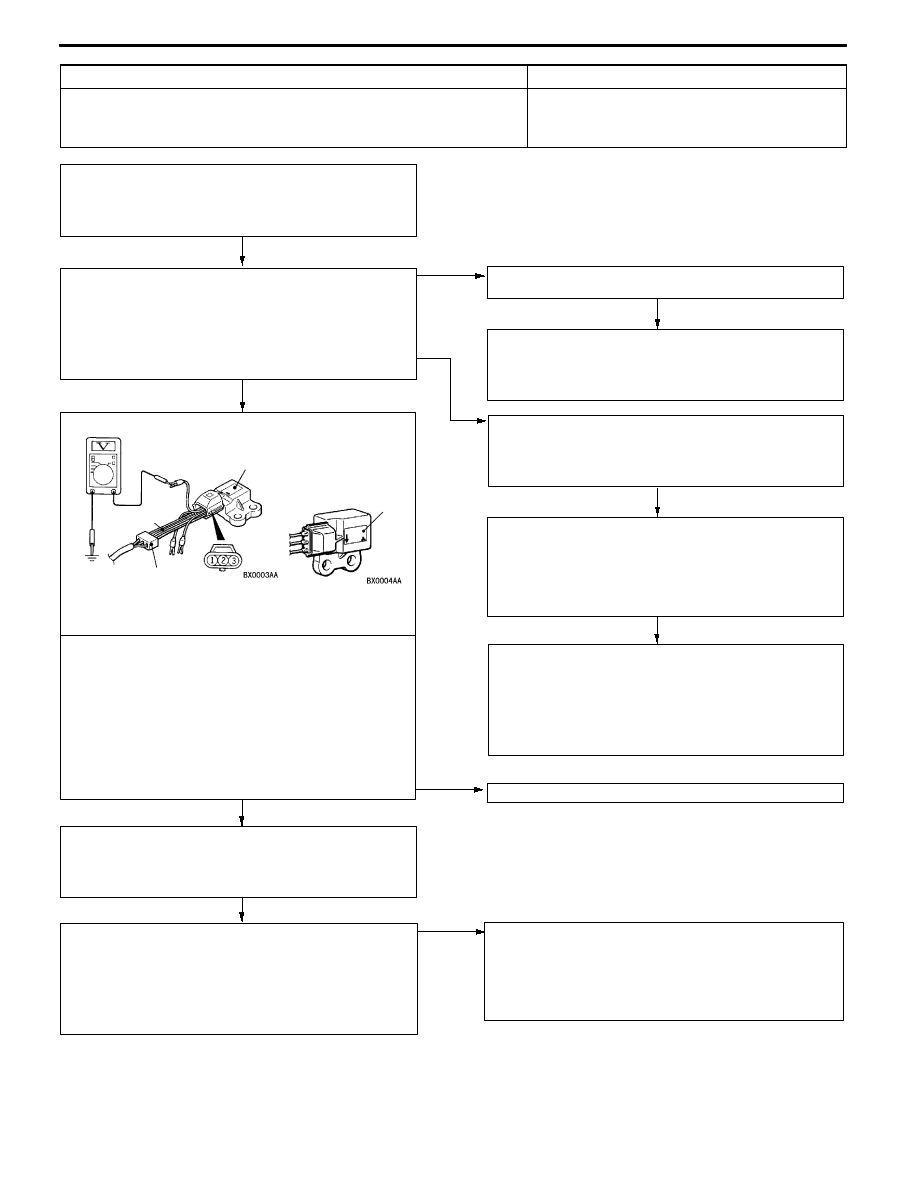

Code No.56 Lateral G sensor system

Probable cause

Code No.56 is output when the output signal of the lateral G sensor is below

0.5 V or above 4.5 V.

D

Harness or connector fault

D

Lateral G sensor fault

D

ABS-ECU fault <Vehicles with ACD and AYC>

D

4WD-ECU fault

OK

OK

(1) NG

NG

Check the following connectors: D-33, C-213, C-210

NG→Repair

MUT-II Data List
D

No.15 Lateral G sensor voltage

OK: Refer to P.22A-35 (Data List Reference Table).

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

Check the harness between the lateral G sensor and ignition

switch.
D

Check for the open circuit, ground and damage of the

power line.

NG→Repair

Measure at lateral G sensor connector D-33.
D

Disconnect the connector and measure at the harness

side.

D

Ignition switch: ON

(1) Voltage between terminal 1 and earth.

OK: System voltage

(2) Resistance between terminal 3 and earth.

OK: 2 Ω or less

(2) NG

OK

Check the following connectors:

<Vehicles with ACD and AYC> D-33, C-128, B-123

<L.H. drive vehicles with ACD> D-33, C-128, C-44

<R.H. drive vehicles with ACD> D-33, C-44

NG→Repair

OK

Check the harness between the lateral G sensor and

ABS-ECU. <Vehicles with ACD and AYC>
D

Check for open circuit and damage of the earth line.

Check the harness between the lateral G sensor and

4WD-ECU.<Vehicles with ACD>
D

Check for open circuit and damage of the earth line.

NG→Repair

MUT-II Data List
D

No.15 Lateral G sensor voltage

OK: Refer to P.22A-35. (Data List Reference Table)

NG→Refer to GROUP 35B - Troubleshooting <Vehicles with

ACD and AYC>, or replace the 4WD-ECU <Vehicles with

ACD>.

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

NG

D

Remove the lateral G sensor.

D

Connect the special tool between the connector D-33 at

the harness of the lateral G sensor connector and the

lateral G sensor.

D

Ignition switch: ON

D

Voltage between terminal 2 and body earth [when the

lateral G sensor is placed on a horizontal ground]

OK: 2.4 - 2.6 V

D

Voltage between terminal 2 and body earth [when the

lateral G sensor is placed with the labeled side facing the

side]

OK: 3.3 - 3.7 V

Label

D-33 Harness

side connector

Label

MB991348

Replace the lateral G sensor.

OK

OK

Check the following connectors:

<Vehicles with ACD and AYC> D-33, C-44, C-128, B-123

<L.H. drive vehicles with ACD> D-33, C-128, C-44

<R.H. drive vehicles with ACD> D-33, C-44

NG→Repair

OK

MUT-II Data List
D

No.15 Lateral G sensor voltage

OK: Refer to P.22A-35. (Data List Reference Table)

NG→Refer to GROUP 35B - Troubleshooting <Vehicles with

ACD and AYC>, or replace the 4WD-ECU.

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

Check the harness between the lateral G sensor and

4WD-ECU.
D

Check for open circuit, ground and damage of the power

line.

Check the harness between the lateral G sensor and

ABS-ECU. <Vehicles with ACD and AYC>
D

Check for ground and damage of the power line.

NG→Repair

MANUAL TRANSMISSION - Troubleshooting <ACD>

22A-24

Code No.57 Lateral G sensor system

Probable cause

Code No.57 is output when the G sensor has exceeded the specified value in a

state where the ABS and brake are not operating above the vehicle speed of 10

km/h.

D

Harness or connector fault

D

Lateral G sensor fault

D

ABS-ECU fault <Vehicles with ACD and AYC>

D

4WD-ECU fault

OK

NG

MUT-II Data List
D

No.15 Lateral G sensor voltage

OK: Refer to P.22A-35. (Data List Reference Table)

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

OK

Check the following connectors:

<Vehicles with ACD and AYC> D-33, C-44, C-128, B-123

<L.H. drive vehicles with ACD> D-33, C-128, C-44

<R.H. drive vehicles with ACD> D-33, C-44

NG→Repair

NG

Check the Lateral G sensor. (Refer to P.22A-23.)

NG→Replace

OK

MUT-II Data List
D

No.15 Lateral G sensor voltage

OK: Refer to P.22A-35 (Data List Reference Table).

NG→Refer to GROUP 35B -Troubleshooting <Vehicles with

ACD and AYC>, or replace the 4WD-ECU.

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

OK

Check the harness between the lateral G sensor and

4WD-ECU.
D

Check for open circuit, ground and damage of the power

line.

Check the harness between the lateral G sensor and

ABS-ECU. <Vehicles with ACD and AYC>
D

Check for ground and damage of the power line.

NG→Repair

Measure at 4WD-ECU connector C-44.
D

Measure the ECU terminal voltage.

D

Ignition switch: ON

D

Voltage between terminal 11 and earth.

OK: 2.4 - 2.6 V (Vehicle is in the horizontal state)

OK

Check the following connector: C-44

NG→Repair

MUT-II Data List
D

No.15 Lateral G sensor voltage

OK: Refer to P.22A-35 (Data List Reference Table).

NG→Replace the 4WD-ECU.

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

MANUAL TRANSMISSION - Troubleshooting <ACD>

22A-25

Code No.61 Stop lamp switch system

Probable cause

Code No.61 is output when the stop lamp switch is ON for more than 15

minutes when the vehicle speed is above 15 km/h.

D

Brake pedal fault

D

Stop lamp switch fault

D

Harness or connector fault

D

4WD-ECU fault

OK

OK

OK

NG

OK

Check for brake pedal height

(Refer to GROUP 35A – On-vehicle Service.)

NG→Adjust

NG

MUT-II Data List
D

No.56 Stop lamp switch

(1) Depress the brake pedal.

OK: ON

(2) Release the brake pedal.

OK: OFF

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

OK

Check the following connector: C-103

NG→Repair

Check the stop lamp switch.

(Refer to GROUP 35A - Brake Pedal.)

NG→Replace

NG

OK

Check the following connectors: C-103, C-135

NG→Repair

Check the harness between the stop lamp switch and battery.
D

Check for open circuit or damage of the power line.

NG→Repair

OK

Measure at stop lamp switch connector C-103.
D

Disconnect the connector and measure at the harness

side.

D

Voltage between terminal 2 and earth

OK: System voltage

Measure at 4WD-ECU connector C-43.
D

Measure the ECU terminal voltage.

D

Voltage between terminal 38 and earth

(1) Depress the brake pedal.

OK: System voltage

(2) Release the brake pedal

OK: 1 V or less

OK

Check the following connectors:

<L.H. drive vehicles> C-103, C-43, C-108, C-130

<R.H. drive vehicles> C-103, C-43

NG→Repair

OK

Check the harness between the stop lamp switch and stop

lamp.
D

Check for open circuit and damage of the power line.

Check the harness between the strop lamp and body earth.
D

Check for open circuit and damage of the earth line.

NG→Repair

Check the harness between the 4WD-ECU and stop lamp

switch.
D

Check for open circuit and damage of the power line.

NG→Repair

Check the following connector: C-43

NG→Repair

MUT-II Data List
D

No.56 Stop lamp switch

(1) Depress the brake pedal.

OK: ON

(2) Release the brake pedal.

OK: OFF

NG→Replace the 4WD-ECU.

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

OK

Check the stop lamp bulb.

NG→Replace

MANUAL TRANSMISSION - Troubleshooting <ACD>

22A-26

Code No.62 ACD mode switch system

Probable cause

Code No.62 is output when the ACD mode switch is ON for more than 60

seconds.

D

ACD mode switch fault

D

Harness or connector fault

D

4WD-ECU fault

OK

OK

OK

NG

NG

MUT-II Data List
D

No.63 ACD mode switch

(1) Press the ACD mode switch.

OK: ON

(2) Release the ACD mode switch.

OK: OFF

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)

Check the ACD mode switch. (Refer to P.22A-57.)

NG→Replace

NG

OK

Check the following connectors:

<L.H. drive vehicles> C-142, C-29, C-213, C-210

<R.H. drive vehicles> C-142, C-209, C-210

NG→Repair

OK

Measure at ACD mode switch connector C-142.
D

Disconnect the connector and measure at the harness

side.

D

Ignition switch: ON

D

Voltage between terminal 2 and earth

OK: System voltage

Measure at 4WD-ECU connector C-43.
D

Measure the ECU terminal voltage.

D

Ignition switch: ON

D

Voltage between terminal 47 and earth

(1) Press the ACD mode switch.

OK: System voltage

(2) Release the ACD mode switch.

OK: 1 V or less

OK

Check the following connectors:

<L.H. drive vehicles> C-142, C-128, C-43

<R.H. drive vehicles> C-142, C-43

NG→Repair

OK

Check the harness between the junction block and

combination meter.
D

Check for ground and damage of the power line.

NG→Repair

Check the harness between the 4WD-ECU and ACD mode

switch.
D

Check for open circuit and damage of the power line

NG→Repair

Check the following connector: C-43

NG→Repair

Check the harness between the ACD mode switch and

ignition switch.
D

Check for open circuit or damage of the power line.

NG→Repair

MUT-II Data List
D

No.63 ACD mode switch

(1) Press the ACD mode switch.

OK: ON

(2) Release the ACD mode switch.

OK: OFF

NG→Replace the 4WD-ECU.

OK→Intermittent malfunction (Refer to GROUP 00 - Points to

Note for Intermittent Malfunctions)
