Mitsubishi Lancer Evolution 7. Manual - part 230





ENGINE ELECTRICAL -

Starting System

16-19

5. If pinion gap is out of specification, adjust by adding or

removing gaskets between magnetic switch and front

bracket.

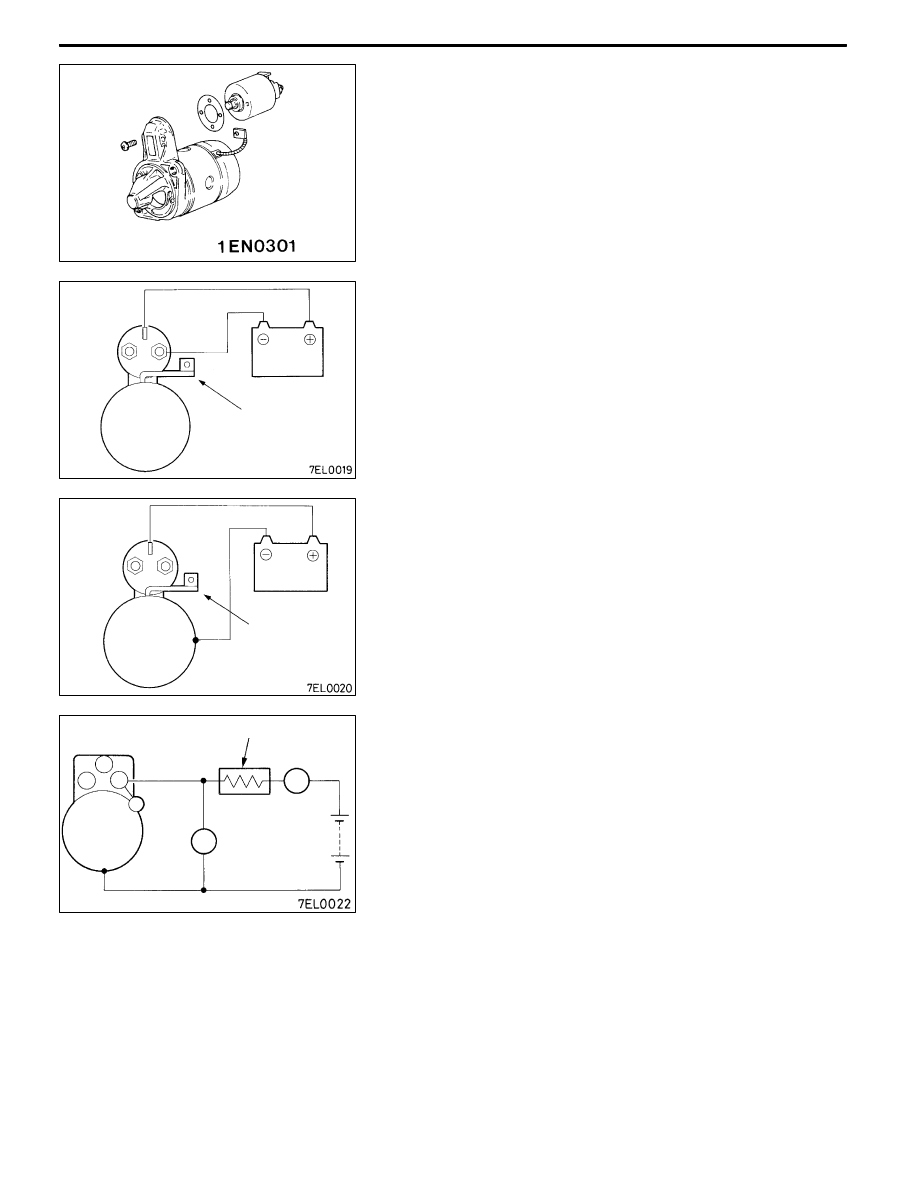

MAGNETIC SWITCH PULL-IN TEST
1. Disconnect field coil wire from M-terminal of magnetic

switch.

2. Connect a 12 V battery between S-terminal and

M-terminal.
Caution

This test must be performed quickly (in less than

10 seconds) to prevent coil from burning.

3. If pinion moves out, then pull-in coil is good. If it doesn’t,

replace magnetic switch.

MAGNETIC SWITCH HOLD-IN TEST

1. Disconnect field coil wire from M-terminal of magnetic

switch.

2. Connect a 12 V battery between S-terminal and body.

Caution

This test must be performed quickly (in less than 10

seconds) to prevent coil from burning.

3. Manually pull out the pinion as far as the pinion stopper

position.

4. If pinion remains out, everything is in order. If pinion moves

in, hold-in circuit is open. Replace magnetic switch.

FREE RUNNING TEST
1. Place starter motor in a vise equipped with soft jaws

and connect a fully-charged 12 V battery to starter motor

as follows:

2. Connect a test ammeter (100-ampere scale) and carbon

pile rheostat in series with battery positive post and starter

motor terminal.

3. Connect a voltmeter (15 V scale) across starter motor.

4. Rotate carbon pile to full-resistance position.

5. Connect battery cable from battery negative post to starter

motor body.

6. Adjust the rheostat until the battery voltage shown by

the voltmeter is 11 V Reduction.

7. Confirm that the maximum amperage is within the

specifications and that the starter motor turns smoothly

and freely.
Current:

max. 90 A

Field coil wire

S

M

Battery

B

Field coil wire

S

Battery

M

S

B

Starter

motor

Ammeter

Battery

Voltmeter

Carbon-pile rheostat

A

V

ENGINE ELECTRICAL -

Starting System

16-20

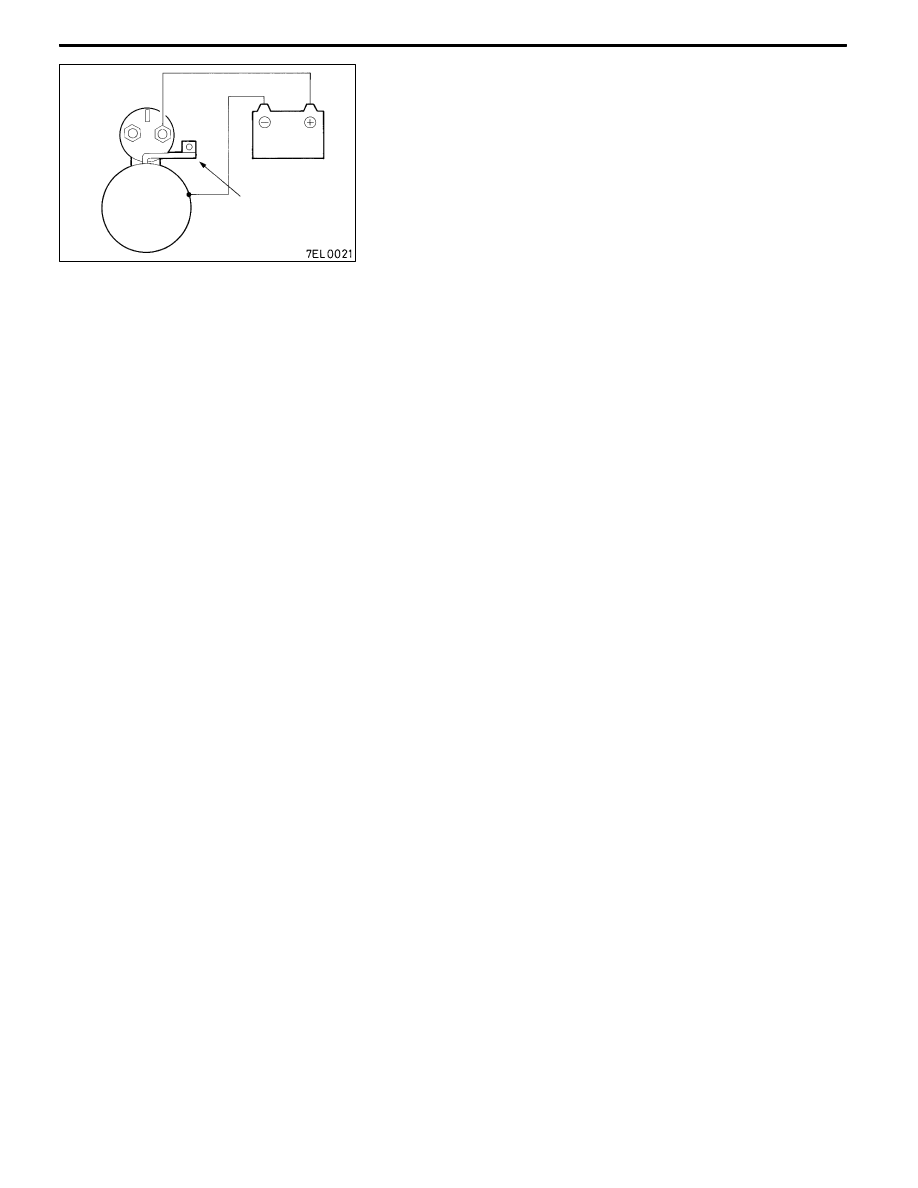

MAGNETIC SWITCH RETURN TEST
1. Disconnect field coil wire from M-terminal of magnetic

switch.

2. Connect a 12 V battery between M-terminal and body.

Caution

This test must be performed quickly (in less than

10 seconds) to prevent coil from burning.

3. Pull pinion out and release. If pinion quickly returns to

its original position, everything is in order. If it doesn’t,

replace magnetic switch.
Caution

Be careful not to get your fingers caught when pulling

out the pinion.

Field coil wire

M

Battery

ENGINE ELECTRICAL -

Starting System

16-21

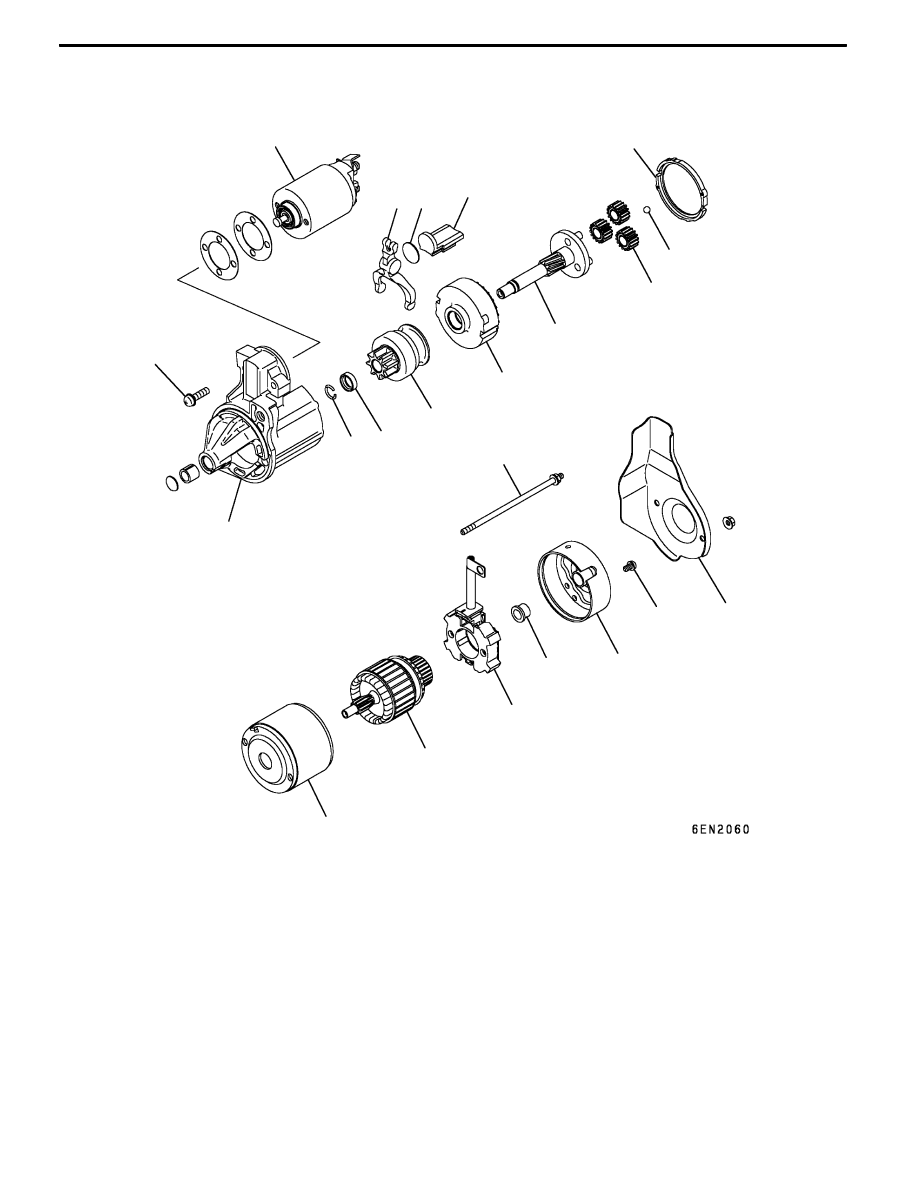

DISASSEMBLY AND REASSEMBLY

1

17

13

15

12

4

3

2

11

6

16 14

10

9

8

7

5

18

20

21

19

22

Disassembly steps

1. Cover

2. Screw

A

A"

3. Magnetic switch

4. Screw

5. Through

6. Rear bracket

7. Brush holder

8. Rear bearing

A

B"

9. Armature

10. Yoke assembly

A

B"

11. Ball

12. Packing A

13. Packing B

14. Plate

15. Planetary gear

16. Lever

A

C" "AA 17. Snap ring

A

C" "AA 18. Stop ring

19. Overrunning clutch

20. Internal gear

21. Planetary gear holder

22. Front bracket

ENGINE ELECTRICAL -

Starting System

16-22

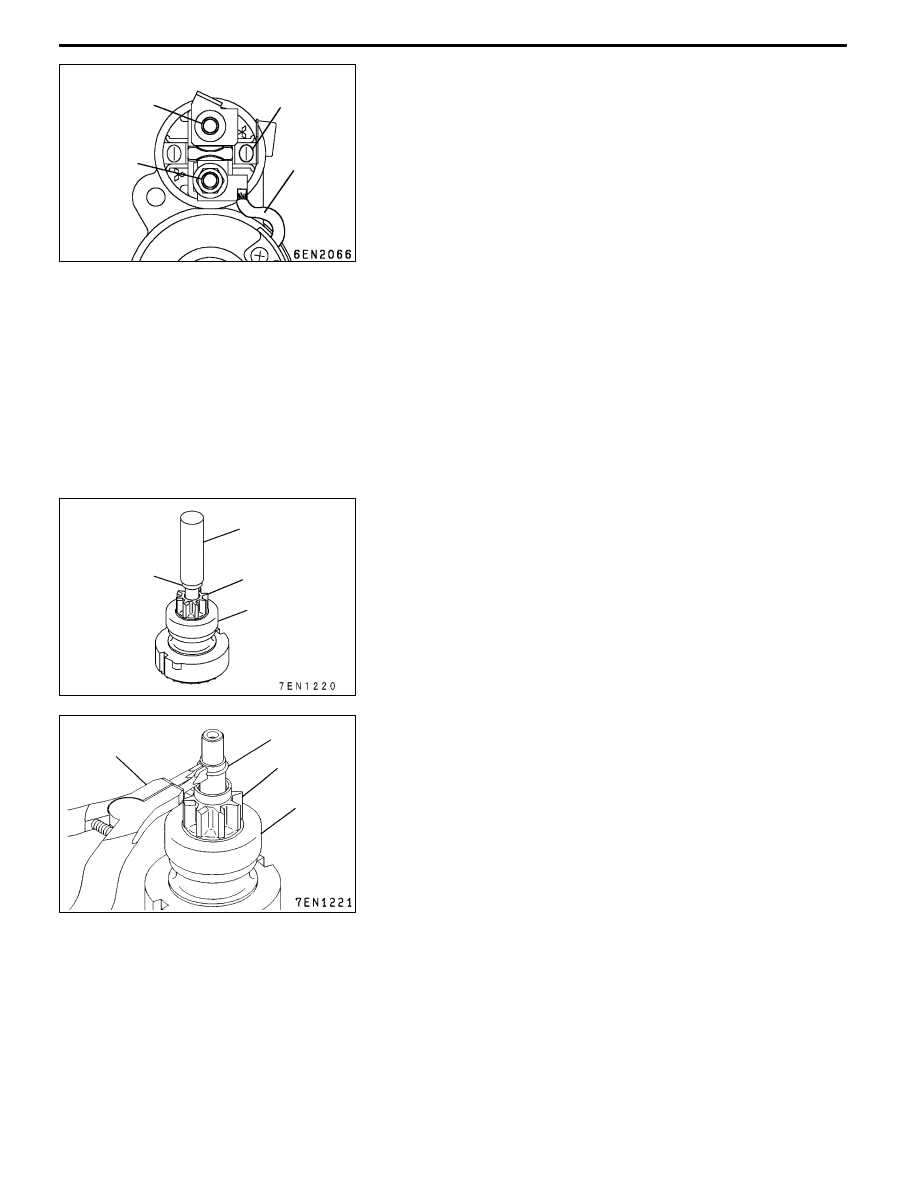

DISASSEMBLY SERVICE POINTS

A

AMAGNETIC SWITCH REMOVAL

Disconnect field coil wire from “M” terminal of magnetic switch.

A

BARMATURE/BALL REMOVAL

Caution

When removing the armature, take care not to lose the

ball (which is used as a bearing) in the armature end.

A

C"SNAP RING/STOP RING REMOVAL

1. Press stop ring off snap ring with a suitable socket.

2. Remove snap ring with snap ring pliers and then remove

stop ring and overrunning clutch.

STARTER MOTOR PARTS CLEANING

1. Do not immerse parts in cleaning solvent. Immersing the

yoke and field coil assembly and/or armature will damage

insulation. Wipe motor assembly with a cloth only.

2. Do not immerse drive unit in cleaning solvent. Overrunning

clutch is pre-lubricated at the factory and solvent will wash

lubrication from clutch

3. The drive unit may be cleaned with a brush moistened

with cleaning solvent and wiped dry with a cloth.

“B” terminal

“S” terminal

“M” terminal

Field coil

wire

Socket

Overrunning

clutch

Stop ring

Pinion gear

Snap ring pliers

Overrunning

clutch

Pinion gear

Snap ring
