Mitsubishi Lancer Evolution 7. Manual - part 220





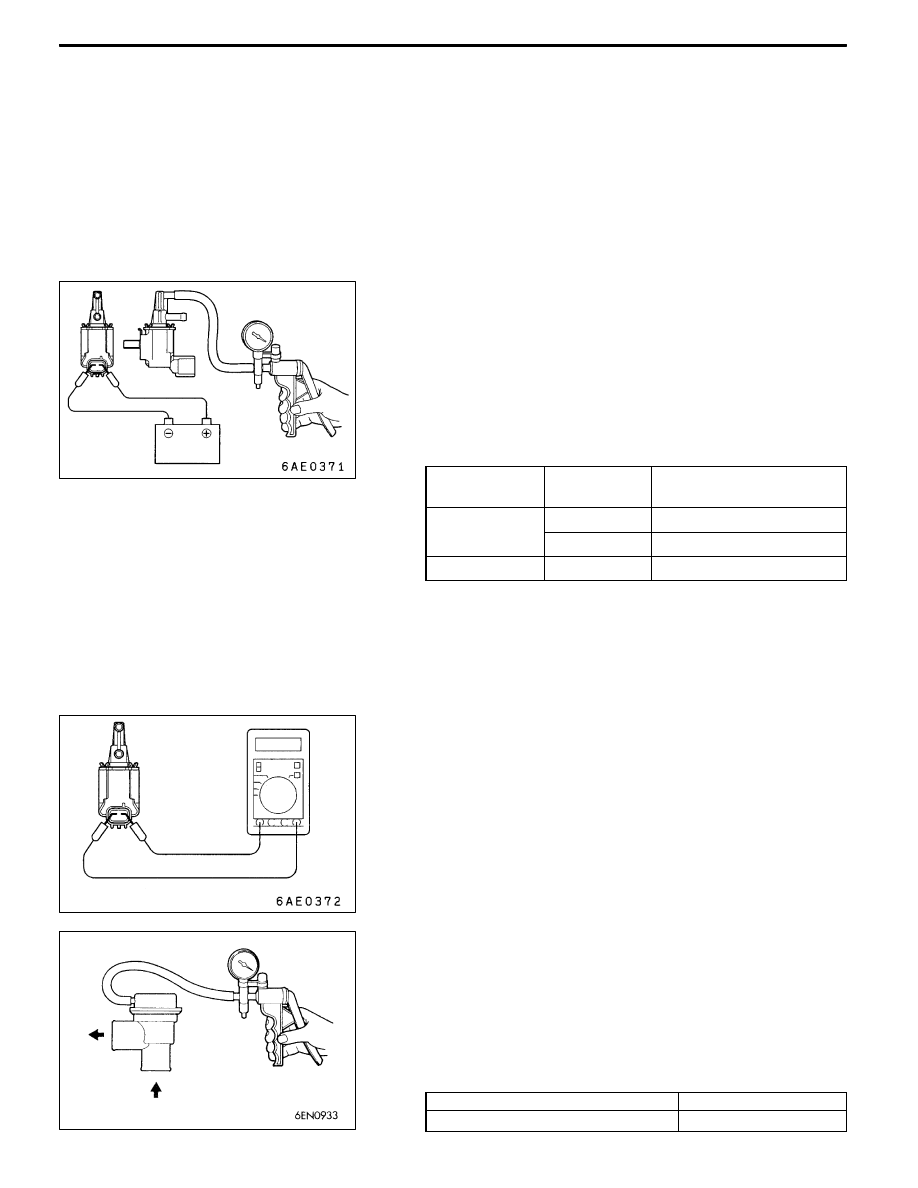

INTAKE AND EXHAUST -

On-vehicle Service

15-5

3. If there is a significant deviation from the standard value,

check the actuator or the waste gate valve: replace

actuator or turbocharger assembly if necessary.

WASTE GATE SOLENOID VALVE CHECK

OPERATION CHECK
1. Connect a hand vacuum pump to the solenoid valve nipple

A.

2. Using a jumper wire, connect between the solenoid valve

terminal and battery terminal.

3. Connecting and disconnecting the jumper wire at the

battery negative terminal to apply a negative pressure,

check tightness.

Jumper wire

B nipple

condition

Normal condition

Connected

Opened

Negative pressure leaks.

Closed

Negative pressure is held.

Disconnected

Opened

Negative pressure is held.

COIL RESISTANCE CHECK
Measure the resistance between solenoid valve terminals.
Standard value: 29 – 35 Ω (at 20_C)

AIR BYPASS VALVE CHECK

1. Remove the air bypass valve.

2. Connect the hand vacuum pump to the nipple of the

air bypass valve.

3. Apply a negative pressure of approximately 49 kPa, and

check that air tightness is maintained.

4. Also check operation of the valve.

Standard value:

Negative pressure

Valve operation

Approximately 53 kPa

It starts opening

Battery

B

A

INTAKE AND EXHAUST -

On-vehicle Service

15-6

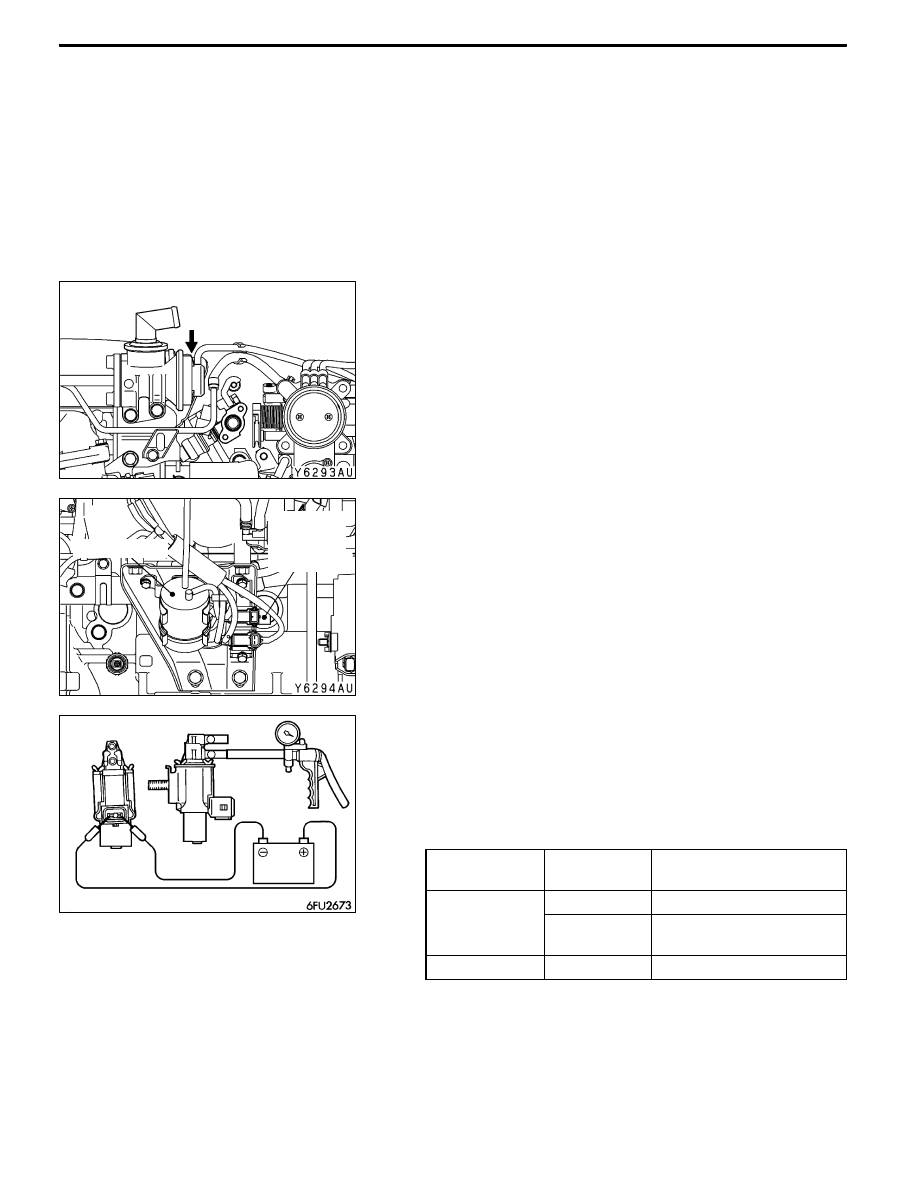

INTAKE MANIFOLD PRESSURE CHECK

Refer to GROUP 11A – On-vehicle Service.

SECONDARY AIR CONTROL SYSTEM CHECK

1. Start the engine and carry out idling.

2. Confirm that the secondary air valve lifts up when the

engine-ECU connector No. 53 terminal is short-circuited

with the earth using a jumper wire.

The engine-ECU connector must be connected at this

time.

SECONDARY AIR CONTROL SOLENOID

VALVE CHECK

OPERATION CHECK
1. Disconnect the vacuum hose (white-striped, yellow-

striped) from the solenoid valve.

2. Separate the harness connector.

3. Connect the hand vacuum pump to the solenoid valve’s

A nipple.

4. Connect the solenoid valve terminal and battery terminal

with a jumper wire.

5. Disconnect the jumper wire between the battery’s (-)

terminals, apply a negative pressure, and inspect the

tightness.

Jumper wire

State of B

nipple

Normal state

Connected

Opened

Negative pressure leaks.

Closed

Negative pressure is

maintained.

Disconnected

Closed

Negative pressure leaks.

Vacuum tank

Secondary

air control

solenoid

valve

Battery

A

B

INTAKE AND EXHAUST -

On-vehicle Service

15-7

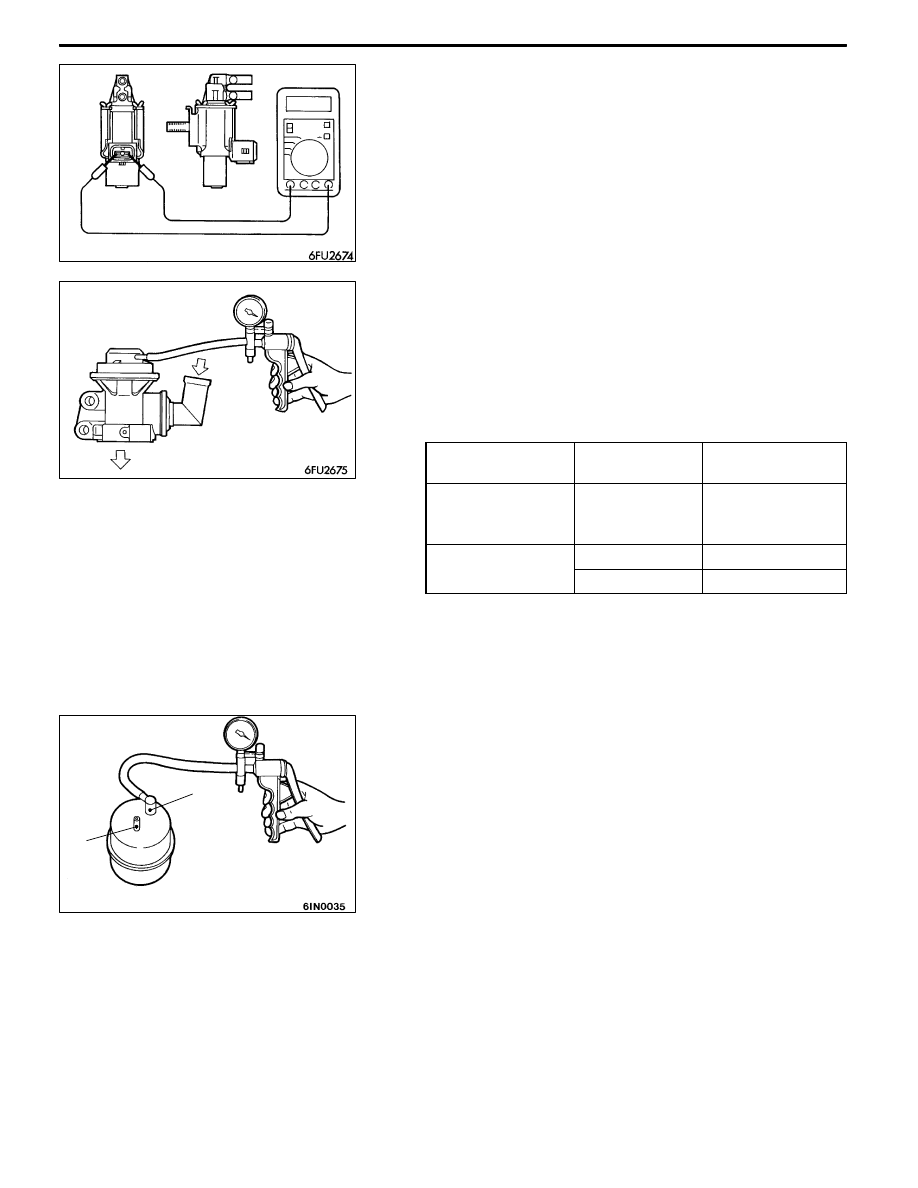

COIL RESISTANCE CHECK
Measure the resistance between the solenoid valve terminals.
Standard value: 29 – 35 Ω (at 20_C)

SECONDARY AIR VALVE CHECK

1. Disconnect the secondary air valve.

2. Connect the hand vacuum pump to the secondary air

valve’s nipple.

3. Apply a negative pressure of 67 kPa, and confirm that

the negative pressure is maintained.

4. Blow in air from the (A) side and (B) side of the secondary

air valve, and inspect the ventilation.

Negative pressure

Air blow-in

direction

Air ventilation

0 kPa
(State without

negative pressure)

(A) → (B)

Not ventilated

40 kPa or more

(A) → (B)

Ventilated

(B) → (A)

Not ventilated

VACUUM TANK CHECK

1. Connect the hand vacuum pump to the vacuum tank’s

A nipple. Apply a negative pressure of 67 kPa, and confirm

that the negative pressure is maintained.

2. Connect the hand vacuum pump to the vacuum tank’s

B nipple.

3. Plug the A nipple with a finger, and apply a negative

pressure of 67 kPa. Confirm that the negative pressure

leaks immediately when the finger is released.

B

A

A

B

INTAKE AND EXHAUST -

Air Cleaner

15-8

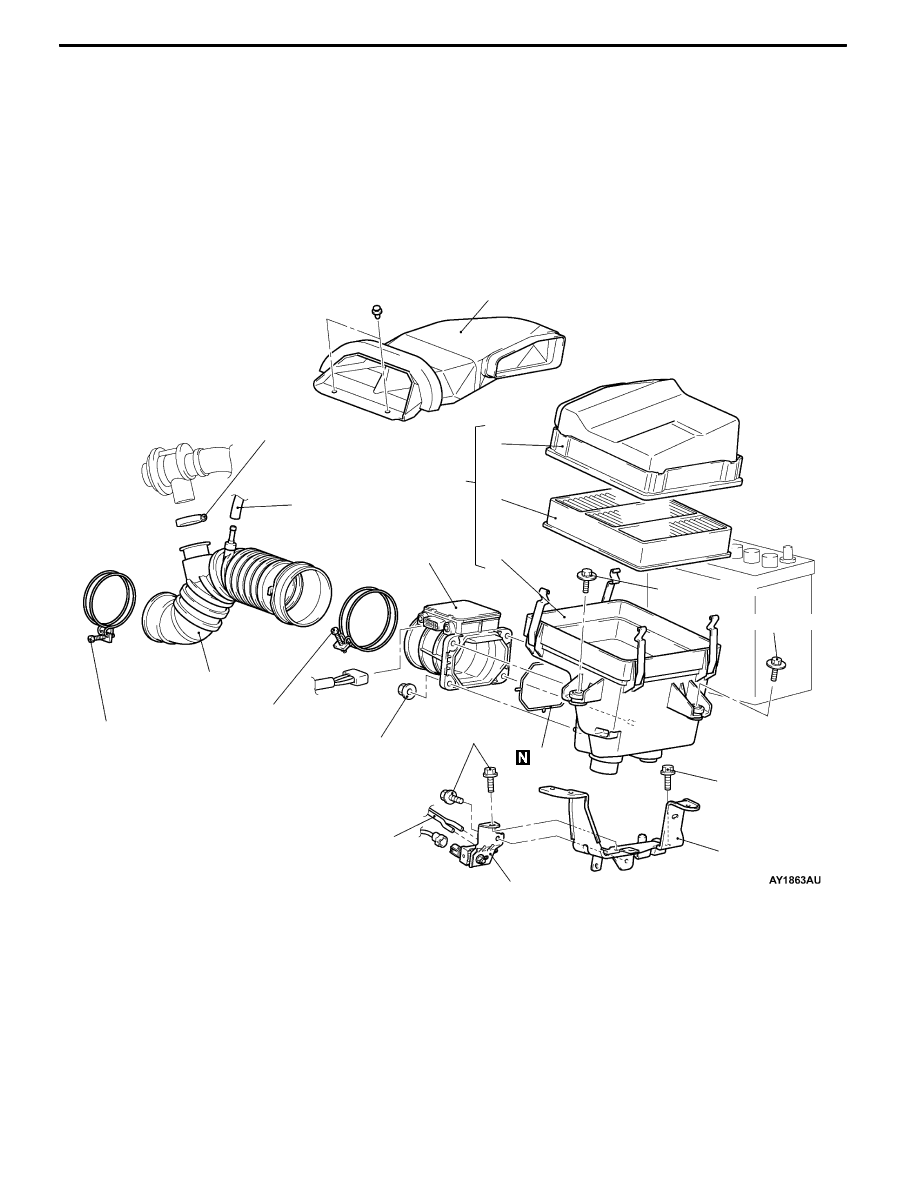

AIR CLEANER

REMOVAL AND INSTALLATION

Caution

Parts marked by * are made of recycled-paper mixed plastic material, so observe the following

precautions.

1. Avoid any shock or load to these parts when removing and installing them.

2. Engage the case hinges securely when assembling these parts.
NOTE

Parts marked by * are made of recycled-paper mixed plastic material, so can be disposed of by incineration.

1

6

*

3

7

2

8

5

4

9.0 ± 1.0 N·m

6.0 ± 1.0 N·m

9.0 ± 1.0 N·m

9.0 ± 1.0 N·m

4.0 ± 1.0 N·m

4.0 ± 1.0 N·m

9.0 ± 1.0 N·m

2

9

10

11

9.0 ± 1.0 N·m

Removal steps
D

Battery

1. Air duct

2. Vacuum hose

D

Air pipe E, Air by-pass valve assembly,

Air by-pass hose (Refer to P.15-9.)

3. Air intake hose

4. Air flow sensor assembly

5. Gasket

6. Air cleaner assembly

7. Air cleaner cover

8. Air cleaner element

9. Air cleaner body

10. Waste gate solenoid valve

11. Air cleaner bracket
