ENGINE LUBRICATION -

Service Specifications/Sealant/Lubricants/Special Tool

12-3

SERVICE SPECIFICATIONS

Items

Standard value

Oil pressure kPa

at idle

29 or more

at 3,500 r/min

294 - 686

SEALANT

Items

Specified sealant

Remark

Oil pressure switch

3M ATD Part No. 8660 or equivalent

Semi-drying sealant

LUBRICANTS

Items

Specifications

Engine oil ACEA classification

For Europe

A1, A2, A3

Engine oil API classification

For Europe

SG or higher

For General Export

SE or higher

Engine oil quantity L

Oil filter

0.3

Oil cooler

0.3

Total

5.1

SPECIAL TOOL

Tool

Number

Name

Use

MD998054

Oil pressure switch

wrench

Removal and installation of oil pressure switch

ENGINE LUBRICATION -

On-vehicle Service

12-4

ON-VEHICLE SERVICE

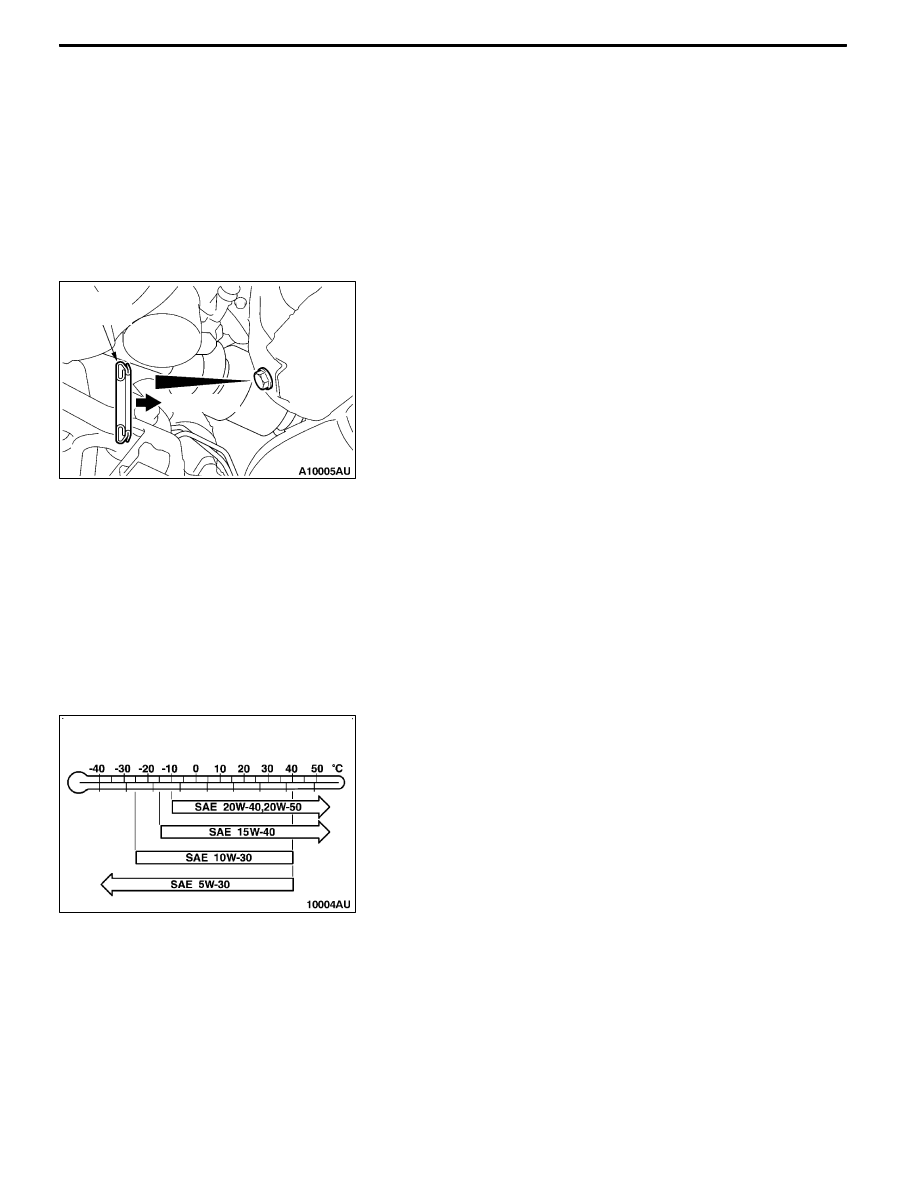

ENGINE OIL CHECK

1. Pull out the level gauge slowly and check that the oil

level is in the illustrated range.

2. Check that the oil is not excessively dirty, that there is

no coolant or petrol mixed in, and that it has sufficient

viscosity.

ENGINE OIL REPLACEMENT

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80_C to 90_C.

2. Remove the engine oil filler cap.

3. Remove the drain plug to drain oil.

Caution

Use care as oil could be hot.

4. Install a new drain plug gasket so that it faces in the

direction shown in the illustration, and then tighten the

drain plug to the specified torque.
Tightening torque: 39 ± 5 N·m
NOTE

Install the drain plug gasket so it faces in the direction

shown in the illustration.

5. Refill with specified quantity of oil.

Specified Engine Oil (ACEA and API classification):

<For Europe>

ACEA A1, A2, A3 / API SG or higher

<For General Export>

API SE or higher

Total quantity

(Includes volume inside oil filter and oil cooler):

5.1 L

NOTE

SAE 5W-30 can be only used at the area where the

lowest temperature is lower than the applicable

temperature of SAE 5W-30.

6. Install the engine oil filler cap.

7. Check oil level.

Drain plug

gasket

Oil pan side

Barometric temperature

ENGINE LUBRICATION -

On-vehicle Service

12-5

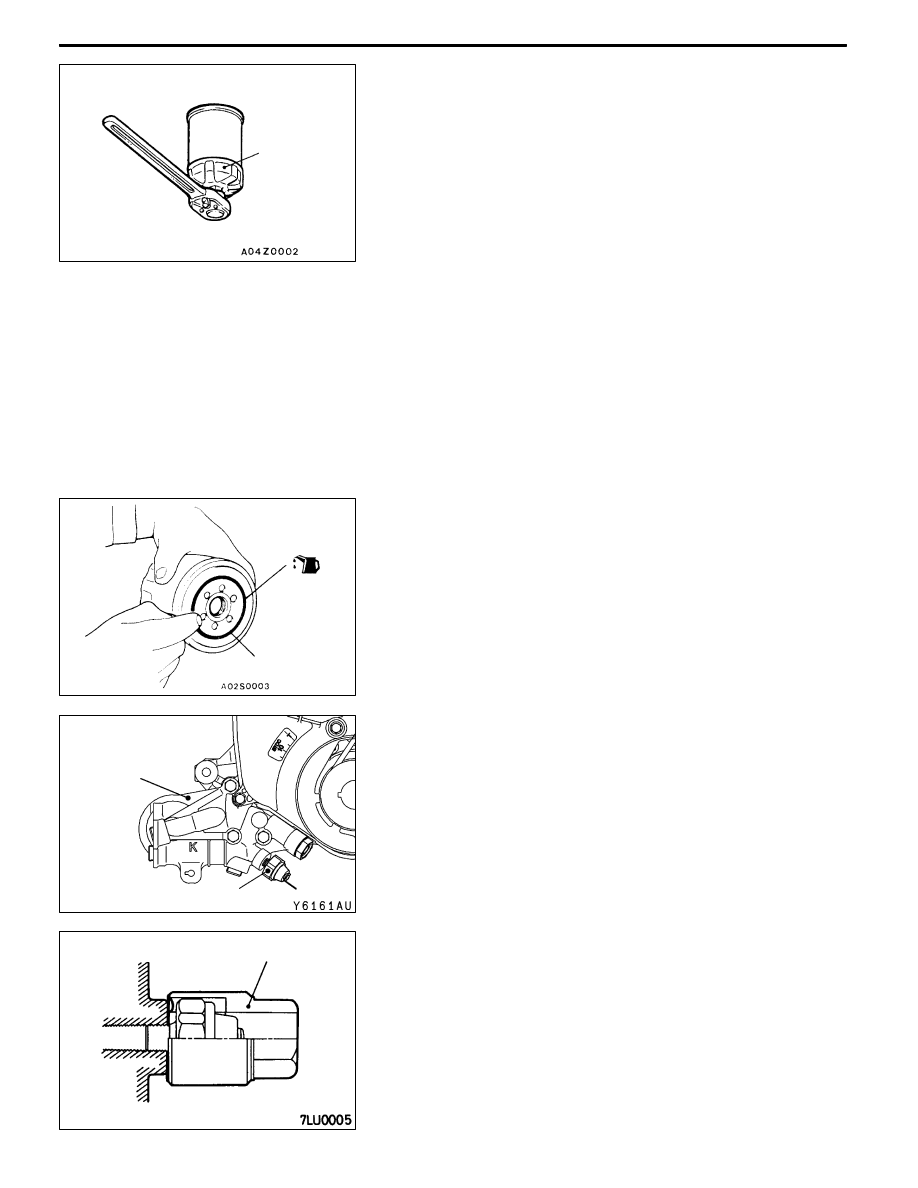

OIL FILTER REPLACEMENT

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80_C to 90_C.

2. Remove the engine oil filler cap.

3. Remove the drain plug to drain oil.

Caution

Use care as oil could be hot.

4. Remove the under cover.

5. Use the respective tool in the following table to remove

the engine oil filter.

6. Clean the filter bracket side mounting surface.

7. Apply a small amount of engine oil to the O-ring of the new

oil filter.

8. Once the O-ring of the oil filter is touching the flange,

use the generic tool to turn for approximately 3/4 round

and tighten to (14 ± 2 N·m).

9. Install the drain plug and refill the engine oil.

(Refer to Engine Oil Replacement P.12-4.)

10. Race the engine 2-3 times, and check to be sure that

no engine oil leaks from installation section of the oil

filter.

OIL PRESSURE CHECK

1. Check engine oil quantity.

2. Remove the oil pressure switch terminal.

3. Use the special tool (oil pressure switch wrench) to remove

the oil pressure switch.
Caution

Since sealant is applied to the thread of oil pressure

switch, take care not to damage the oil pressure switch

when removing it.

Commercially-

available tool

O-ring

Oil pressure switch

Oil filter bracket

MD998054

ENGINE LUBRICATION -

On-vehicle Service

12-6

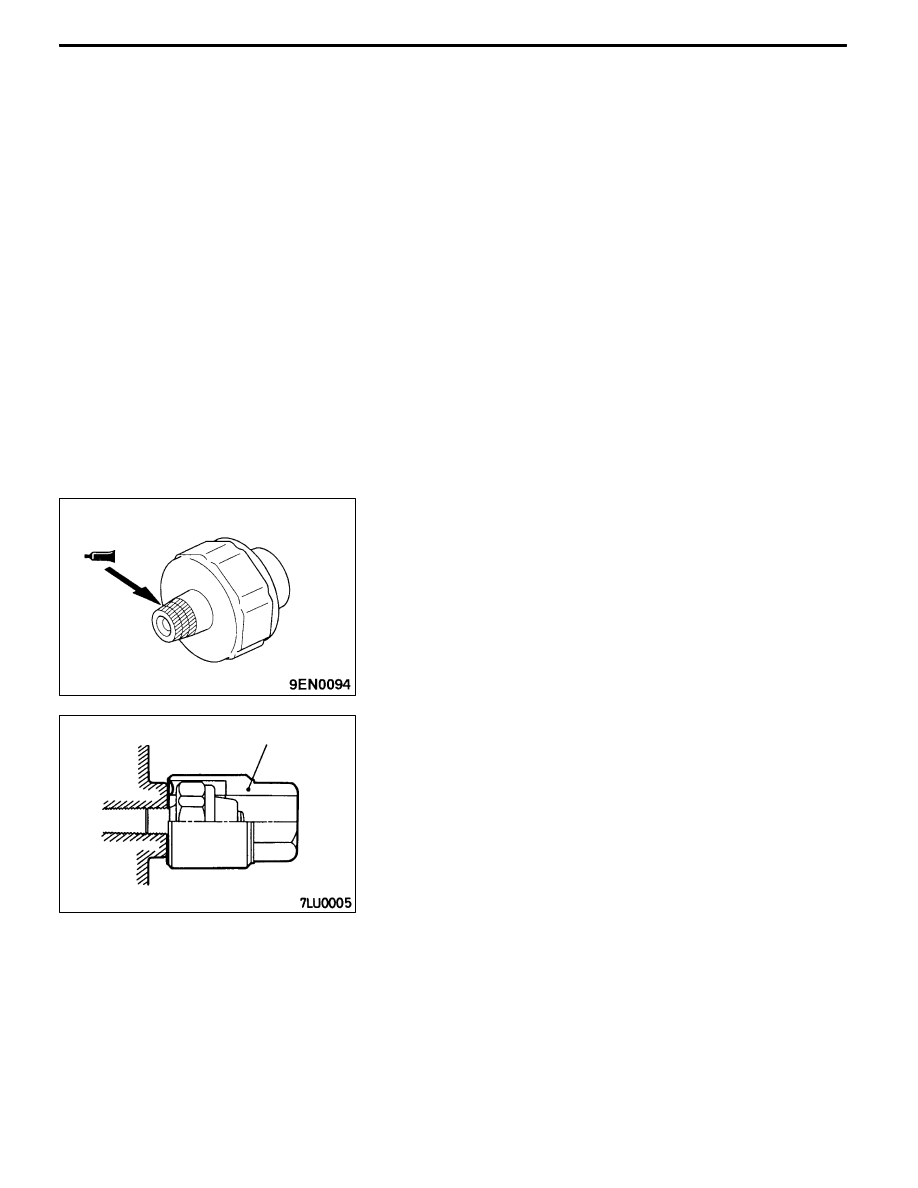

4. Install the oil pressure gauge.

NOTE

Use a adapter of PT 1/8 thread.

5. Run the engine to warm it.

6. After the engine has been warmed up, check that oil

pressure is within the standard value.
Standard value:

At idle: 29 kPa or more
At 3,500 r/min: 294 - 686 kPa

7. Remove the oil pressure gauge.

8. Apply the specified sealant to the thread of oil pressure

switch.
Specified sealant: 3M ATD Part No. 8660 or equivalent

9. Use the special tool to tighten the oil pressure switch

to the specified torque.
Tightening torque: 10 ± 2 N·m
Caution

Do not start the engine within one hour after the oil

pressure switch has been installed.

10. Install the oil pressure switch terminal.

MD998054
