Mitsubishi Lancer Evolution 7. Manual - part 166





ENGINE OVERHAUL -

Cylinder Head and Valve

11B-41

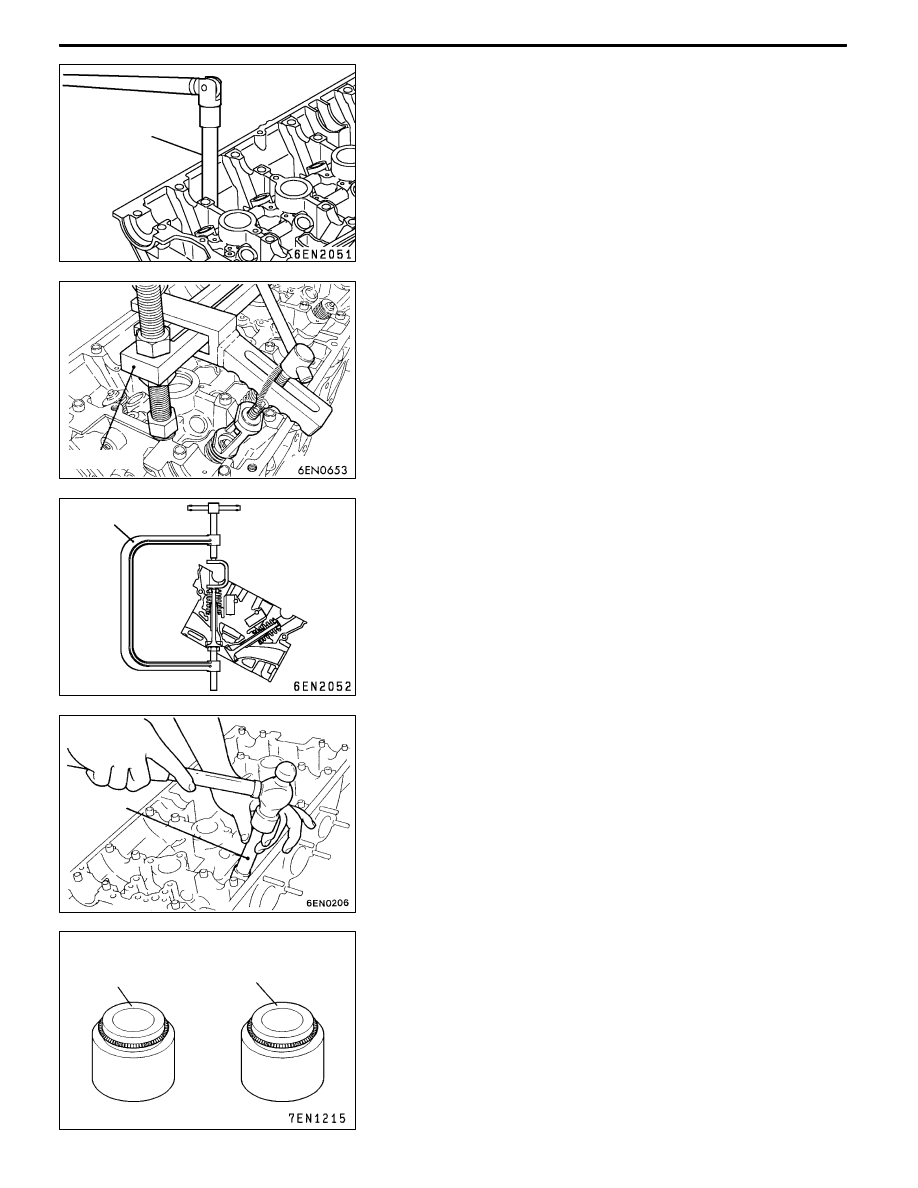

REMOVAL SERVICE POINTS

A

ACYLINDER HEAD BOLT REMOVAL

Remove the cylinder head bolt using the special tool.

A

BRETAINER LOCK REMOVAL

Compress the valve spring using the special tool, and remove

the retainer lock.
NOTE

Attach a tag indicating the cylinder No. and installation position

onto the parts including the removed valve and springs so

that they can be reassembled later.

INSTALLATION SERVICE POINTS

"

AVALVE STEM SEAL INSTALLATION

1. Install the valve spring seat.

2. Install the valve.

3. Apply a small amount of engine oil on the valve stem

seal.

4. Using the valve stem as a guide, press in the valve guide

using the special tool.
Caution

Improper installation of the valve stem seal can lead

to oil reduction, so always install using the special

tool.
NOTE

Note that the valve stem seals for the intake side and

exhaust side are different.

MB991654

MD998772

MD998735

MB998737

Body colour:

Grey

Body colour:

Grayish-green

Intake side

Exhaust side

ENGINE OVERHAUL -

Cylinder Head and Valve

11B-42

"

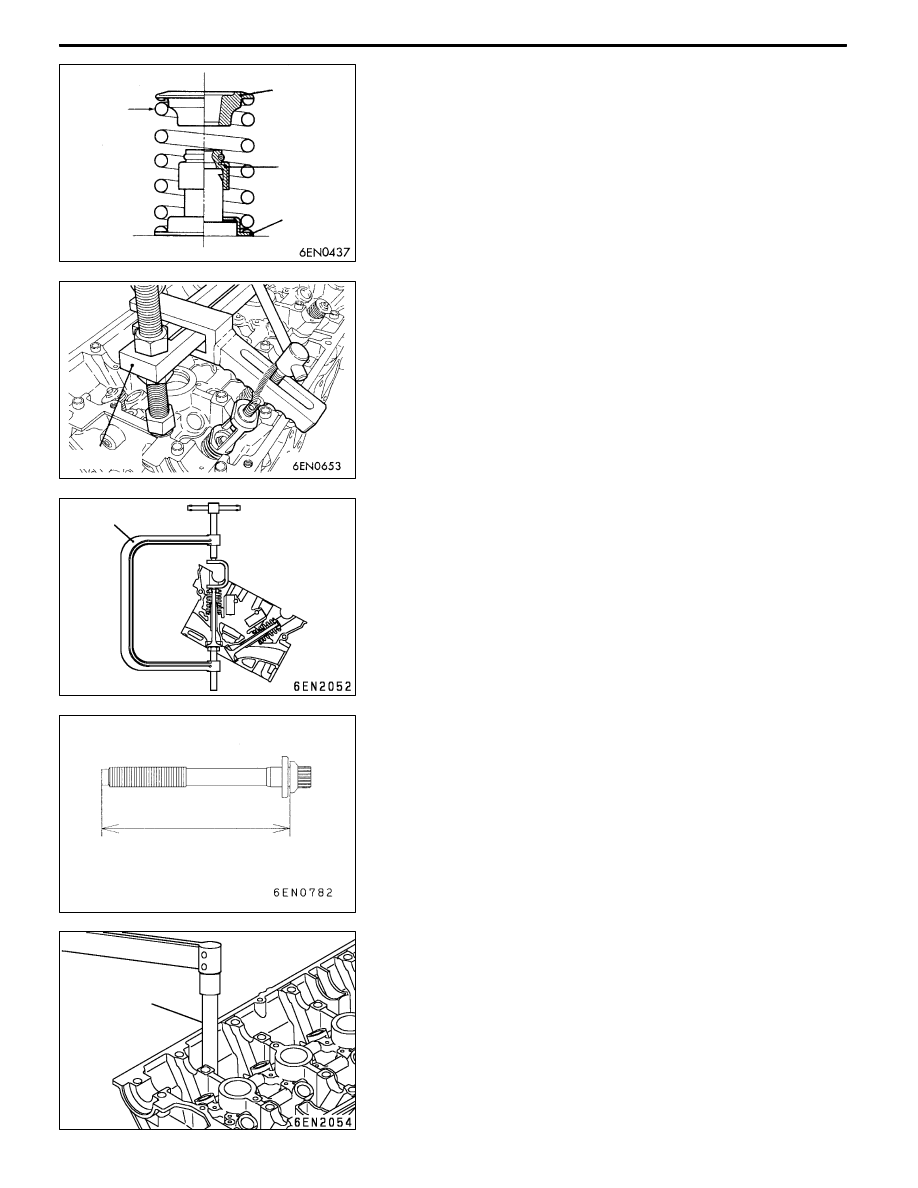

BVALVE SPRING INSTALLATION

Install the valve spring so that the painted surface faces the

rocker arm.

"

CRETAINER LOCK INSTALLATION

Compress the valve spring using the special tool, and install

the retainer lock.

"

DCYLINDER HEAD BOLT INSTALLATION

1. Before reusing the cylinder head bolt, confirm that the

bolt’s underhead length is less than the limit value.

Replace the bolt if it exceeds the limit value.
Limit value: 99.4 mm

2. Apply engine oil on the bolt threads and washer.

NOTE

Use the special tool to tighten the cylinder head bolt.

Painted

surface

Spring

retainer

Stem

seal

Spring

seat

MD998772

MD998735

Underhead length

MB991654

ENGINE OVERHAUL -

Cylinder Head and Valve

11B-43

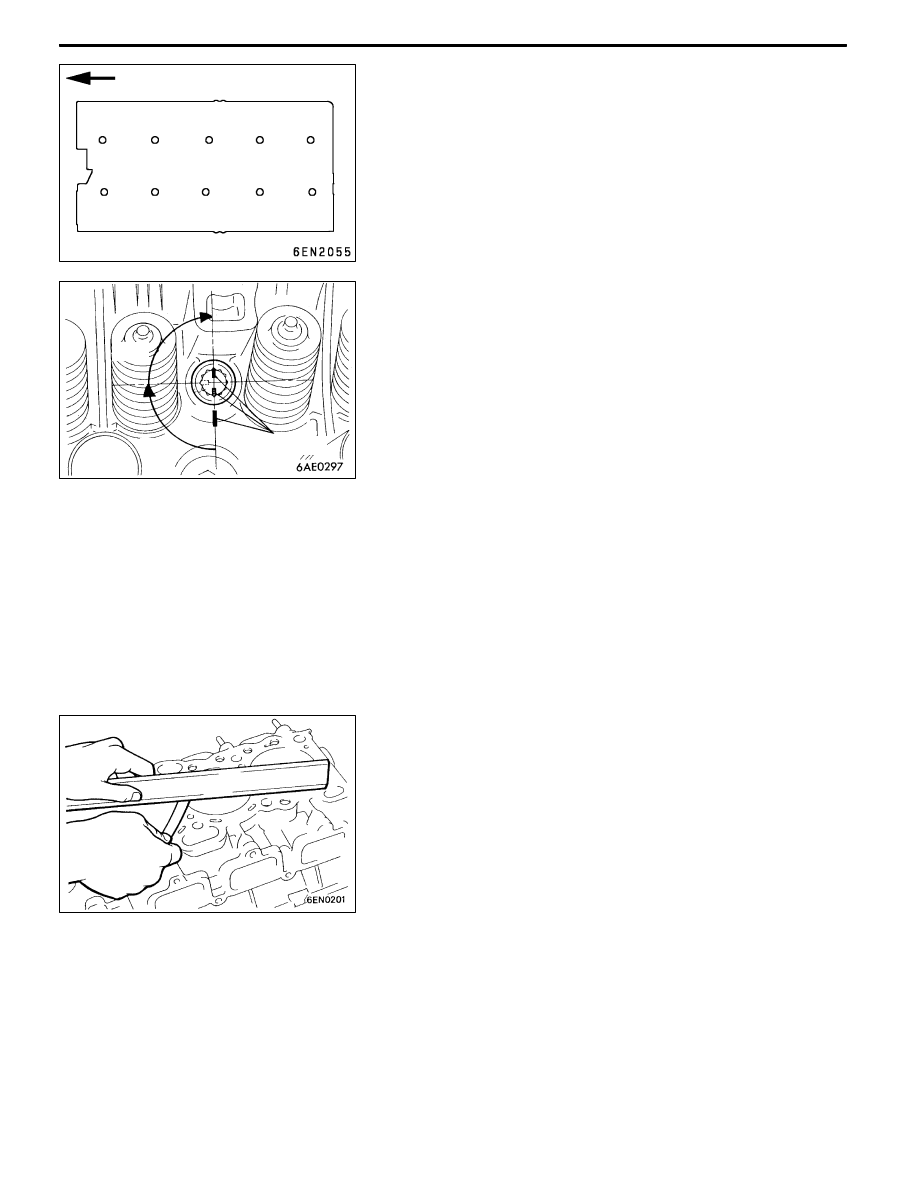

3. Following the tightening order, tighten at 78 ± 2 N•m.

4. Completely loosen the bolts.

5. Next, following the tightening order, tighten the loosened

bolts at the torque 20 ± 2 N•m again.

6. Make paint marks on the cylinder head bolt’s head and

cylinder head.

7. Following the tightening order, tighten the cylinder head

by 90_.

8. Tighten by another 90_, and confirm that the paint mark

made on the cylinder head bolt’s head and the paint

mark on the cylinder head are positioned on the same

line.
Caution

(1) If the tightening angle is less than 90_, the

connection performance may not be attained, so

take special care to the tightening angle when

tightening.

(2) If the tightening angle is larger than the specified

value, completely loosen the bolt and start again

from step 1.

INSPECTION

1. CYLINDER HEAD

(1) Before cleaning the cylinder head, check it for water

leaks, gas leaks, damage or cracks.

(2) Completely remove the oil, water deposits, sealant

and carbon, etc. After cleaning the oil path, blow

air and confirm that there is not clogging.

(3) Using a straight edge and thickness gauge, inspect

the flatness of the bottom of the cylinder head for

strain.

If the strain exceeds the limit value, grind the end

and correct the flatness.
Standard value for lower surface strain: 0.05 mm

Limit value for lower surface strain: 0.2 mm

Grinding limit value: 0.2 mm

Cylinder head height (standard value for new part):

131.9 - 132.1 mm
Caution

The grinding limit is within 0.2 mm together with

the combined cylinder block.

Timing belt side

8

6

1

3

9

10

4

2

5

7

90_

90_

Paint marks

ENGINE OVERHAUL -

Cylinder Head and Valve

11B-44

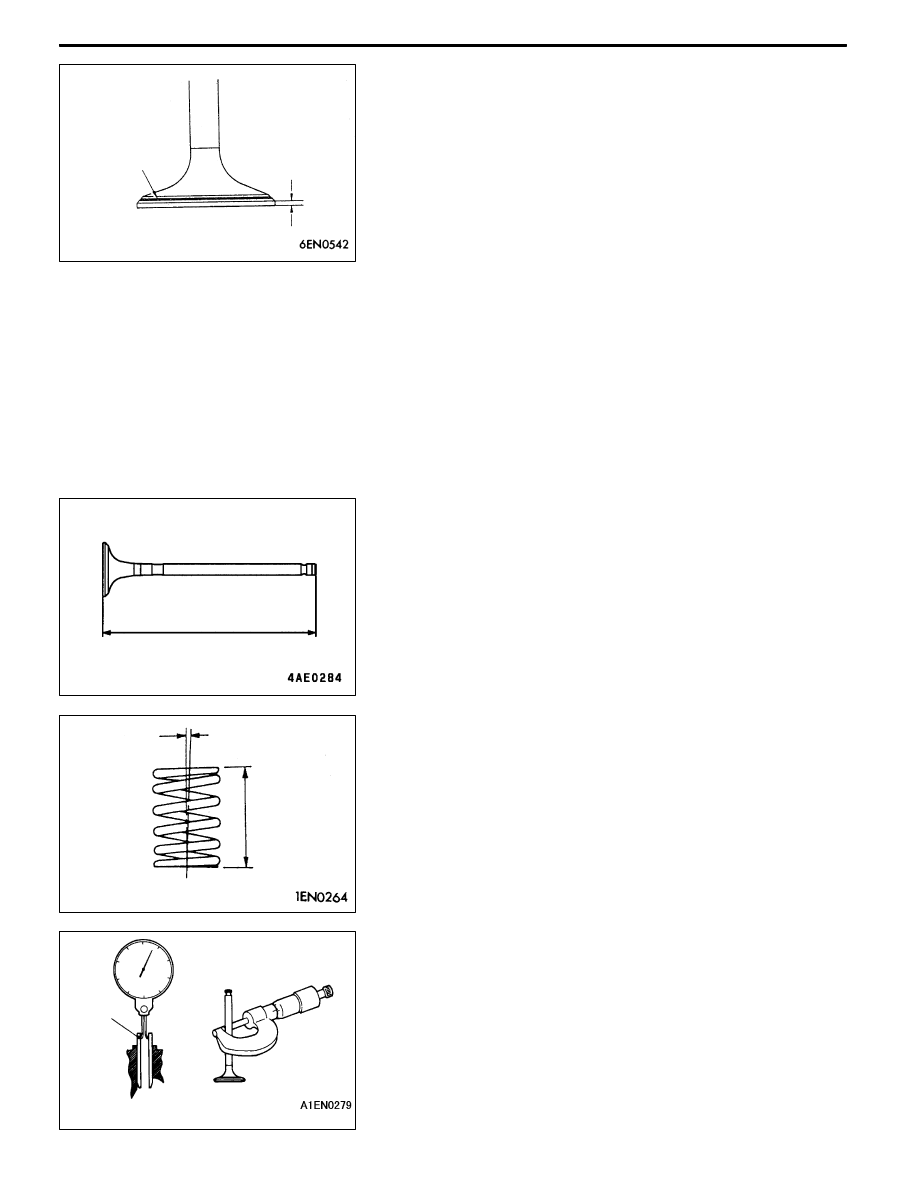

2. VALVE

(1) If there is a faulty contact, one-sided contact or

improper seating with the valve seat, correct the valve

seat.

(2) Replace the valve if the margin exceeds the limit

value.
Standard value:

Intake

1.0 mm

Exhaust

1.5 mm

Limit value:

Intake

0.5 mm

Exhaust

1.0 mm

(3) Measure the total length of the valve, and replace

the valve if the length exceeds the limit value.
Standard value:

Intake

109.50 mm

Exhaust

109.70 mm

Limit value:

Intake

109.00 mm

Exhaust

109.20 mm

3. VALVE SPRING

(1) Measure the free height of the spring, and replace

the valve spring if the height exceeds the limit value.
Standard value: 48.3 mm

Limit value: 47.3 mm

(2) Measure the spring squareness, and replace the valve

spring if the inclination exceeds the limit value.
Standard value: 1.5or less

Limit value: 4_

4. VALVE GUIDE

Measure the clearance between the valve guide and valve

stem. If the clearance exceeds the limit value, replace

the valve guide, valve or both parts.
Standard value:

Intake

0.02 - 0.05 mm

Exhaust

0.05 - 0.09 mm

Limit value:

Intake

0.10 mm

Exhaust

0.15 mm

Contact

(Must be at

centre of face)

Margin

Total valve length

Squareness

Free height

Valve

guide

Stem outer

diameter

Guide inner

diameter
