Mitsubishi Lancer Evolution 7. Manual - part 77





WIRING HARNESS CONFIGURATION DIAGRAMS

Connector

symbol

F

F-01

F-04

F-05

F-08

F-19

F-27

F-26

F-25

F-24

F-23

F-14

F-21

F-09

F-10

F-12

F-13

F-06

F-16

F-29

F-28

B-39

LUGGAGE COMPARTMENT

R.H. drive vehicles

F-01 (2)

Spare connector <for rear speaker (LH)>

F-04 (2)

Luggage compartment lamp

F-05 (2-B)

High mounted stop lamp

F-06 (1-B)

Defogger (-)

F-08 (2)

Spare connector <for rear speaker (RH)>

F-09 (6-B)

Rear combination lamp (RH)

F-10 (1)

Trunk lid latch switch

F-12 (2-GR)

Licence plate lamp (RH)

F-13 (2-GR)

Licence plate lamp (LH)

F-14 (2-GR)

Floor wiring harness (LH) and bumper

wiring harness combination

F-16 (6-B)

Rear combination lamp (LH)

F-19 (1)

Defogger (+)

F-21 (2)

Windshield washer motor

F-23 (2-B)

Electric pump <ACD>

F-24 (8-GR)

Floor wiring harness (LH) and 4WD wiring

harness combination <ACD>

F-25 (2-B)

Direction valve (LH) <ACD>

F-26 (2-B)

Direction valve (RH) <ACD>

F-27 (3-B)

Proportioning valve (for ACD control)

F-28 (3-B)

Proportioning valve (for AYC control)

F-29 (3-B)

Pressure sensor <ACD>

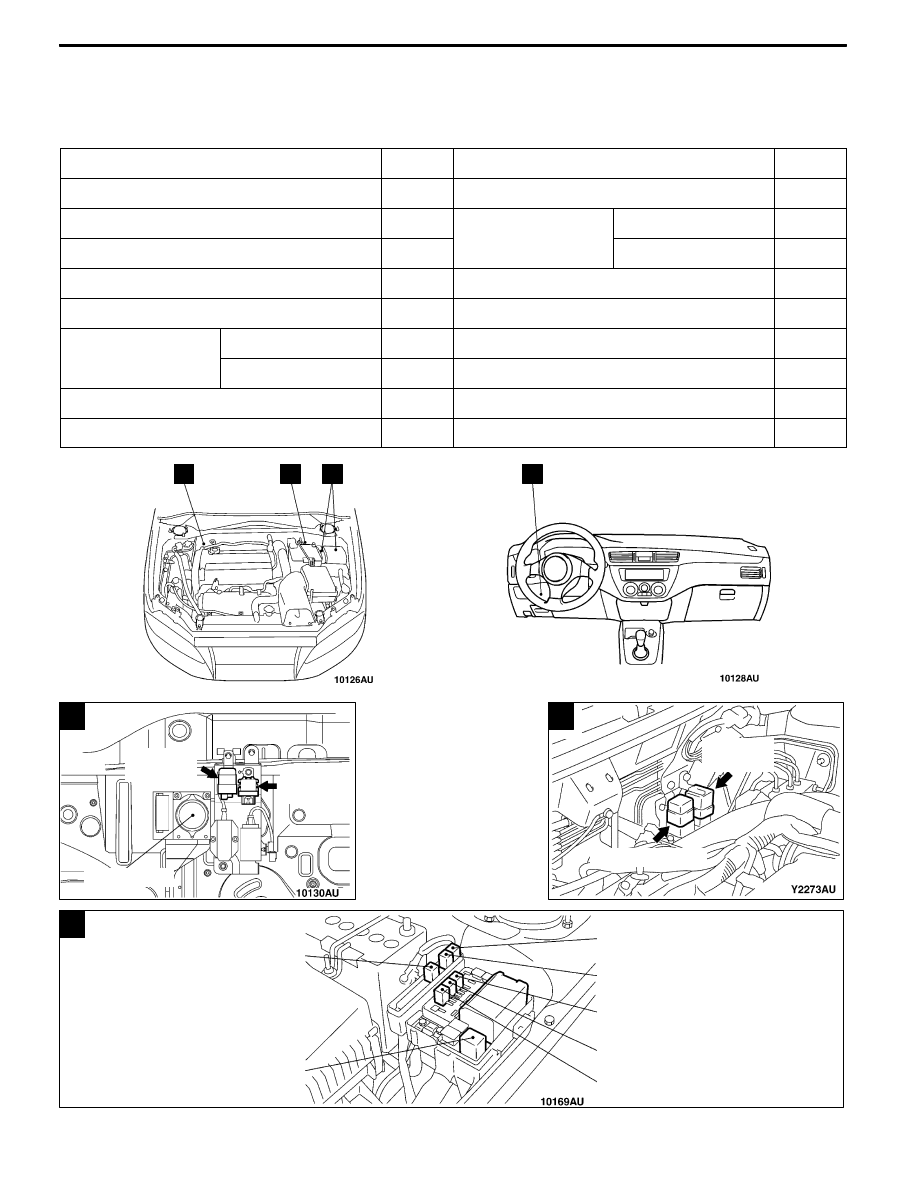

SINGLE PART INSTALLATION POSITION -

Relay

A

Electric

pump relay

Hydraulic unit

Fuel pump

relay 3

B

Electric pump relay

Fuel pump

relay 3

C

Ignition coil relay

Radiator fan relay

A/C compressor relay

Engine control relay

Condenser fan relay (HI)

Condenser fan relay (LO)

Horn relay

B-40

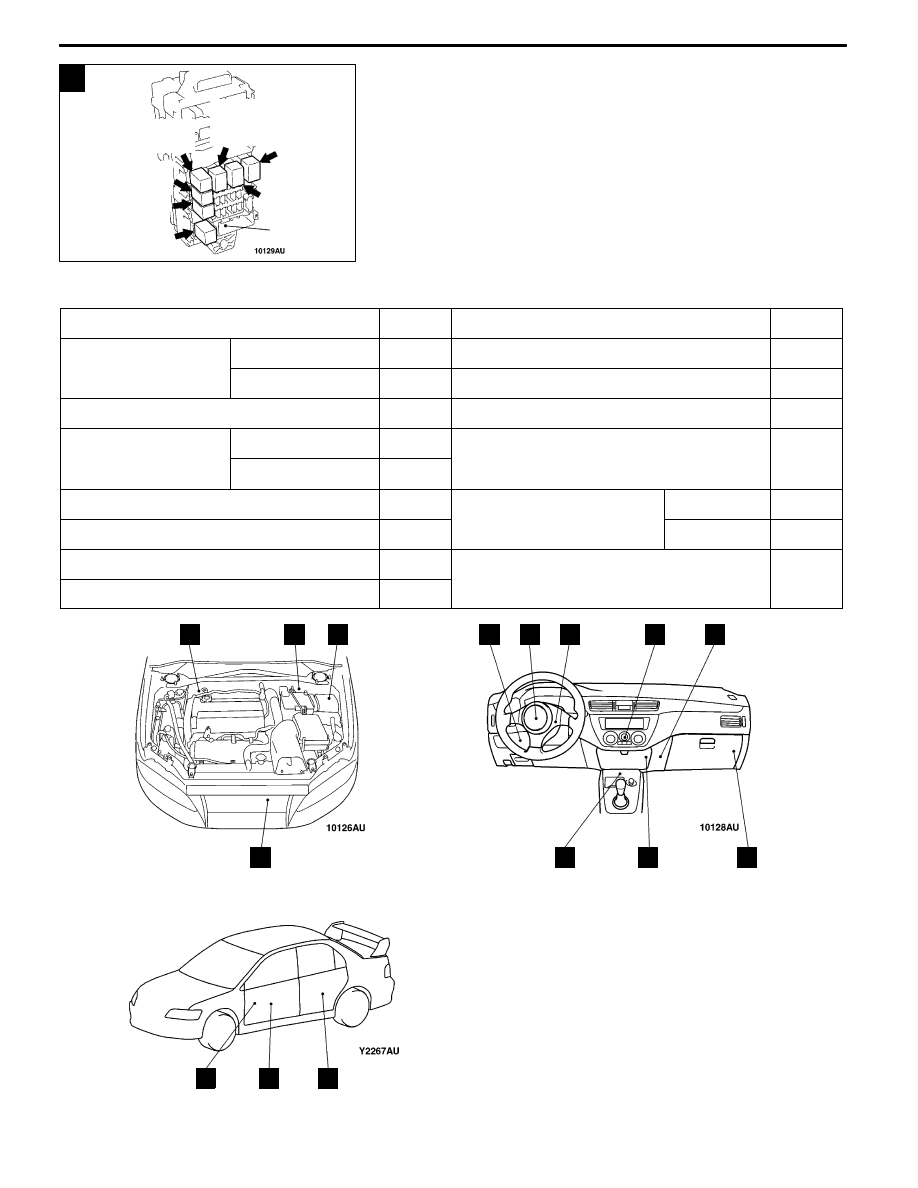

SINGLE PART INSTALLATION POSITION

RELAY

Name

Symbol

Name

Symbol

A/C compressor relay

C

Fuel pump relay 2

D

Blower relay

D

Fuel pump relay 3

L.H. drive vehicles

A

Condenser fan relay (HI)

C

R.H. drive vehicles

B

Condenser fan relay (LO)

C

Horn relay

C

Defogger relay

D

Ignition coil relay <R.H. drive vehicles>

C

Electric pump relay

<ACD>

L.H. drive vehicles

A

Intercooler water spray relay

D

<ACD>

R.H. drive vehicles

B

Power window relay

D

Engine control relay

C

Radiator fan relay

C

Fuel pump relay 1

D

Rear fog lamp relay

D

A

B

C

D

SINGLE PART INSTALLATION POSITION -

Relay/ECU

D

Intercooler water

spray relay

Fuel pump

relay 2

Rear fog

lamp relay

Fuel

pump relay 1

Power

window

relay

Defogger

relay

Blower relay

J/B

B-41

ECU

Name

Symbol

Name

Symbol

4WD-ECU <AYC>

L.H. drive vehicles

L

Front-ECU

C

R.H. drive vehicles

K

Heater control unit <without manual A/C>

H

A/C-ECU

H

Immobilizer-ECU

G

ABS-ECU

L.H. drive vehicles

A

Power window main switch

(incorporating ECU)

M

R.H. drive vehicles

B

(incorporating ECU)

Column switch (incorporating column-ECU)

F

Power window motor

(incorporating ECU)

Front

N

ETACS-ECU

E

(incorporating ECU)

Rear

O

Engine-ECU

I

SRS-ECU

J

Fan controller

D

NOTE
*: also equipped at the right side.

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

*

*

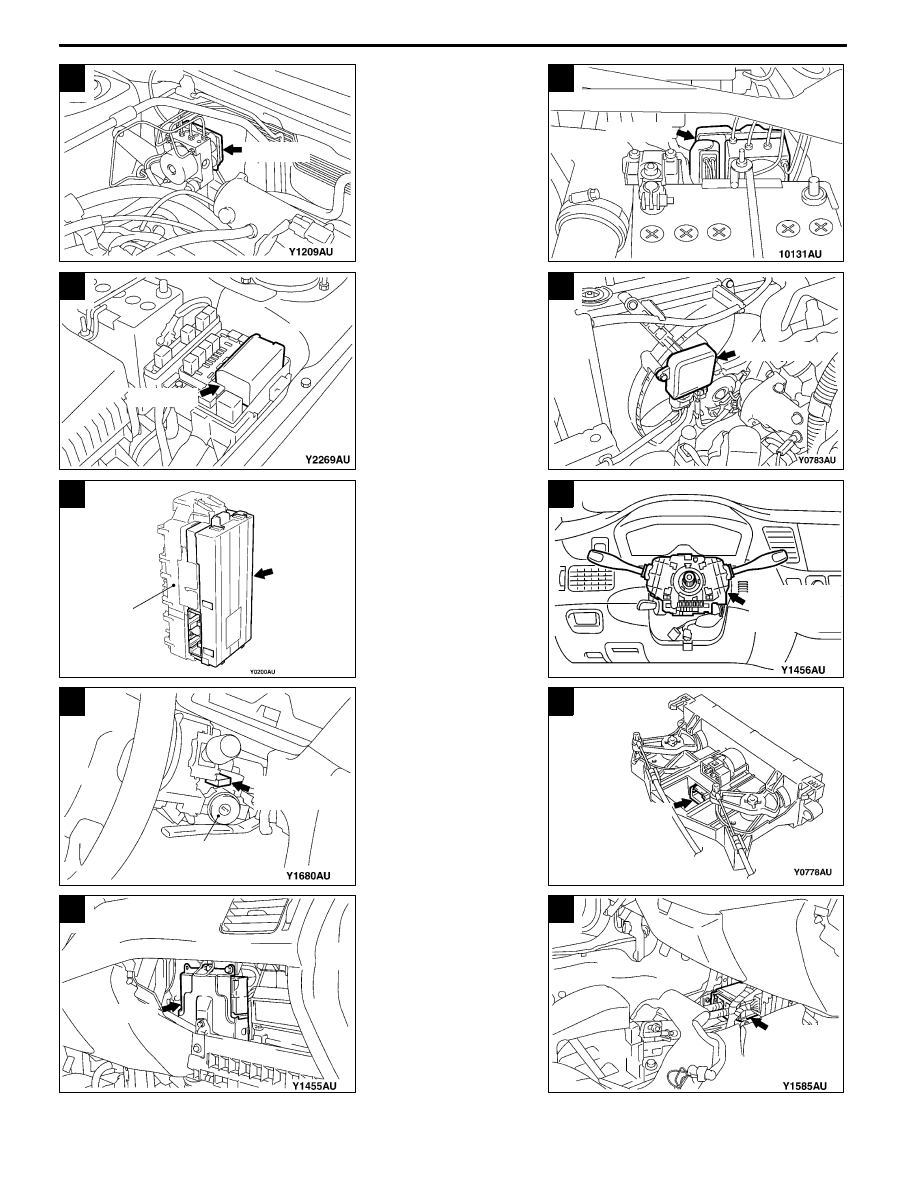

SINGLE PART INSTALLATION POSITION -

ECU

A

ABS-ECU

B

ABS-ECU

C

Front-ECU

D

Fan controller

E

ETACS-

ECU

J/B

F

Column switch

<incorporating

column-ECU>

G

Ignition key cylinder

Immobilizer-

ECU

H

Heater control unit

<without manual

A/C> or A/C-ECU

<with manual A/C>

I

Engine-ECU

J

SRS-ECU

B-42
