EQUIPMENT –

Smart Wiring System (SWS)

7-17

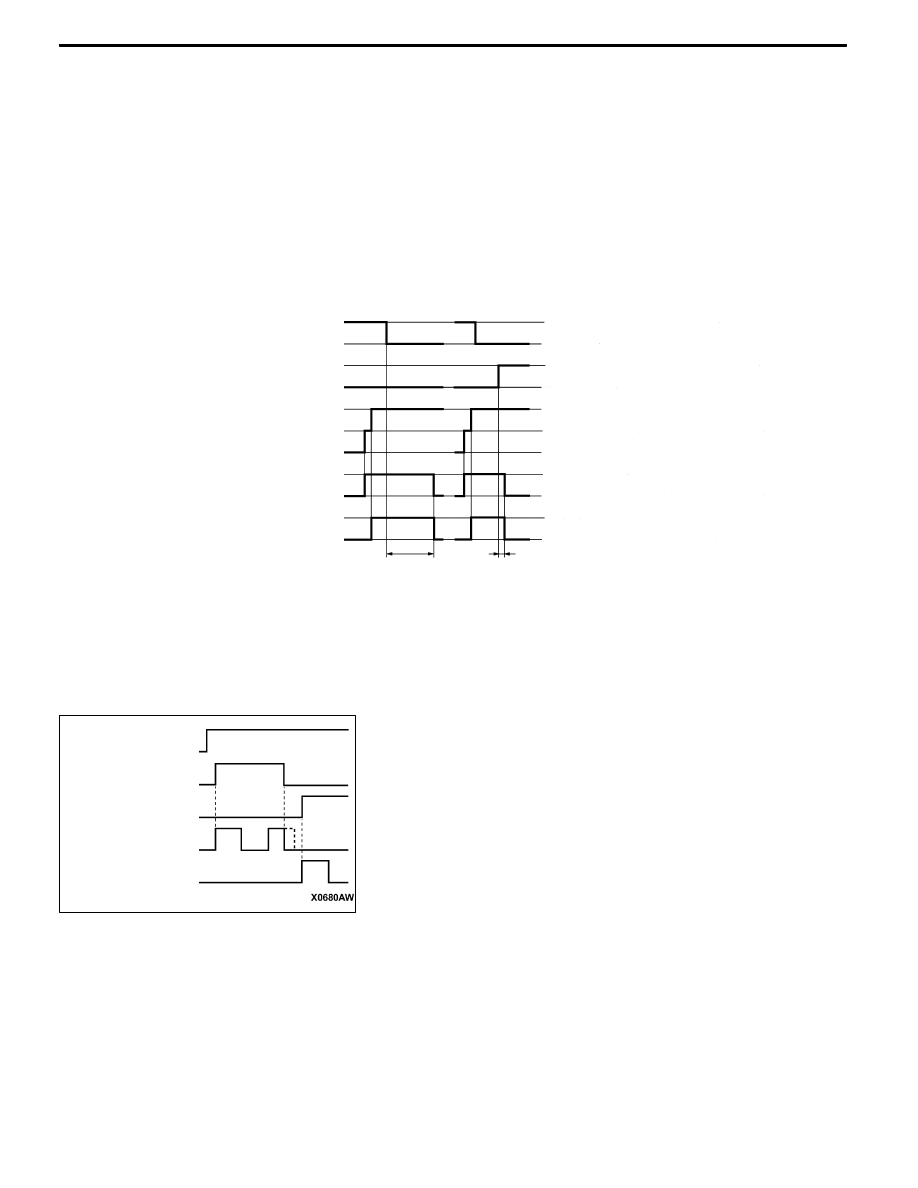

HEADLAMP AUTO-CUT FUNCTION
Even if the headlamp switch is ON, the head lamp will automatically go off in the following conditions
to prevent the battery from discharging as a result of forgetting to turn off lights.
(1) When the ignition key is turned from ON to OFF with the headlamp switch turned ON, and this

state continues for 3 minutes, the headlamp will automatically be turned off. If the driver’s seat door

is opened during these 3 minutes, the lamp will go off 1 second later. (During the one second until

it goes off, the light still ON reminder warning buzzer will sound. However, if the driver’s seat door

is opened with the ignition key inserted, the key inserted reminder warning buzzer will function first.)

(2) When the tail lamp switch is turned ON with the ignition switch and lighting switch OFF, the lamp

will not go off automatically.

The headlamp auto-cut function is cancelled by turning ON the lighting switch (tail or headlamp switch)
or ignition switch.

Lighting switch

Headlamp output

OFF

Tail lamp output

ON

OFF

Ignition switch(IG)

ON

OFF

1 second

3 minutes

Driver’s seat door

switch

(Open) ON

(Closed) OFF

Headlamp

Tail lamp

ON

OFF

FLASHER TIMER FUNCTION
(1) The turn signal lamp output (flashing signal) is turned

ON when the turn signal lamp ignition switch is ON and

the turn signal lamp switch is ON (LH or RH). If the front

turn signal lamp or rear turn signal lamp bulb has burned

out, the flashing speed increases to indicate that the

bulb has burned out.

Ignition switch

(IG)

Turn signal lamp

switch RH

ON

OFF

ON

OFF

Turn signal lamp

switch LH

ON

OFF

ON

OFF

Turn signal lamp

output RH

Turn signal lamp

output LH

ON

OFF

EQUIPMENT –

Smart Wiring System (SWS)

7-18

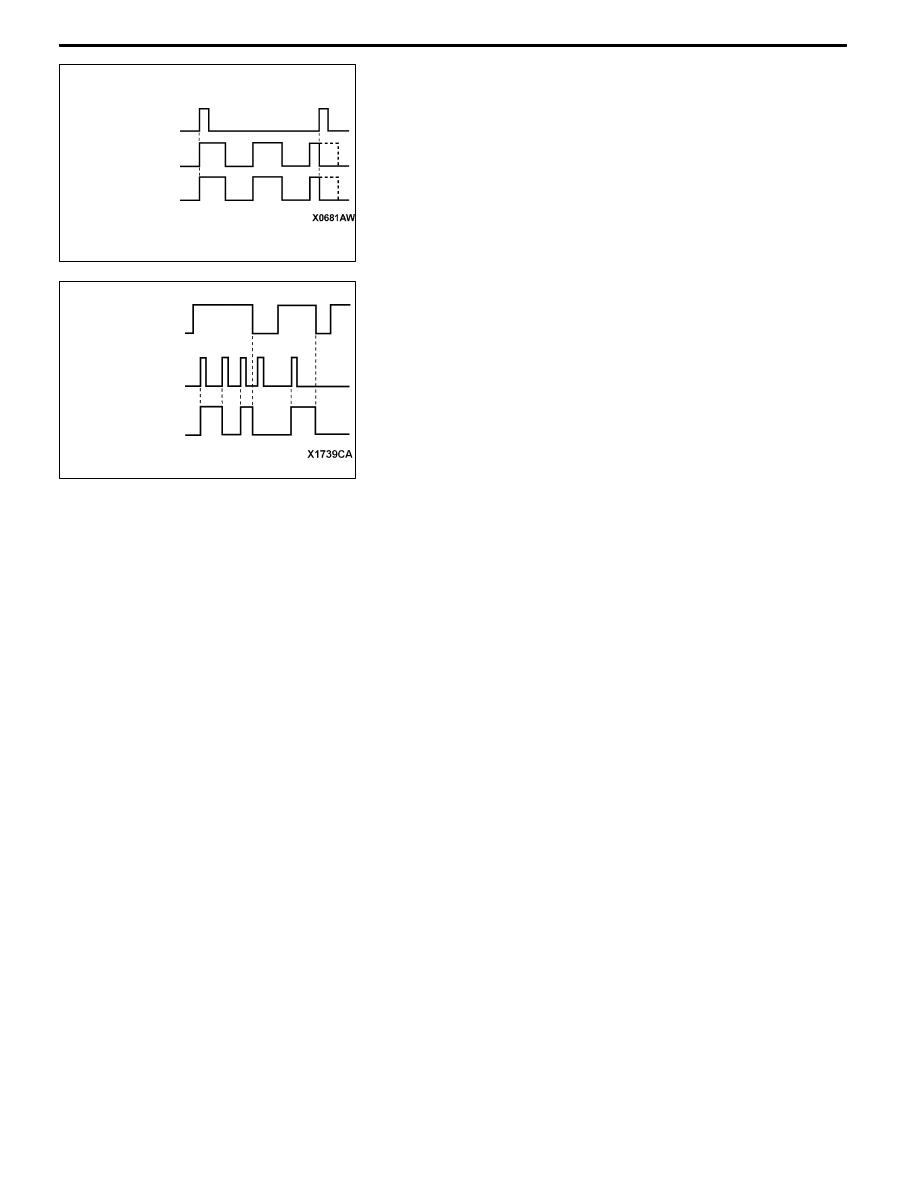

(2) Detects the signal where the hazard warning lamp switch

input changes from OFF to ON, and reverse the flashing

state according to this signal. (Flashes when the hazard

lamp is not flashing and turns off when flashing.)

NOTE
The hazard warning lamp switch is a push-return switch.

REAR FOG LAMP CONTROL FUNCTION
If the rear fog lamp switch is turned ON when the headlamp

is turned ON, the rear fog lamp is switched ON and OFF

alternatively.

If the headlamp is turned OFF during lighting of the rear

fog lamp, the rear fog lamp is turned OFF at the same time.

Hazard warn-

ing lamp

switch

ON

OFF

ON

OFF

Turn signal lamp

output RH

Turn signal lamp

output LH

ON

OFF

Rear fog lamp

switch

Rear fog lamps

ON

OFF

ON

OFF

ON

OFF

Headlamp or

front fog lamp

EQUIPMENT –

Smart Wiring System (SWS)

7-19

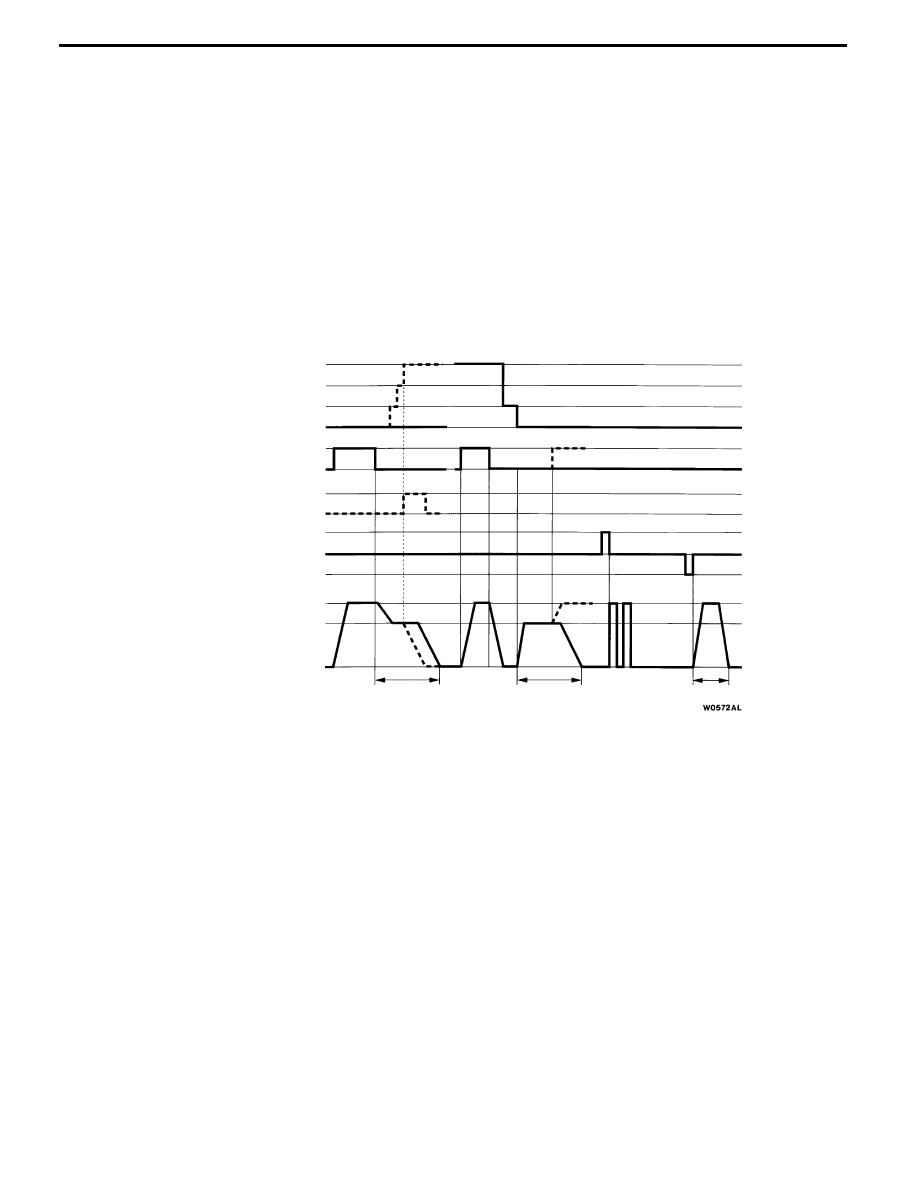

DIMMER TYPE ROOM LAMP CONTROL FUNCTION
When the room lamp switch is at the door position, the ETACS-ECU controls the lighting of the room
lamp as follows.
(1) When a door is opened to get on or get off the vehicle (when the ignition switch is OFF), the lamp

lights up (100%), when closed, the lamp dims (65%), and goes off 15 seconds later. However if

the ignition switch is turned ON while the timer illuminates or if door is locked, the lamp will go off

at that point.

(2) When a door is opened with the ignition switch ON, the lamp illuminates (100%), and goes off when

closed.

(3) When the ignition key is removed with all doors closed

When the ignition key is removed with all doors closed, the lamp illuminates (65%) and goes off

after 15 seconds. When the ignition key is inserted again while the lamp illuminates or when door

is locked, the lamp goes off.

NOTE

The delay time until the room lamp goes off can be adjusted by the adjustment function. (Refer to P.7-29.)

Door switch

(Any one open) ON

(All closed) OFF

Driver’s seat door lock

actuator

switch

(lock

switch)

(LOCK) ON

(UNLOCK) OFF

Lock/unlock signal by

keyless entry

LOCK

OFF

Room lamp brightness

100 %

65 %

Ignition switch

ON

OFF

0 %

15 seconds

15 seconds

ACC

Key removed

UNLOCK

NOTE
The dotted lines indicate that lighting mode when the ignition switch is turned ON, door is locked, or
any door is opened during the timer illumination time.

EQUIPMENT –

Heater and Air Conditioner

7-20

HEATER AND AIR CONDITIONER

The heater and air conditioner system incorporating the heater and cleaning unit has reduced ventilation
resistance to increase air volume and reduce noise.

FEATURES

1. Installation of two-ray blow full air mix heater

2. Adoption of low noise, large air volume heater and air conditioner

system

3. Improvement of heater performance using an in-air mixing

dumper

1. Installation of dial type control with excellent operation

performance on the heater and air conditioner control panel

2. Incorporation of rear defogger switch with timer into the control

panel

3. Increase in panel display size

Improvements in comfort

Improvements in opera-
tion performance

Reliable

visual

field

(improvement in safety)

1. Improvement in service performance and reliability by adopting

an O-ring dropout prevention structure for the refrigerant lines.

2. Reduction of gas leakage and improvement in service

performance by incorporating condenser and receiver

3. Enhancement of the MUT-II compatible diagnostic function

Improvements in service
quality

1. Optimization of idle rotation speed according to air conditioner

load

2. Installation of sub-cooling type condenser

Adoption of a new refrigerant system

Global

environment

protection

1. Achievement of ventilation system to defog windows by increasing

the outside air intake duct area on the front deck and adopting

a large air outlet

2. Windshield defogging speed improvement derived from increase

in air volume and wind speed by adopting a blower type defroster

and high performance heater

Improvements in fuel
economy

SPECIFICATIONS

Item

Specifications

Heater unit type

Two-ray blow full air mix method

Heater control method

Dial type

Air conditioner switch type

Push button type

Compressor type

MSC90C

Refrigerant

Type

R134a (HFC-134a)

g

Filled air volume g

550 ± 20
