  – Engine Compartment

WIRING HARNESS
CONFIGURATION DIAGRAMS

Connector
symbol

–01
thru
–50

A

Earth cable

C-4

WIRING HARNESS CONFIGURATION DIAGRAMS

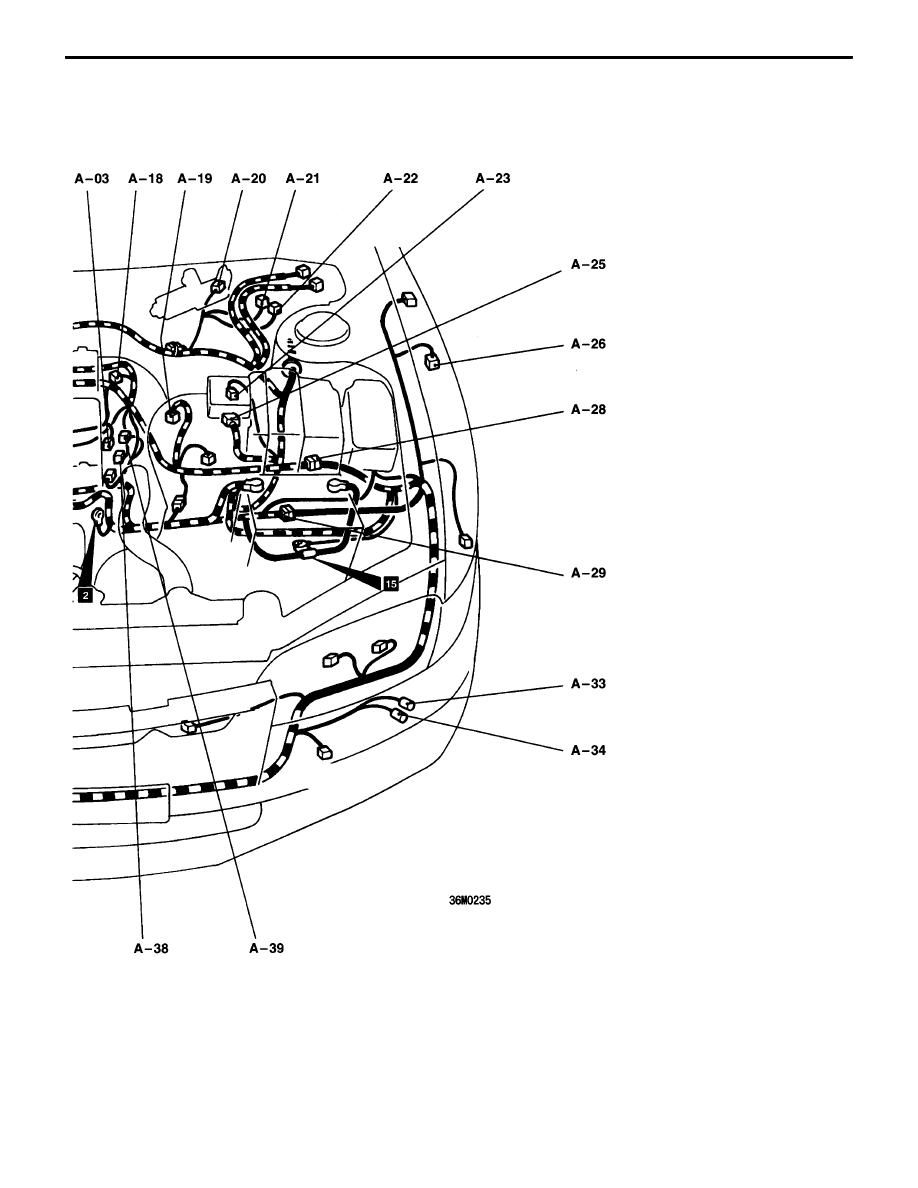

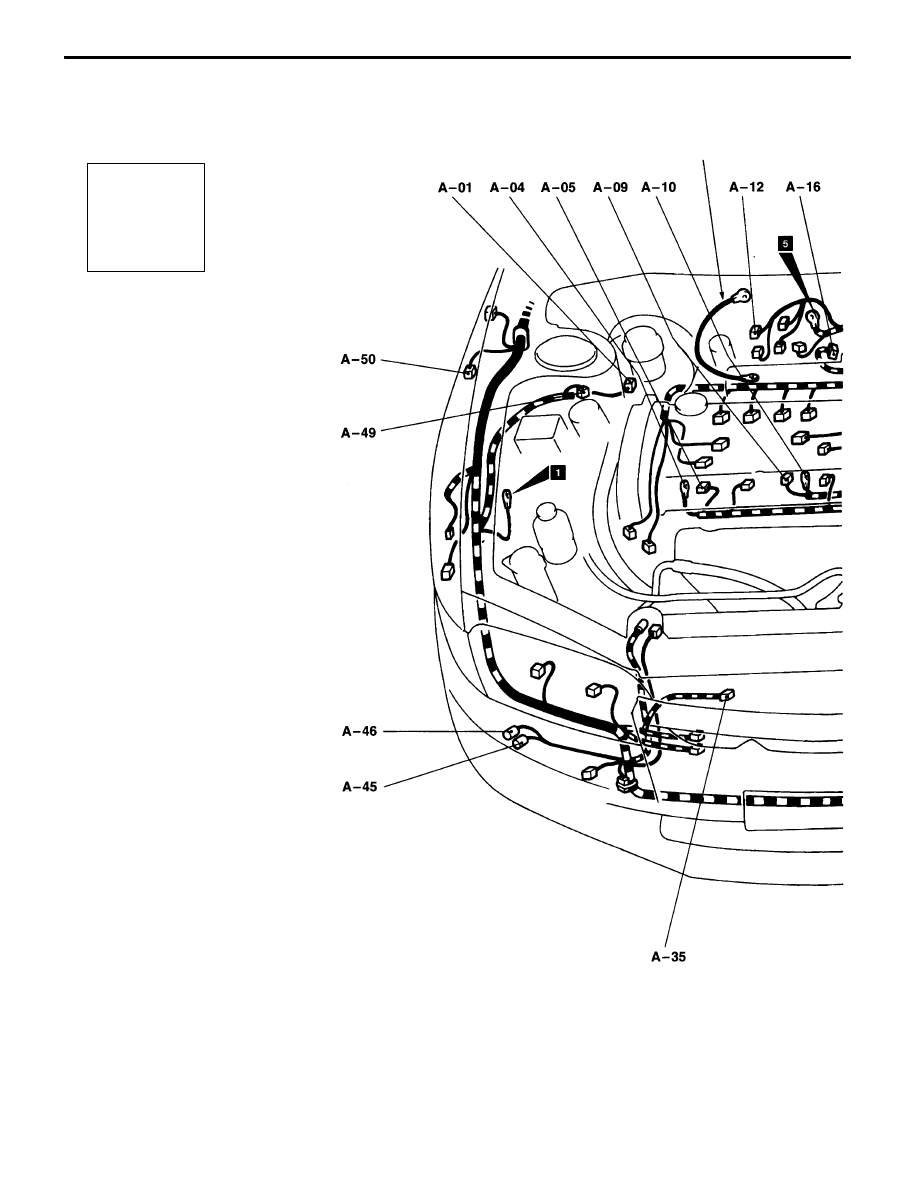

ENGINE COMPARTMENT

A-01 (2-B)

Brake fluid level switch

A-03 (1-B)

Noise condenser

A-04 (1)

Alternator

A-05 (4-GR)

Alternator

A-09 (1-B)

Starter

A-10 (1)

Starter

A-12 (2-B)

Fuel pressure solenoid valve

A-16 (4-B)

Throttle position sensor

A-18 (6-B)

Idle speed control servo

A-19 (3-B)

Vehicle speed sensor

A-20 (4-B)

Windshield wiper motor

A-21 (8-B)

Hydraulic unit <vehicles with ABS>

A-22 (2-B)

Hydraulic unit <vehicles with ABS>

A-23 (2-B)

Waste gate solenoid valve

A-25 (7-B)

Air flow sensor

A-26 (2-B)

Front speed sensor (LH) <vehicles with
ABS>

A-28

(10-B)

Control harness and front harness
combination

  – Engine Compartment

WIRING HARNESS
CONFIGURATION DIAGRAMS

C-5

A-29

(2-B)

Front harness and battery harness
combination

A-33 (1)

Horn (LH)

A-34 (1)

Horn (LH)

A-35  (2-BR)

Outside air temperature sensor <vehicles
with fully automatic air conditioner>

A-38 (2-B)

Engine coolant temperature sensor

A-39 (1-B)

Engine coolant temperature gauge unit

A-45 (1)

Horn (RH)

A-46 (1)

Horn (RH)

A-49 (2-BR)

Dual pressure switch

A-50 (2-B)

Front speed sensor (RH) <vehicles with
ABS>

  – Engine Compartment

WIRING HARNESS
CONFIGURATION DIAGRAMS

Connector
symbol

–51
thru
–131

A

Earth cable

C-6

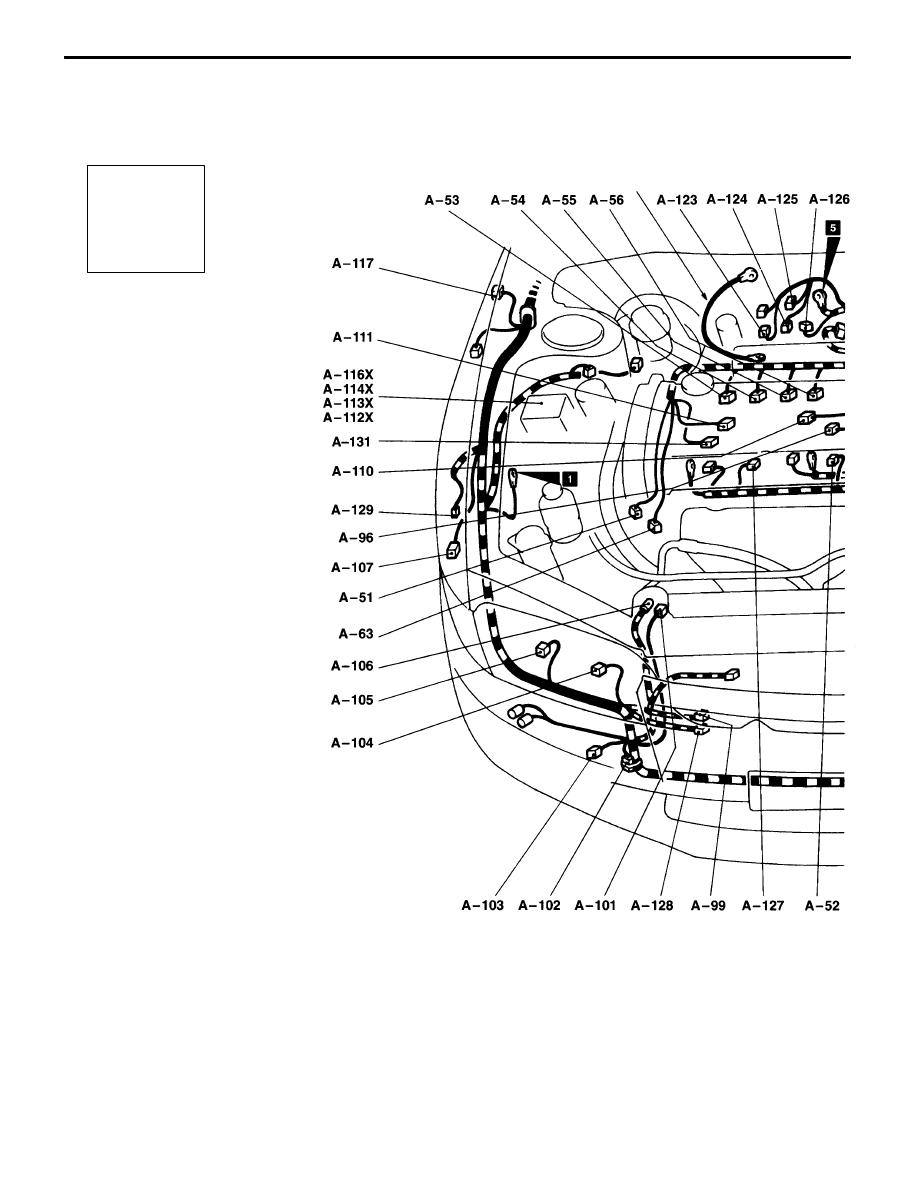

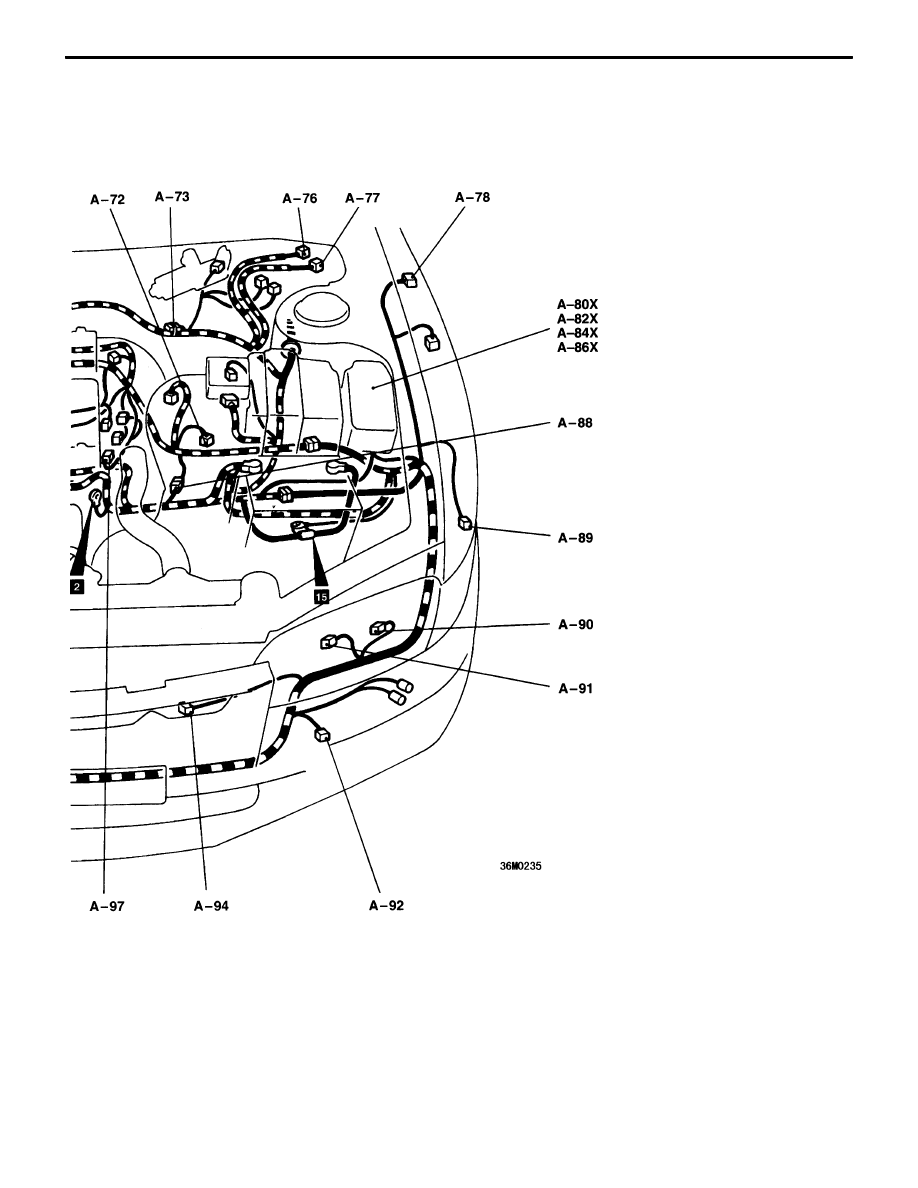

ENGINE COMPARTMENT

A-51 (3-B)

Crank angle sensor

A-52 (1-B)

Oil pressure switch

A-53 (2-B)

Injector (No.1)

A-54 (2-B)

Injector (No.2)

A-55 (2-B)

Injector (No.3)

A-56 (2-B)

Injector (No.4)

A-63 (4-B)

O

2

 sensor

A-72 (2-B)

Back-up lamp switch

A-73 (1-L)

Engine speed detection connector

A-76 (6)

Valve relay <vehicles with ABS>

A-77 (5)

Motor relay <vehicles with ABS>

A-78 (2-GR)

Side turn signal lamp (LH)

A-80X (5)

Horn relay <vehicles with SRS air bag>

A-82X (5)

Radiator fan relay (LO)

A-84X (5)

Headlamp relay

A-86X (4)

Alternator relay

A-88 (6-B)

Control harness and battery harness
combination

A-89 (2-BR)

Front turn signal lamp (LH)

A-90 (3-B)

Headlamp (LH)

A-91 (2)

Position lamp (LH)

A-92 (2-B)

Fog lamp (LH)

  – Engine Compartment

WIRING HARNESS
CONFIGURATION DIAGRAMS

C-7

A-94 (4-GR)

Radiator fan motor

A-96 (2-GR)

Knock sensor

A-97 (3-B)

Camshaft position sensor

A-99 (2-B)

Condenser fan motor

A-101 (1)

Power steering oil pressure switch

A-102 (1)

Spare connector for fog lamp

A-103 (2-B)

Fog lamp (RH)

A-104 (2)

Position lamp (RH)

A-105 (3-B)

Headlamp (RH)

A-106 (1-B)

A/C compressor assembly

A-107 (2-BR)

Front turn signal lamp (RH)

A-110 (3-GR)

Ignition coil 1

A-111 (3-GR)

Ignition coil 2

A-112X (4)

Radiator fan relay (HI)

A-113X (4)

Condenser fan relay (LO)

A-114X (4)

Condenser fan relay (HI)

A-116X (4)

A/C compressor relay

A-117 (2-GR)

Side turn signal lamp (RH)

A-123 (5-B)

Fuel pump relay No.2

A-124 (2-B)

Fuel pump resistor

A-125 (6-B)

Resistor (for injector)

A-126 (5-B)

AYC relay

A-127 (2-B)

Secondary air control solenoid valve

A-128 (2-GR)

Condenser fan motor

A-129 (2-B)

Water spray motor

A-131 (1-B)

Noise condenser
