Mitsubishi Lancer Evolution VI. Manual - part 130

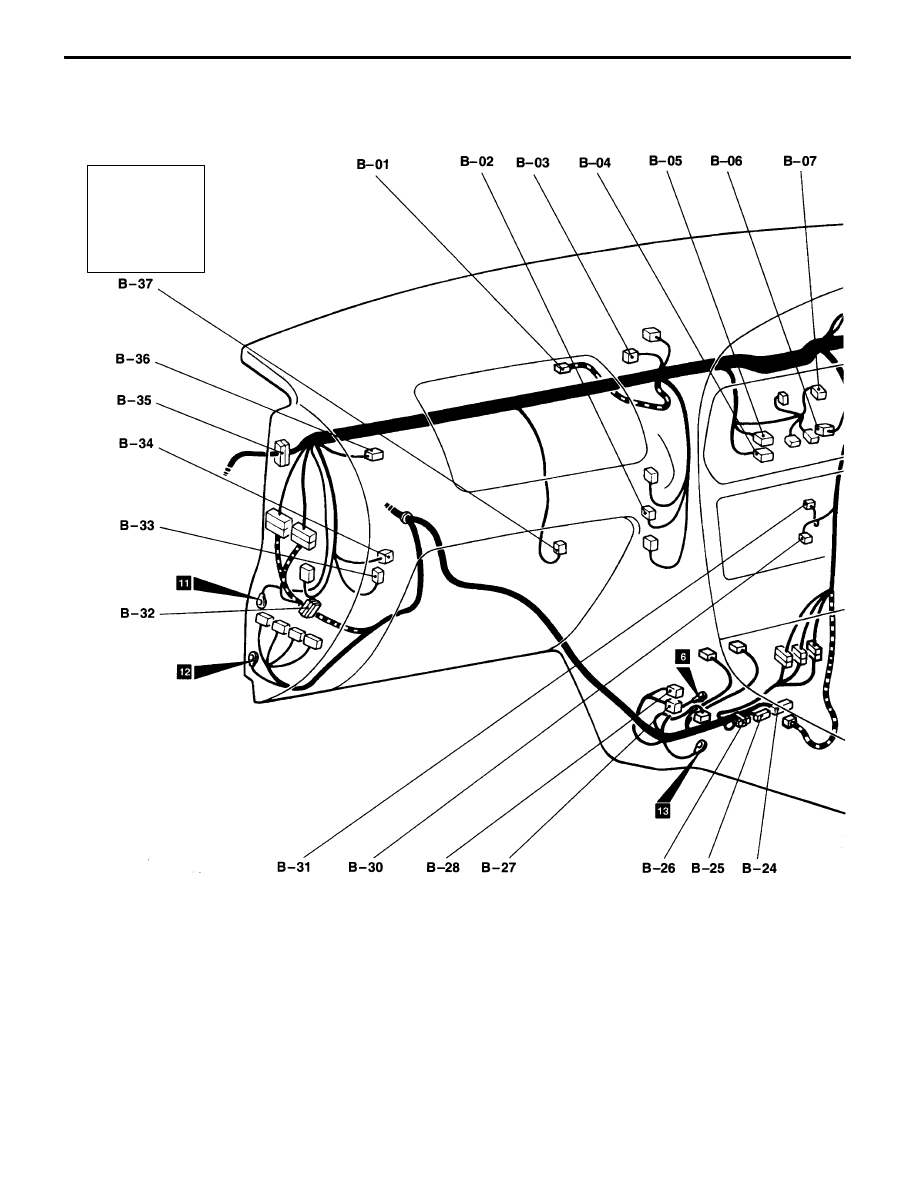

  – Dash Panel

WIRING HARNESS
CONFIGURATION DIAGRAMS

Connector
symbol

B

C-8

DASH PANEL

B-01 (2-R)

Passenger seat air bag module (squib)

B-02 (2)

Heater water temperature sensor <ve-
hicles with fully automatic air conditioner>

B-03 (2-B)

Air thermo sensor <vehicles with fully
automatic air conditioner>

B-04 (20-B)

A/C-ECU <vehicles with fully automatic
air conditioner>

B-05 (16-B)

A/C-ECU <vehicles with fully automatic
air conditioner>

B-06 (6)

Air outlet change-over damper motor and
potentiometer <vehicles with fully auto-
matic air conditioner>

B-07 (8)

Blower switch <vehicles with manual air
conditioner>

B-08 (25)

Meter and gauge

B-09 (25)

Meter and gauge

B-10 (22)

Body harness and front door harness
(driver’s side) combination

B-11X (8)

Rear intermittent wiper relay

B-13X (5)

Power window relay

B-15

(20)

Front harness and body harness
combination

B-16

(6)

Front harness and body harness
combination

B-17

(14)

Front harness and body harness
combination <ABS>

B-18 (19)

J/C (1)

B-19

(22)

Body harness and instrument panel
harness  combination

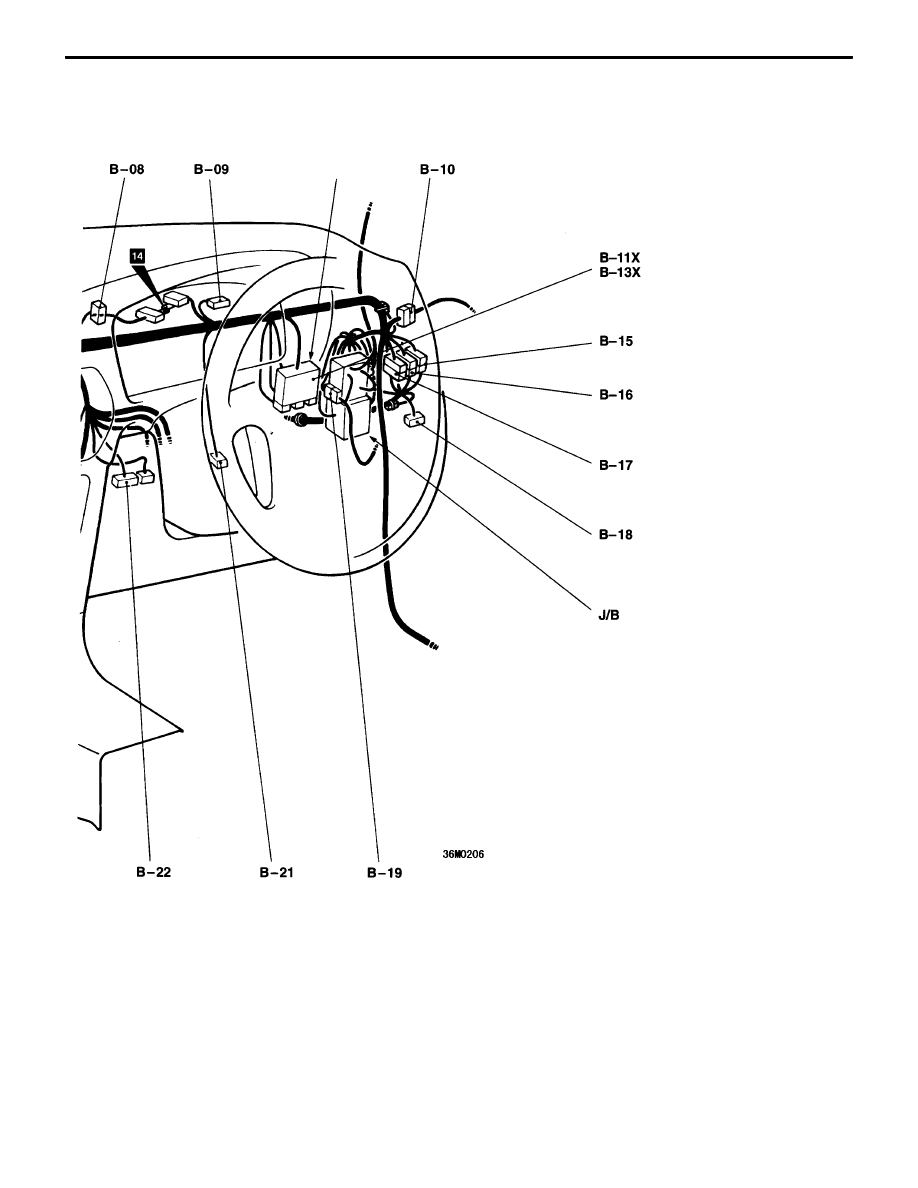

  – Dash Panel

WIRING HARNESS
CONFIGURATION DIAGRAMS

Interior relay box

C-9

B-21 (2)

Stop lamp switch

B-22 (16-B)

Diagnosis connector

B-24 (26-Y)

ABS-ECU

B-25 (22-Y)

ABS-ECU

B-26 (2-B)

Diode (for ABS circuit)

B-27 (4)

Engine control relay

B-28 (4)

Fuel pump relay

B-30 (14)

Radio or spare connector for radio

B-31 (1)

Glass antenna amplifier

B-32 (19-B)

J/C (5)

B-33 (2)

Blower motor <vehicles with fully auto-
matic air conditioner>

B-34 (4)

Blower high speed relay <vehicles with
fully automatic air conditioner>

B-35 (22)

Body harness and front door harness
(passenger’s side) combination

B-36

(2)

Inside and outside air change-over
damper motor <vehicles with fully
automatic air conditioner>

B-37

(4)

Power transistor <vehicles with fully
automatic air conditioner> or resistor
<vehicles with heater or manual air
conditioner>

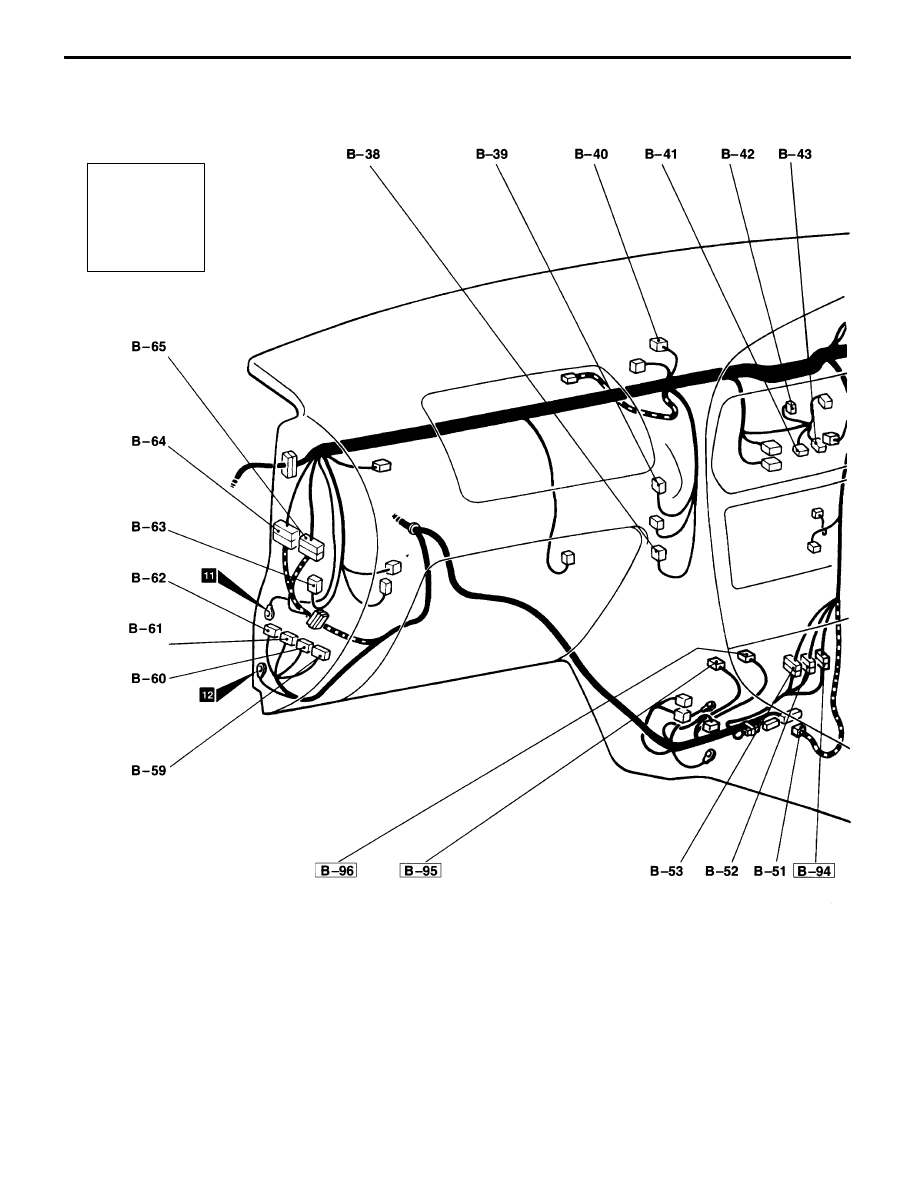

  – Dash Panel

WIRING HARNESS
CONFIGURATION DIAGRAMS

Connector
symbol

B

C-10

DASH PANEL

B-38

(2)

Sunlight sensor <vehicles with fully
automatic air conditioner>

B-39 (6)

Air mix damper motor and potentiometer
<vehicles with fully automatic air condi-
tioner>

B-40 (3)

Automatic compressor ECU
<vehicles with manual air conditioner>

B-41 (8)

A/C switch
<vehicles with manual air conditioner>

B-42  (2)

Blower switch illumination lamp <vehicles
with heater or manual air conditioner>

B-43 (6-B)

Defogger switch <vehicles with heater or
manual air conditioner>

B-44  (6)

Body harness and roof harness combina-
tion <vehicles with sunroof>

B-45 (2-B)

Diode (for keyless entry system circuit)

B-46 (2)

Spare connector for fog lamp switch
<vehicles without fog lamp>

B-48 (14)

J/C (2)

B-49 (14)

J/C (3)

B-50 (14-L)

J/C (4)

B-51 (21-Y)

SRS-ECU

B-52

(16-B)

Control harness and body harness
combination <vehicles with ABS>

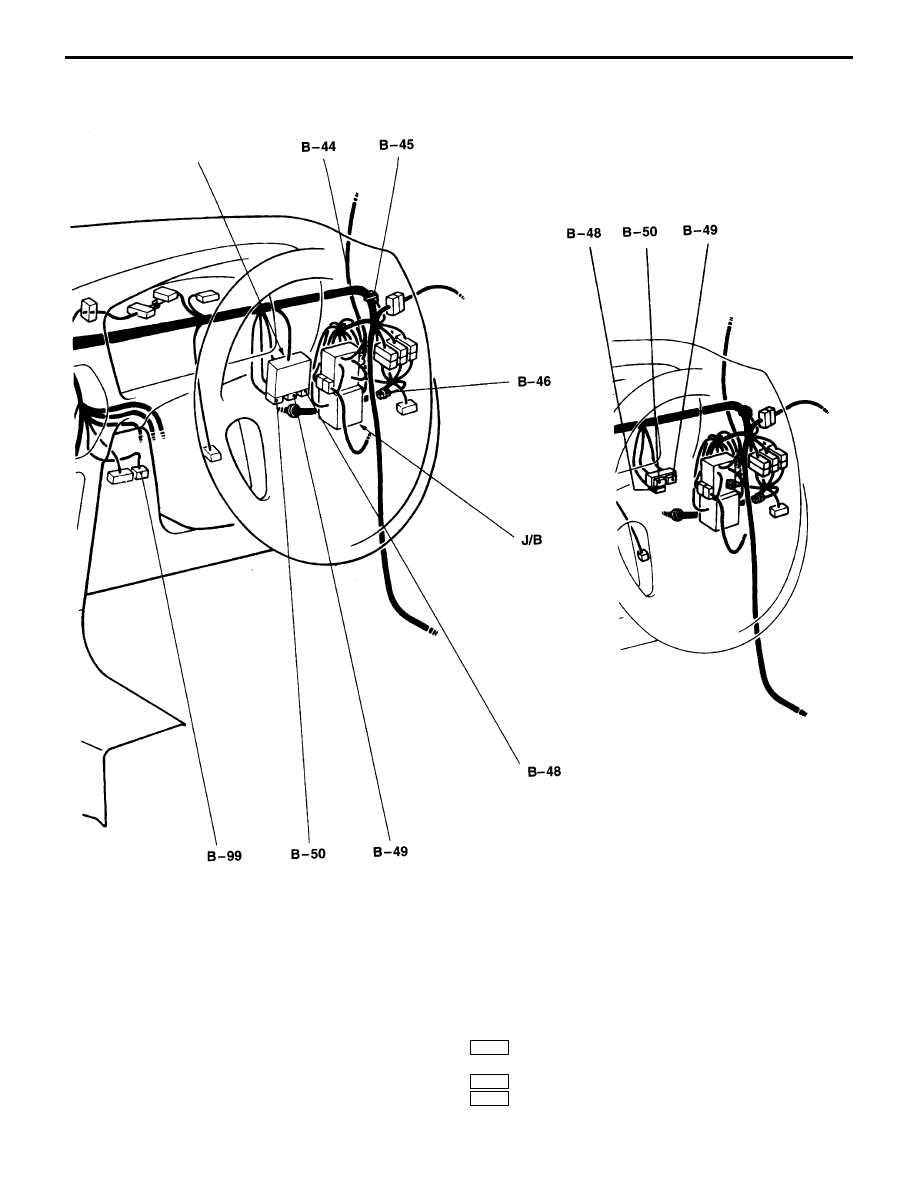

  – Dash Panel

WIRING HARNESS
CONFIGURATION DIAGRAMS

Interior relay box

<Vehicles without interior relay box>

NOTE
The connectors with framed
number are newly introduced.

C-11

B-59 (26-Y)

Engine-ECU

B-60 (16-Y)

Engine-ECU

B-61 (12-Y)

Engine-ECU

B-62 (22-Y)

Engine-ECU

B-63 (2)

Blower motor <vehicles with heater or
manual air conditioner>

B-64

(13)

Control harness and body harness
combination

B-65

(16-B)

Control harness and body harness
combination

B-94

(13)

Control harness and body harness
combination <vehicles with AYC-ECU>

B-95 (26)

AYC-ECU

B-96 (16)

AYC-ECU

B-99 (12)

Diagnosis connector
