Mitsubishi Lancer Evolution VI. Manual - part 127





FULL-AUTOMATIC AIR CONDITIONER –

Damper Control Motor Assembly
and Power Transistor

55-60

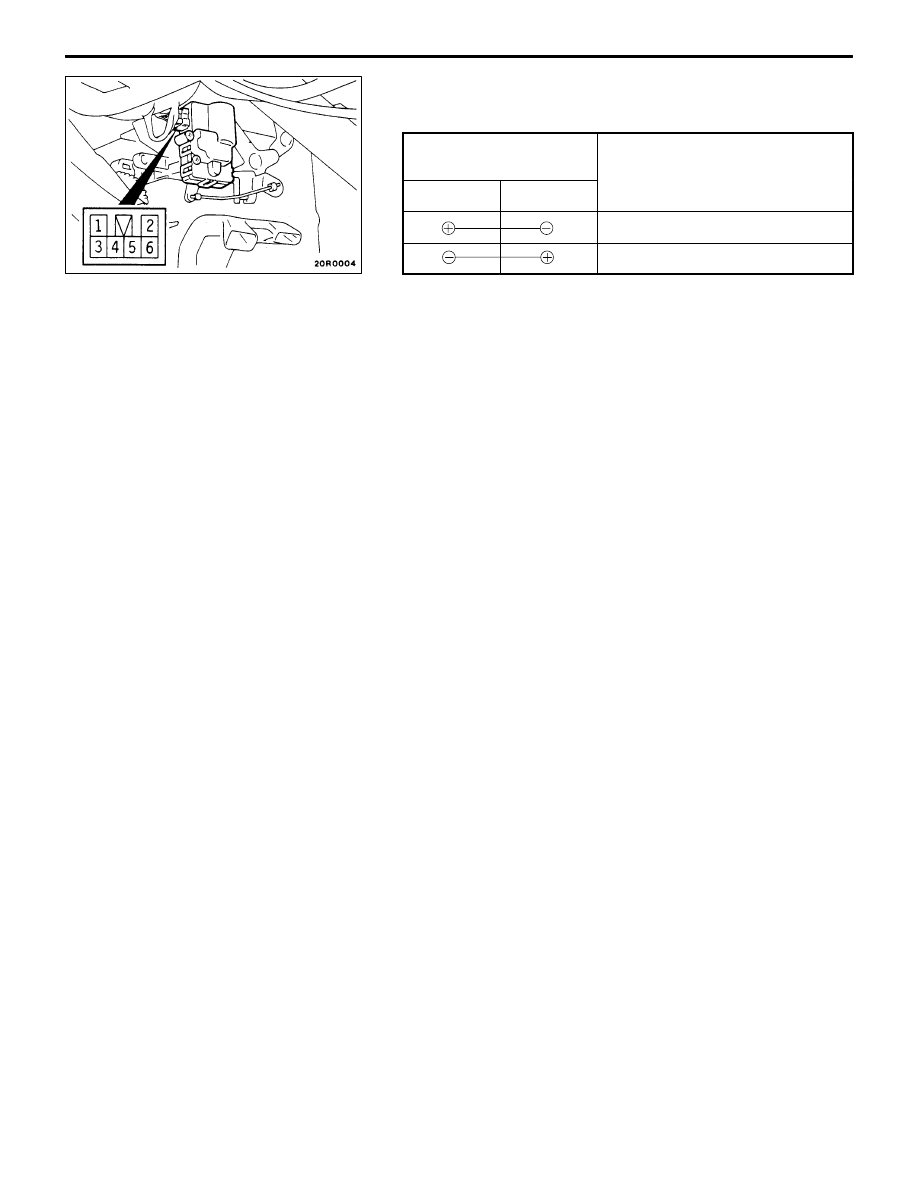

AIR OUTLET CHANGEOVER DAMPER MOTOR CHECK

Motor

Battery connection
terminal

Lever operation

1

3

Moves to DEF. position

Moves to FACE position

Caution
Cut off the battery voltage when the lever is in the stop
position.

Potentiometer

Check to ensure that the resistance value changes within
the standard value range when the resistance value is
measured between connector terminals 2 and 5 or between
5 and 6 with the above inspection condition unchanged.

Standard value: Approx. 0.18 – 4.82 k

FULL-AUTOMATIC AIR CONDITIONER –

Photo Sensor

55-61

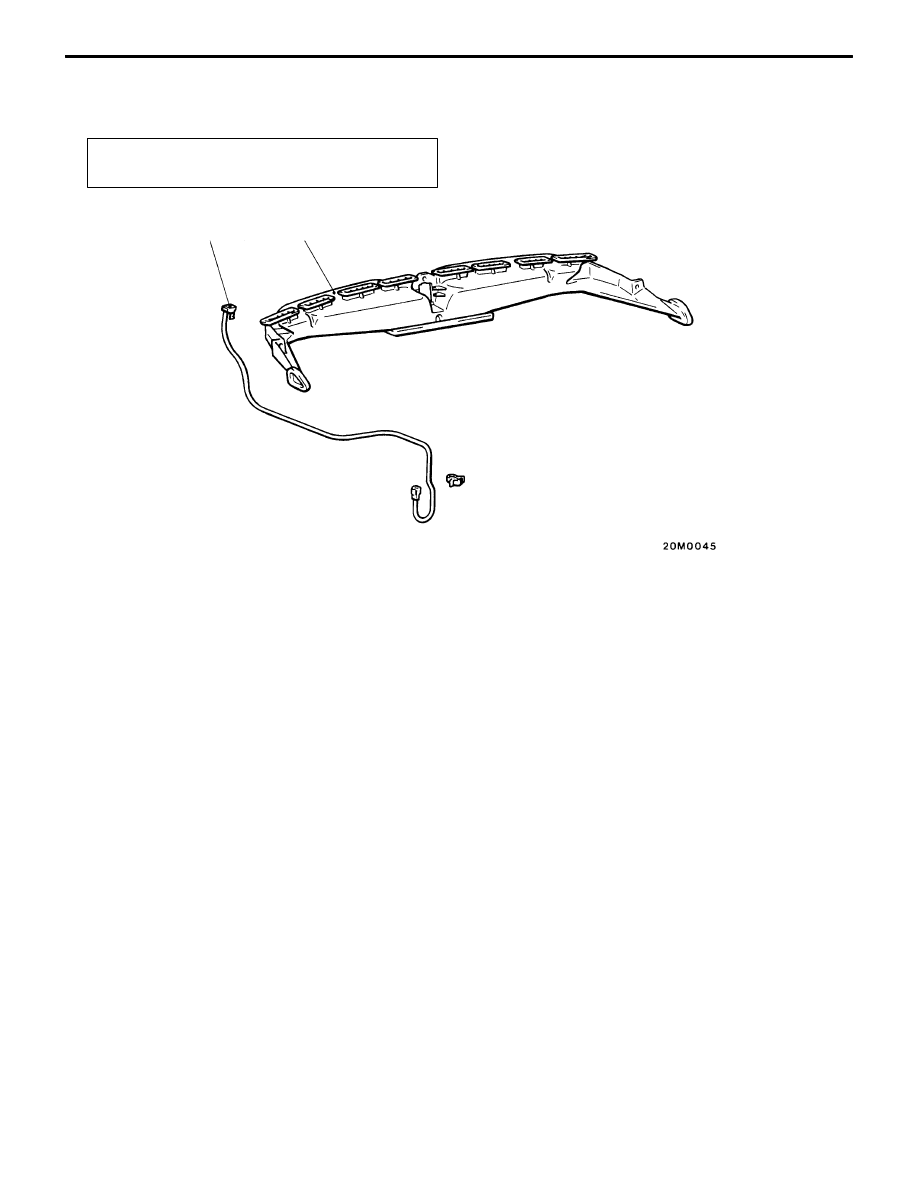

PHOTO SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Instrument Panel Removal and Installation

1

2

Removal step

1. Defroster nozzle
2. Photo sensor

INSPECTION

If the blower speed drops when the receiver section of the
photo sensor is covered with your hand, then the photo sensor
is normal. If the speed does not drop, replace the photo sensor.

FULL-AUTOMATIC AIR CONDITIONER –

Outside Air Temperature
Sensor

55-62

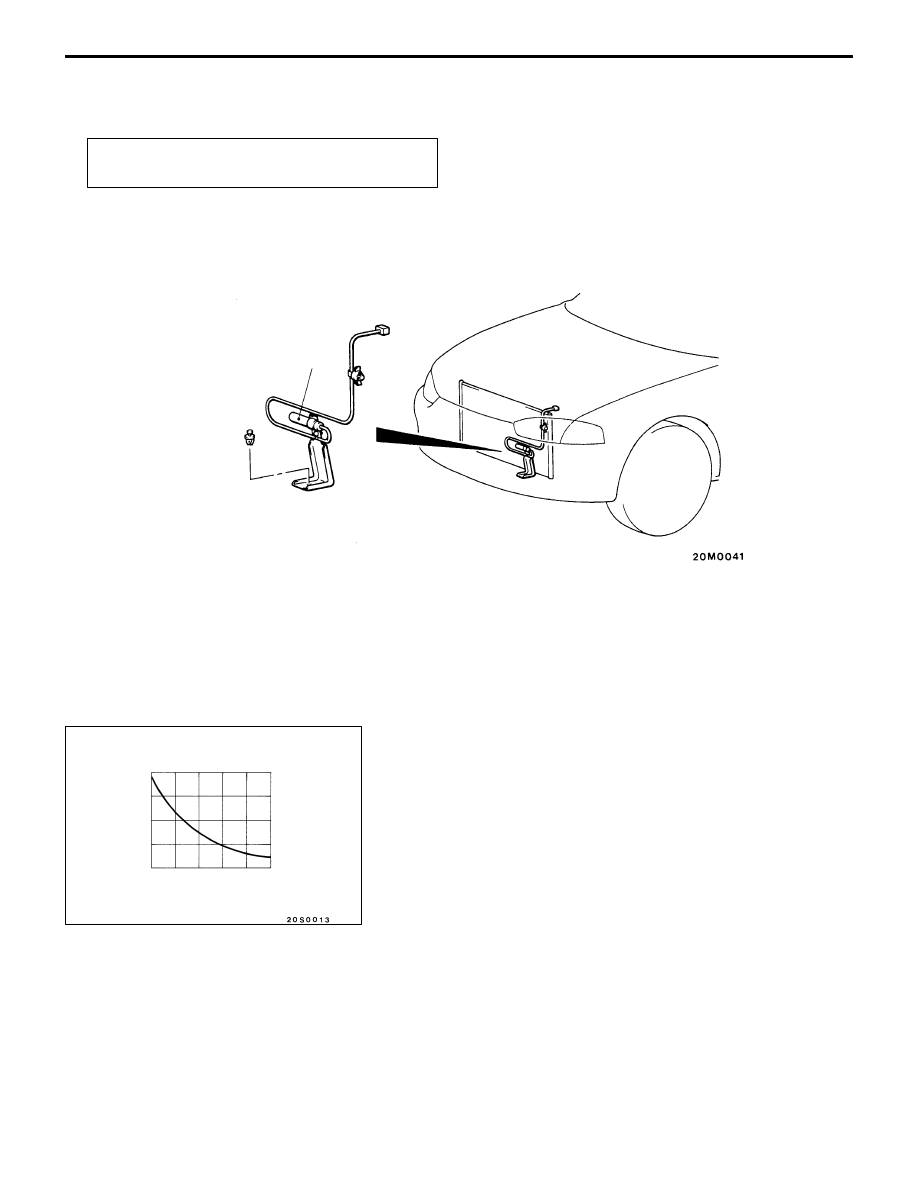

OUTSIDE AIR TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Radiator Grille Removal and Installation

Outside air temperature sensor

INSPECTION

When the resistance value between the sensor terminals is
measured under two or more temperature conditions, the
resistance value should be close to the values shown in the
graph.

NOTE
The temperature conditions when testing should not exceed
the range of the characteristic curve in the graph.

Resistance k

Temperature

_

C

20

15

10

0

5

–10

0

40

20 30

10

FULL-AUTOMATIC AIR CONDITIONER –

Heater Water
Temperature Sensor

55-63

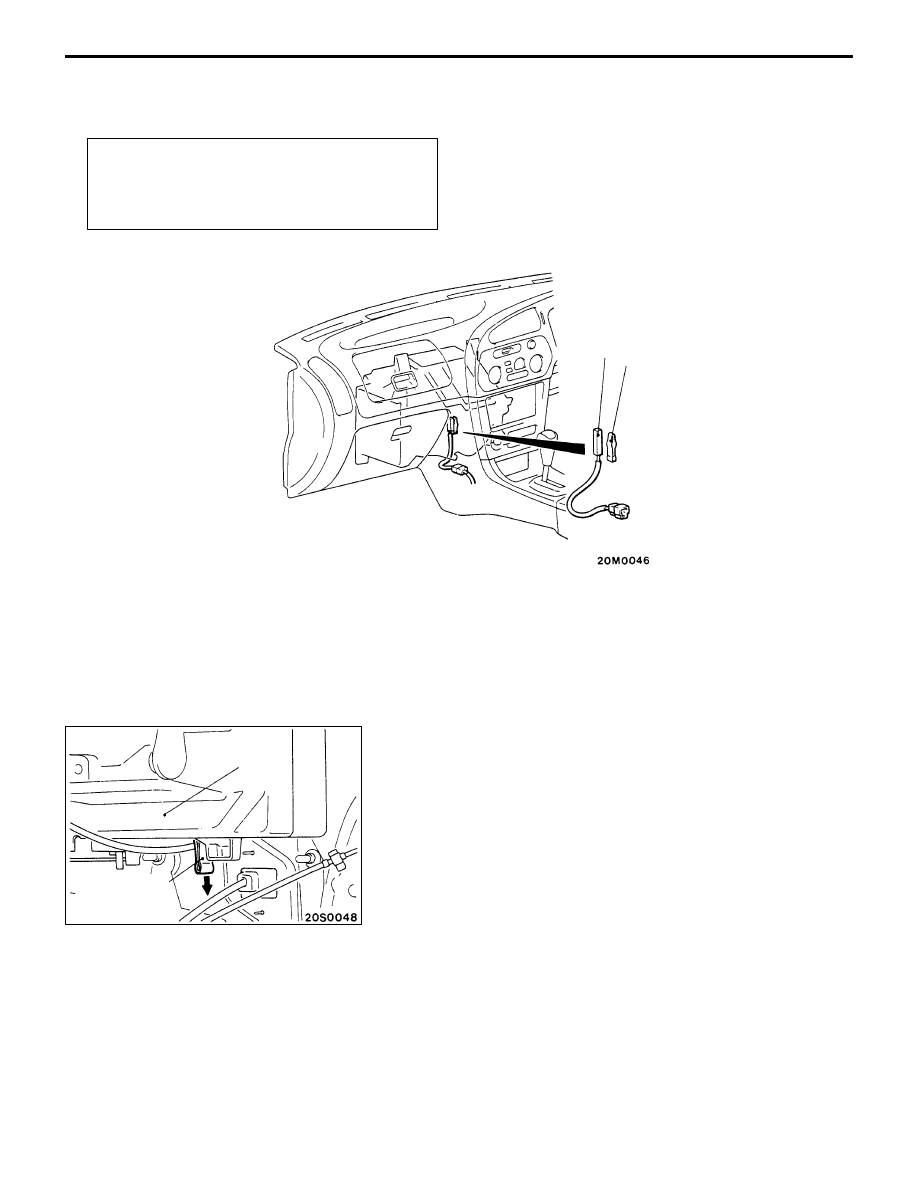

HEATER WATER TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Floor Console Removal and Installation

D

Glove Box Removal and Installation

D

Foot Duct Removal and Installation
(Refer to P55-31.)

1

2

Removal steps

A

A

" "

A

A

1. Heater water temperature sensor clip

A

A

" "

A

A

2. Heater water temperature sensor

REMOVAL SERVICE POINT

A

A

"

HEATER WATER TEMPERATURE SENSOR CLIP
AND HEATER WATER TEMPERATURE SENSOR
REMOVAL

Pull out the heater water temperature sensor clip which is
at the bottom of the heater unit, and then remove the heater
water temperature sensor from the heater unit.

INSTALLATION SERVICE POINT

"

A

A

HEATER WATER TEMPERATURE SENSOR AND
HEATER WATER TEMPERATURE SENSOR CLIP
INSTALLATION

Insert the heater water temperature sensor into its mounting
hole at the bottom of the heater unit, and then fix it by inserting
the heater water temperature sensor clip.

Heater unit

Heater water
temperature
sensor clip
