Mitsubishi Lancer Evolution VI. Manual - part 117





 – Blower Motor Assembly, Resistor and Evaporator

HEATER AND MANUAL
AIR CONDITIONER

55-20

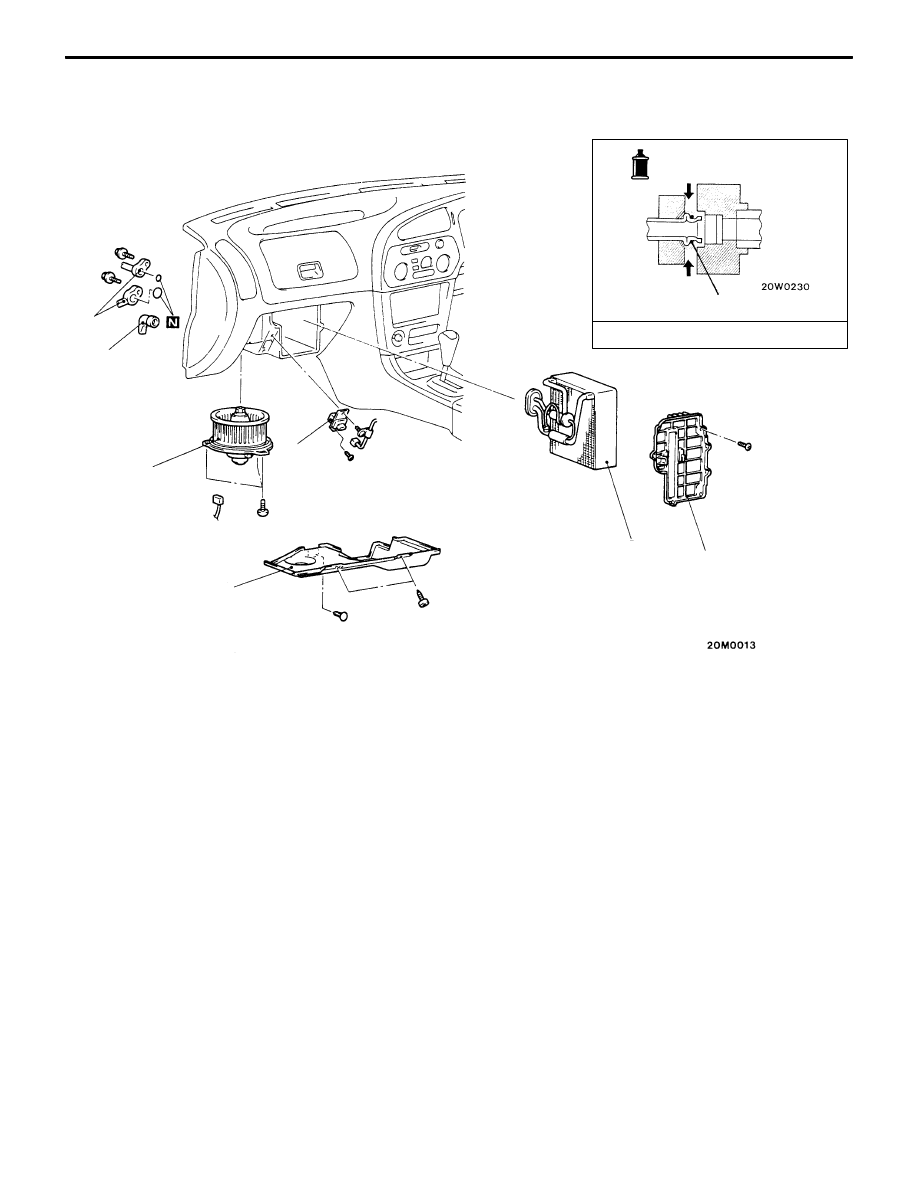

BLOWER MOTOR ASSEMBLY, RESISTOR AND EVAPORATOR

REMOVAL AND INSTALLATION

4

6

2

1

5

3

7

Piping connection

O-ring

A/C Compressor oil: SUN PAG 56

Blower motor assembly removal
steps

1. Under cover

<Vehicles for cold regions>

2. Blower motor assembly

Resistor removal steps

1. Under cover

<Vehicles for cold regions>

D

Glove box, glove box frame

3. Resistor

Evaporator removal steps
<Vehicles with A/C>

D

Discharging and Charging of
refrigerant (Refer to P.55-6.)

D

Glove box, glove box frame

4. Drain hose

A

A

"

5. Connection between evaporator

and refrigerant line

A

B

"

6. Case cover

A

B

"

7. Evaporator

REMOVAL SERVICE POINT

A

A

"

REMOVAL OF REFRIGERANT LINE FROM
EVAPORATOR

Plug the open end of the removed hose and the opening
in the evaporator to prevent entry of dust and foreign
substances.

Caution
Compressor oil and the receiver are highly
moisture-absorptive.
Do not use plugs allowing ventilation.

 – Blower Motor Assembly, Resistor and Evaporator

HEATER AND MANUAL
AIR CONDITIONER

55-21

A

B

"

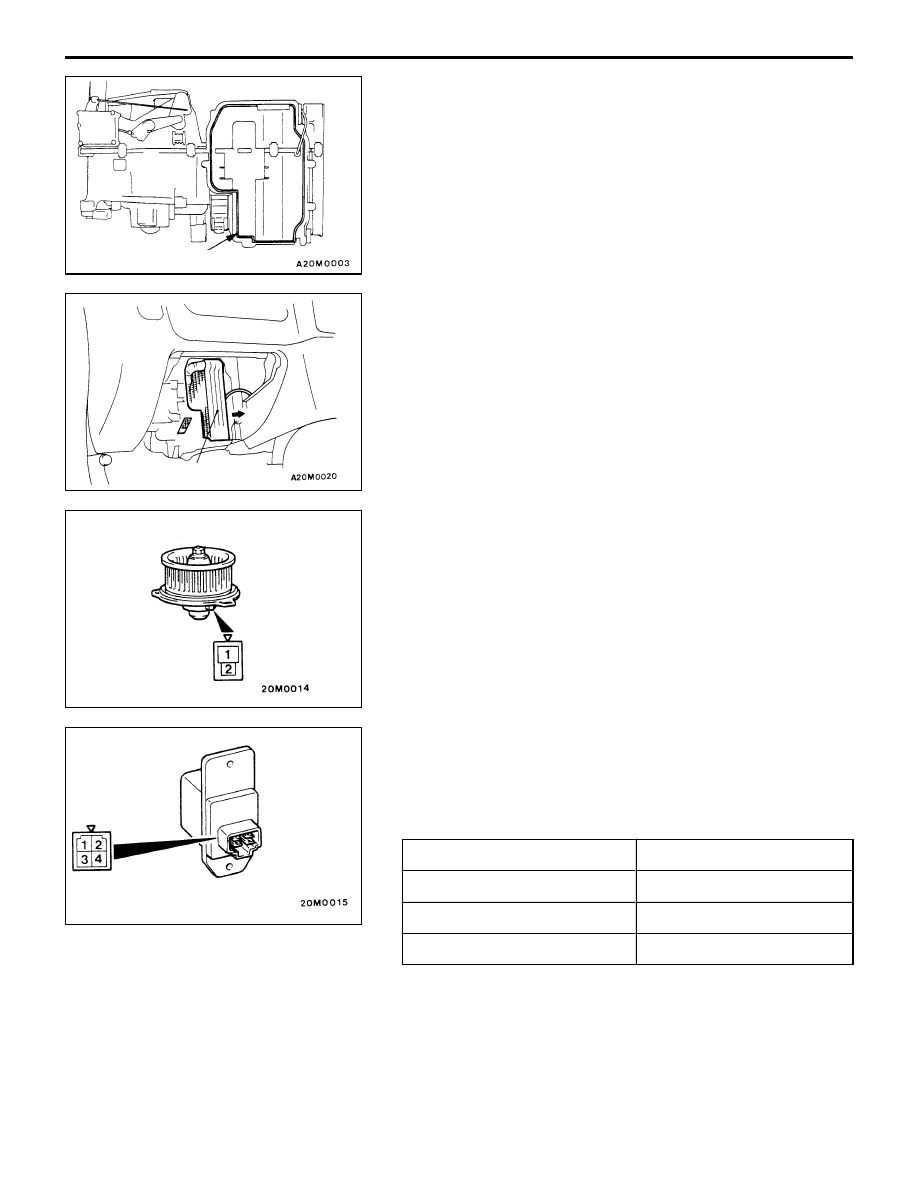

CASE COVER, EVAPORATOR REMOVAL

The evaporator, which has been installed in a factory, has
no case cover. Follow the steps below to remove that
evaporator.
1.

Cut the case along the shown line to remove the cooling
and blower unit.

2.

Remove the air thermo sensor from the evaporator, and
then remove the evaporator towards you, being careful
not to damage its core.

INSPECTION

BLOWER MOTOR CHECK

When battery voltage is applied between the terminals, check
that the motor operates. Also, check that there is no abnormal
noise.

RESISTOR CHECK

Use a circuit tester to measure the resistance between the
terminals as indicated below. Check that the measured value
is at the standard value.

Standard value:

Measurement terminal

Standard value

Between terminals 3 and 2

2.81

±

 10%

Between terminals 3 and 4

1.28

±

 10%

Between terminals 3 and 1

0.33

±

 10%

Cut line

Evaporator

 – Blower Motor Assembly, Resistor and Evaporator

HEATER AND MANUAL
AIR CONDITIONER

55-22

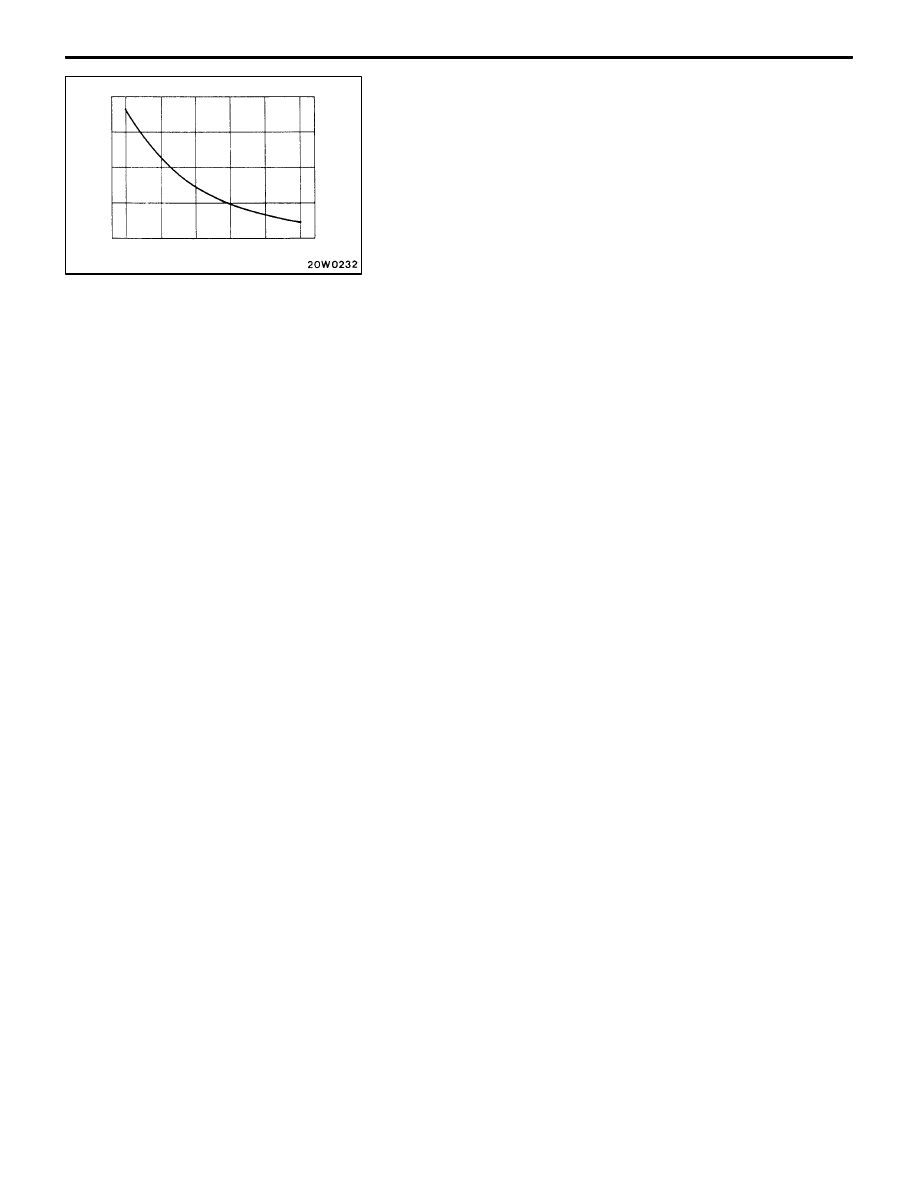

AIR THERMO-SENSOR CHECK

Measure the resistance between the sensor terminals in two
or more different temperature conditions. The resistance
values must conform to the values shown in the graph.

NOTE
The temperatures at checking must be within the range shown
in the characteristic curve.

k

Temperature

Resistance

°

C

0

–10

0

10

20

30

40

5

10

15

20

 – Compressor and Tension Pulley

HEATER AND MANUAL
AIR CONDITIONER

55-23

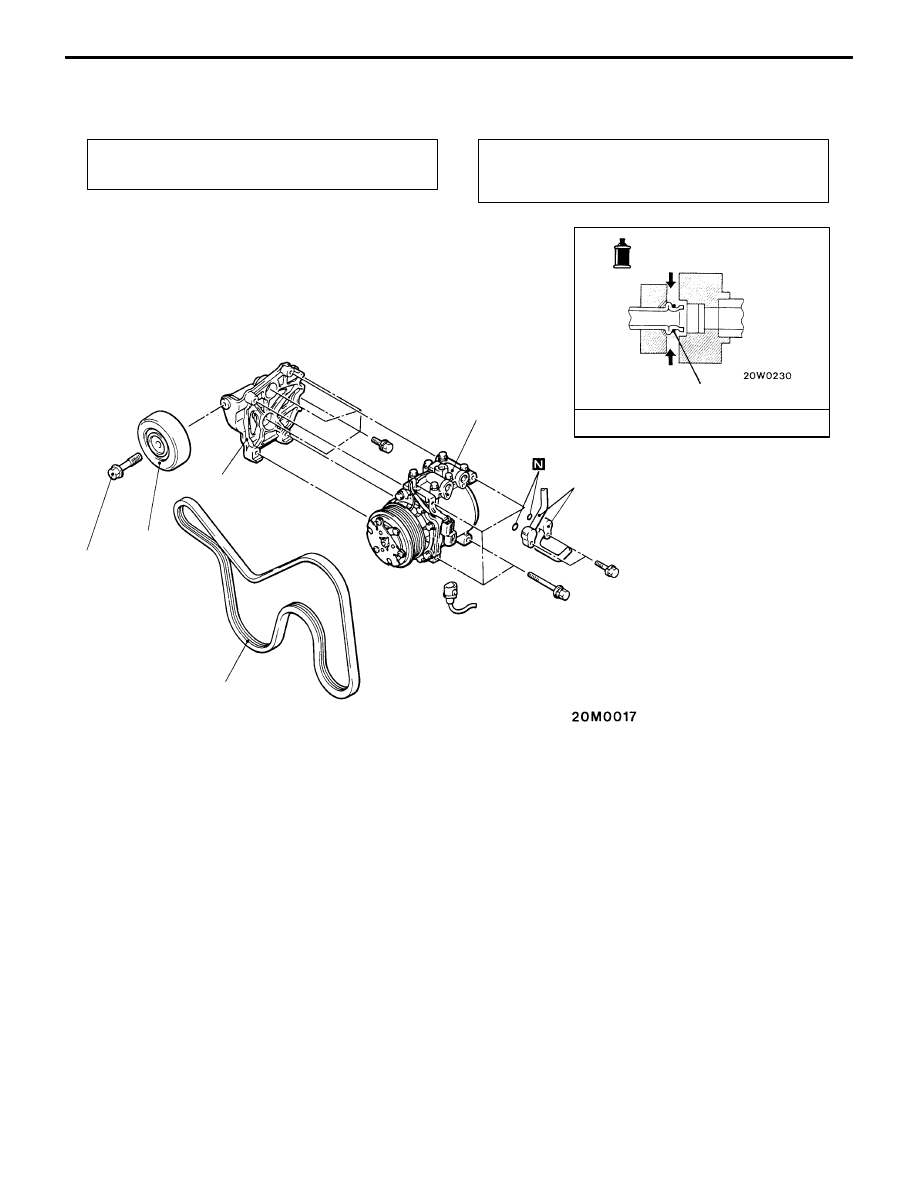

COMPRESSOR AND TENSION PULLEY

REMOVAL AND INSTALLATION

Pre-removal Operation

D

Discharging of Refrigerant (Refer to P.55-6.)

Post-installation Operation

D

Drive Belt Tension Adjustment

D

Charging of Refrigerant (Refer to P.55-6.)

4

2

1

5

3

Piping connection

O-ring

A/C Compressor oil: SUN PAG 56

 59 – 69 Nm

Removal steps

A

A

"

1. Drive belt
2. Idler pulley

A

B

"

3. Suction hose and discharge hose

connection

A

C

" "

A

A

4. Compressor
5. Compressor bracket
