Mitsubishi Lancer Evolution VI. Manual - part 114





HEATER AND MANUAL AIR CONDITIONER –

On-vehicle Service

55-8

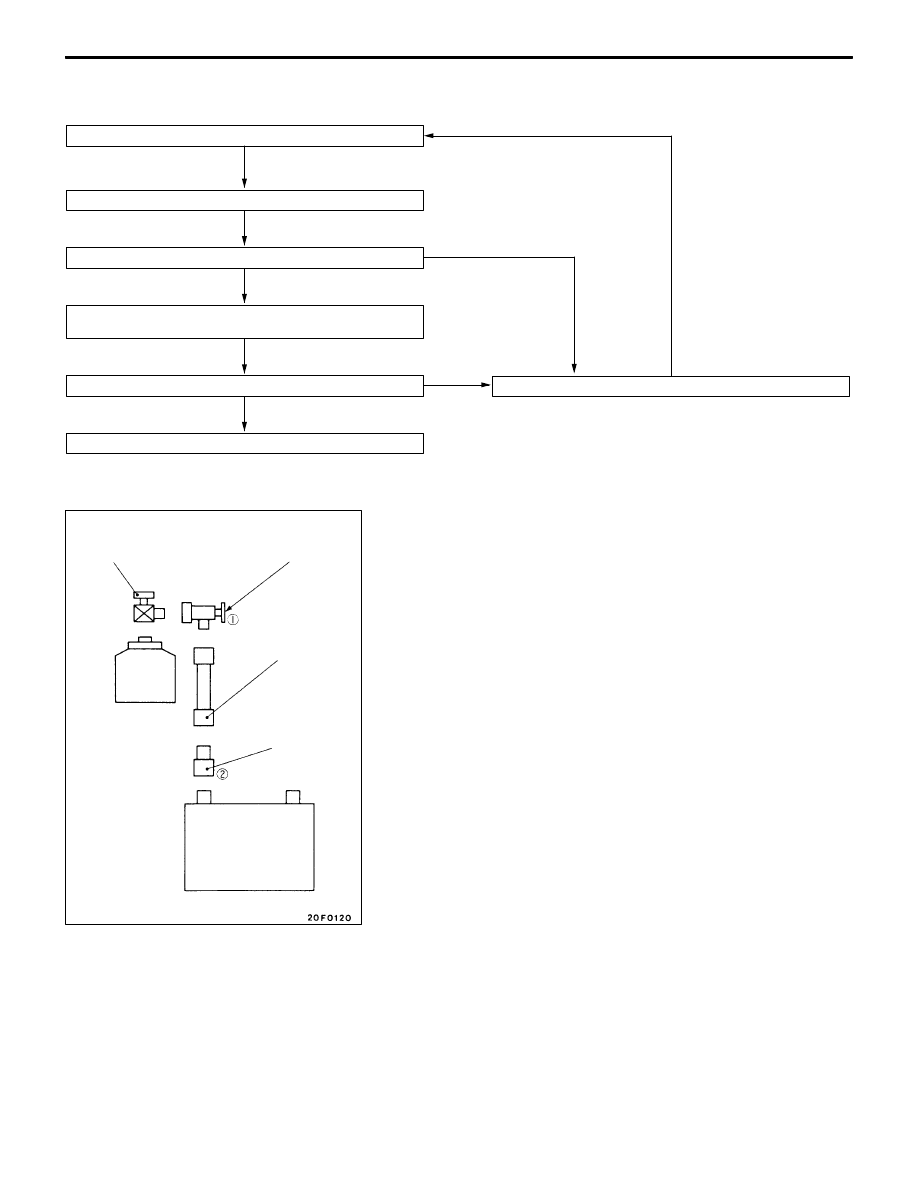

12. Evacuate to a vacuum reading of 100 kPa or higher (takes

approx. 10 minutes).

Start evacuation

Approx. for 10 minutes up to
100 kPa

Stop evacuation

Refrigerant charging

(until saturated pressure is reached)

Wait for 5 minutes

Air-tight check

If faulty

Refrigerant charging

Gas leak check*

If faulty

Retighten connections

*:

If the leaking point cannot be located even after
performing a gas leak check, ask an expert for
checking the system.

13. Return the handle of the adapter valve 1 to the original

position (valve closed), turn off the vacuum pump adapter
switch and leave as it is for 5 minutes.

14. Carry out a leak test. (Good if the negative pressure

does not drop.)

15. With the handle turned back all the way (valve open),

install the charging valve to the service can.

16. Remove the adaptor valve 1 from the gauge manifold

and install the service can.

17. Tighten the handle of the charging valve (valve closed)

and puncture the service can.

18. Turn the handle of the charging valve back (valve open)

and tighten the handle of the adaptor valve 1 (valve open)
to charge the system with refrigerant.

19. If the refrigerant is not drawn in, turn the handle of the

adaptor valve 1 back all the way (valve closed).

20. Check for gas leaks using a leak detector.

Caution
The leak detector for R134a should be used.

21. Start the engine.
22. Operate the A/C and set to the lowest temperature (MAX.

COOL).

23. Fix the engine speed at 1,500 r/min.
24. Tighten the handle of the adaptor valve 1 (valve open)

to charge the required volume of refrigerant.

Caution
If the service can is inverted, liquid refrigerant may
be drawn into the compressor damaging it by liquid
compression. Keep the service can upright to ensure
that refrigerant is charged in gas state.

25. After charging with refrigerant, turn the handle of the

adaptor valve 1 back all the way (valve closed).

26. Tighten the charging valve handle (valve closed).

Charging
valve

Adapter valve
(for low pressure)

Charging hose
(blue)

R134a
Service
can

Quick joint
(for low pressure)

Low-
pressure
service
valve

High-
pressure
service
valve

Air conditioning system

HEATER AND MANUAL AIR CONDITIONER –

On-vehicle Service

55-9

27. Remove the quick joint 2 from the low-pressure service

valve.

28. Remove the service can.

NOTE
If the service can is not emptied completely, keep the
handles of the charging valve and adaptor valve 1 closed
for the next charging.

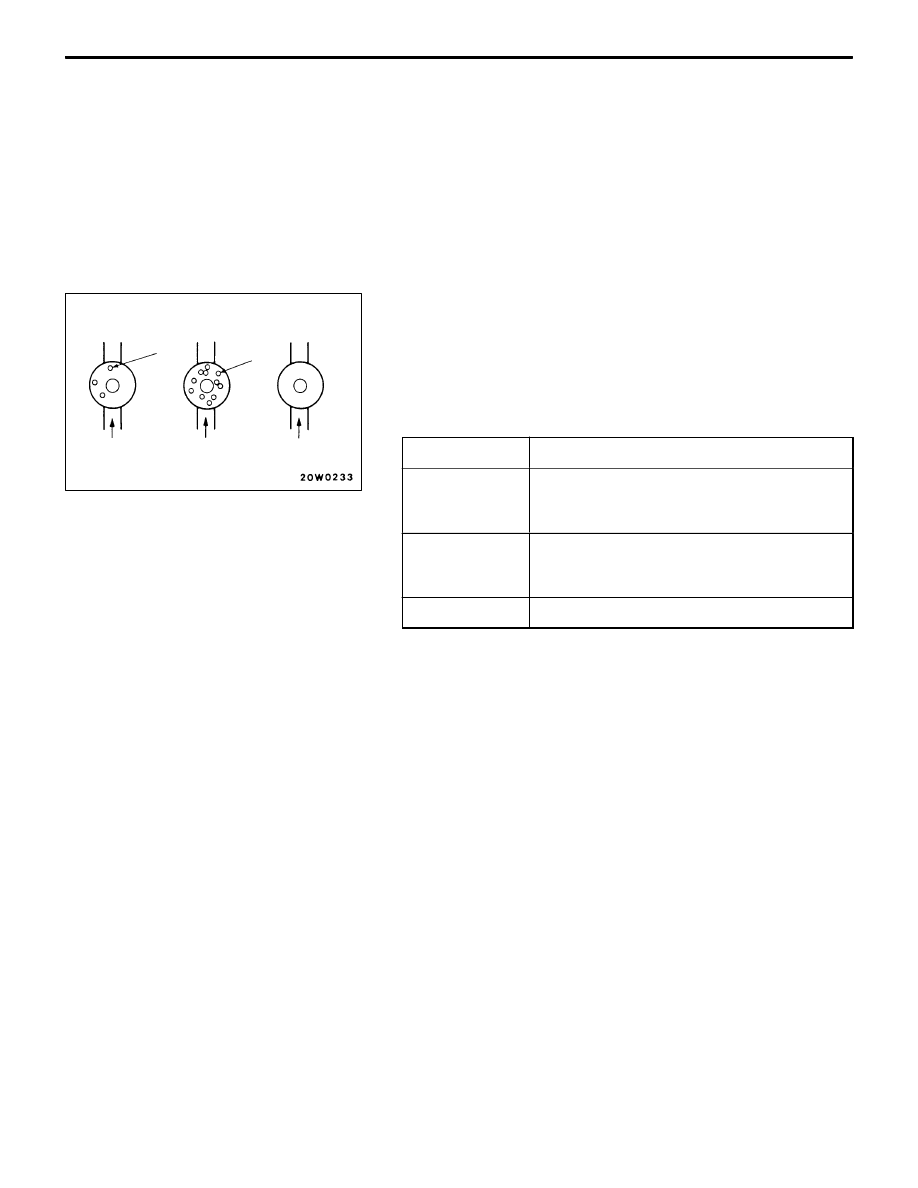

REFRIGERANT CHARGING AMOUNT CHECK

1.

Start the engine.

2.

Operate A/C and set the temperature control to MAX
COOL.

3.

Fix the engine speed at 1,500 r/min.

4.

Check the refrigerant level (bubble generation) through
the sight glass of the receiver.

Item

Condition

Proper level

Bubbles are generated some times. No
bubbles appear when the engine speed is
slightly increased.

Level too low

A large amount of air bubbles are generated. If
it looks milky white, the level is excessively
lowered.

Level too high

No air bubbles appear.

5.

If the level is too low, add the refrigerant, and if the level
is too high, drain the refrigerant as necessary.

Caution
Be sure to work at the low-pressure side service valve.

Proper level

Level too low

Level too high

Bubble

Bubble

HEATER AND MANUAL AIR CONDITIONER –

On-vehicle Service

55-10

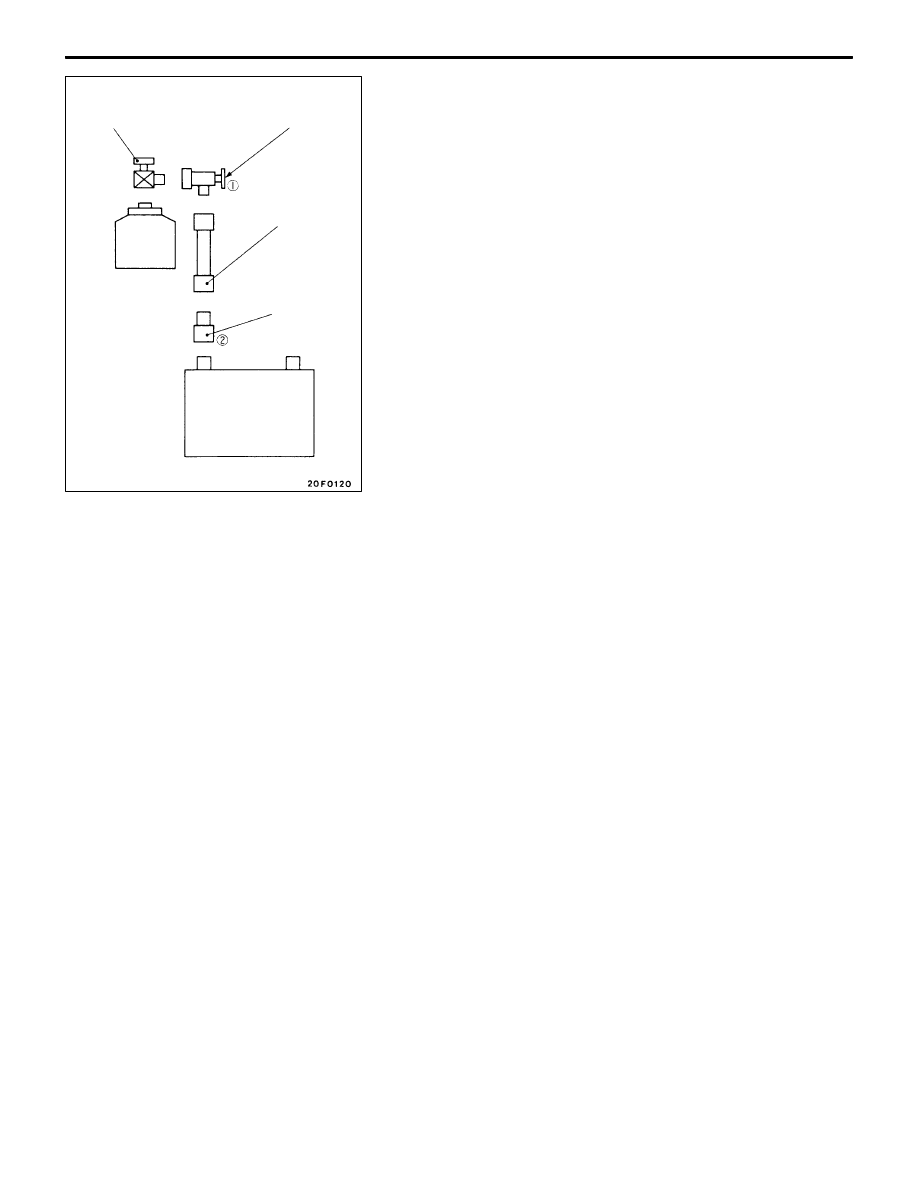

REPLENISHING SYSTEM

1.

Connect the charging hose (blue) to the adapter valve
1 with the handle fully turned back (valve closed).

2.

Connect the charging hose (blue) to the quick joint 2
and to the low pressure service valve.

Caution
Never connect to the high-pressure side since
otherwise the refrigerant could flow back.

3.

Open and close the valve by operating the handle of
the adapter valve 1 to bleed air from inside the charging
hose.

4.

With the handle turned back all the way (valve open),
install the charging valve to the service van.

5.

Tighten the handle of the charging valve (valve closed)
and puncture the service can.

6.

Install the charging valve to the adapter valve 1 and turn
back the handle all the way (valve open).

7.

Start the engine.

8.

Operate the A/C and set to the lowest temperature (MAX.
COOL).

9.

Fix the engine speed at 1,500 r/min.

10. Tighten the handle of the adapter valve 1 (valve open).

Replenish the system with refrigerant while checking the
level through the sight glass.
After charging with refrigerant, turn the handles of the
charging valve and the adapter valve 1 all the way back
(valve closed), then remove the quick joint 2.

NOTE
If the service can is not emptied completely, keep the
handles of the charging valve and adaptor valve closed
for the next charging.

Charging
valve

Adapter valve
(for low pressure)

Charging hose
(blue)

R134a
Service
can

Quick joint
(for low pressure)

Low-
pressure
service
valve

High-
pressure
service
valve

Air conditioning system

HEATER AND MANUAL AIR CONDITIONER –

On-vehicle Service

55-11

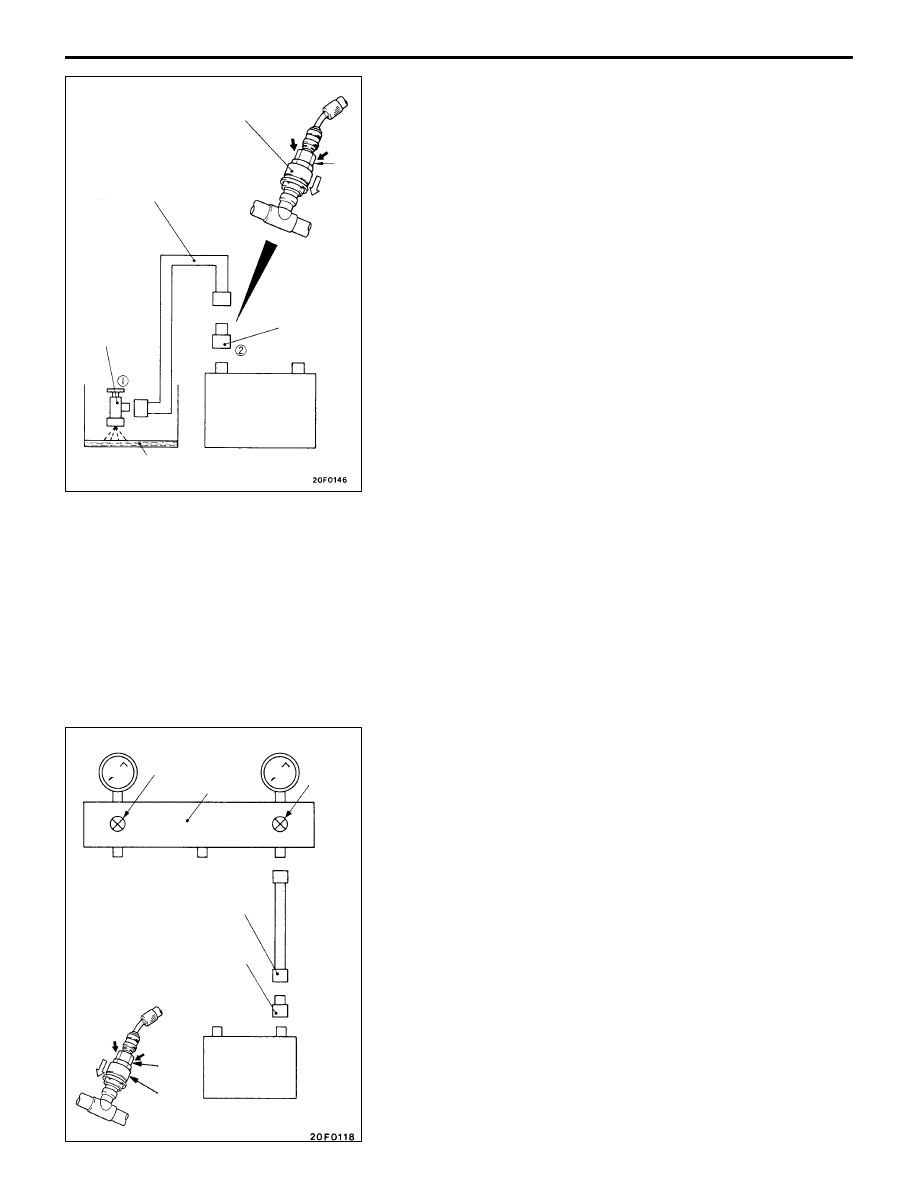

DISCHARGING SYSTEM

1.

Run the engine at an engine speed of 1,200– 1,500 r/min
for approximately 5 minutes with the A/C operating to
return to the oil.

NOTE
Returning the oil will be more effective if it is done while
driving.

2.

Stop the engine.

3.

Connect the charging hose (blue) to the adaptor valve
1 with its handle turned back all the way (valve closed).

4.

Connect the quick joint 2 to the charging hose (blue),
and install the quick joint to the low-pressure service valve.

NOTE
The low-pressure service valve is provided on the suction
pipe.

Caution
(1) To connect the quick joint, press section “A” firmly

against the service valve until a click is heard.

(2) When connecting, run your hand along the hose

while pressing to ensure that there are no bends
in the hose.

5.

Place the adaptor valve 1 inside the container and
discharge the refrigerant by opening the handle gradually
so that oil does not gush out.

NOTE
Any oil remaining in the container should be returned
to the A/C system.

PERFORMANCE TEST

1.

The vehicle to be tested should be placed in a place
that is not exposed to direct sunlight.

2.

The ambient condition should be 16 – 30

°

C in temperature

and 60 – 100 % in relative humidity.

3.

Open all the doors so that the air condition inside the
passenger compartment may be identical to that of the
outside.

4.

With the high-pressure side of the gauge manifold closed,
connect the charging hose (red) to the gauge manifold
high-pressure side. Attach the quick joint for high-pressure
to the charging hose (red) and install it to the high-pressure
service valve on the vehicle side.

NOTE
The high-pressure service valve is found on liquid pipe
B.

Sleeve

Low-
pressure
service
valve

High-
pressure
service
valve

Air conditioning system

Adapter
valve (for low
pressure)

Charging hose
(blue)

Quick joint (for
low pressure)

Air conditioning
compressor oil

A

Low-pressure
valve

Gauge manifold

Charging hose (red)

Quick joint
(for high pressure)

Low-
pressure
service
valve

Sleeve

Low-pressure
gauge

High-pressure
gauge

High-
pressure
service
valve

Air conditioning system

A

High-
pressure
valve
