Mitsubishi Fuso Canter. Manual - part 15

Spec. No. FE85C, 6/9

Cooling System

Pressure type with thermostat, forced circulation by centrifugal pump

Coolant capacity

14.5 lits. (dm

) (3.2 Imp.gals. or 3.8 U.S.gals.)

Fan

P. P. blade

Fuel System

Fuel filter

Full-flow filter with paper element, throwaway type

Injection pump

Bosch type, 4 plungers in line

Governor

All-speed mechanical type

Fuel

Diesel fuel oil (cetane number 45 and more)

Air Cleaner

Dry paper element

Alternator

24 Volt, 50 Amp.

Starter

DC 24Volt, 3.7 kW

Vacuum Pump

Vane type

Displacement

90 cc (5.4 cu.in.)

Engine Dust-proof

Includes dust-proof alternator, crankcase breather and dipstick

Caution Plate

English

STANDARD

BARO. PRESSURE

TEMP. OF INLET AIR

ACCESSORIES*

JIS

JIS D1004

760 mmHg (101.3 kPa), dry

15.0 °C

Fan**, Air cleaner

Fan**, Intake and

DIN

DIN 70020

760 mmHg (101.3 kPa)

20.0 °C

exhaust system of vehicle***

SAE, Gross

SAE J1349

742.6 mmHg (99 kPa), dry

25.0 °C

──

Engine Model

MITSUBISHI FUSO 4D33-4A

Type

4 stroke-cycle, water-cooled direct injection diesel engine

No. of Cylinders

4 in line

Bore x Stroke

108 mm x 115 mm (4.25 in. x 4.53 in. )

Piston Displacement

4.214 L (257.1 cu.in.)

Compression Ratio

18 : 1

BASIC ENGINE SPECIFICATIONS

CHASSIS MODEL

Max. Output

96 kW (130 PS) (JIS)
92 kW (125 PS) (DIN)
90 kW (121 hp) (SAE, Gross)
at 3,200 rpm (53.3 r/s) (1)

FE85C-Z

304 N.m (31.0 kgf.m, 224 lb.ft) (JIS)
299 N.m (30.5 kgf.m, 221 lb.ft) (DIN)

Max. Torque

287 N.m (29.3 kgf.m, 212 lb.ft) (SAE, Gross)

at 1,800 rpm (30.0 r/s)

Weight

335 kg (739 lb) in dry

Oil System

Oil filter

Full-flow filter with paper element, throwaway type

Oil cooler

Water-cooled

Oil pan capacity

9 lits. (dm

) (1.98 Imp.gals. or 2.38 U.S.gals.)

Recommended oil grade

API service classification CC or CD

ANNOTATION
(1) Max. speed of 4D33-4A engine is 3,400 rpm (56.7 r/s).

REMARKS
(1) Output and torque represent performance of run

-in engine operating under the standard ambient conditions and

accessories specified below.

(2) Rated output is guaranteed within 5% under the standard ambient conditions.

* Other than built-in accessories essential to engine operation.

** 4D33-4A, 430 mm dia. 8 blades, P. P., fan ratio 1.27

*** Output (DIN) is based on the assumptions that max. inlet restriction is 350 mm H

O (3.4 kPa) and max. exhaust back

pressure is 150 mmHg (19.9 kPa).

Spec. No. FE85C, 7/9

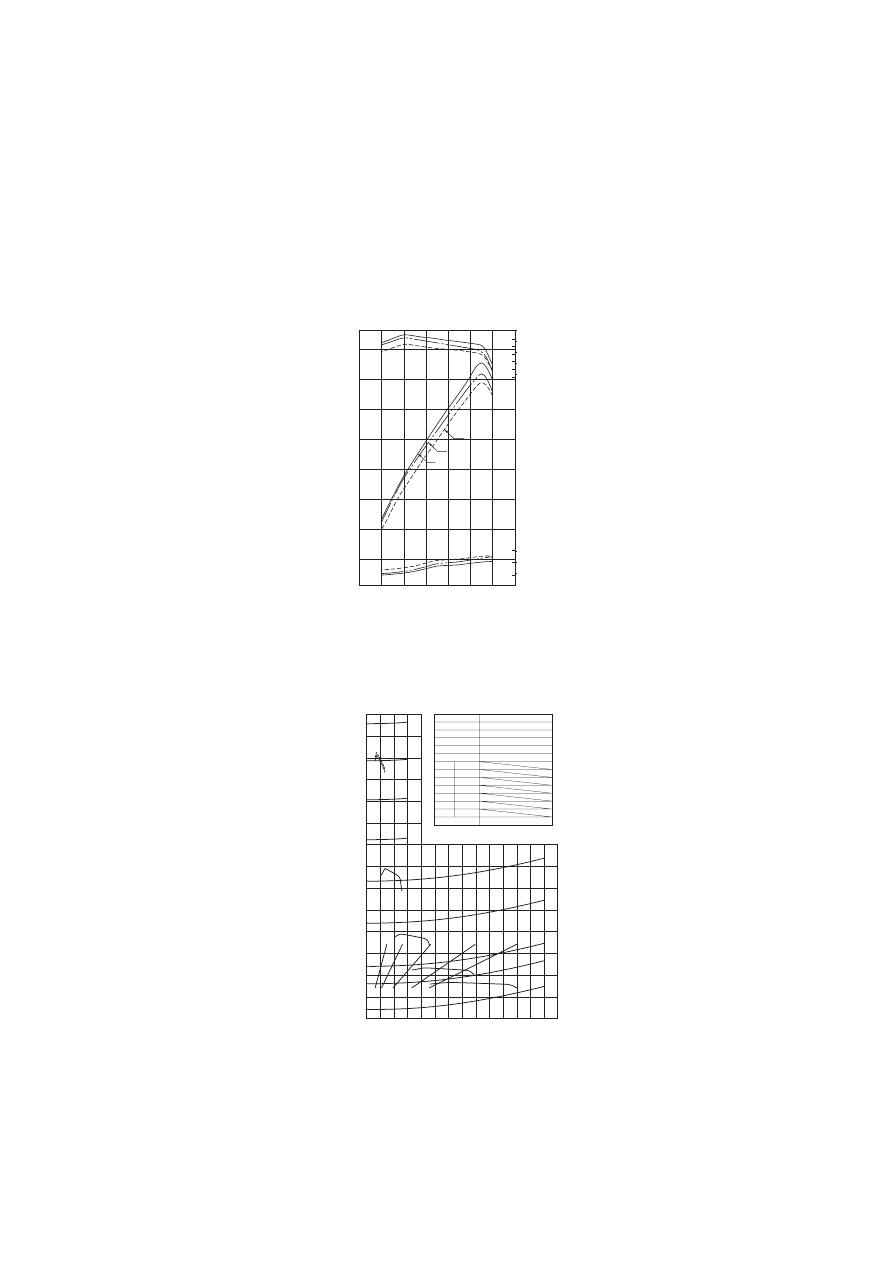

ENGINE PERFORMANCE CURVES

VEHICLE PERFORMANCE CURVES

1400

1800

2200

2600

3000

3400

ENGINE SPEED (rpm)

BRAKE SPECIFIC FUEL CONSUMPTION

TORQUE

SAE

DIN

JIS

B. S. F. C

OUTPUT

kW(PS): JIS & DIN

kW(hp): SAE, Gross

g/kW·h

(g/PS·h)

272

(200)

245

(180)

218

(160)

N·m

(kgf·m)

lb·ft 314

(32)
294

(30)
275

(28)
255

(26)
235

(24)

220
210
200
190
180
170

100

(136)

(122)

(109)

(95)

(82)

(68)

(54)

(41)

lb/hp·h

0.45

0.40

0.35

2800

2600

2400

2200

2000

1800

1600

1400

1200

1000

800

600

400

200

90 100 110 120 130

1000

ENGINE SPEED (rpm)

RUNNING RESISTANCE AND TRACTION (kg)

ENGINE MODEL
MAX

OUTPUT

MAX

TORQUE

GROSS WEIGHT
TIRE SIZE
TIRE RADIUS

4D33-4A

96kW (130PS)/3200rpm

304N·m (31.0 kgf·m)/1800rpm

8000kg

7.50-16-14

0.383m

T/M

1st

2nd

3rd
4th
5th

Rev.

G/RATIO

5.380
3.028
1.700
1.000
0.722
5.380

FINAL G/RATIO

6.166

20%

25%

30%

35%

15%

10%

R 1

VEHICLE SPEED (km/h)

MITSUBISHI FUSO 4D33-4A DIESEL ENGINE

FE85CGZ

／FE85CHZ

Spec. No. FE85C, 8/9

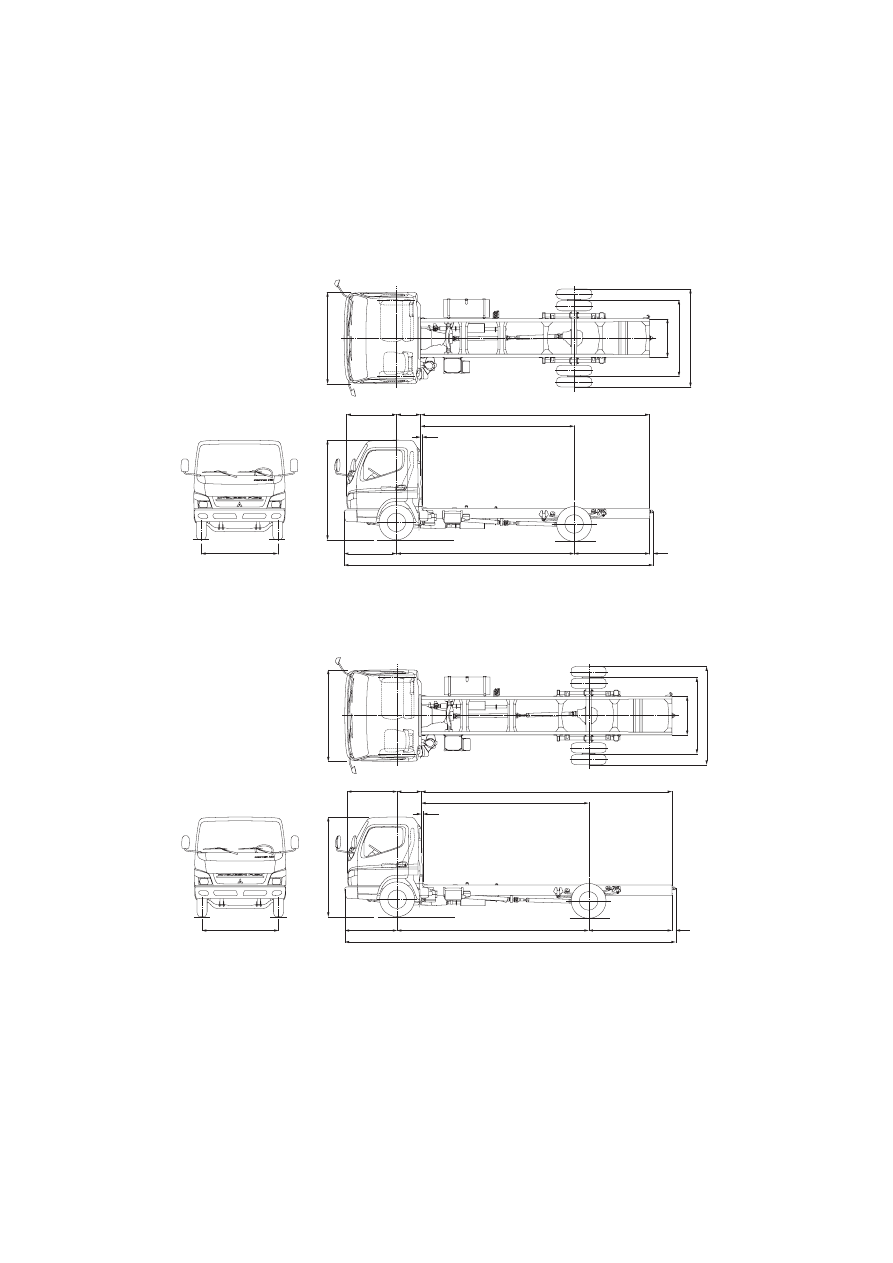

CHASSIS LAYOUT

FE85CGZL

FE85CHZL

NOTE :
These drawings show left hand drive model. For right hand drive model, exterior rear view mirror and windshield wiper on
left and right sides are symmetric with respect to the chassis center line.

7.50-16-14PR

1145

2220 (APPROX)

3870

1640

6735

1995

840

1660

2135

1665

1088

525

4985

3345

1995

840

1660

2135

1665

7.50-16-14PR

1145

2220 (APPROX)

4170

1815

7210

1088

525

5460

3645

Spec. No. FE85C, 9/9

FE85C-Z SERIES OPTIONAL EQUIPMENT

CAB

INTERIOR

AM radio

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and one speaker

AM/FM radio, stereo

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and two speakers

AM/FM radio & cassette stereo

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and cassette player with two speakers

Armrest for driver's seat

Adjustable type

Cigarette lighter

Electric type

Door pockets

Driver and passenger side

Fabric seat

Deluxe type seat

Floor console

Fitted between driver seat and passenger seat

Floor mat

Carpet type. Only for R.H.D. model

Full trim

Side trim, rear pillar trim & rear panel trim. Installing "Seat belts" is necessary

Interior rear view mirror

Flat type

Large room lamp

10W x 1

Overhead shelf

Installed on right side

Seat back tray and

Tray on window side and center passenger seat back,

back panel console

console on back panel

Seat belts

Driver and window side passenger

…

3 point type with ELR

Center

…

2 point type

Sun visor

For window side passenger

Urethane foam steering wheel

Surface material: Urethane foam rubber

EXTERIOR

Fog lamps

White (35W x 2), fitted to front bumper

Under view mirror

Opposite to driver side

INSTRUMENT

Air conditioner*

4.18 kW (3,600 kcal/h, 15,070 kJ/h), manual control type, includes heater
and defroster

Fire extinguisher

Capacity: 1.0 kg
Can't be installed with floor console

Heater and defroster

4.47 kW (3,850 kcal/h, 16,116 kJ/h), manual control type

Power windows

Driver and passenger side

Tachometer

Electric driven type

2-DIN box with lid

Total 5-DIN space is provided

CHASSIS

Fuel tank, spare 70 lits.(dm

) with key Adds to main fuel tank 100 lits. (dm

)

Heavy duty battery

80 Ah (288 kC) at 20 hr rate (95D31L) x 2
64 Ah (230 kC) at 5 hr rate (95D31L) x 2

Lockable fuel tank cap

For protection from fuel thief

Radial tire

With tube (Including spare tire carrier & spare tire)

Reverse warning buzzer

Synchronized with reverse gear of transmission

Spare tire
Spare tire carrier
Standard tool set
Tool box

Fitted to side frame

Tool box with padlock

Fitted to side frame
Output capacity: 147 N·m (15 kgf·m,108 Ib·ft)/2,000 rpm (33.3 r/s)

Transmission P. T. O.

Output speed: 0.683 x Engine speed
Rotation: Opposite engine
Control: Cable remote control

ENGINE

Altitude fuel compensator

Combine with fuel injection pump to reduce black-smoke at high altitude
operation

Glow plugs with indicator

To assist easy engine starting in cold season or area

Fuel/Oil filter

Center bolt type with replaceable paper element

* Engine idling up kit is mandatory, in case of installing air conditioner locally.

ANNOTATION
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
