Spec. No. FE85C, 2/9

MITSUBISHI FUSO TRUCK CHASSIS
CANTER
FE85C-Z SERIES

TYPE:  FORWARD CONTROL, TILT CAB
DRIVE SYSTEM:  4 x 2, CREW:  3
ENGINE:  4D33-4A, DIESEL, 96 kW (130 PS)/3,200 rpm
G. V. W. :  8,000 kg (17,635 lb), TIRE:  7.50-16-14PR

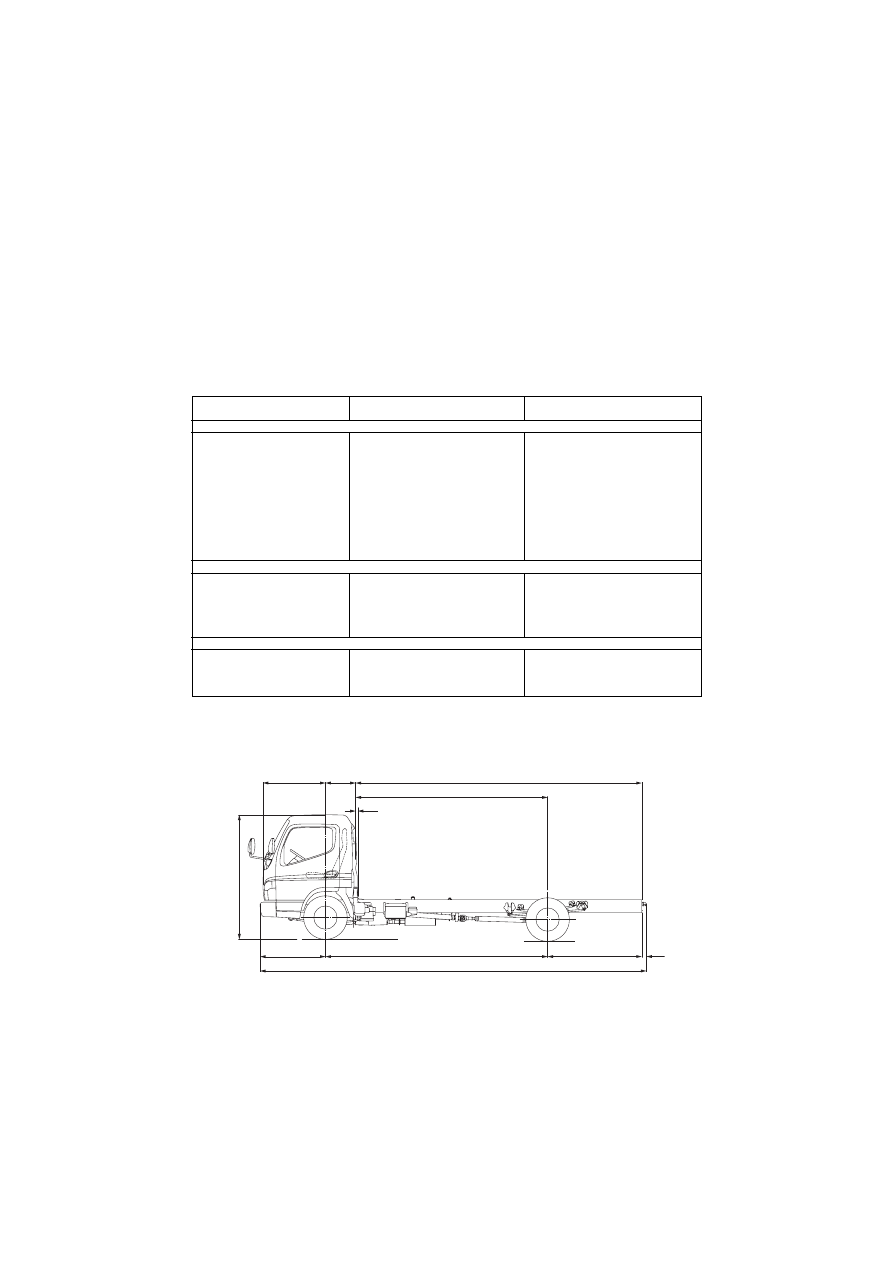

CHASSIS DIMENSIONS, WEIGHTS AND PERFORMANCE

MODEL

Dimensions        mm (in.)

Weights

kg (lb)

Calculated Performance

Wheelbase
Overall length
Overall width
Overall height, approx.
Tread, front
Tread, rear
Ground clearance, approx.
Cab to rear axle
Cab to end of frame
Frame width
Front overhang
Rear overhang

R . H . D .

L . H . D .

ANNOTATION
(1) Kerb weights shown are subject to 2.5% variation to allow for production tolerances. Kerb weights include weight of oil,

fuel, coolant but exclude spare tire carrier & bracket, spare tire & disc wheel and standard tool set.

Kerb weight (1)

front
rear

Max. G. V. W.

front
rear

Max. speed        km/h (mph)
Max. gradeability        (tan

θ ) %

(with Max. G. V. W.)

Min. turning radius        m (ft)

FE85CGZR

FE85CGZL

FE85CHZR

FE85CHZL

3,870 (152.4)
6,735 (265.2)
2,135 (  84.1)
2,220 (  87.4)
1,665 (  65.6)
1,660 (  65.4)

210 (    8.3)

3,345 (131.7)
4,985 (196.3)

840 (  33.1)

1,145 (  45.1)
1,640 (  64.6)

4,170 (164.2)
7,210 (283.9)
2,135 (  84.1)
2,220 (  87.4)
1,665 (  65.6)
1,660 (  65.4)

210 (    8.3)

3,645 (143.5)
5,460 (215.0)

840 (  33.1)

1,145 (  45.1)
1,815 (  71.5)

2,410 (  5,315)
1,605 (  3,540)

805 (  1,775)

8,000 (17,635)
3,020 (  6,660)
5,760 (12,700)

2,425 (  5,345)
1,620 (  3,570)

805 (  1,775)

8,000 (17,635)
3,020 (  6,660)
5,760 (12,700)

110 (68.4)

31.0

6.9 (22.6)

110 (68.4)

31.0

7.3 (24.0)

7.50-16-14PR

1145

2220 (APPROX)

3870

1640

6735

80

1088

525

4985

3345

38

Spec. No. FE85C, 3/9

Clutch

BASIC CHASSIS SPECIFICATIONS

SERIES

Model

C4W30

Type

Hydraulic control, diaphragm spring, single dry plate

Facing material

Woven (asbestos free)

Facing outside dia.

300 mm (11. 8 in.)

Facing thickness

4.0 mm  (0.15 in.)

Total frictional area

423 sq.cm x 2 (65.6 sq.in. x 2)

FE85C-Z

Model

M035S5

Type

5 forward and 1 reverse speed, 2nd to 5th synchromesh, 1st and Rev. constantmesh gears

Gear ratios

5.380-3.028-1.700-1.000-0.722, Rev. 5.380

Control

In-dash gear shift, mechanical remote control

Recommended oil grade

API GL–3, SAE80

Transmission

Model

P3

Size

Pipe outside dia. 82.6 mm (3.25 in.), Thickness 2.3 mm (0.09 in.)

Type

Tubular, forged steel ends with center bearing

Joints

Universal joints with needle roller bearing

Propeller Shaft

Model

R040T

Type

Full floating type

Capacity

6,650 kg (14,660 lb)

Final reduction gear

Single reduction, hypoid gear

Model

D040H

Ratio

6.166

Recommended oil grade

API GL-5, SAE90

Rear Axle

Model

F350T

Type

Reverse Elliot, "

Ι" beam

Capacity

3,100 kg (6,835 lb)

Front Axle

Tire size

7.50-16-14PR

Tread pattern

Rib

Disc wheel size

Type-offset-thickness

16 x 6.00GS-127-9t, 6 studs, 2 pieces

Tires and Disc Wheels

Single front, dual rear

Type

Ball-nut type with integral type hydraulic power booster.

Telescopic and tilt steering column with steering lock

Gear ratio

22.7 : 1

Steering wheel dia

400 mm (15.7 in.)

Steering System

Actuation

Hydraulic with oil servo assistance, dual circuit

Size

Drum dia. x Lining width x Lining thickness

Front

320 mm x 110 mm x 11 mm (12.6 in. x 4.33 in. x 0.43 in.)

Rear

320 mm x 110 mm x 11 mm (12.6 in. x 4.33 in. x 0.43 in.)

Total lining area

2,210 sq.cm (342.5 sq.in.)

Vacuum reservoir

-

Service Brake

Actuation

Internal expanding type on propeller shaft at rear of transmission

Total lining area

186 sq.cm (28.8 sq.in.)

Exhaust Brake

Vacuum operated, butterfly valve type

Parking Brake

Size

Drum dia. x Lining width x Lining thickness

190 mm x 45 mm x 4 mm (7.48 in. x 1.77 in. x 0.16 in.)

Spec. No. FE85C, 4/9

Suspensions

Electrical Equipment

Head lamps                                                                      Unique rectanguler 2 lamps, halogen semi sealed

Low beam

70W

-2 : White

High beam

75W

-2 : White

Position

5W

-2 : White

Front combination lamps

Turn signal/Hazard

21W

-2 : Amber

Rear combination lamps

Turn signal/Hazard

21W

-2 : Amber

Tail

5W

-2 : Red

Stop

21W

-2 : Red

Back-up

21W

-2 : White

Licence plate lamp

10W

-1 : White

Instruments

Meter cluster

Fixed type

Meters

¡Speedometer (km/h) with odometer and trip meter ¡Fuel gauge ¡Water temp. gauge(˚C)

Warning lamps and
indicators

¡Turn signal/hazard

¡High beam/passing

¡Oil pressure/filter blockage

¡Vacuum pressure

¡Exhaust brake

¡Brake fluid level/parking brake

¡Alternator

BASIC CHASSIS SPECIFICATIONS (continued)

SERIES

Springs

Type

Semi-elliptic, laminated leaf springs

Rating, ground

Front

1,400 kg (3,086 lb ), each

Rear

3,100 kg (6,800 lb ), each

Dimensions

Span x Width x Thickness

-No. of leaves

Front

1,200 mm x 70 mm x 11 mm

-5 (47.2 in. x 2.76 in. x 0.43 in.)

Radiator

Corrugated fin type and condense tank

Rows of tubes

2

Core size

Height x Width

525 mm x 518 mm (20.7 in. x 20.4 in.)

Fan

Outside dia. 430 mm (16.9 in.), 8 blade, P. P. with thermomodulating fan coupling

Ratio

1.27

Cooling System

Shock absorbers

Hydraulic double acting telescopic type on front axle

FE85C-Z

Type

Ladder type, channel section with crossmembers

Dimensions

Depth x Flange x Thickness

Main side rails

226 mm x 70 mm x 6.0 mm (8.90 in. x 2.76 in. x 0.23 in.)

Material

Rolled high tensile steel

Water separator

Visible type

Exhaust System

Conventional (horizontal) type muffler

Tail pipe

Drop tail type, blowing to chassis rearward

Air Intake System

Snorkel type at rear of cab (left side)

Air cleaner position

At rear of cab (left side)

Electrical System

24 Volt, regulated control

Batteries

12 Volt x 2,  65 Ah (234 kC) at 20 hr rate (75D26L)

12 Volt x 2,

52 Ah (187 kC) at   5 hr rate (75D26L)

Frame

Fuel tank

100 lits. (dm

3

) (22.0 Imp.gals. or 26.4 U.S.gals.)

Fuel System

Rear

Horn

Single, electric type

Main

Helper

0.39 in.
0.47 in.
0.51 in.
0.43 in.

10 mm

-1

12 mm

-1

13 mm

-1

11 mm

-2

(35.4 in. x 2.76 in. x             )

900 mm x 70 mm x

0.43 in.
0.55 in.
0.43 in.

11 mm

-1

14 mm

-2

11 mm

-1

(51.2 in. x 2.76 in. x             )

1,300 mm x 70 mm x

Spec. No. FE85C, 5/9

SERIES

¡2 access handles

¡2 combination switches

¡2 door switches

¡2 exterior rear view mirrors

¡A4 document box

¡Access step, each side

¡Armrest (each door)

¡Ashtray (each door)

¡Box with lid

¡Card holder

¡Coat hook

¡Cup holder

¡Driver's sun visor

¡Duplicate key of starter,

fuel stop and door

¡Engine idling control

button

¡Floor vinyl mat

¡Forced ventilator

¡Front emblem

"MITSUBISHI FUSO" &
"CANTER"

¡Grip, for cab tilt/down

(assistseat side)

¡Insulator under cab floor

¡Multi pocket

¡Room lamp (10W x 1)

¡Ticket holder

¡Tray (instrument panel)

Paint

Finish coat, Natural White

Chassis Equipment

¡One hook each at front and rear ¡Tools for changing tire including 4 ton hydraulic jack

11

Caution Plate

English

Measurement

Metric

Cab

BASIC CHASSIS SPECIFICATIONS (continued)

Mounting

Fixed type, isolated 4 points

Construction

Tilt type with torsion bar, all steel welded construction

Windshield

One piece type of laminated glass

Windshield wipers

Dual blades, high & low speeds and intermittent  wiping with washer and water tank

3 lits. (dm

3

) (0.66 Imp.gals. or 0.79 U.S.gals.)

Driver's seat

High back type (seat pan and urethane foam rubber cushioned),

20-stage reclining, 20-stage sliding, vinyl leather

FE85C-Z

Passenger seat

Appointments

Center: Low back bench type (spring and urethane foam rubber cushioned), vinyl leather
Window side: High back type combined with center seat, 14-stage reclining
