Mitsubishi Fuso Canter. Manual - part 13

Spec. No. FE85P, 7/9

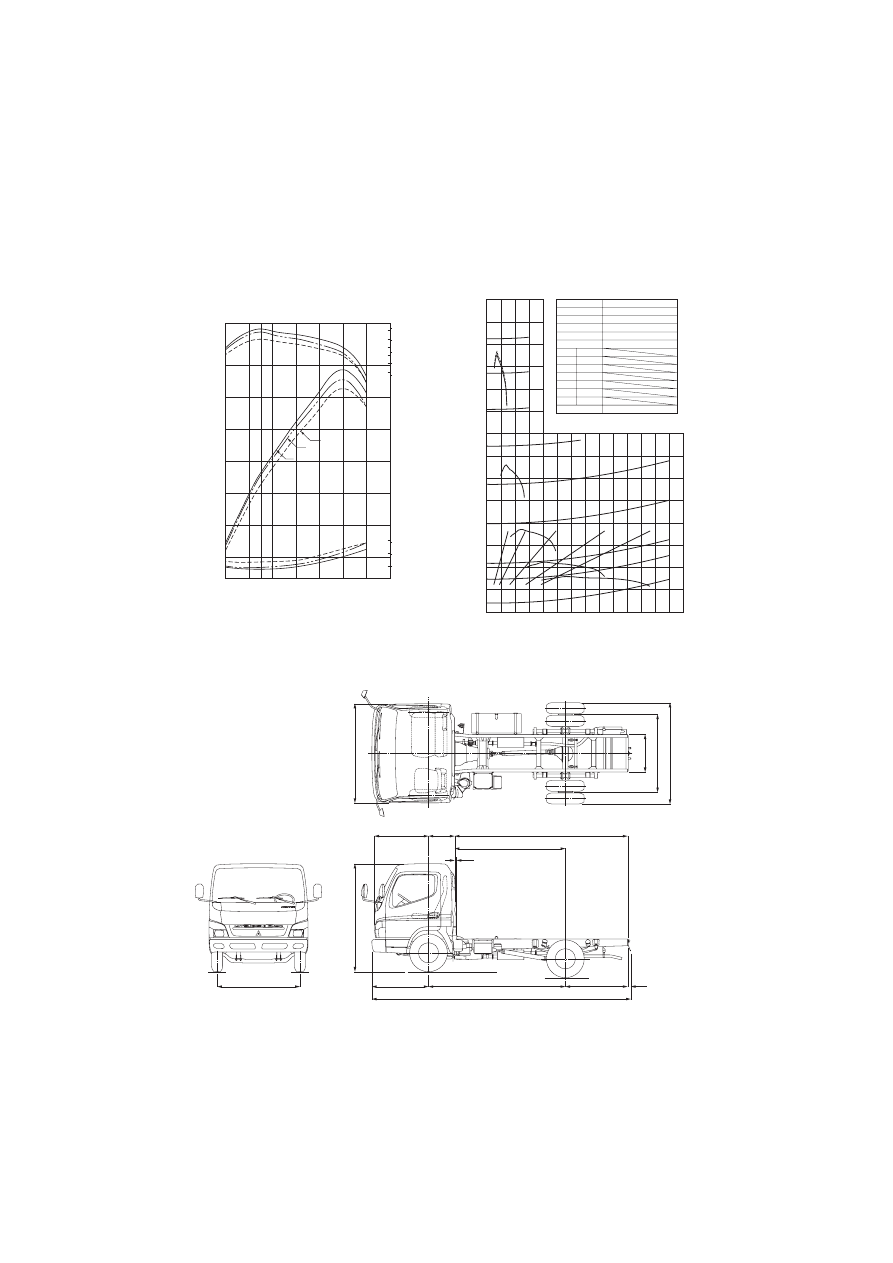

ENGINE PERFORMANCE CURVES

VEHICLE PERFORMANCE CURVES

2800

2600

2400

2200

2000

1800

1600

1400

1200

1000

800

600

400

200

90 100 110 120 130

1000

VEHICLE SPEED (km/h)

ENGINE SPEED (rpm)

RUNNING RESISTANCE AND TRACTION (kg)

ENGINE MODEL
MAX

OUTPUT

MAX

TORQUE

GROSS WEIGHT
TIRE SIZE
TIRE RADIUS

4D34-2A

89kW (120PS)/3200rpm

295N·m (30.0 kgf·m)/1800rpm

7200kg

7.50-16-10

0.383m

T/M

1st

2nd

3rd
4th
5th

Rev.

G/RATIO

5.380
3.028
1.700
1.000
0.722
5.380

FINAL G/RATIO

6.166

20%

25%

30%

35%

15%

10%

R 1

1200

1800

1600

2000

ENGINE SPEED (rpm)

B. S. F. C

OUTPUT

kW(PS): JIS & DIN

kW(hp): SAE, Gross

BRAKE SPECIFIC FUEL CONSUMPTION

g/kW·h

(g/PS·h)

lb/hp·h

N·m

(kgf·m)

lb·ft

TORQUE

2400

2800

3200

3600

(109)

(95)

(82)

(68)

(54)

(41)

272

(200)

0.45

0.40

0.35

245

(180)

218

(160)

294

(30)

215
205
195
185
175
165

275

(28)
255

(26)

235

(24)
216

(22)

SAE

DIN

JIS

(122)

CHASSIS LAYOUT

FE85PC6L

MITSUBISHI FUSO 4D34-2A DIESEL ENGINE

FE85PC6

／FE85PE6／FE85PG6

1995

753

1560

2035

1665

7.50-16-10PR

1145

2750

1265

5215

2210 (APPROX)

1088

525

3490

2225

Spec. No. FE85P, 8/9

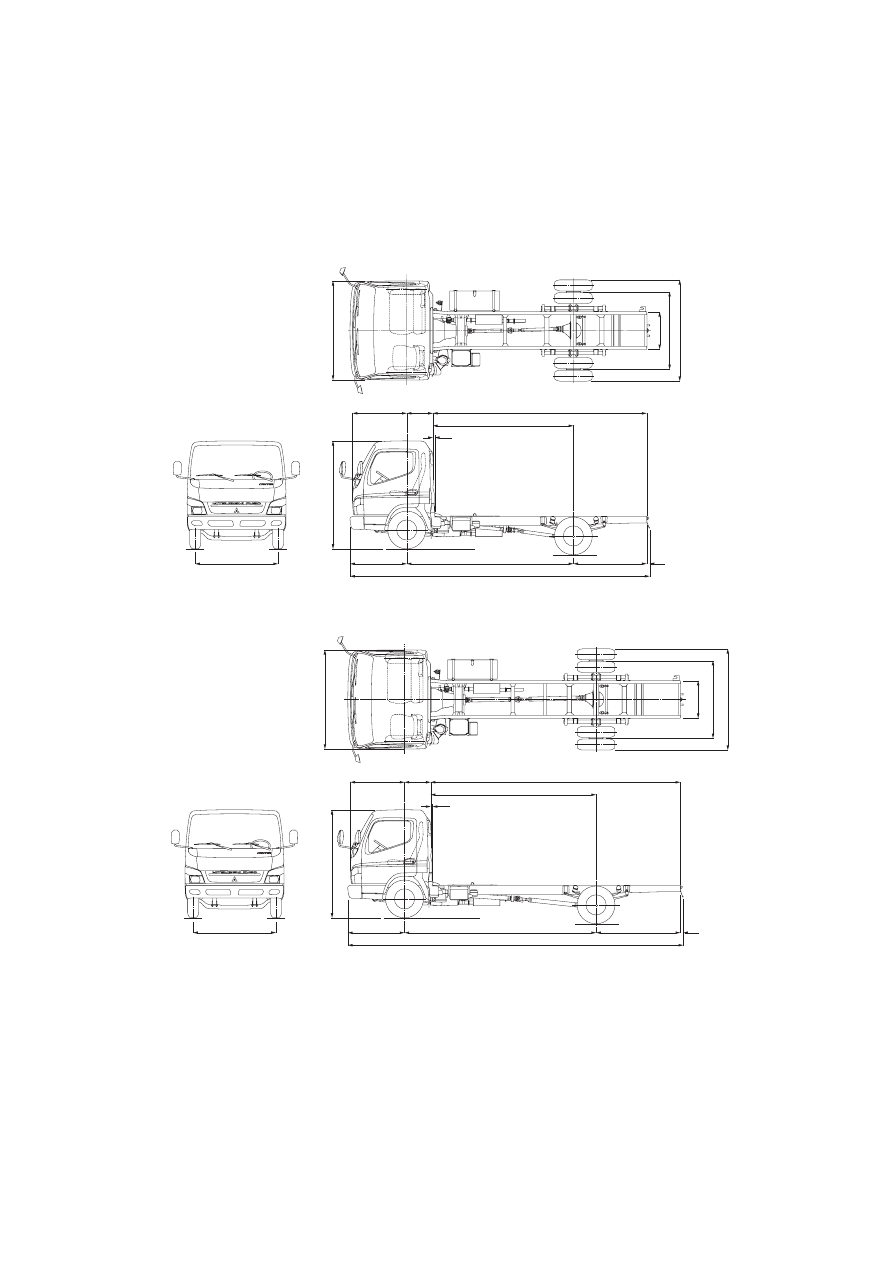

CHASSIS LAYOUT

FE85PE6L

NOTE :
These drawings show left hand drive model. For right hand drive model, exterior rear view mirror and windshield wiper on
left and right sides are symmetric with respect to the chassis center line.

FE85PG6L

1995

753

1560

2035

1665

7.50-16-10PR

1145

3350

1480

6030

2210 (APPROX)

1088

525

4305

2825

FE85PG6L

7.50-16-10PR

1145

3850

6750

1700

2210 (APPROX)

1995

753

1560

2035

1665

1088

525

5025

3325

Spec. No. FE85P, 9/9

FE85P SERIES OPTIONAL EQUIPMENT

CAB

INTERIOR

AM radio

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and one speaker

AM/FM radio, stereo

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and two speakers

AM/FM radio & cassette stereo

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and cassette player with two speakers

Armrest for driver's seat

Adjustable type

Cigarette lighter

Electric type

Door pockets

Driver and passenger side

Fabric seat

Deluxe type seat

Floor console

Fitted between driver seat and passenger seat

Floor mat

Carpet type. Only for R.H.D. model

Full trim

Side trim, rear pillar trim & rear panel trim. Installing "Seat belt" is necessary

Interior rear view mirror

Flat type

Large room lamp

10W x 1

Overhead shelf

Installed on right side

Seat back tray and

Tray on window side and center passenger seat back,

back panel console

console on back panel

Seat belts

Driver and window side passenger

…

3 point type with ELR

Center

…

2 point type

Sun visor

For window side passenger

Urethane foam steering wheel

Surface material: Urethane foam rubber

EXTERIOR

Fog lamps

White (35W x 2), fitted to front bumper

Under view mirror

Opposite to driver side

INSTRUMENT

Air conditioner*

4.18 kW (3,600 kcal/h, 15,070 kJ/h), manual control type, includes heater
and defroster

Fire extinguisher

Capacity: 1.0 kg
Can't be installed with floor console

Heater and defroster

4.47 kW (3,850 kcal/h, 16,116 kJ/h), manual control type

Power windows

Driver and passenger side

Tachometer

Electric driven type

2-DIN box with lid

Total 5-DIN space is provided

CHASSIS

Fuel tank, spare 70 lits.(dm

) with key Adds to main fuel tank 100 lits. (dm

), only for FE85PE, FE85PG

Heavy duty battery

80 Ah (288 kC ) at 20 hr rate (95D31L) x 2
64 Ah (230 kC ) at 5 hr rate (95D31L) x 2

Lockable fuel tank cap

For protection from fuel thief

Power steering

Integral type hydraulic power booster

Radial tire

With tube (Including spare tire carrier & spare tire )

Reverse warning buzzer

Synchronized with reverse gear of transmission

Spare tire
Spare tire carrier
Stabilizer front
Standard tool set
Tool box

Fitted to side frame

Tool box with padlock

Fitted to side frame
Output capacity: 147 N·m (15 kgf·m, 108 Ib·ft)/2,000 rpm (33.3 r/s )

Transmission P.T.O.

Output speed: 0.683 x Engine speed
Rotation: Opposite engine
Control: Cable remote control

ENGINE

Altitude fuel compensator

Combine with fuel injection pump to reduce black-smoke at high altitude
operation

Glow plugs with indicator

To assist easy engine starting in cold season or area

Fuel/Oil filter

Center bolt type with replaceable paper element

* Engine idling up kit is mandatory, in case of installing air conditioner locally.

ANNOTATION
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Spec. No. FE85C, 1/9

1. Model of Chassis

MODEL

2. Body applications classified by model of chassis (

¡: recommendable)

MODEL

TYPE

Cargo Truck

Dump Truck

Aluminum Van

Refrigerated Van

Cargo with Crane

FE85CGZ

FE85CHZ

FE85CGZ

FE85CHZ

G.V.W.

kg (Ib)

(2)(3)

8,000 (17,635)

ENGINE
(Model)

4D33-4A

WHEELBASE
mm (in.)

3,870 (152.4)

4,170 (164.2)

ANNOTATION
(1) These models are primarily designed for rigid application.

ANNOTATIONS
(1) These models must not be used for dump or mixer applications.
(2) Transmission P.T.O. and its control device are available as optional equipment.
(3) Suitable chassis reinforcement must be added for the cargo with crane.

(1)
