Mitsubishi Fuso Canter. Manual - part 11

Spec. No. FE83/84, 12/13

FE83P/84P SERIES OPTIONAL EQUIPMENT (1

／2)

CAB

INTERIOR

AM radio

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and one speaker

AM/FM radio, stereo

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and two speakers

AM/FM radio & cassette stereo

DIN size radio fitted to instrument panel, electronic tuning type,
with digital clock and cassette player with two speakers

Armrest for driver's seat

Adjustable type

Cigarette lighter

Electric type

Door pockets

Driver and passenger side

Fabric seat

Deluxe type seat

Floor console

Fitted between driver seat and passenger seat, not available for standard

double cab

Floor mat

Carpet type. Only for R.H.D. model

Full trim

Side trim, rear pillar trim & rear panel trim. Installing "Seat belt" is necessary

Interior rear view mirror

Flat type

Large room lamp

10W x 1

Overhead shelf

Installed on right side

Seat back tray and

Tray on window side and center passenger seat back, console on back panel.

back panel console

Not available for double cab

Seat belts

Driver and window side passenger

… 3 point type with ELR

Center

… 2 point type

Sun visor

For window side passenger

Urethane foam steering wheel

Surface material: Urethane foam rubber

EXTERIOR

Fog lamps

White (35W x 2), fitted to front bumper

Under view mirror

Opposite to driver side

INSTRUMENT

Air conditioner

4.18 kW (3,600 kcal/h, 15,070 kJ/h), manual control type, includes heater
and defroster

Dual air conditioner

Includes heater and defroster. Only for L.H.D. model of double cab

Fire extinguisher

Capacity: 1.0 kg

Can't be installed with floor console

Heater and defroster

4.47 kW (3,850 kcal

/h, 16,116 kJ/h), manual control type

Power windows

Driver and passenger side. Front windows only on double cab

Tachometer

Electric driven type

2-DIN box with lid

Total 5-DIN space is provided

Spec. No. FE83/84, 13/13

CHASSIS

Exhaust brake

Vacuum operated, butterfly valve type, standard for FE84P series

Fuel tank, spare 70 lits. (dm

) with key Adds to main fuel tank 100 lits. (dm

), only for FE83PE, FE84PE

80 Ah (288 kC) at 20 hr rate (95D31L) x 2

64 Ah (230 kC) at 5 hr rate (95D31L) x 2

Lockable fuel tank cap

For protection from fuel thief

Power steering

Integral type hydraulic power booster

Radial tire

With tube (Including spare tire carrier & spare tire)

Reverse warning buzzer

Synchronized with reverse gear of transmission

Spare tire

Spare tire carrier

Stabilizer, front

Standard tool set

Glow plugs with indicator

To assist easy engine starting in cold season or area

Fuel/Oil filter

Center bolt type with replaceable paper element

Heavy duty battery

Heavy duty spring, front

10 mm-2

0.39 in.

1,200 mm x 70 mm x

( 47.2 in. x 2.76 in. x

)

11 mm-3

0.43 in.

Ground rating: 1,300 kg (2,865 lb)

Heavy duty spring, rear
(For FE83PC6/E6/E6W)

11 mm

-4

0.43 in.

Main: 1,250 mm x 70 mm x

(49.2 in. x 2.76 in. x

)

10 mm

-1

0.39 in.

8 mm

-4

0.31 in.

Helper: 990 mm x 70 mm x

(39.0 in. x 2.76 in. x

)

9 mm

-2

0.35 in.

Ground rating: 2,200 kg (4,850 lb)

Heavy duty spring, rear
(For FE84PC6/E6)

10 mm

-1

0.39 in.

Main: 1,250 mm x 70 mm x

(49.2 in. x 2.76 in. x

)

11 mm

-5

0.43 in.

8 mm

-5

0.31 in.

Helper: 990 mm x 70 mm x

(38.9 in. x 2.76 in. x

)

9 mm

-2

0.35 in.

Ground rating: 2,400 kg (5,291 lb)

ANNOTATION
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Combine with fuel injection pump to reduce black-smoke at high altitude
operation

Altitude fuel compensator

FE83P/84P SERIES OPTIONAL EQUIPMENT (2

／2)

Transmission P.T.O. (on/off control lever type)
Tire–Lug pattern, Heavy duty springs

Dump chassis package

OTHER

ENGINE

Tool box

Fitted to side frame

Tool box with padlock

Fitted to side frame

Output capacity: 147 N·m (15 kgf·m,108 Ib·ft)

/2,000 rpm (33.3 r/s)

Output speed: 0.683 x Engine speed
Rotation: Opposite engine
Control: Cable remote control

Transmission P.T.O.

Spec. No. FE85P, 1/9

1. Model of Chassis

MODEL

2. Body applications classified by model of chassis (

¡: recommendable)

MODEL

TYPE

Cargo Truck

Dump Truck

Aluminum Van

Refrigerated Van

Cargo with Crane

FE85PC6

FE85PE6

FE85PG6

G.V.W.

kg (Ib)

(2)(3)

7,200 (15,875)

ENGINE
(Model)

4D34-2A

WHEELBASE
mm (in.)

2,750 (108.3)

3,350 (131.9)

3,850 (151.6)

ANNOTATION
(1) These models are primarily designed for rigid application.

FE85PE6

FE85PG6

ANNOTATIONS
(1) These models must not be used for dump or mixer applications.
(2) Transmission P.T.O. and its control device are available as optional equipment.
(3) Suitable chassis reinforcement must be added for the cargo with crane.

(1)

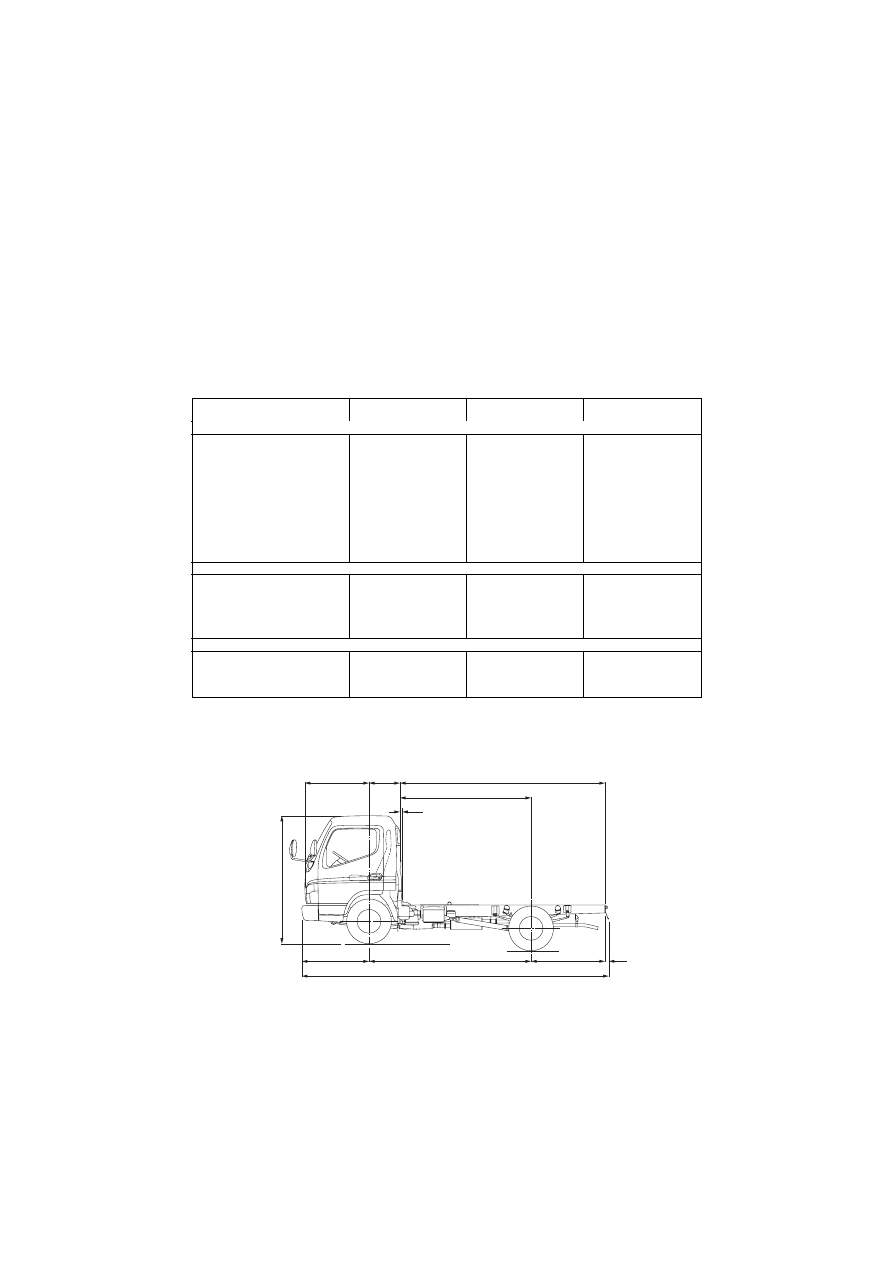

Spec. No. FE85P, 2/9

MITSUBISHI FUSO TRUCK CHASSIS
CANTER
FE85P SERIES

TYPE: FORWARD CONTROL, TILT CAB
DRIVE SYSTEM: 4 x 2, CREW: 3
ENGINE: 4D34-2A, DIESEL, 89 kW (120 PS)/3,200 rpm
G. V. W.: 7,200 kg (15,875 lb), TIRE: 7.50-16-10PR

CHASSIS DIMENSIONS, WEIGHTS AND PERFORMANCE

MODEL

Weights

kg (lb)

Calculated Performance

Wheelbase 2,750 ( 108.3)

3,350 ( 131.9)

3,850 ( 151.6)

Overall length

5,215 ( 205.3)

6,030 ( 237.4)

6,750 ( 265.7)

Overall width

2,035 (

80.1)

2,035 (

80.1)

2,035 (

80.1)

Overall height, approx.

2,210 (

87.0)

2,210 (

87.0)

2,210 (

87.0)

Tread, front

1,665 (

65.6)

1,665 (

65.6)

1,665 (

65.6)

Tread, rear

1,560 (

61.4)

1,560 (

61.4)

1,560 (

61.4)

Ground clearance, approx.

210 (

8.3)

210 (

8.3)

210 (

8.3)

Cab to rear axle

2,225 (

87.6)

2,825 ( 111.2)

3,325 ( 130.9)

Cab to end of frame

3,490 ( 137.4)

4,305 ( 169.5)

5,025 ( 197.8)

Frame width

753 (

29.6)

753 (

29.6)

753 (

29.6)

Front overhang

1,145 (

45.1)

1,145 (

45.1)

1,145 (

45.1)

Rear overhang

1,265 (

49.8)

1,480 (

58.3)

1,700 (

66.9)

R . H . D .

L . H . D .

FE85PC6R

FE85PC6L

FE85PE6R

FE85PE6L

FE85PG6R

FE85PG6L

ANNOTATION
(1) Kerb weights shown are subject to 2.5% variation to allow for production tolerances. Kerb weights include weight of oil,

fuel, coolant but exclude spare tire carrier & bracket, spare tire & disc wheel and standard tool set.

Kerb weight (1)

2,255 ( 4,970)

2,300 ( 5,070)

2,320 ( 5,115)

front

1,520 ( 3,350)

1,550 ( 3,415)

1,565 ( 3,450)

rear

735 ( 1,620)

750 ( 1,655)

755 ( 1,665)

Max. G. V. W.

7,200 (15,875)

front

2,660 ( 5,865)

rear

5,060 (11,155)

Max. speed km/h (mph)

110 (68.4)

Max. gradeability (tan

θ ) %

(with Max. G. V. W.)

33.0

Min. turning radius m (ft)

5.1 (16.7)

6.0 (19.7)

6.8 (22.3)

33.0

Dimensions mm (in.)

7.50-16-10PR

1145

2750

1265

5215

2210 (APPROX)

1088

525

3490

2225
