Mitsubishi Fuso Canter. Manual - part 7





Spec. No. FE71/73, 7/11

Cooling System

Pressure type with thermostat, forced circulation by centrifugal pump

Coolant capacity

14.5 lits. (dm

3

) (3.19 Imp.gals. or 3.83 U.S.gals.)

Fan

P. P. blade

Fuel System

Fuel filter

Full-flow filter with paper element, throwaway type

Injection pump

Bosch type, 4 plungers in line

Governor

All-speed mechanical type

Fuel

Diesel fuel oil (cetane number 45 and more)

Air Cleaner

Dry paper element

Alternator

24 Volt, 50 Amp.

Starter

DC 24 Volt, 3.7 kW

Vacuum Pump

Vane type

Displacement

90 cc (5.4 cu.in.)

Engine Dust-proof

Includes dust-proof alternator, crankcase breather and dipstick

Caution Plate

English

STANDARD

BARO. PRESSURE

TEMP. OF INLET AIR

ACCESSORIES*

JIS

JIS D1004

760 mmHg (101.3 kPa), dry

15.0 °C

Fan**, Air cleaner

Fan**, Intake and

DIN

DIN 70020

760 mmHg (101.3 kPa)

20.0 °C

exhaust system of vehicle***

SAE, Gross

SAE J1349

742.6 mmHg (99 kPa), dry

25.0 °C

──

Engine Model

MITSUBISHI FUSO 4D34

-3A

Type

4 stroke-cycle, water-cooled direct injection diesel engine

No. of Cylinders

4 in line

Bore x Stroke

104 mm x 115 mm (4.09 in. x 4.53 in. )

Piston Displacement

3.907 L (238.4 cu.in.)

Compression Ratio

17.5 : 1

BASIC ENGINE SPECIFICATIONS

CHASSIS MODEL

Max. Output

80 kW (109 PS) (JIS)
78 kW (106 PS) (DIN)
76 kW (102 hp) (SAE,Gross)
at 3,200 rpm (53.3 r/s) (1)

FE71P, FE73P

255 N·m (26.0 kgf·m, 188 lb·ft) (JIS)
251 N·m (25.6 kgf·m, 185 lb·ft) (DIN)

Max. Torque

240 N·m (24.5 kgf·m, 177 lb·ft) (SAE, Gross)

at 1,800 rpm (30.0 r/s)

Weight

325 kg (716 lb) in dry

Oil System

Oil filter

Full-flow filter with paper element, throwaway type

Oil cooler

Water-cooled

Oil pan capacity

9 lits. (dm

3

) (1.98 Imp.gals. or 2.38 U.S.gals.)

Recommended oil grade

API service classification CC or CD

ANNOTATION
(1) Max. speed of 4D34-3A engine is 3,400 rpm (56.6 r/s).

REMARKS
(1) Output and torque represent performance of run-in engine operating under the standard ambient conditions and

accessories specified below.

(2) Rated output is guaranteed within 5% under the standard ambient conditions.

* Other than built-in accessories essential to engine operation.

** 4D34

-3A, 430 mm dia. 8 blades, P. P., fan ratio 1.27

*** Output (DIN) is based on the assumptions that max. inlet restriction is 350 mm H

2

O (3.4 kPa) and max. exhaust back

pressure is 150 mmHg (19.9 kPa).

Spec. No. FE71/73, 8/11

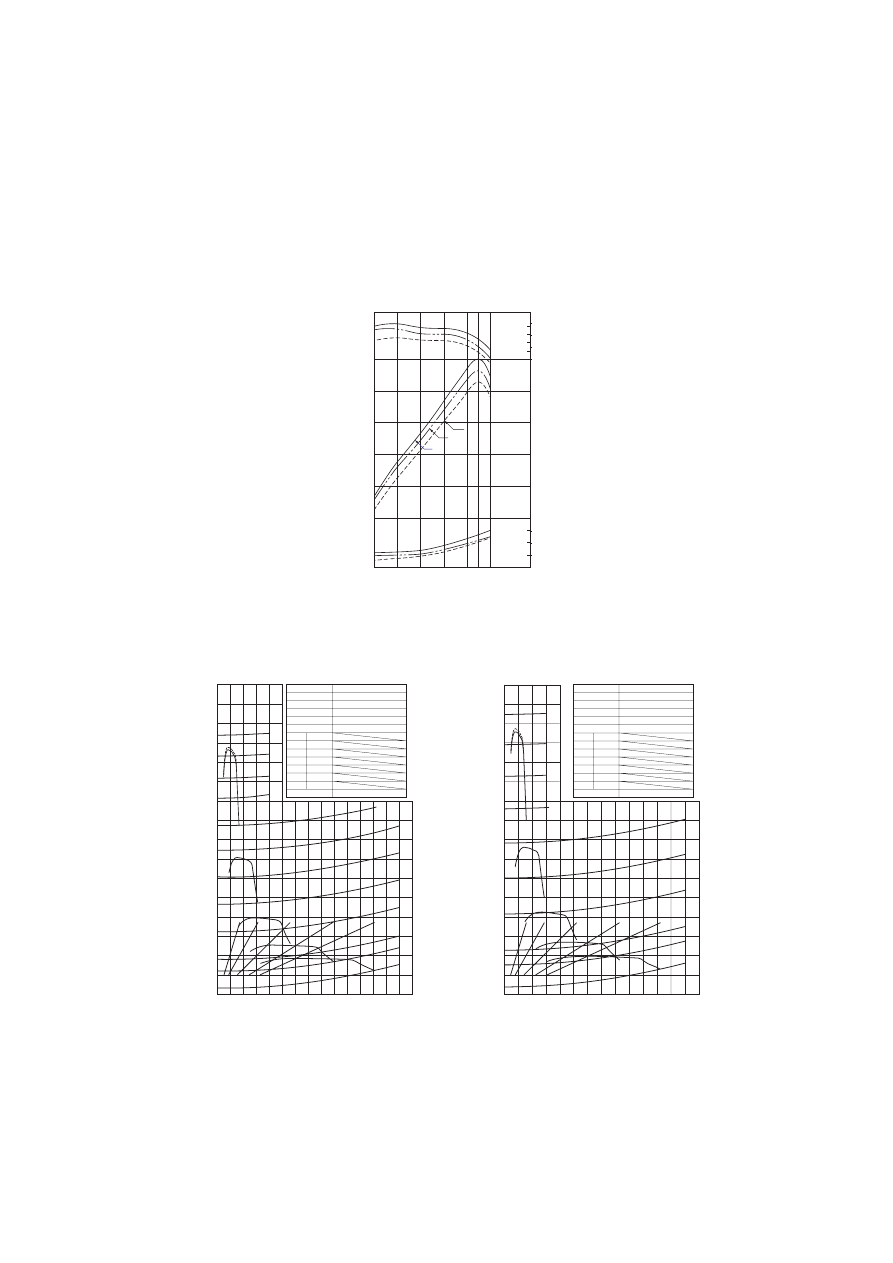

ENGINE PERFORMANCE CURVES

FE71PB8

FE73PB6

/FE73PE6

MITSUBISHI FUSO 4D34-3A DIESEL ENGINE

VEHICLE PERFORMANCE CURVES

OUTPUT

kW(PS): JIS & DIN

kW(hp): SAE, Gross

lb·ft

g/kW·h

(g/PS·h)

lb/hp·h

272

(200)

0.45

0.40

0.35

245

(180)

218

(160)

N·m

(kgf·m)

255

(26)
235

(24)
216

(22)
196

(20)

1400

1800

2200

2600 3000

3400

ENGINE SPEED (rpm)

BRAKE SPECIFIC FUEL CONSUMPTION

TORQUE

3200

B. S. F. C

SAE

DIN

JIS

80

(109)

70

(95)

60

(82)

50

(68)

40

(54)

30

(41)

145

155

165

175

185

2400

2250

2100

1950

1800

1650

1500

1350

1200

1050

900

750

600

450

300

150

0

0

10 20 30 40 50 60 70 80 90 100 110 120 130 140

0

1

2

3

4

5

6

7

8

×

1000

VEHICLE   SPEED   (km/h)

ENGINE   SPEED   (rpm)

RUNNING  RESISTANCE  AND  TRACTION   (kg)

4D34-3A

80kW (109PS)/3200rpm

255N·m (26.0 kgf·m)/1800rpm

4400kg

7.50-15-10

0.367m

T/M

1st

2nd

3rd
4th
5th

Rev.

G/RATIO

5.181
2.865
1.593
1.000
0.739
5.181

ENGINE  MODEL
MAX

.

OUTPUT

MAX

.

TORQUE

GROSS  WEIGHT
TIRE   SIZE
TIRE   RADIUS


FINAL  G/RATIO

5.714

35%

40%

45%

50%

25%

30%

20%

15%

10%

5%

3%

0%

5

5

4

4

3

3

2

2

R

1

R

1

2400

2250

2100

1950

1800

1650

1500

1350

1200

1050

900

750

600

450

300

150

0

0

10

20

30

40

50

60

70

80

90 100

120

110

130

0

1

2

3

4

5

6

7

8

×

1000

VEHICLE   SPEED   (km/h)

ENGINE   SPEED   (rpm)

RUNNING  RESISTANCE  AND  TRACTION   (kg)

ENGINE  MODEL
MAX

.

OUTPUT

MAX

.

TORQUE

GROSS  WEIGHT
TIRE   SIZE
TIRE   RADIUS


4D34-3A

80kW (109PS)/3200rpm

255N·m (26.0 kgf·m)/1800rpm

5700kg

7.00-16-10

0.368m

T/M

1st

2nd

3rd
4th
5th

Rev.

G/RATIO

5.181
2.865
1.593
1.000
0.739
5.181

FINAL  G/RATIO

6.166

20%

25%

30%

35%

40%

15%

10%

3%

5%

0%

5

5

4

4

3

3

2

2

R

1

R

1

Spec. No. FE71/73, 9/11

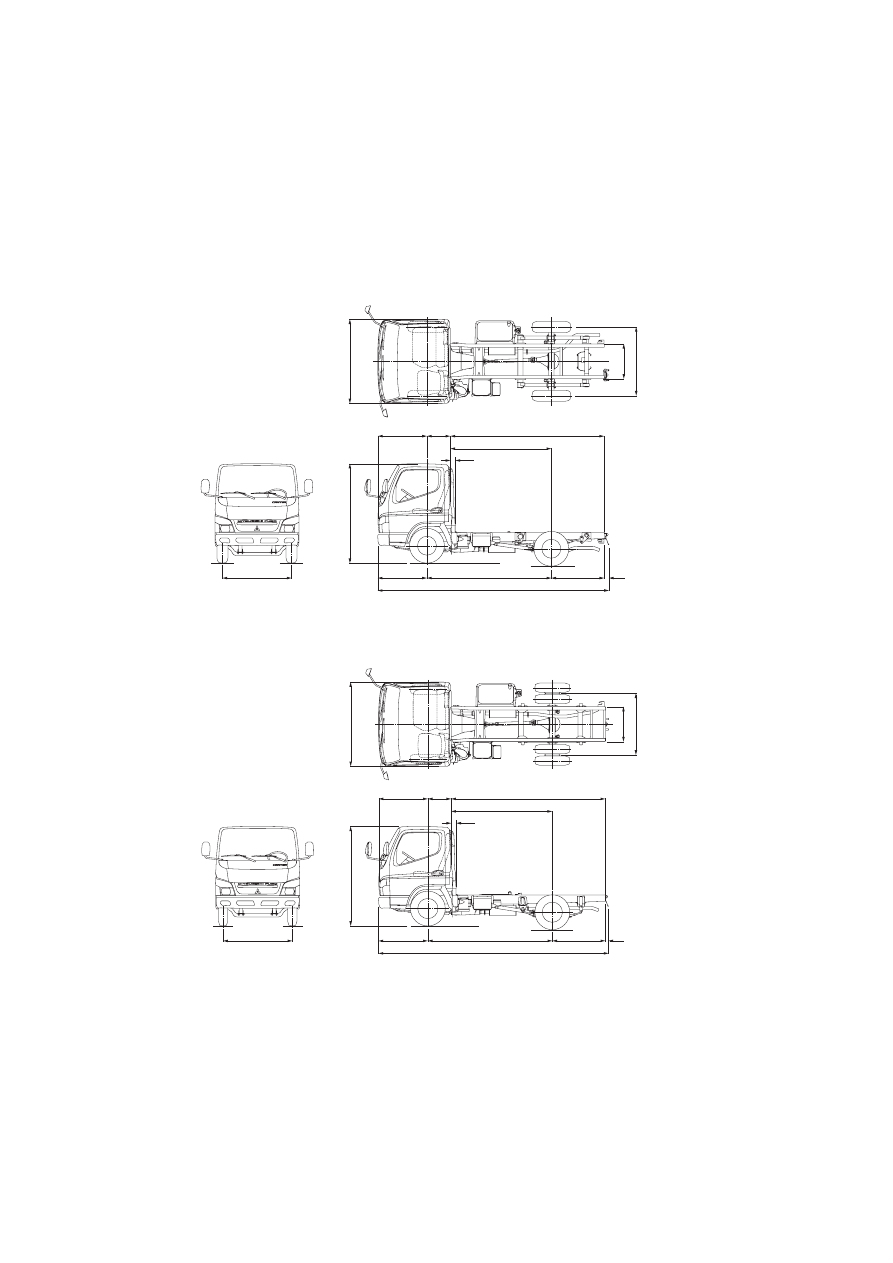

CHASSIS LAYOUT

FE71PB8L

FE71PBN4L

NOTE :
These drawings show left hand drive model. For right hand drive model, exterior rear view mirror and windshield wiper on
left and right sides are symmetric with respect to the chassis center line.

1695

700

1380

1390

7.50-15-10PR

1000

2500

1065

95

4660

2005 (APPROX)

985

470

3095

2030

102

1695

700

1235

1390

6.50-16-10PR

1000

2500

4630

1075

1995 (APPROX)

55

985

470

3105

2030

102

Spec. No. FE71/73, 10/11

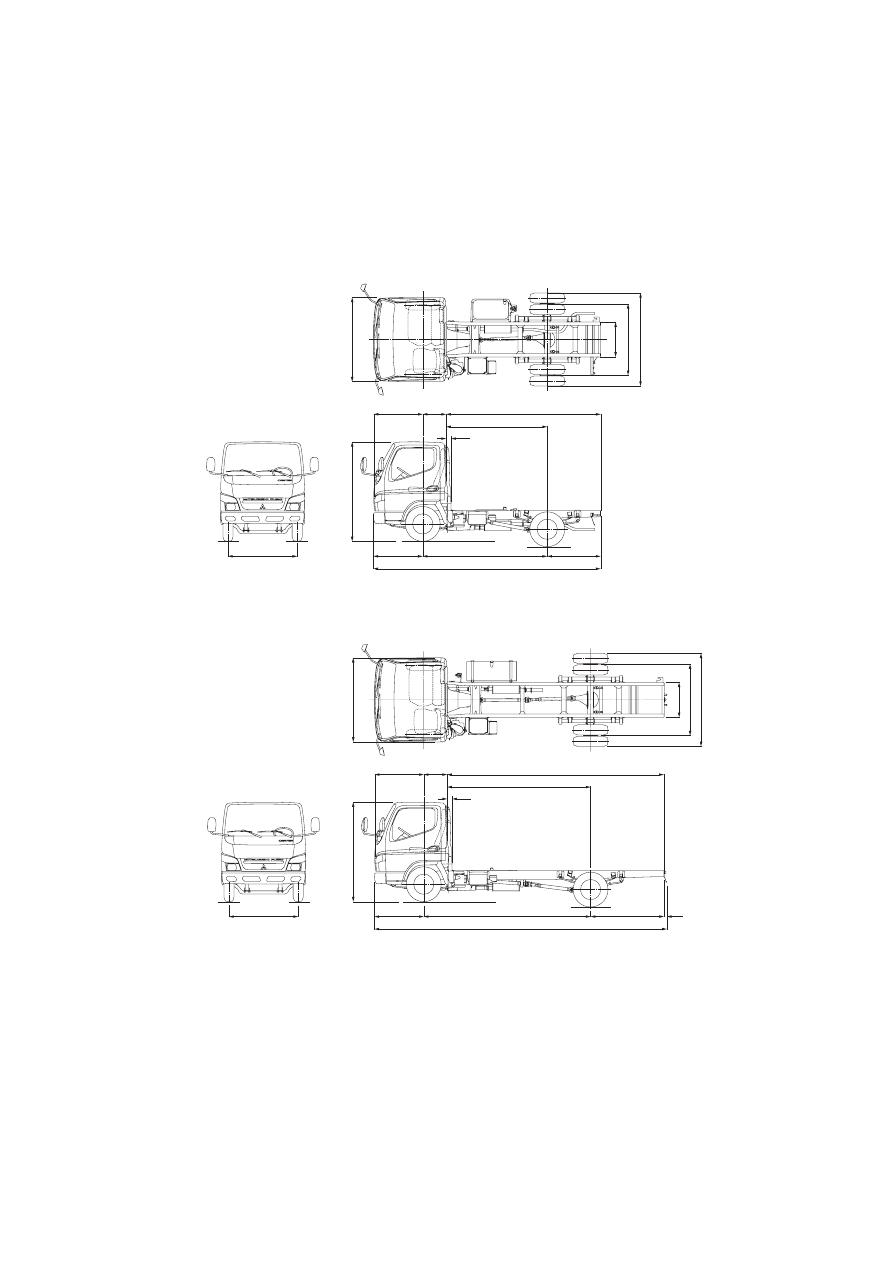

CHASSIS LAYOUT

FE73PB6L

FE73PE6L

NOTE :
These drawings show left hand drive model. For right hand drive model, exterior rear view mirror and windshield wiper on
left and right sides are symmetric with respect to the chassis center line.

1390

1695

700

1435

1870

7.00-16-10PR

1000

2055 (APPROX)

2500

4575

1075

985

470

3105

2030

102

1435

1695

700

1870

1390

7.00-16-10PR

3350

1000

1480

5885

2055 (APPROX)

55

985

470

4360

2880

102
