Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 671

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

NOTES

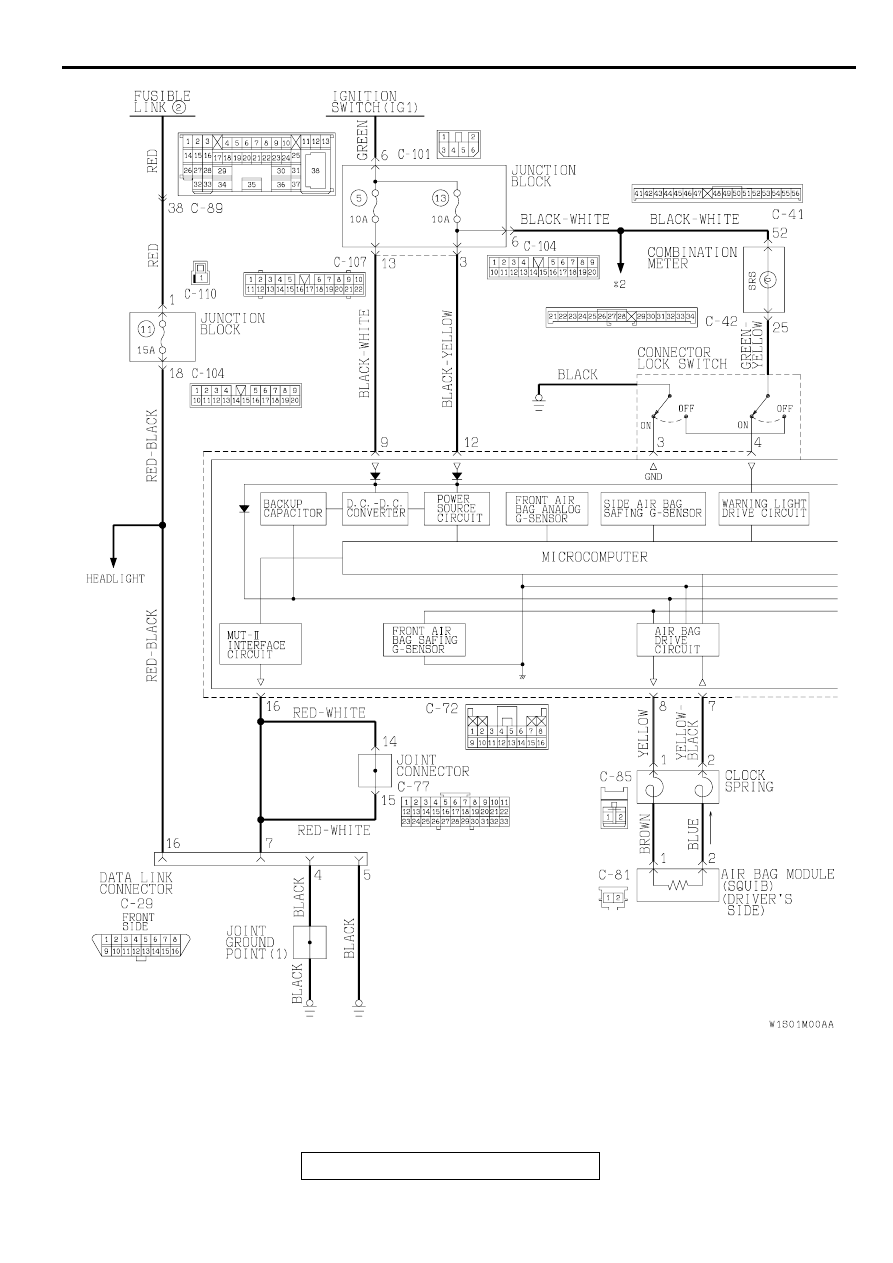

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

AC003872

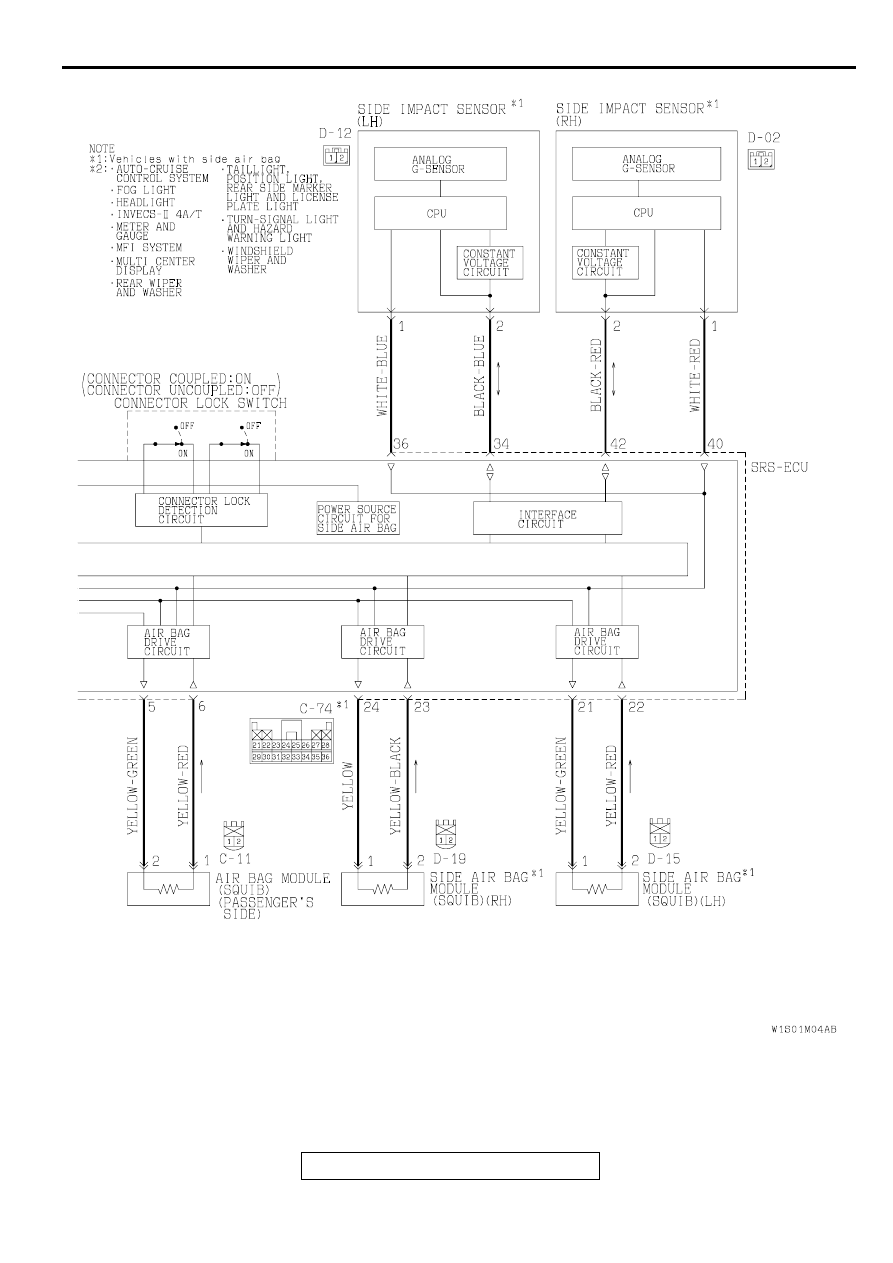

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

AC003873

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

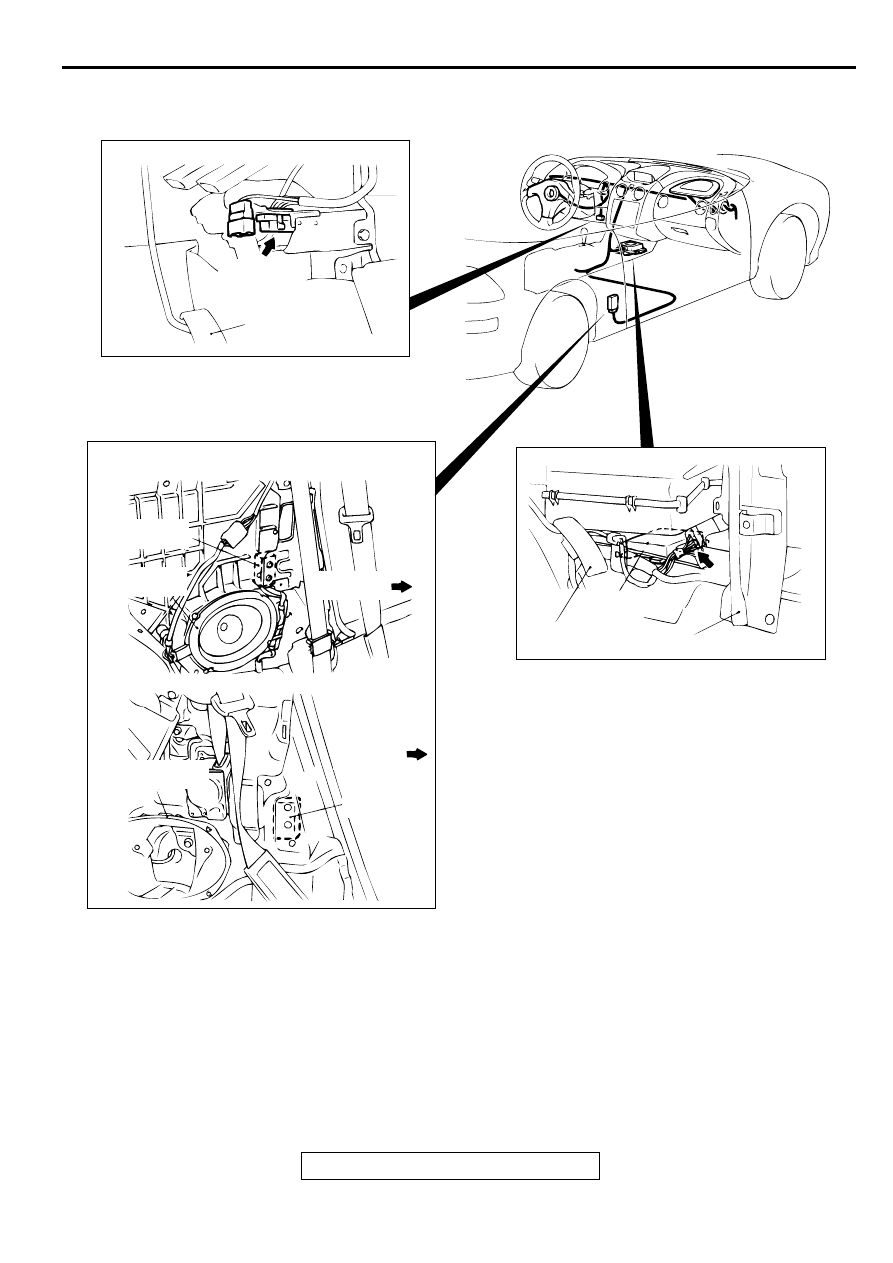

COMPONENT LOCATION

AC003020AB

DATA LINK CONNECTOR

DATA LINK
CONNECTOR

ACCELERATOR
PEDAL

SRS-ECU

SRS-ECU

ACCELERATOR PEDAL

CENTER REINFORCEMENT (LH)

SIDE IMPACT SENSOR

<ECLIPSE>

<ECLIPSE SPYDER>

SIDE IMPACT
SENSOR

REAR
SPEAKER

FRONT OF
VEHICLE

SIDE IMPACT
SENSOR

REAR SPEAKER
BRACKET
