Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 663

TRIMS

TSB Revision

INTERIOR

52A-11

AC003035AB

6

7

8

9

9

10

10

11

11

G

G

F

F

H H

H

H

I

I

I

I

NOTE
      : Clip position
      : Claw position

SECTION F – F

SECTION G – G

SECTION H – H

SECTION I – I

CLAW

REAR
END
TRIM

REAR END TRIM

CLIP

REAR SIDE
TRIM

CLIP

SERVICE LID

REAR SIDE
TRIM

CLIP

LID

12

14

15

16

22 ± 4 N·m
16 ± 3 ft-lb

13

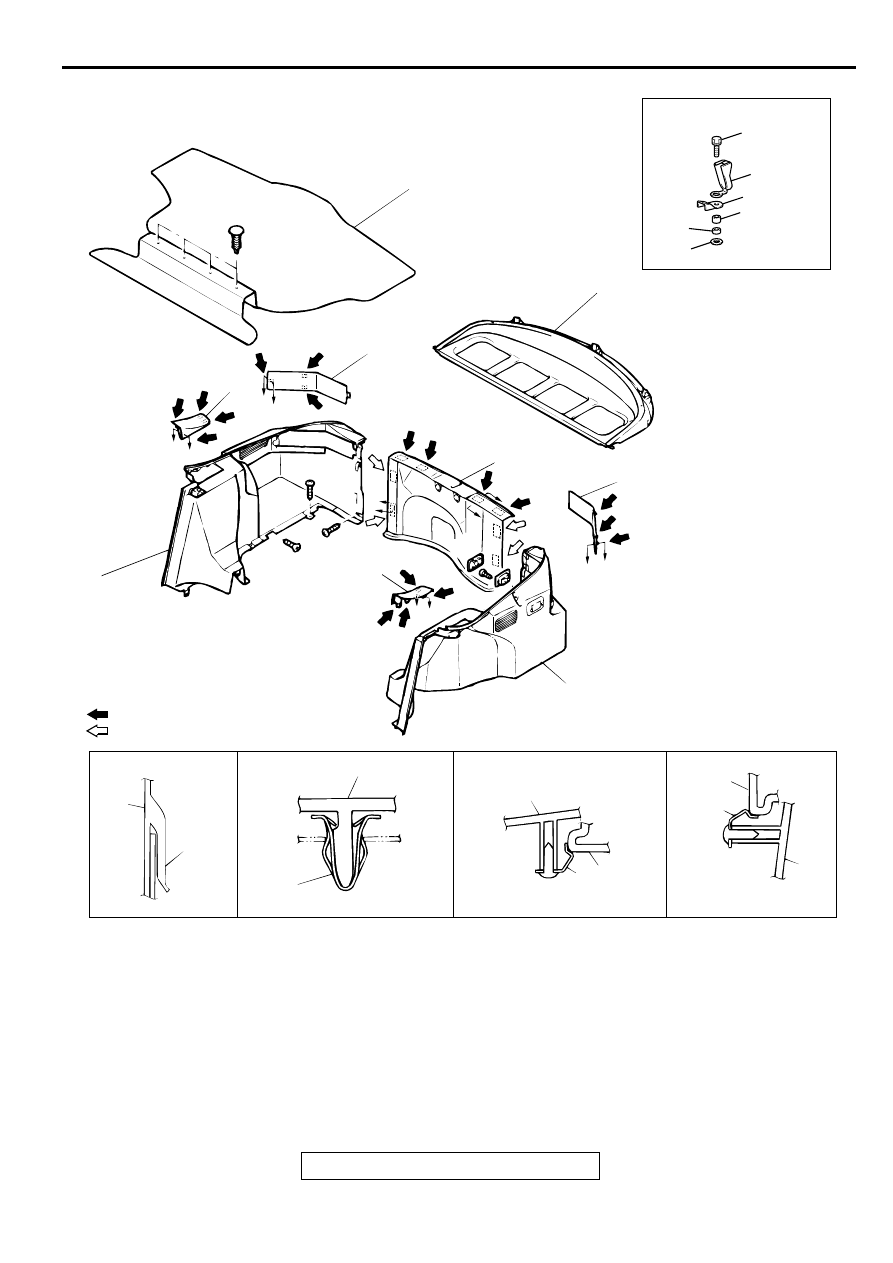

TRIMS REMOVAL STEPS

6.

SHELF TRIM

7.

LUGGAGE COMPARTMENT
FLOOR CARPET ASSEMBLY

8.

REAR END TRIM

9.

REAR SIDE TRIM

10. SERVICE LID
11. LID

TETHER ANCHOR REMOVAL
STEPS

12. COVER
13. TETHER ANCHOR BRACKET
14. SPACER 10mm (0.4 inch)
15. SPACER 7mm (0.3 inch)
16. FIBER WASHER

TRIMS

TSB Revision

INTERIOR

52A-12

<ECLIPSE SPYDER>

Pre-removal and Post-installation Operation

•

Rear Seat Cushion and Installation (Refer to

P.52A-23

.)

AC003044AB

1

2

3

4

5

6

7

8

9

10

11

12

13

E

E

D

D

D

D

B

B

A

A

C

C

FRONT PILLAR

ENERGY
ABSORBER
TUBE

D

D

D D

H

H

H

H

GG

F F

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

NOTE
      : Clip position
      : Claw position

SECTION A – A

SECTION B – B

SECTION C – C

SECTION D – D

SECTION E – E

SECTION F – F

SECTION G – G

SECTION H – H

WINDSHIELD

INSTRUMENT
PANEL

FRONT
PILLAR
TRIM

FRONT PILLAR
TRIM

CLAW

FRONT PILLAR TRIM

CLIP

E/A TUBE

FRONT PILLAR

CLIP

QUARTER TRIM
LOWER FRONT PILLAR
TRIM, FRONT ROOF RAIL TRIM

FRONT SCUFF PLATE

CLIP

GROMMET

QUATER TRIM,
LOWER

CLAW

SPEAKER
GARNISH

CLIP

QUATER TRIM,
LOWER

SPEAKER
GARNISH

CLAW

QUARTER
TRIM,
LOWER

SEAT
BELT
GUIDE

FRONT PILLAR TRIM AND
FRONT ROOF RAIL TRIM

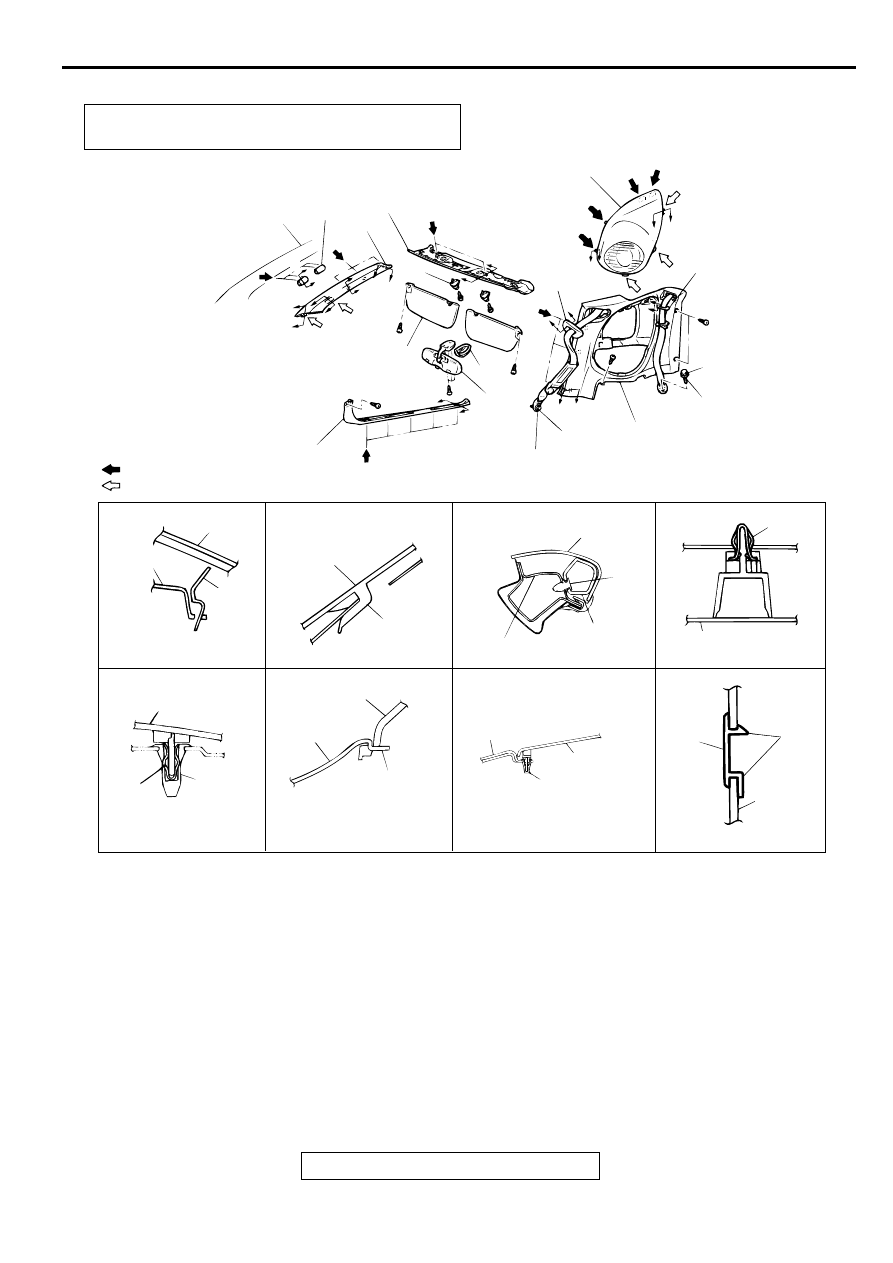

REMOVAL STEPS

1.

FRONT SCUFF PLATE

2.

FRONT PILLAR TRIM

3.

SUNVISOR

4.

SUNVISOR HOLDER

5.

INSIDE REAR VIEW MIRROR
STAY COVER

6.

INSIDE REAR VIEW MIRROR

7.

FRONT ROOF RAIL TRIM

QUARTER TRIM REMOVAL
STEPS

•

DOOR INNER REAR OPENING
WEATHERSTRIP (REFER TO
GROUP 42

−

 DOOR INNER

OPENING WEATHERSTRIP

P.42-

83

.)

•

REAR SEAT (REFER TO

P.52A-

23

.)

8.

FRONT OUTER SEAT BELT
ANCHOR PLATE

9.

SEAT BELT GUIDE <FRONT>

10. REAR OUTER SEAT BELT

ANCHOR PLATE

TRIMS

TSB Revision

INTERIOR

52A-13

11. SEAT BELT GUIDE <REAR>
12. REAR SPEAKER GARNISH
13. QUARTER TRIM, LOWER

QUARTER TRIM REMOVAL
STEPS (Continued)

AC003045AB

14

15

J

J

I

I

NOTE
      : Clip position
      : Claw position

SECTION I – I

SECTION J – J

REAR
END
TRIM

CLAW

CLIP

REAR END TRIM

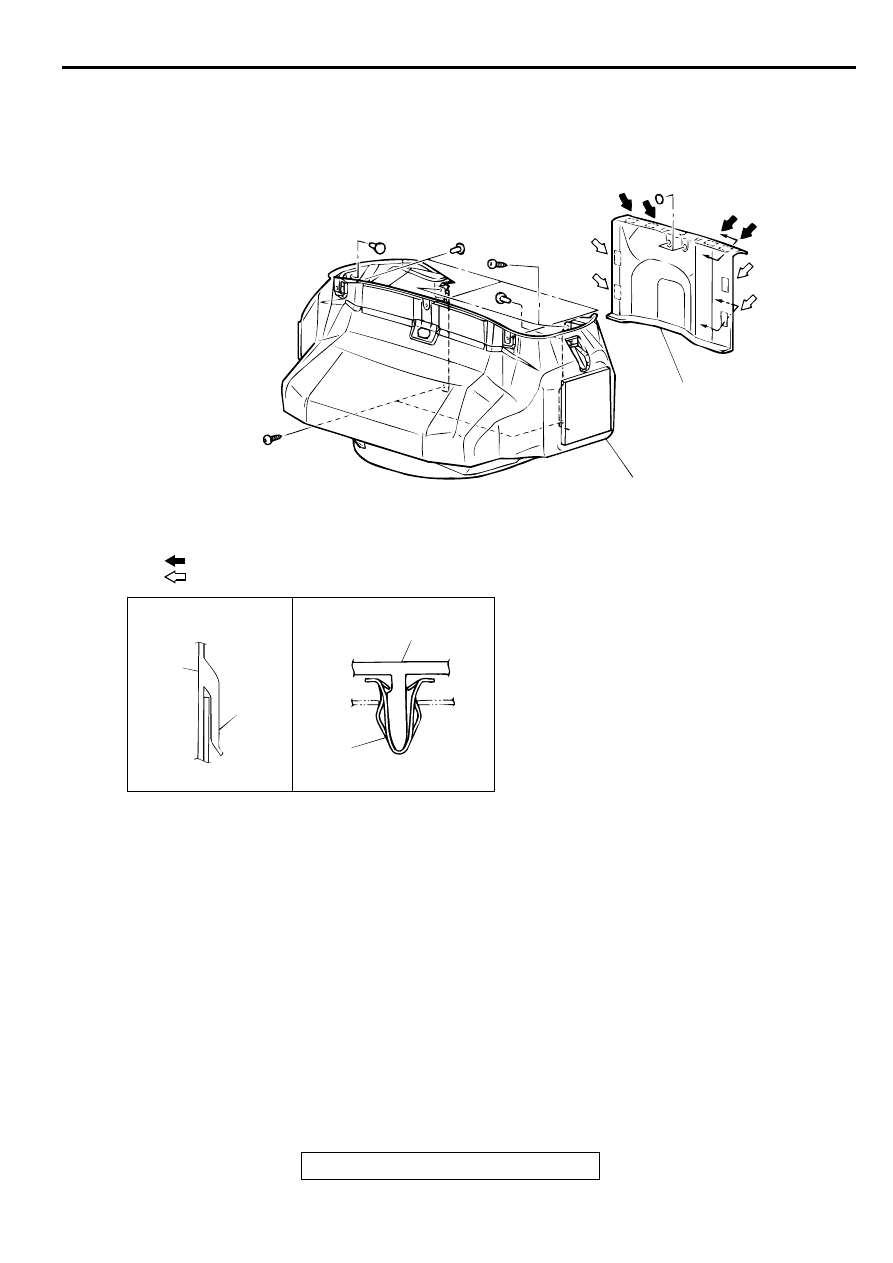

14. REAR END TRIM
15. TRUNK COMPARTMENT TRIM

HEADLINING

TSB Revision

INTERIOR

52A-14

H EA D LIN IN G

REMOVAL AND INSTALLATION

M1521001400069

<ECLIPSE>

Pre-removal and Post-installation Operation
• Front Pillar Trim and Quarter Trim, Upper Removal and

Installation (Refer to

P.52A-10

.)

AC003036AB

1

2

3

4

5

6

7

A

A

B

B

NOTE
      : Claw position

SECTION A – A

SECTION B – B

CLAW

BRACKET

DOME LIGHT
ASSEMBLY

SUNROOF
SWITCH

CLAW

SUNROOF
SWITCH COVER

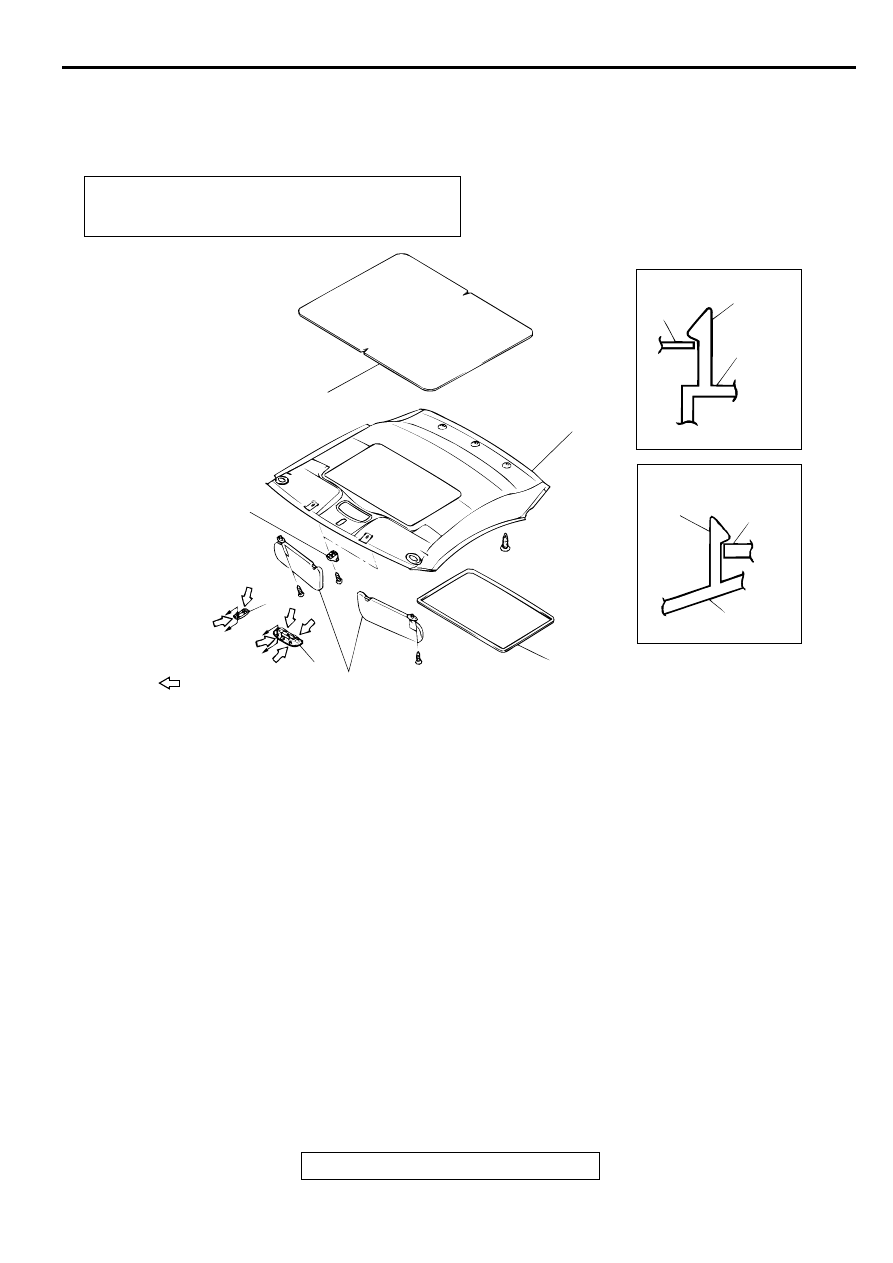

REMOVAL STEPS

1. SUNVISOR ASSEMBLY
2. SUNVISOR HOLDER
3. DOOM LIGHT ASSEMBLY

<VEHICLES WITHOUT SUNROOF>

4. SUNROOF SWITCH COVER

<VEHICLES WITH SUNROOF>

5. HEADLINING TRIM <VEHICLES

WITH SUNROOF>

6. HEADLINING
7. ROOF PAD <VEHICLES WITHOUT

SUNROOF>

REMOVAL STEPS (Continued)
